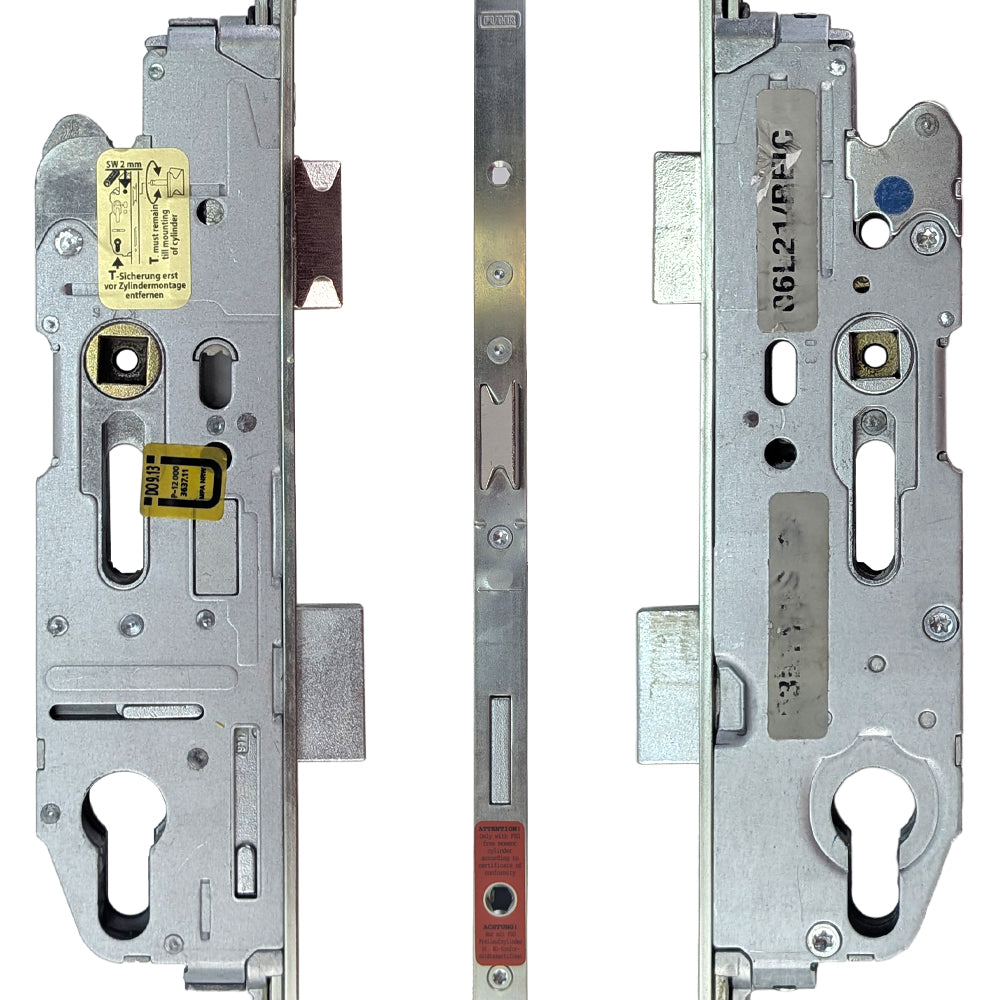

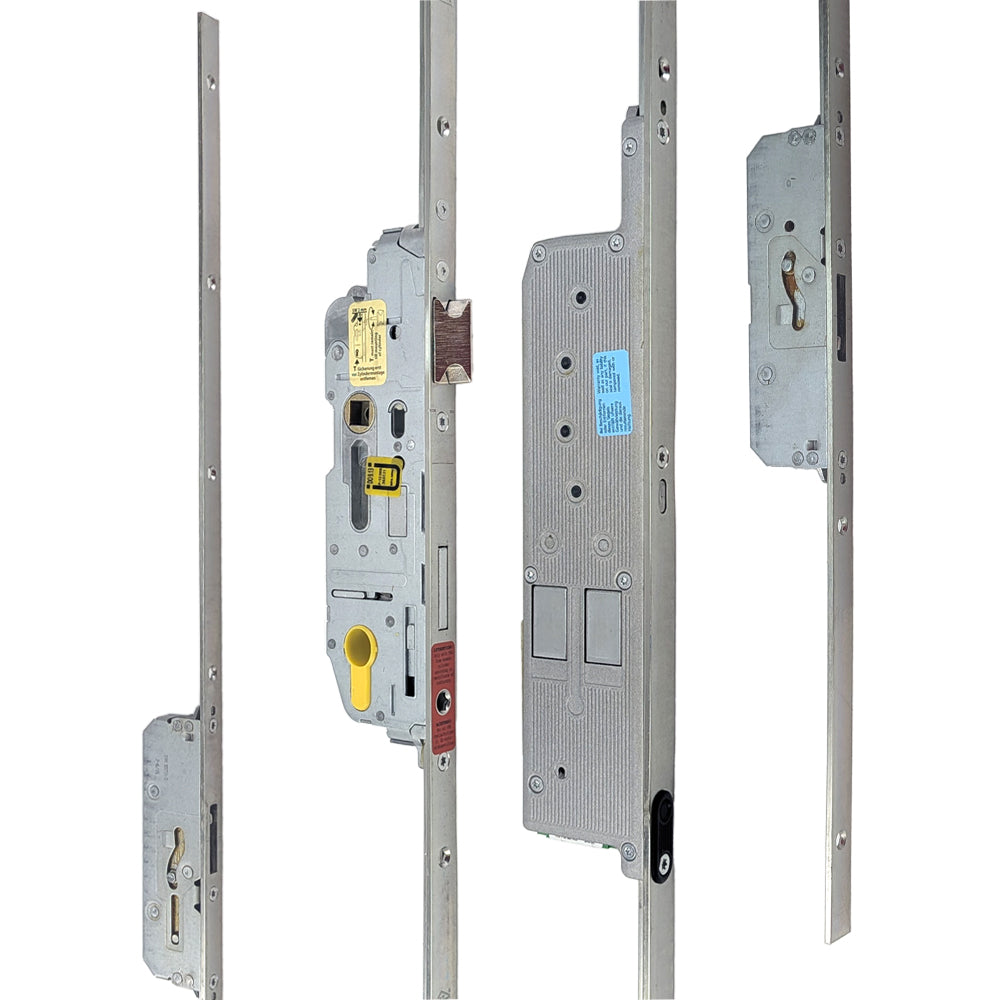

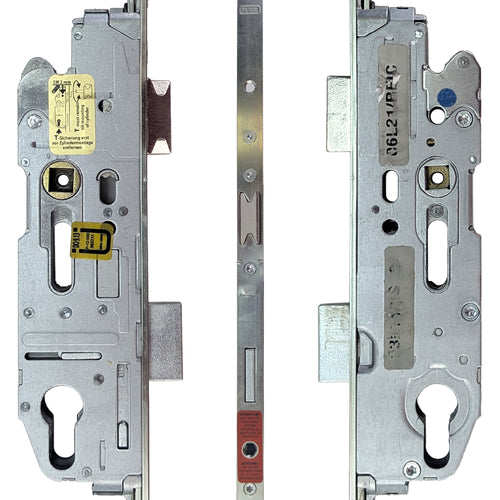

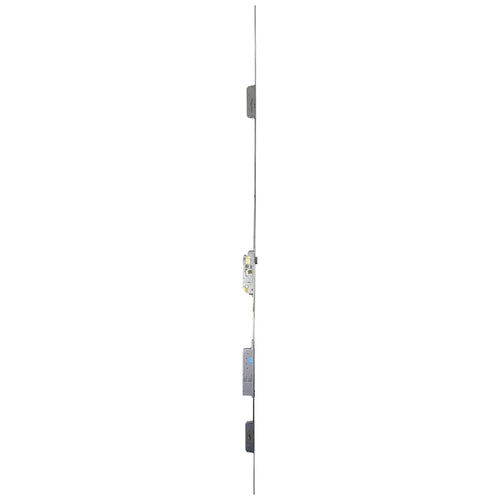

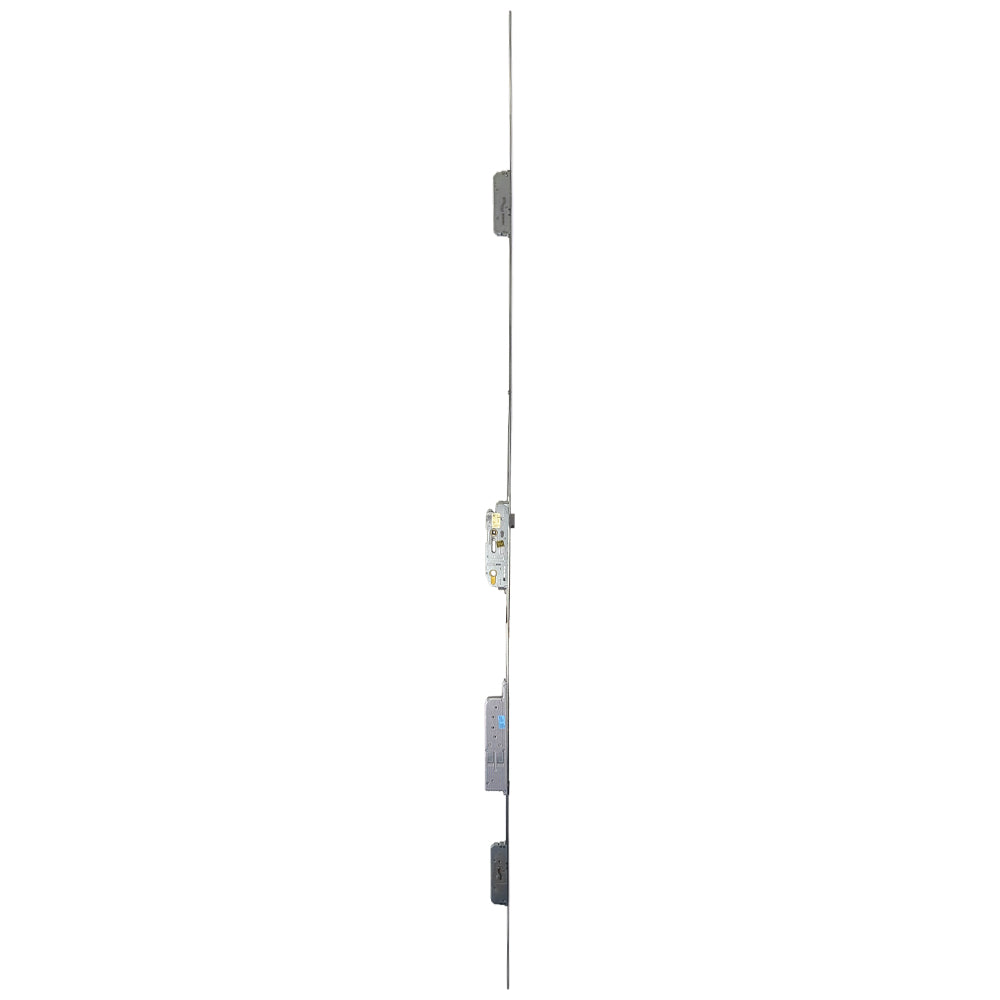

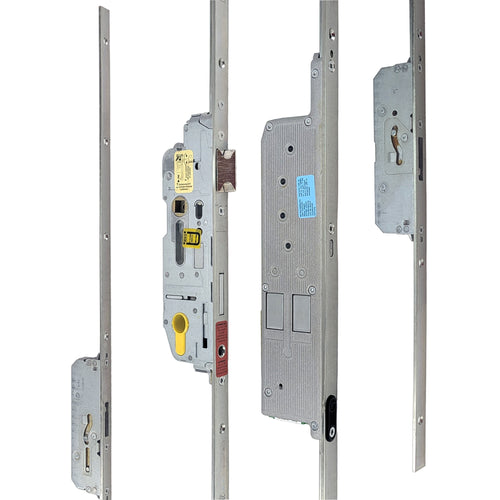

HOPPE/FUHR 16mm Electronic Multipoint Lock Unit - Right Hand

35/92 Swing Hook Multitronic Keyless Electronic Multipoint Locking System

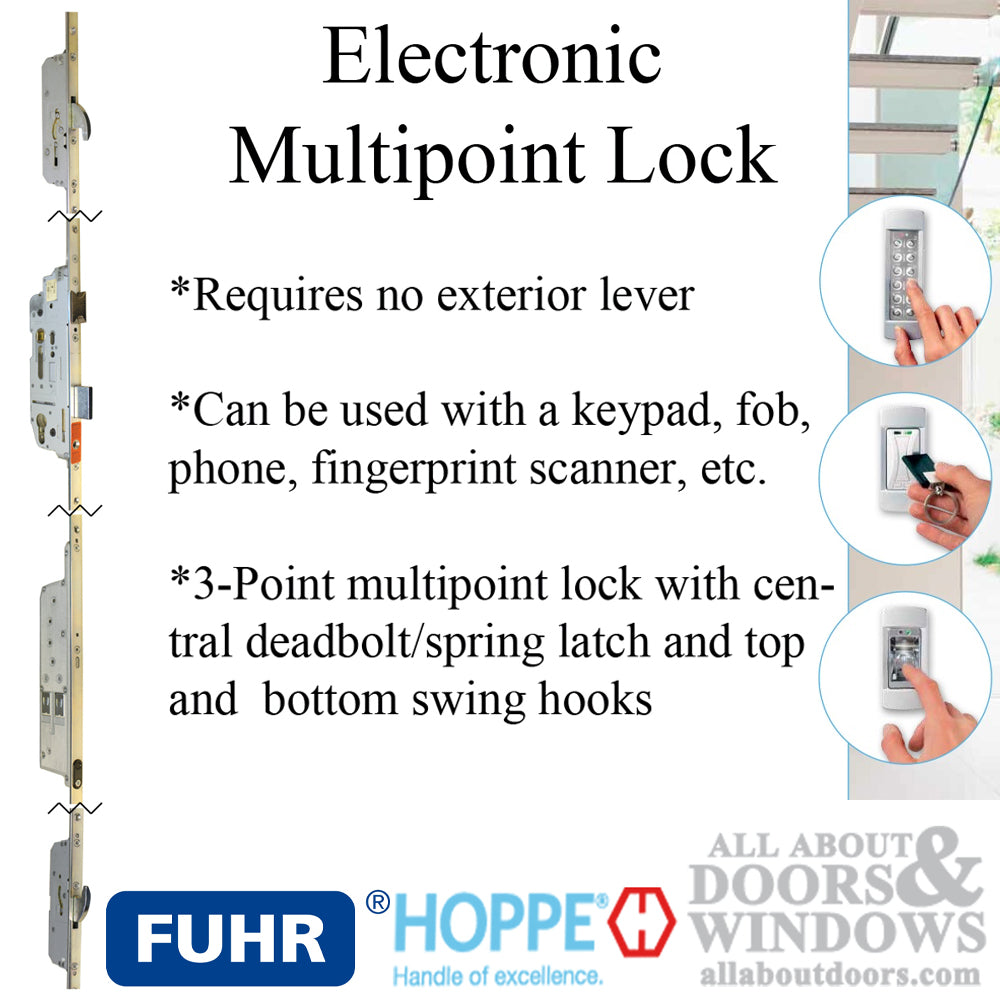

Uses a gear-driven deadbolt, and a key or lever to retract the latch.

When activated the 2 swinghook locking points engage towards each other.

• Lock Type: Swing hook
• Handed: Yes, right-handed.
  • See handing chart for in-swing or out-swing doors.
  • Latch may be switched for in-swing or out-swing applications.
• Length: 85.43 inches / 2170mm
• Faceplate width: 5/8 inches / 16mm
• Backset: 1-3/8 inches / 35mm
• PZ (Distance from center of handle to center of cylinder): 3-5/8 inches / 92mm
• Deadbolt throw: 0.78 inches / 20mm
• Handle height: 40.15 inches / 1020mm
• Lower swing hook: 29.53 inches / 750mm
• Upper swing hook: 29.76 inches / 756mm
• Door thickness: 1-3/4 inches / 45mm
• Door height: 90 inches / 2286mm

This purchase can only be completed after the customer fills out a Worksheet/Questionnaire.

Non-cancellable / Non-returnable

Doors are viewed from outside hinge location.

Note 1: Handleset is needed, but not included.

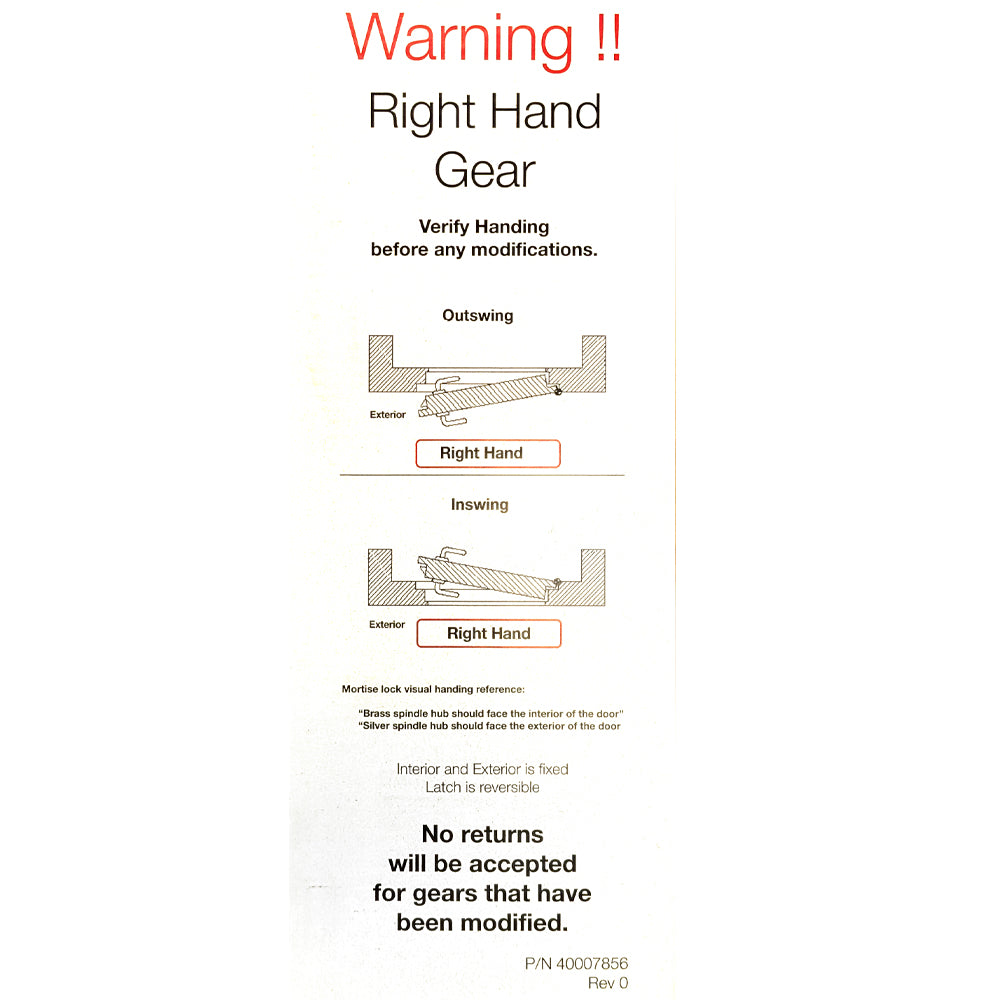

Note 2: Mortise lock handing reference:

• Brass spindle hub should face the interior of the door
• Silver spindle hub should face the exterior of the door

Related Items:

• Standard components:

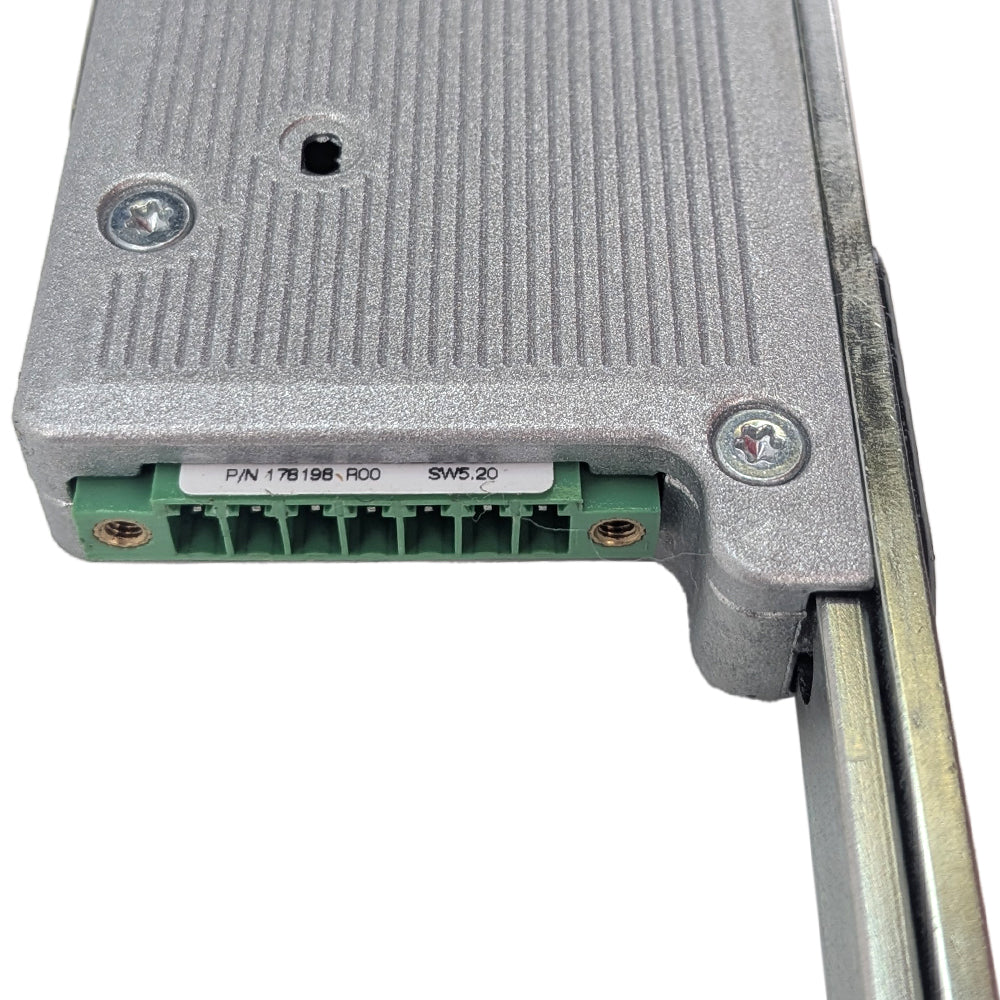

  • 3986961 - Pack of standard component items needed per gear installation: cable guide, end cap, contact for panel/frame, control unit for frame.
  • 3981166 - Euro-groove cover plate for top, horizontal and vertical hinge side of door panel.
• Panel thickness components for 1-3/4" (45mm) door:
  • 87107098 - Two-piece 8mm ? 120mm panic spindle.
  • 1933419 - 8mm to 9mm spindle sleeve adapter, 15mm long.
  • 3121633 - M6 ? 6mm set screw.
  • 10705928 - Stainless steel adjustable swing hook strike.
  • 10708221- Dust cap for swing hook strike.
  • 8787747 - Stainless steel curved lip latch & deadbolt strike.
  • 8786547 - Dust cap for latch & deadbolt.
