This product has been discontinued and is limited to existing inventory. Replace with any other available color.

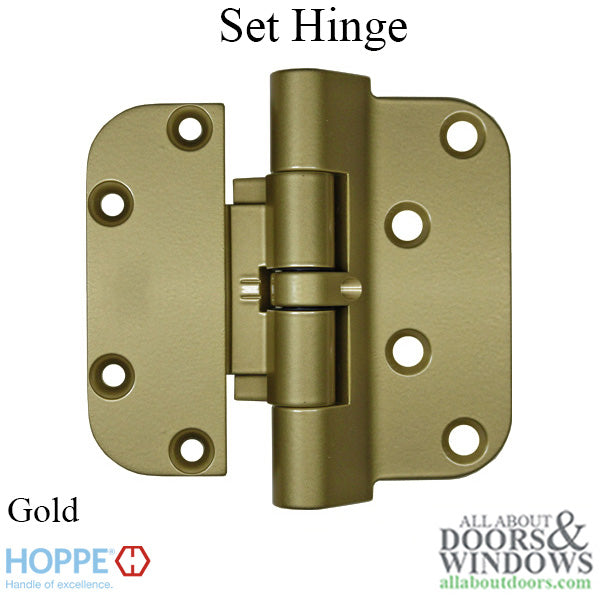

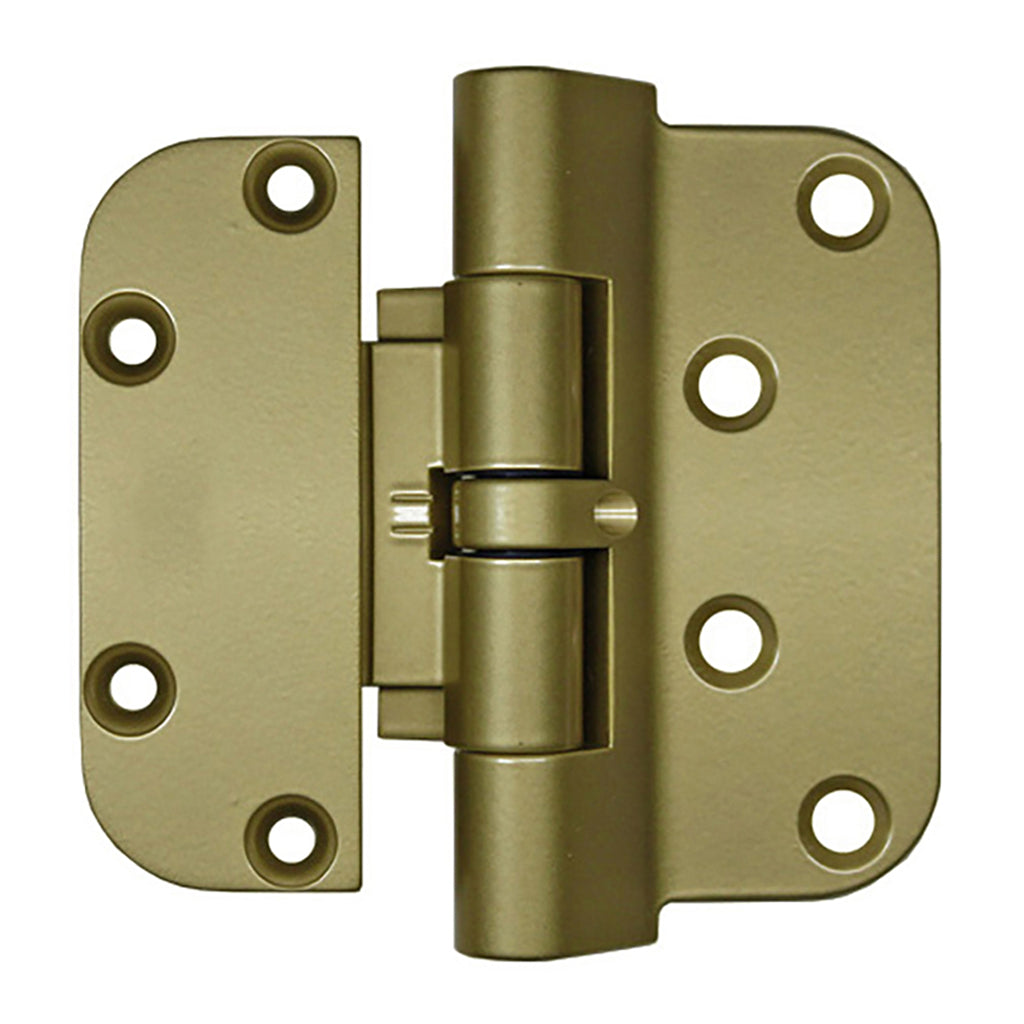

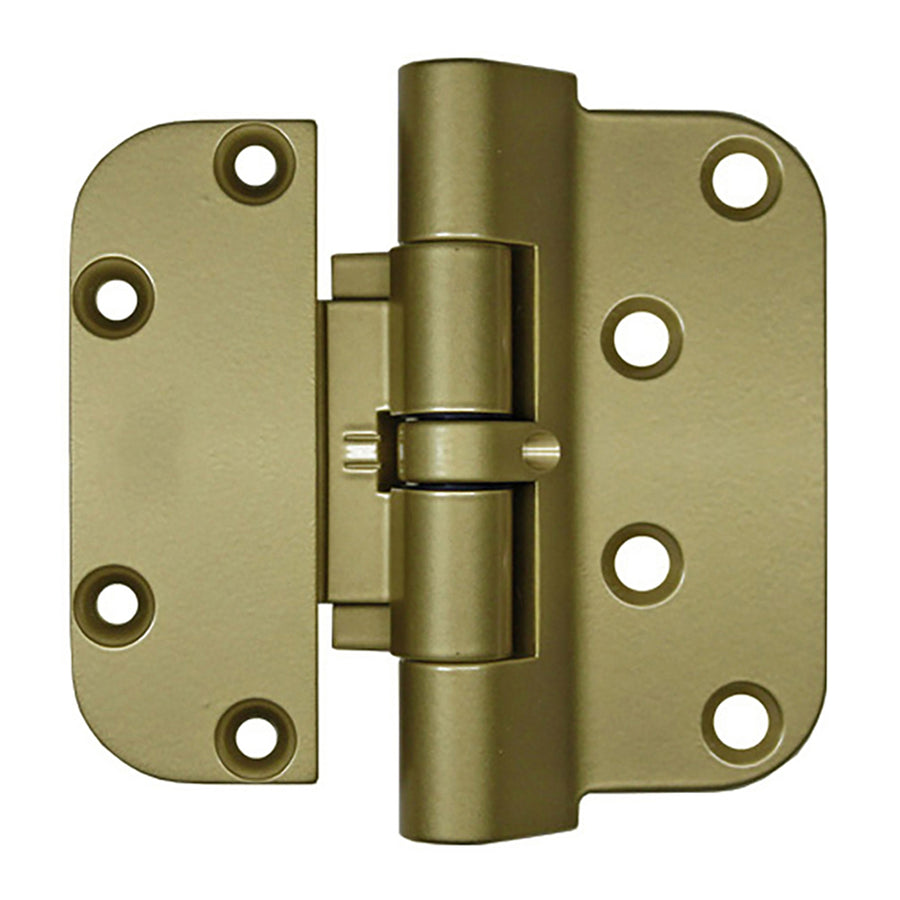

Hoppe New 2009 Ultimate Adjustable Hinge

This item is discontinued and is limited to existing inventory.

* Adjusts both vertically (Set Hinge) and horizontally (Guide Hinge) by +/- 1/8" (+/- 3mm) for a perfect swing without costly repairs or carpentry work

* Large 3/16" hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws

* All Set Hinges are equipped with non-removable pins for security, making HOPPE hinges the ideal solution for both inswing and outswing doors

Material: Aluminum
Hinge Type: Set for Vertical Adjustment
Hinge Style: NRP - Non Removable Pin - Hinges does not come apart
Color / Finish: Gold

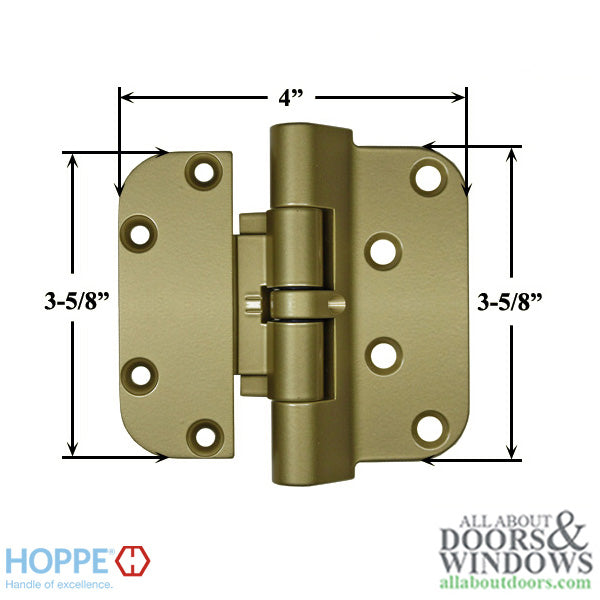

Size: 4 inches Wide by 3-5/8 tall (Set additional images)

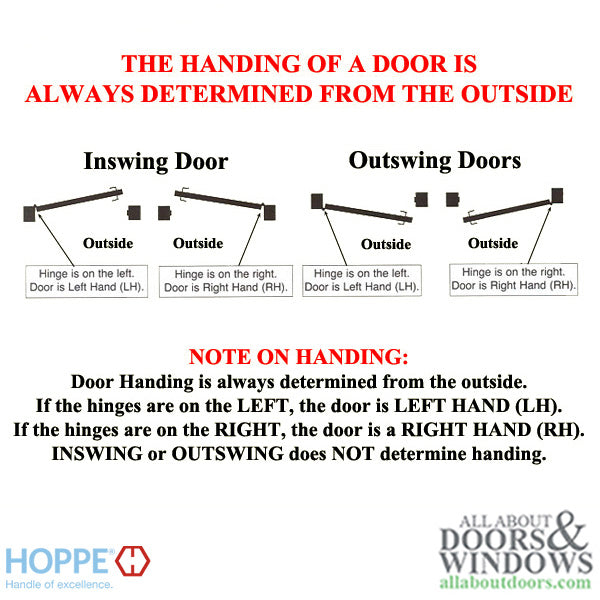

Handed: Yes - RHI (right hand inswing) LHO (left hand outswing)

NOTE:

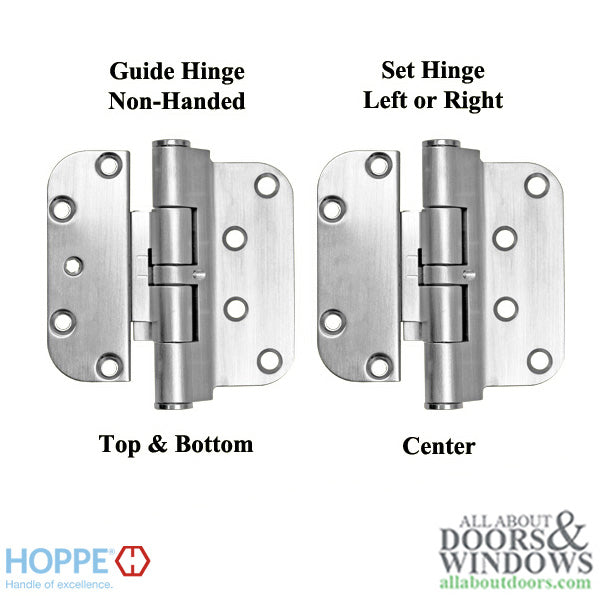

A 3 hinge door will have 1 set hinge (middle) and 2 guide hinges( top & bottom)

Screws are not included with hinges. Must be purchased separately

Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf

RESOURCES:
Guide to Adjusting HOPPE Hinges
Installation Guide for HOPPE Hinges

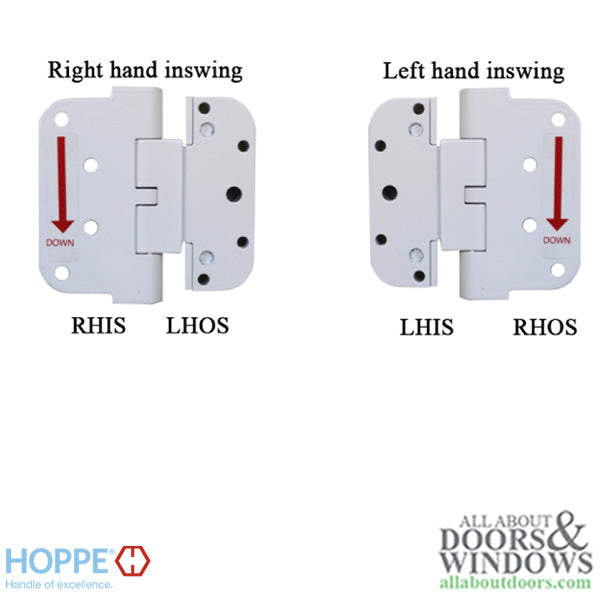

RHIS - Right Hand Inswing
RHOS - Right Hand Outswing
LHIS - Left Hand Inswing
LHOS - Left Hand Outswing
