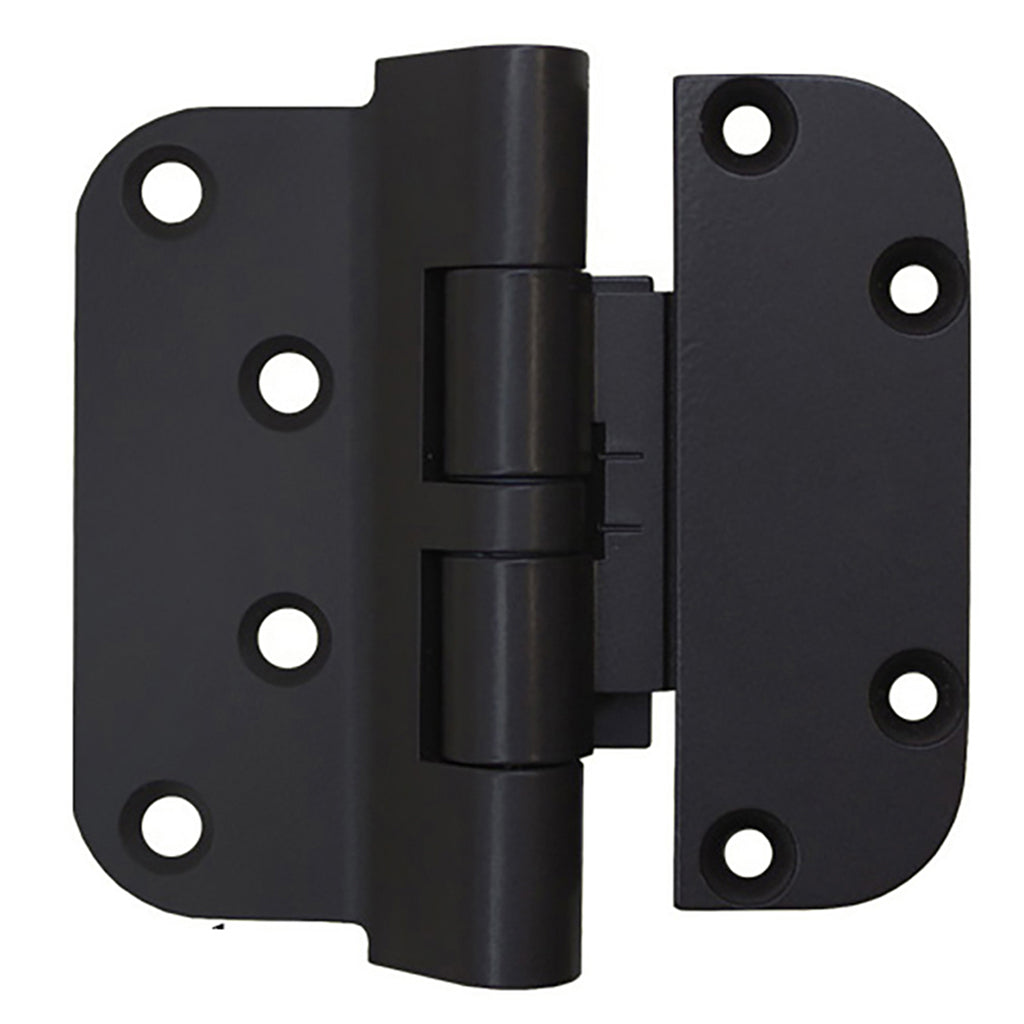

Hoppe New 2009 Ultimate Adjustable Hinge

* Adjusts both vertically (Set Hinge) and horizontally (Guide Hinge) by +/- 1/8" (+/- 3mm) for a perfect swing without costly repairs or carpentry work.

* Large 3/16" hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws.

* All Set Hinges are equipped with non-removable pins for security, making HOPPE hinges the ideal solution for both inswing and outswing doors.

Material: Aluminum
Hinge Type: Set for Vertical Adjustment
Hinge Style: NRP - Non Removable Pin - Hinges does not come apart

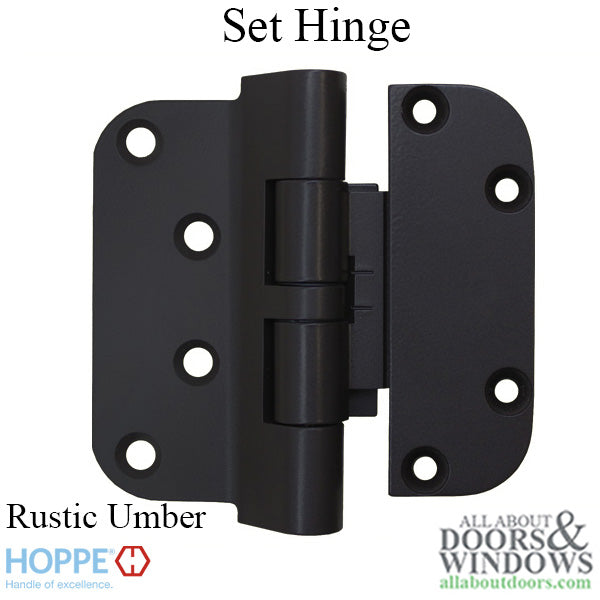

Color / Finish: Rustic Umber

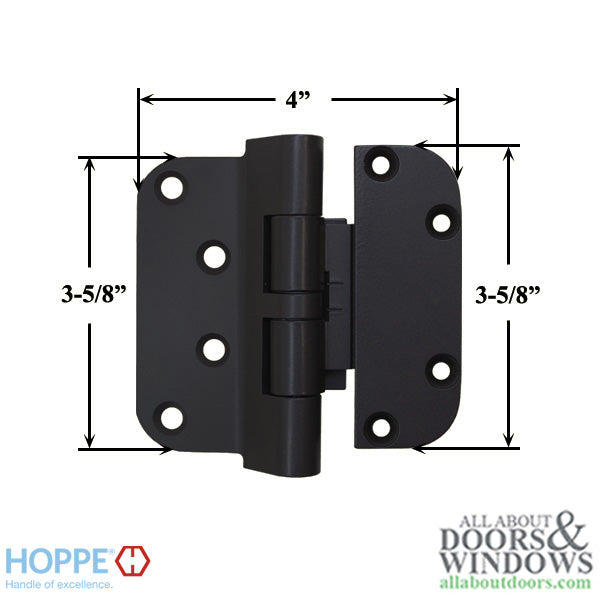

Size: 4 inches Wide by 3-5/8 tall (Set additional images)
Handed: Yes - LHI ( Left hand inswing) RHO ( Right hand outswing)

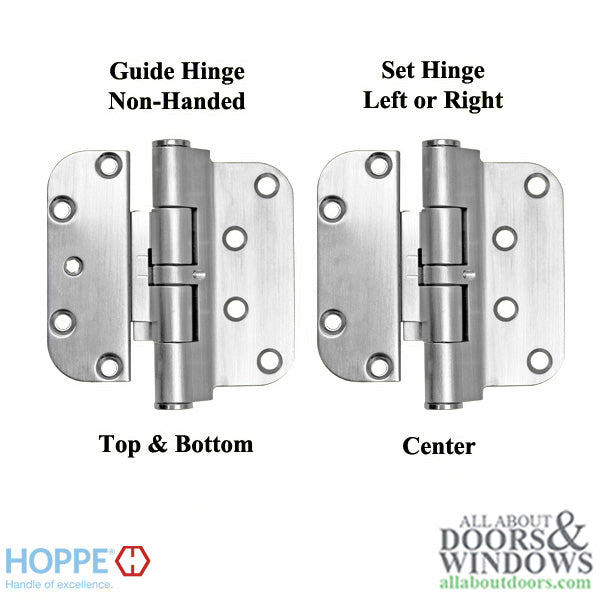

NOTE: A 3 hinge door will have 1 set hinge (middle) and 2 guide hinges (top & bottom)

Screws are not included with hinges. Must be purchased separately.

Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf

RESOURCES:
Guide to Adjusting HOPPE Hinges
Installation Guide for HOPPE Hinges

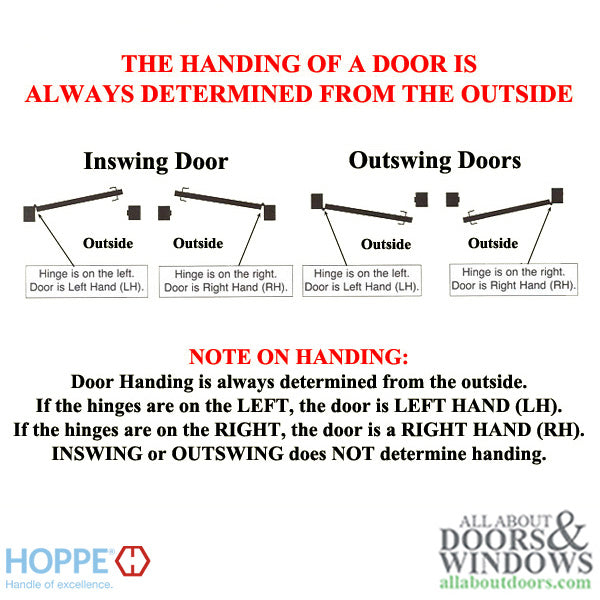

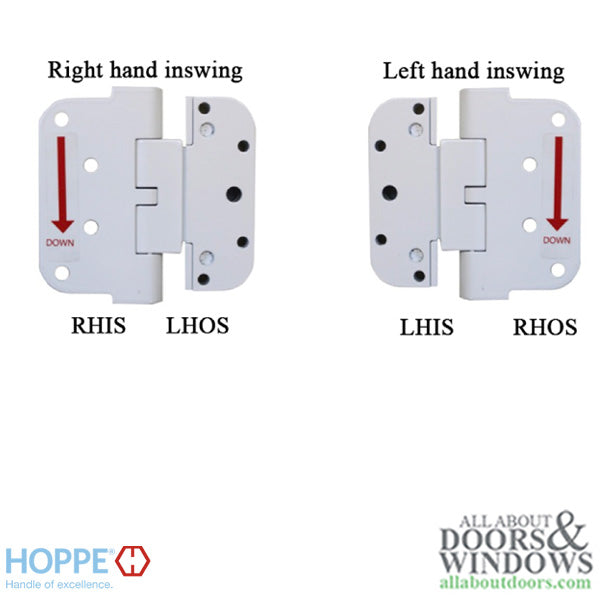

RHIS - Right Hand Inswing
RHOS - Right Hand Outswing
LHIS - Left Hand Inswing
LHOS - Left Hand Outswing
