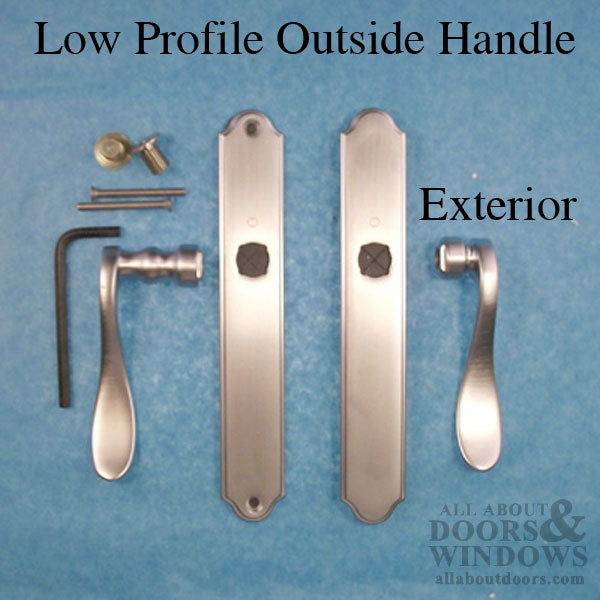

Low Profile Outside Handle - Right hand as viewed from outside of home
This is a HOPPE Munchen Lever Handle-set and traditional back plate
It is constructed from solid brass and will fit on doors that are 1-3/4" thick.
Includes interior and exterior handle levers with backplates, and all necessary installation hardware.
NOTE: Low Profile handles are handed - Left and Right, as viewed from Outside. The lever points towards the hinges.

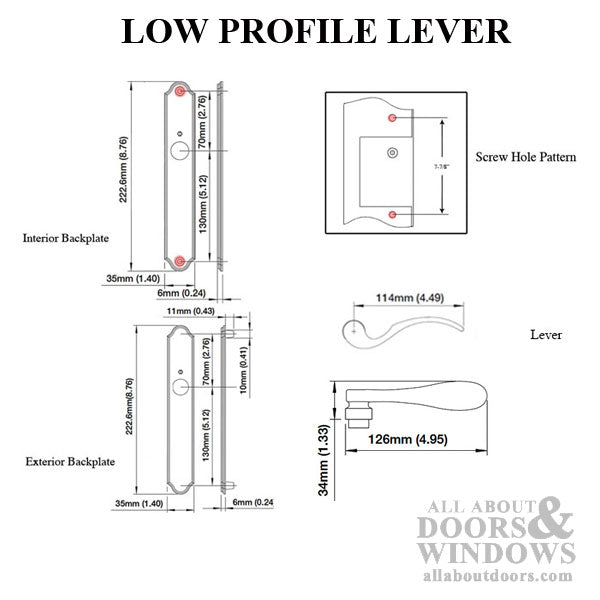

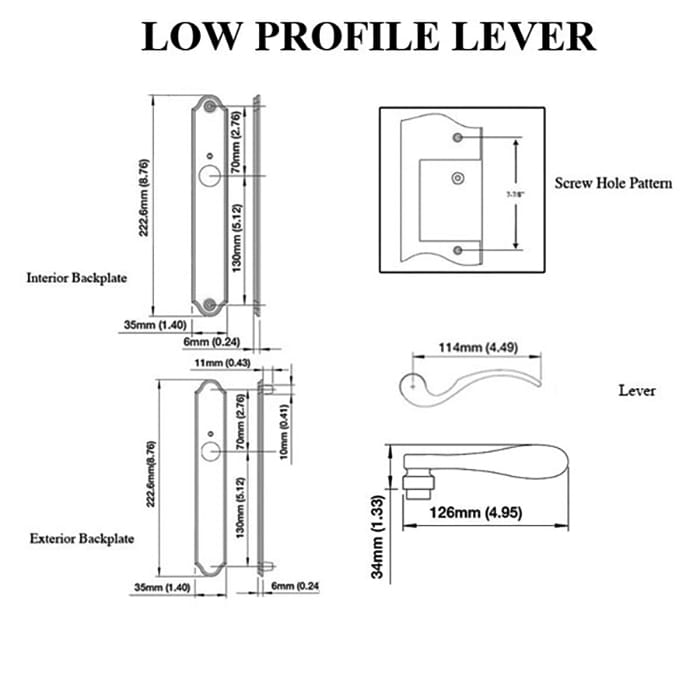

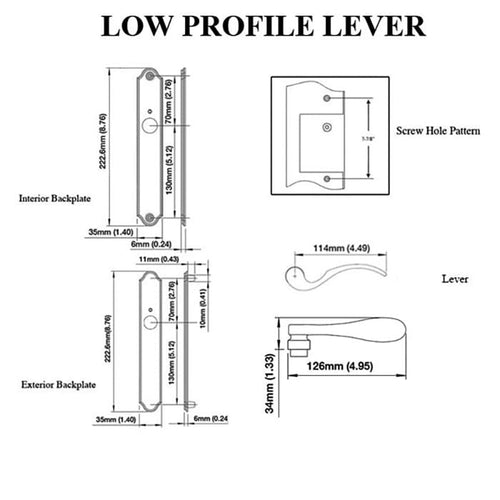

Measurements:
Escutcheon Plate Length - 8-3/4" (8.76)
Escutcheon Plate Width - 1-3/8" (1.40)
Screw Holes Spacing:
Top - Bottom screw hole spacing - 7-7/8" (7.87)
Top screw hole spacing - 2-3/4" (2.76)
Bottom screw hole spacing - 5-1/8" (5.12) - See additional images
Handle Operation Guide.
Priced and sold each.
Available standard Finishes:
Antique Brass
Oil Rubbed Brass
Pure White
Matte Black
Rustic Umber
Available Tarnish Resistant PVD Finishes
Polished Brass
Brushed Chrome
Polished Chrome
Satin Nickel
Antique Nickel
Available Functions:
Active - Used most commonly on the primary functioning door. Cylinder holes on interior and exterior both. Includes key lock cylinder with inside thumb-turn
Inactive - Used on an inactive panel. Cylinder hole on the interior only. Includes half cylinder with thumb-turn only.

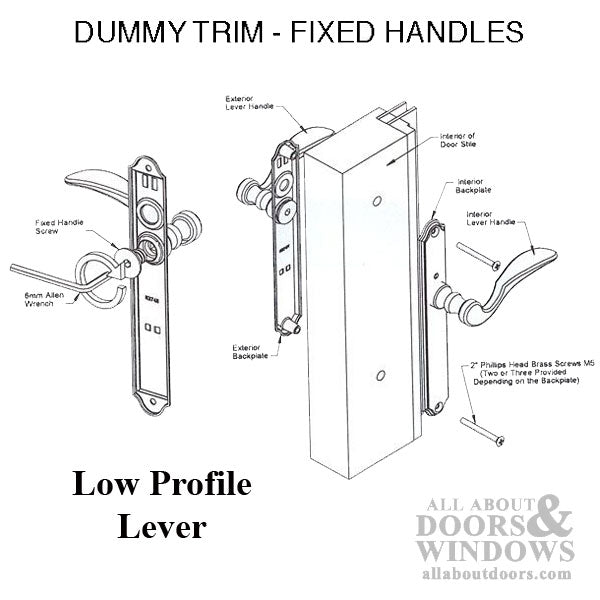

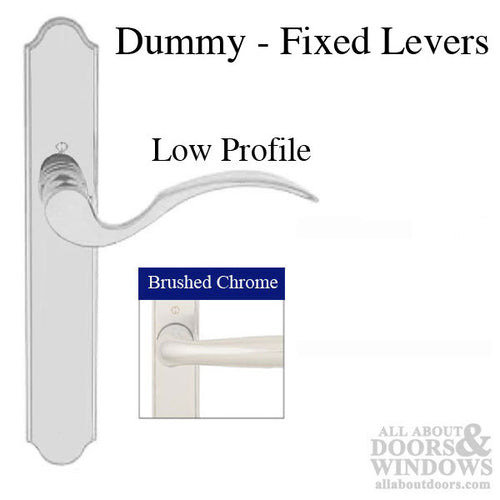

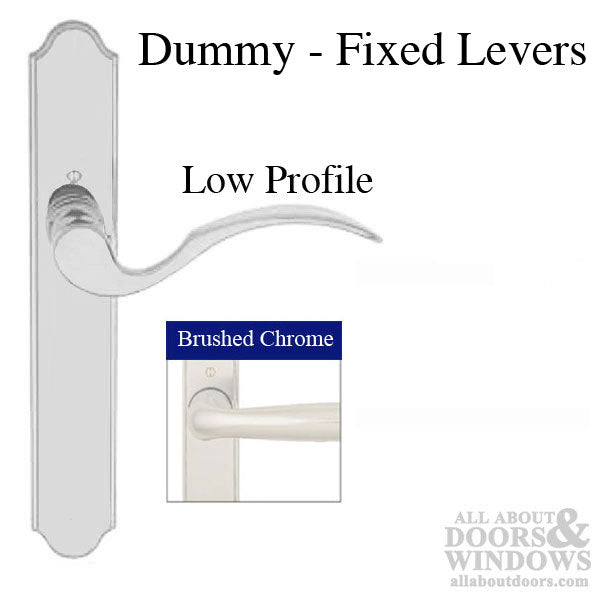

Dummy - Handle levers are in a fixed position and will not move. No cylinder hole in either backplate.
