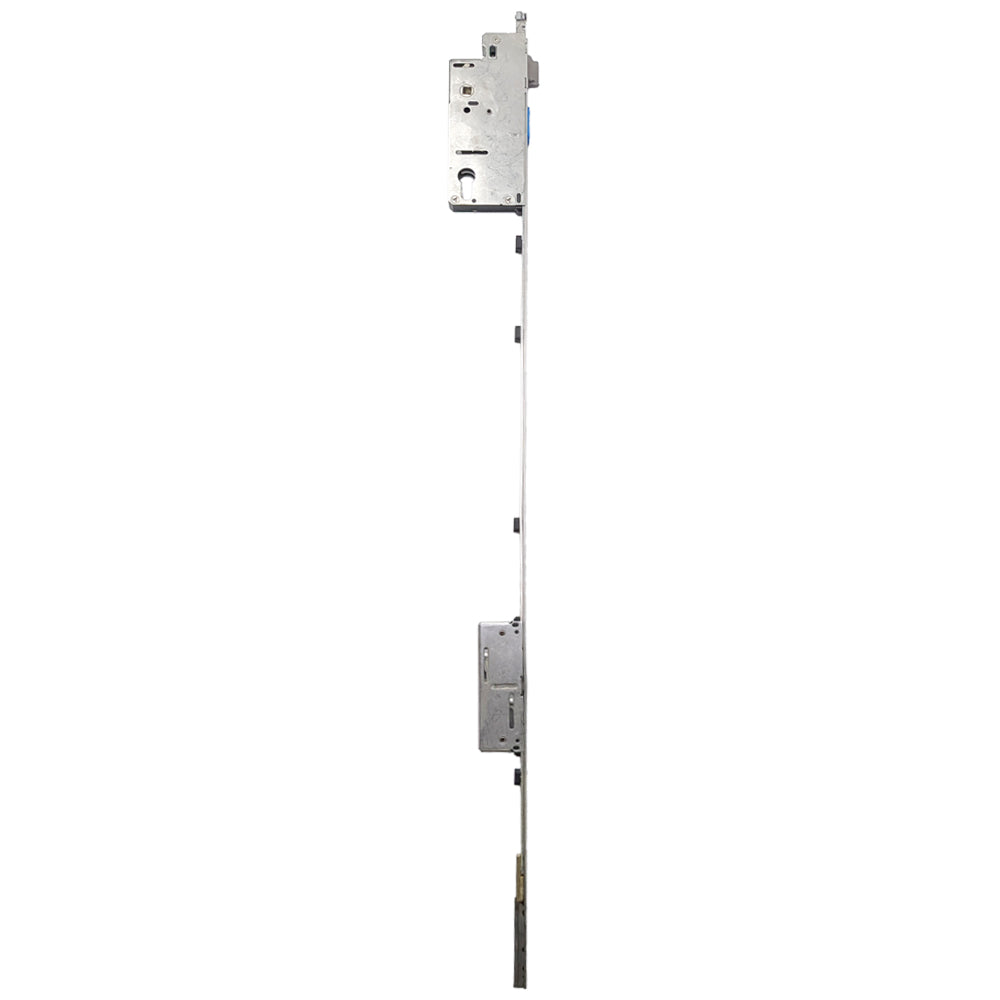

Hoppe Roundbolt + Shootbolt 16mm Manual Gear

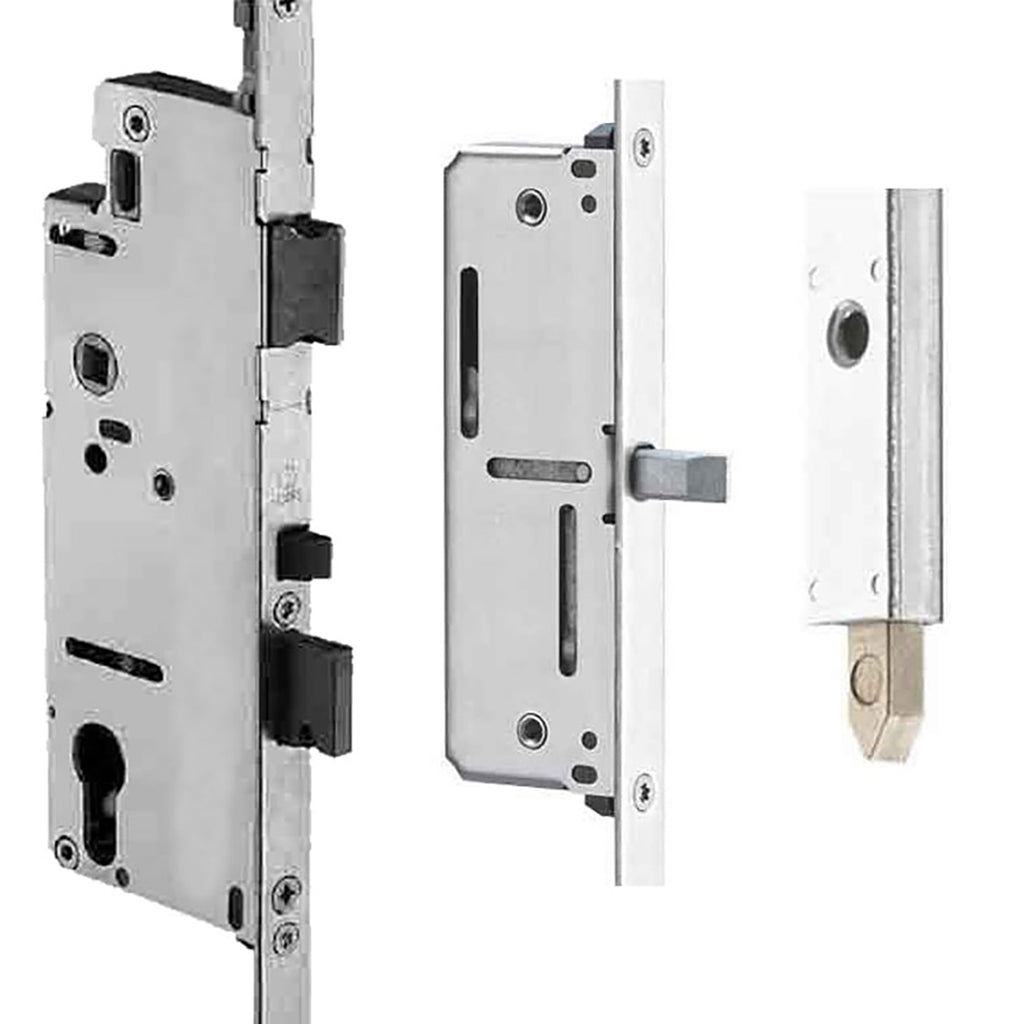

Features five locking points for both horizontal and vertical security, as well as prevention of warping and a tighter weather seal.

  • Backset: 60mm (2.36 inches)
  • Faceplate width: 16mm (5/8 inch)
  • Handle height: 914mm (36 inches)
  • Gear length: 955mm (37.6 inches)
  • Deadbolt throw: 25.4mm (1 inch)
  • Shootbolt throw: 20mm (0.79 inch)
  • Bottom round bolt position (distance from handle): 620mm (24.41 inches)
  • Bottom round bolt distance from floor: 295mm (11 9/16 inches)

Overall length = gear length + middle extension length + top extension length

Combine middle & top extensions with this gear for a complete lock.

Use a 37mm ? 16mm cover plate (Item #2875118, see Related Items below) to cover the seam between the middle and top extensions.
