Hoppe HLS2000 Top Extension, Tongue @ 29.41", Extension Length 35.06"

Part Number:11972737 Price: $56.38

Hoppe HLS2000 Top Extension - 29.41" Tongue, 35.06" Extension Length - It does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series

Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

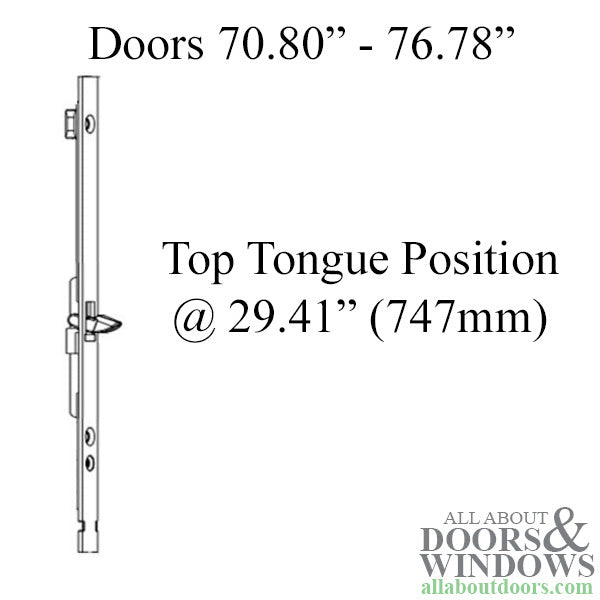

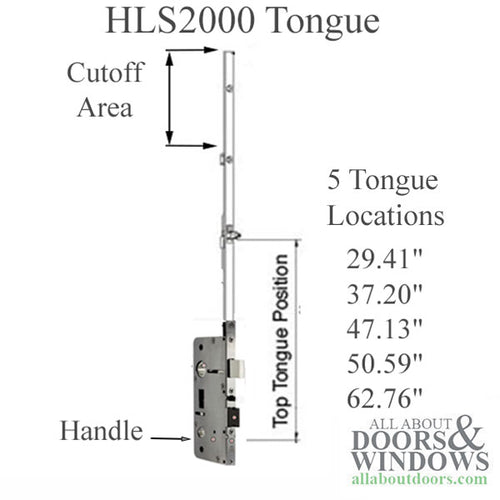

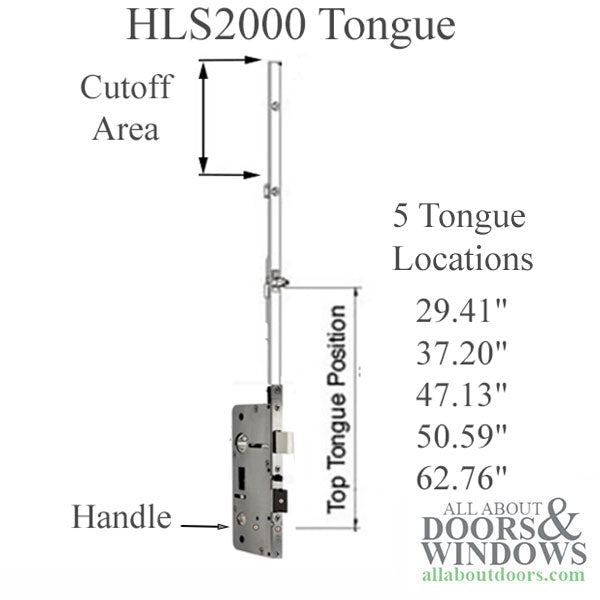

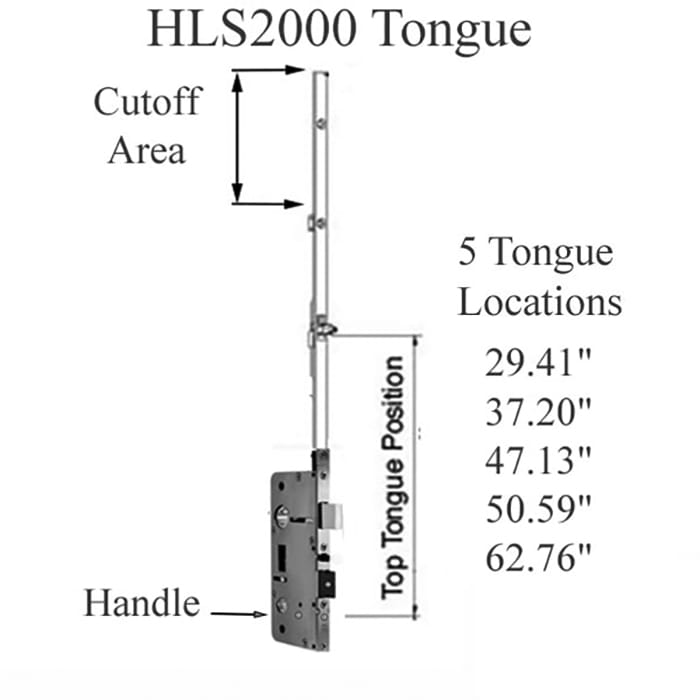

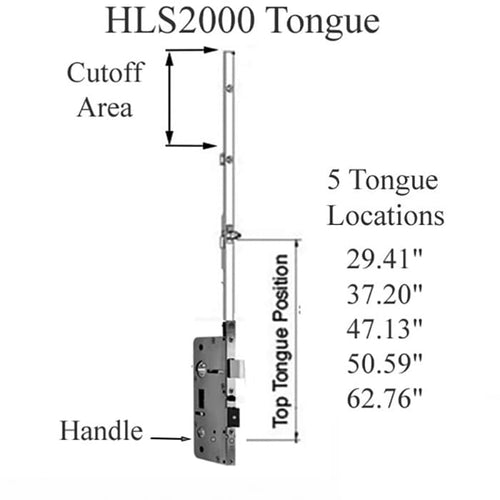

Top Tongue Position:  29.41 inches (747mm)

Extension Length: 35.06 inches (890.5mm)

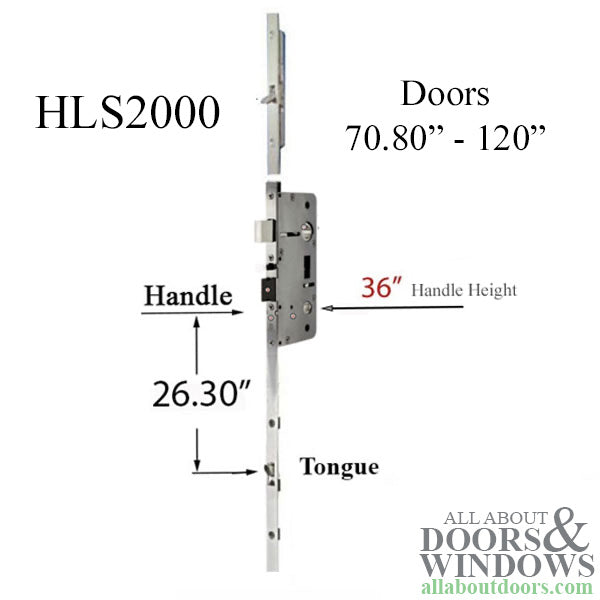

Overall Door Height: 70.80 to 76.78 inches (1798-1920mm) with 36" (914mm) Handle Height

Maximum Cutoff: 5.95 inches ( 152mm)

Material: Stainless Steel

Number of Screws: 5

Additional Information:

When both Upper and Lower assemblies are connected fits doors from 70.80 to 76.78 inches tall with 36 inch handle height.

The top may be cut a maximum of 5.95 inches (152mm) inches, to adjust for different door heights.



IMPORTANT NOTE: This upper extension only fits the HLS2000 multipoint lock
