HOPPE Top Extension for the HLS2000 - it does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series

Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

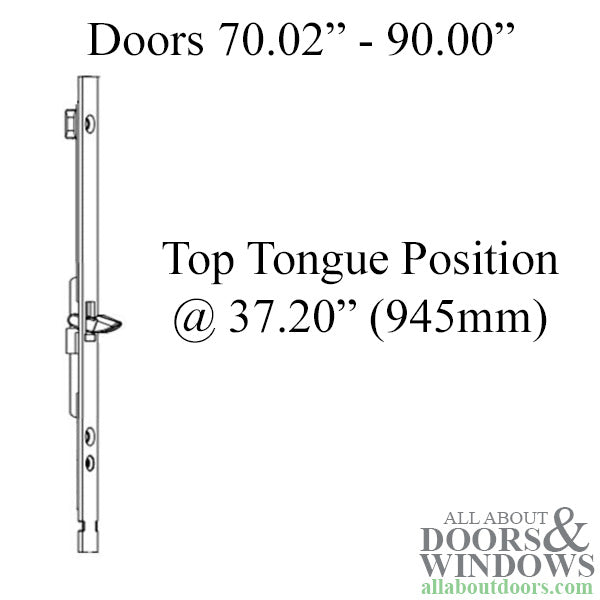

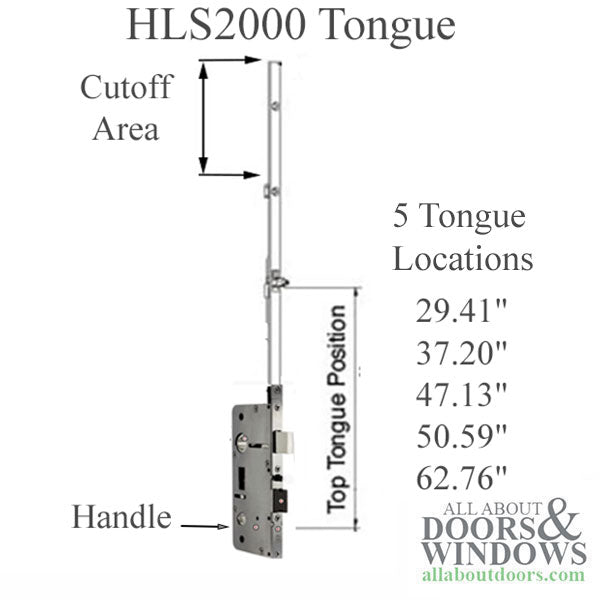

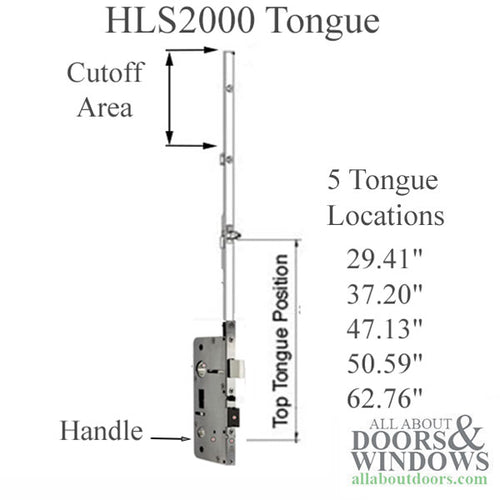

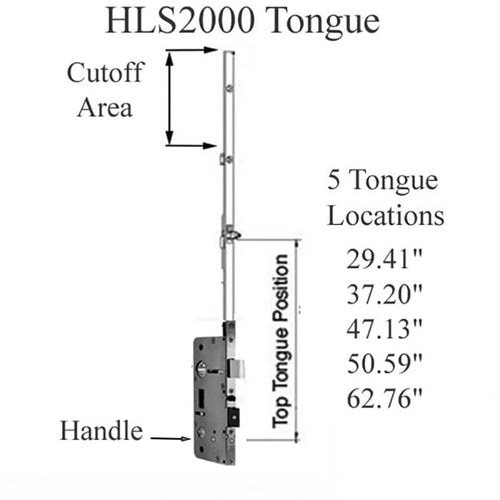

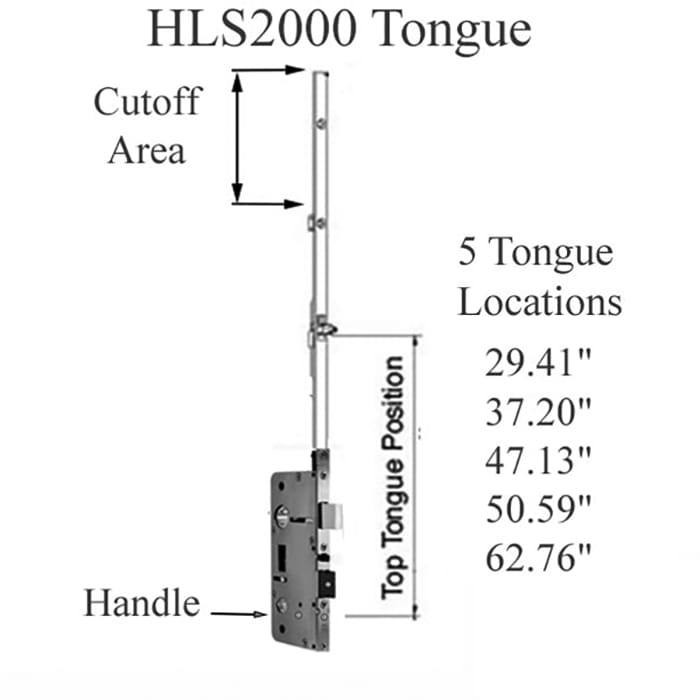

Top Tongue Position:  37.20 inches (945mm)

Extension Length: 48.28 inches (1226mm)

Overall Door Height: 70.02 to 90.00 inches (2007-2286mm)

Maximum Cutoff: 10.98 inches ( 279mm)

Material: Stainless Steel

Number of Screws: 5

Additional Information:

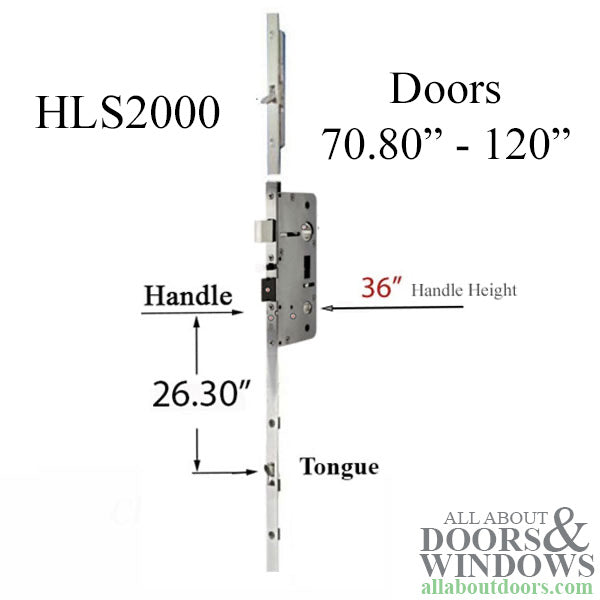

When both Upper and Lower assemblies are connected fits doors from 79.02-90.00 inches tall with 36 inch handle height.

The top may be cut a maximum of 10.98 inches, to adjust for different door heights.

IMPORTANT NOTE: This upper extension only fits the HOPPE HLS2000 multipoint lock
