HOPPE Top Extension for the HLS2000 - It Does Not Include the Bottom Assembly with Gearbox

Compatible only with the HLS2000 Series

Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

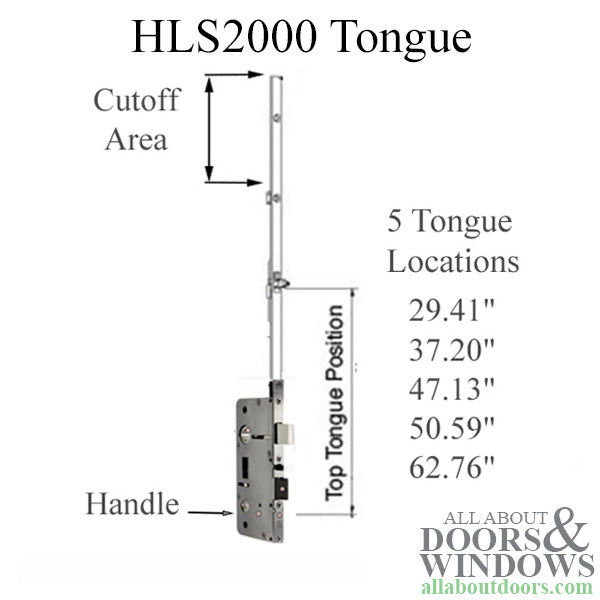

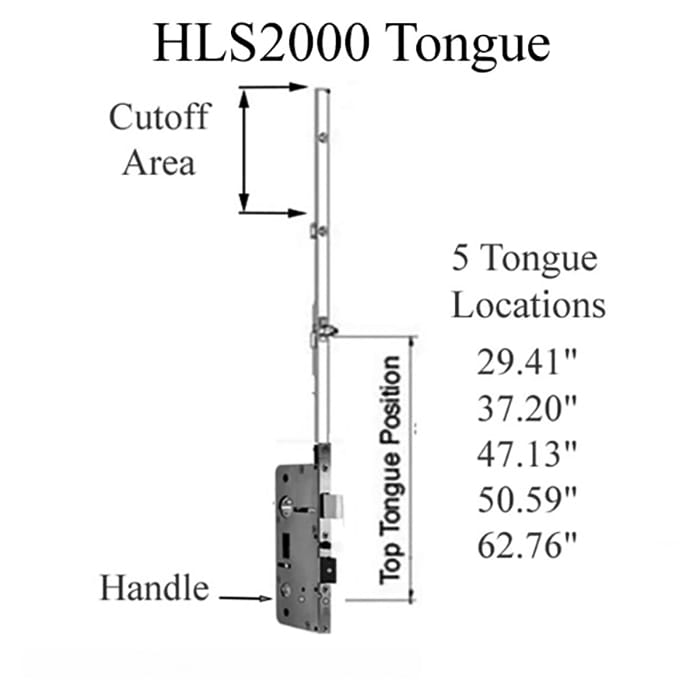

Top Tongue Position: 47.13 inches (1197mm)

Extension Length: 54.27 inches (1378mm)

Overall Door Height: 88.12 to 95.99 inches (2238-2438mm)

Maximum Cutoff: 7.87 inches ( 200mm)

Material: Stainless Steel

Number of Screws: 6

Additional Information:

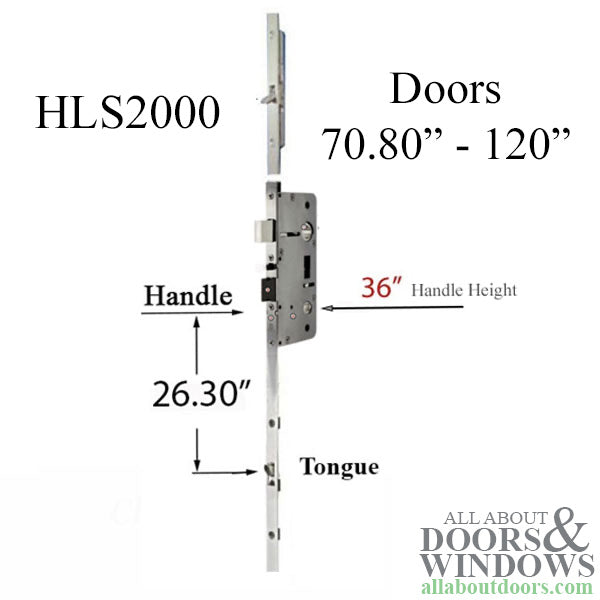

When both Upper and Lower assemblies are connected fits doors from 88.12-95.99 inches tall with 36 inch handle height.

The top may be cut a maximum of 7.87 inches, to adjust for different door heights.

IMPORTANT NOTE: This upper extension only fits the HOPPE HLS2000 multipoint lock

Priced and Sold Each.
