HOPPE Top Extension for the HLS2000 - It does not include the bottom assembly with Gearbox
Compatible only with the HLS2000 Series
Application: HLS2000 Tongue Upper Extension
Faceplate Width: 5/8 inch (16mm)

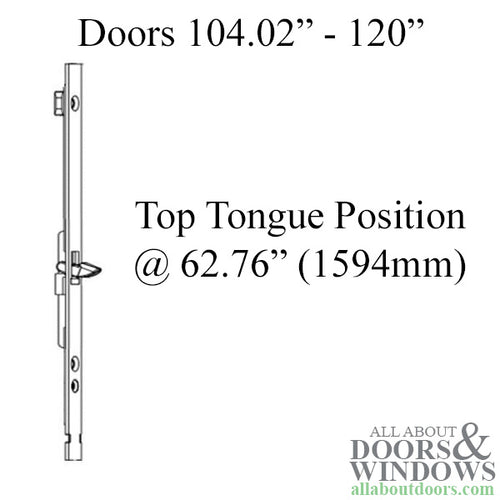

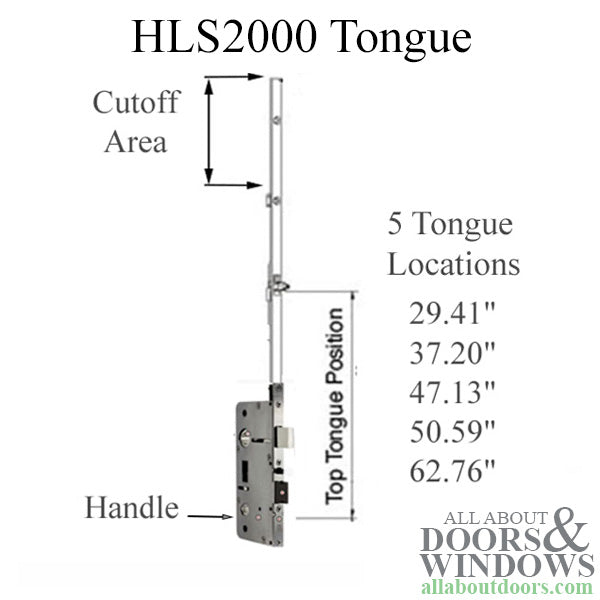

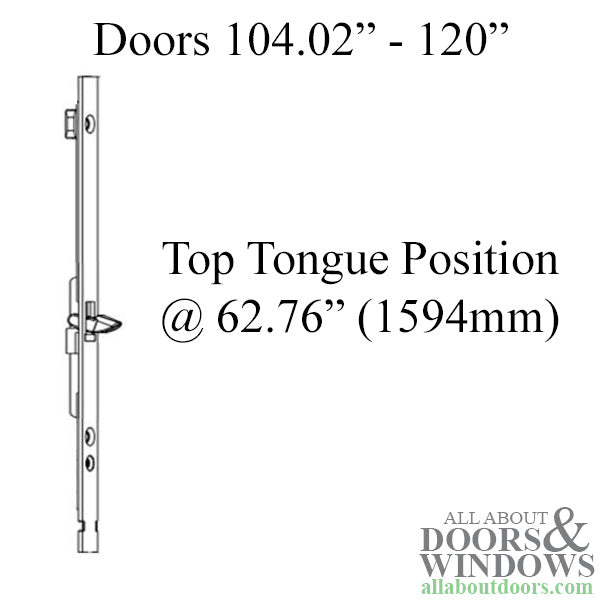

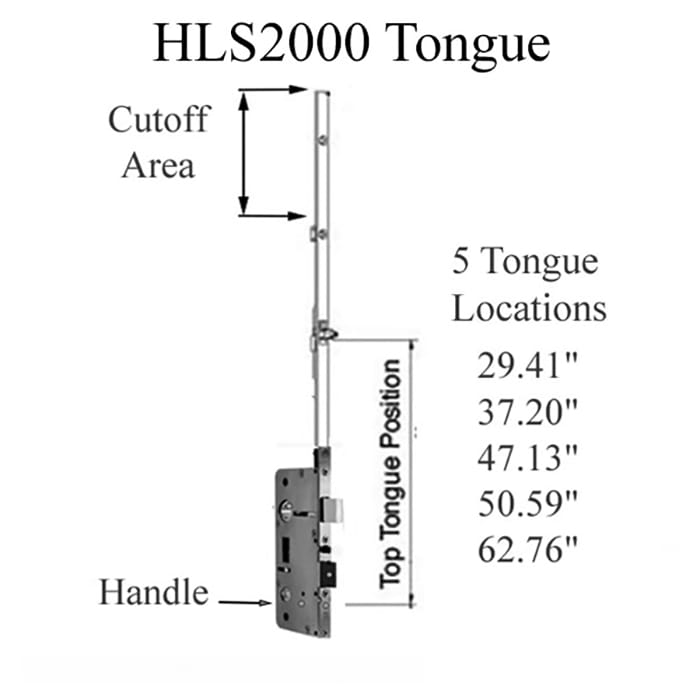

Top Tongue Position: 62.76 inches (1594mm)
Extension Length: 78.28 inches (1988mm)
Overall Door Height: 104.02 to 120 inches (2642-3048mm)
Maximum Cutoff: 15.98 inches (406mm)
Material: Stainless Steel
Number of Screws: 8
Additional Information:

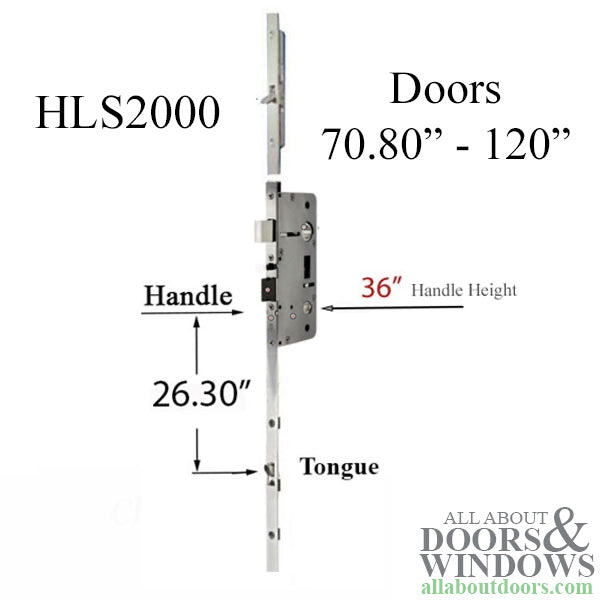

When both Upper and Lower assemblies are connected fits doors from 104.02-120 inches tall with 36 inch handle height.
The top may be cut a maximum of 15.98 inches, to adjust for different door heights.
IMPORTANT NOTE: This upper extension only fits the HOPPE HLS2000 multipoint lock
Priced and Sold Each.
