HOPPE London, Tilt Turn window non keyed handle with cylinder Rosette 90° Stop Silver
Use the arrows or swipe left to view all images for this product

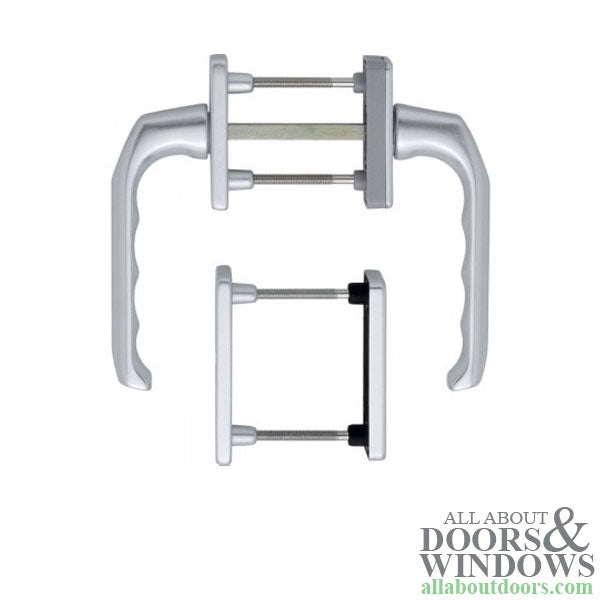

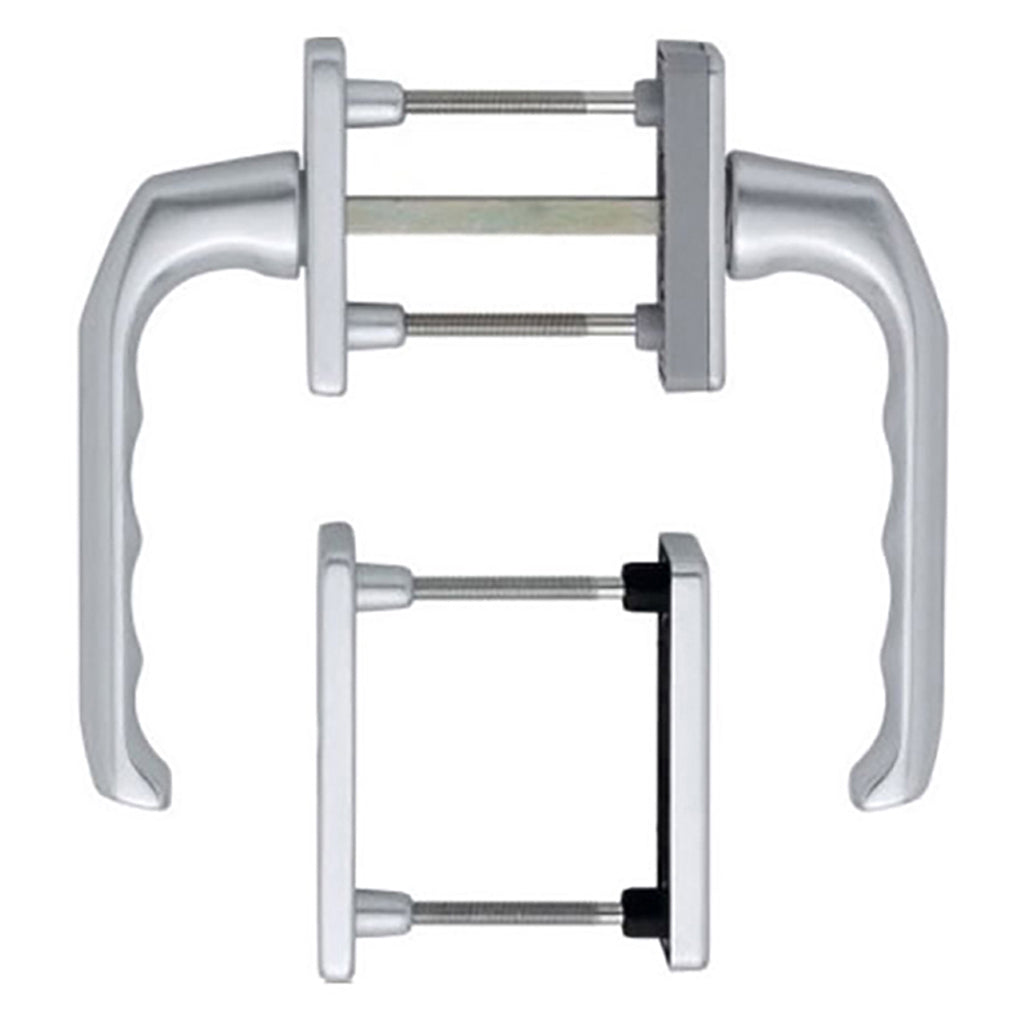

Hoppe London Tilt Turn window hardware with 90 degree stops, non keyed handle with cylinder rosette
Brand: HOPPE
Model: London
Application: Tilt Turn Windows

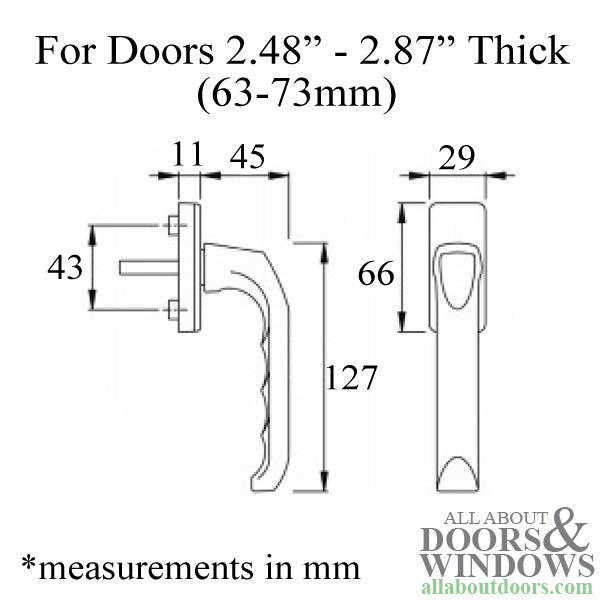

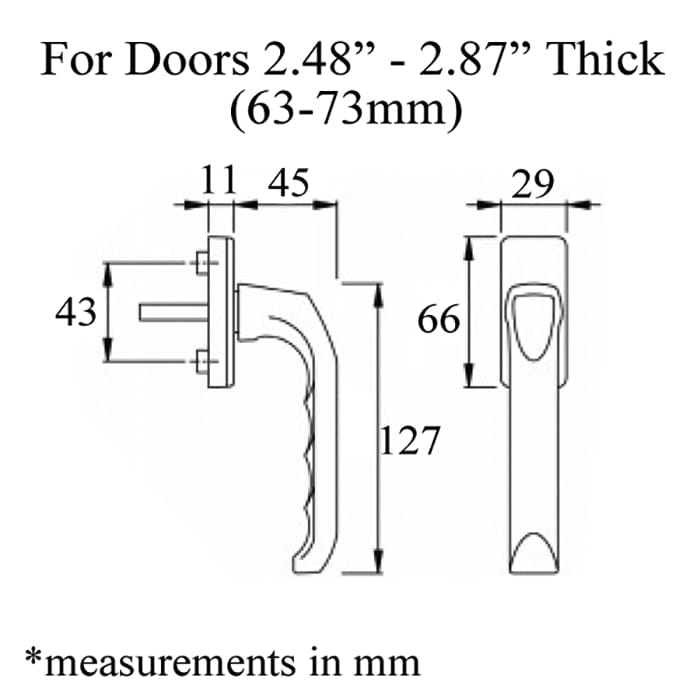

Handle mounting screw holes: 1-11/16 inch (43mm) 1.693
Rosette Mounting screw holes: 2-1/2 inch (63mm) 2.48
Spindle Diameter: 1/4 inch (7mm)
Exterior Stop: None
Interior Stop: 90 Degree
Door Thickness: 2.28 - 2.48" ( 58-63mm )
Screws: M5 x 60mm (2) & 70mm (2)
Markings: Hoppe Logo

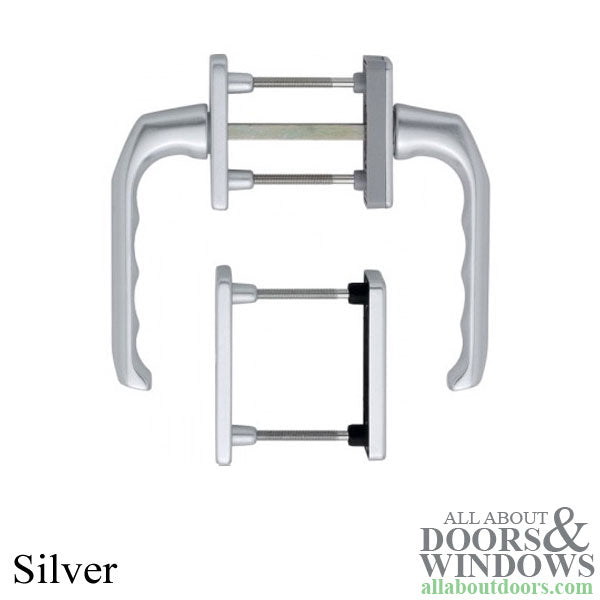

Color Finish: F1 Silver
Additional Information:
* Screws holes concealed with interior cover, screw holes are easily accessed by gently lifting both ends of cover and twisting.
* Euro Profile Cylinder not included
