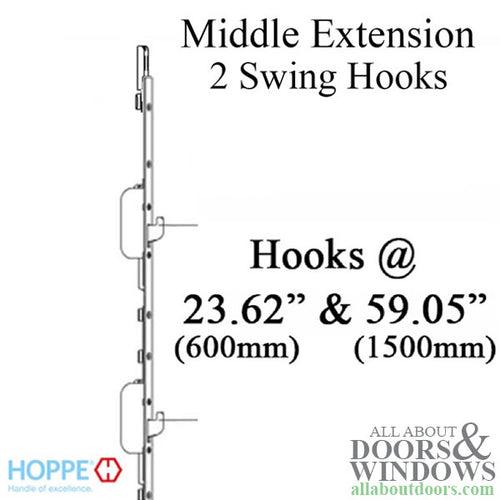

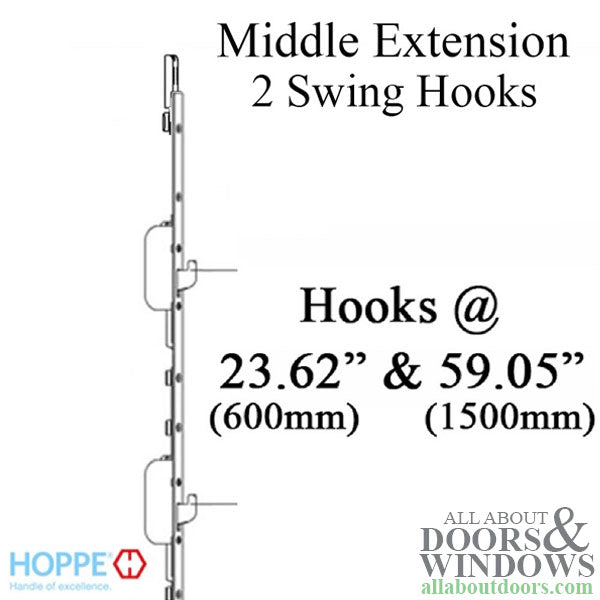

HOPPE 16mm HLS9000 manual middle extension with two Swing Hooks.

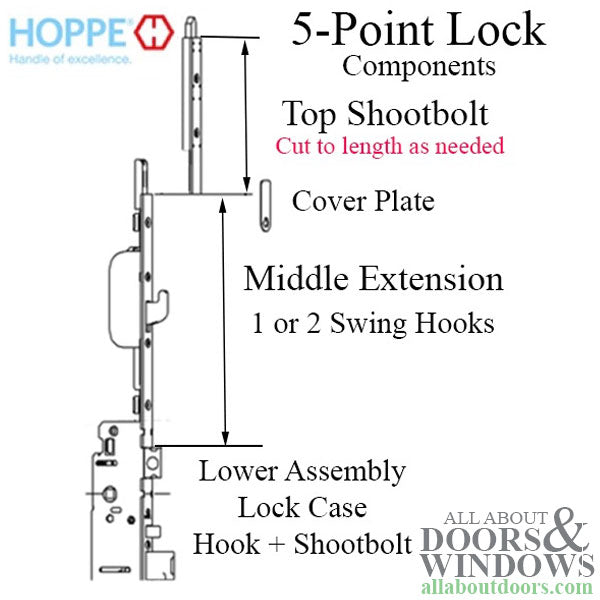

The middle extension is attached to the lower assembly just above the springlatch. A shootbolt extension is attached to the top of the middle extension to complete the multipoint lock.
Application: Middle Extension used with upper shootbolt
Locking Type: 2 swing hooks
1st Top Hook: 23.62 inches ( 600mm)
2nd Top Hook: 59.05 inches (1500mm) square end
Hook Projection: 3/4 inch (19.5mm)
Face Plate Width: 5/8 inch (16mm)
Extension Length: 63.46 inches (1612mm)
Maximum Cutoff: None
Number of Screws: 6 Stainless Steel
NOTE: There are 5 middle extensions used with various top extensions to accommodate door panel heights from a minimum 73.50 inches (1867mm) to a maximum 137.48 inches (3492mm)
