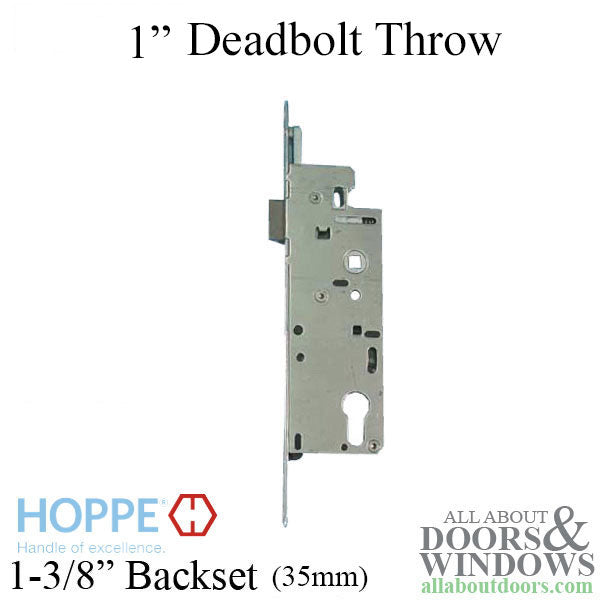

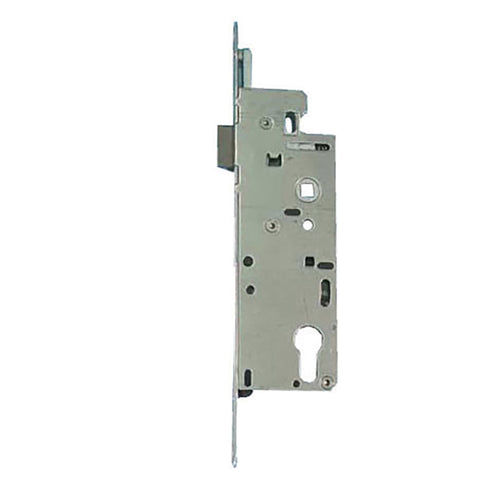

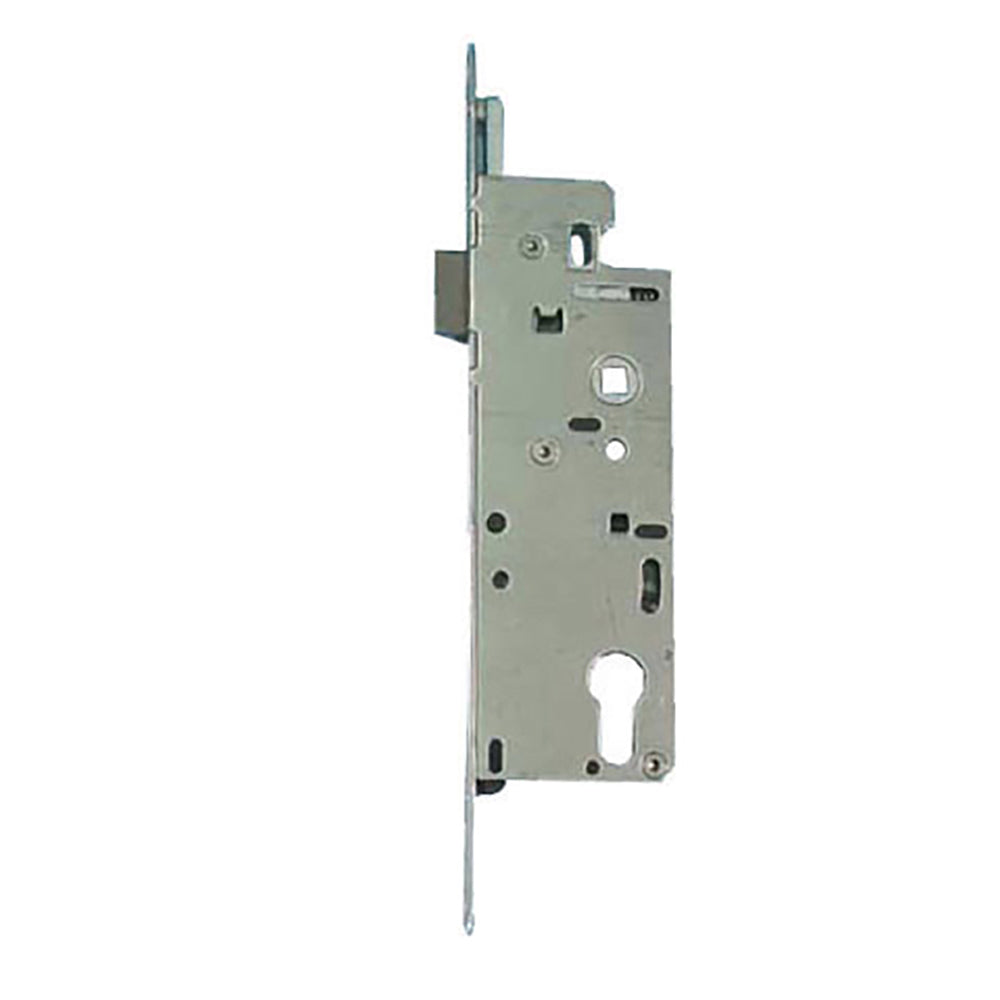

Hoppe 1-3/8 inch backset, manual single point mortise lock (SPL)

This is a single point lock and it is not interchangeable with the lock body on a HOPPE multipoint lock, nor can it be used to repair or provide parts for a multipoint lock

Used by Caradco, Jeldwen, Norco and many others, also replaces FUHR Single point locks.

Deadbolt Throw: 1 inch (25 mm).
Stainless Face Plate: 5/8 (16 mm) inch x 10-7/8 inch.
Faceplate Screw Holes: 10-1/8 inch.

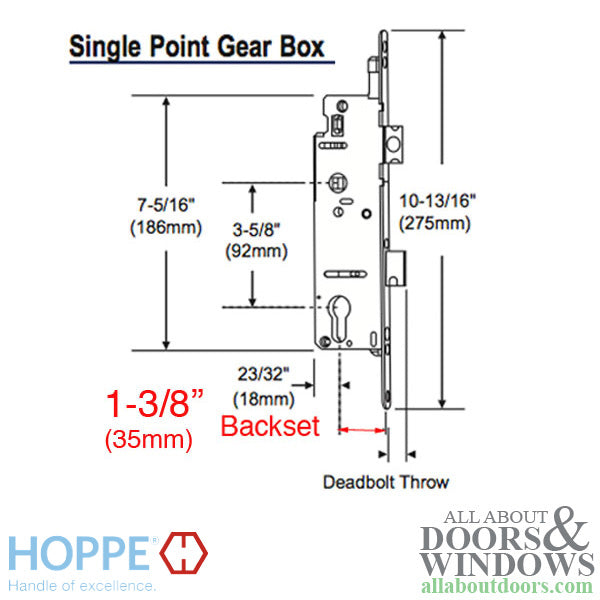

Backset: 1-3/8 inch (35 mm) - distance from edge of face plate to center of lock handle.
Function: Lever is fixed and does not move after door is locked
Priced and sold each.

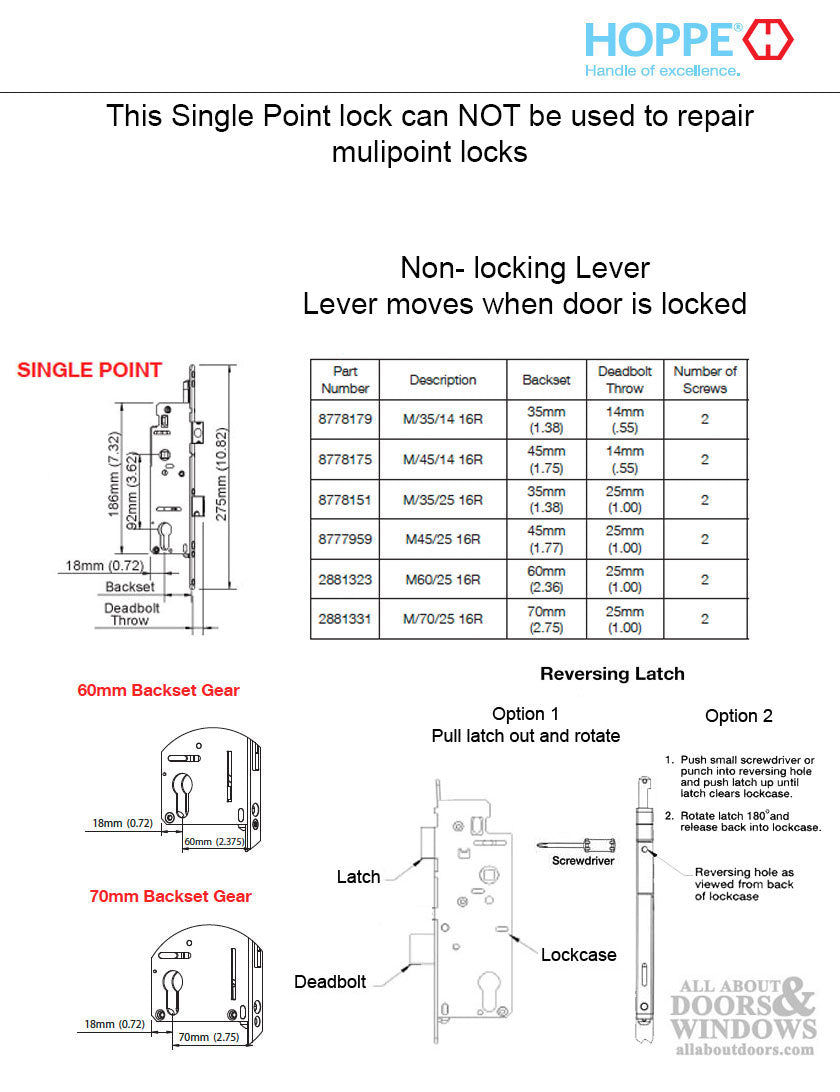

All Current Model Single Point Locks from HOPPE w/ Rotation Limiter
(Lever is fixed and does not move after door is locked)
11517463 - 35mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517475 (this listing) - 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517487 - 45mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517499 - 45mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517505 - 60mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517517 - 70mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517529 - 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with square ends

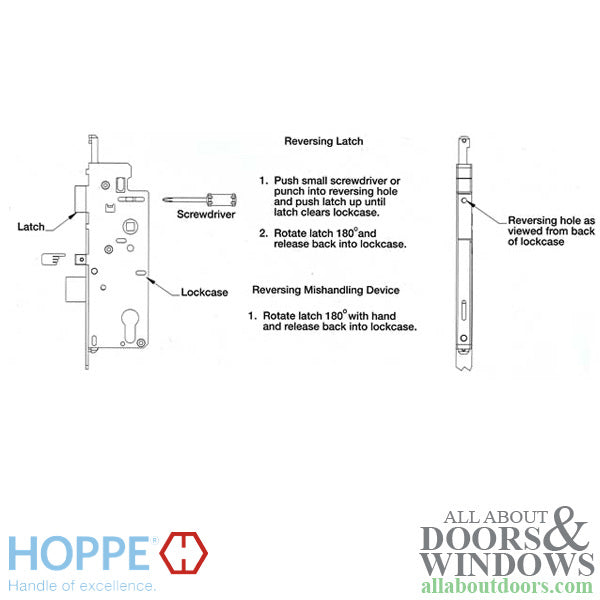

(Please contact office if needing one of the locks not currently linked to our site) Latch handing may be changed by pulling out or inserting small screwdriver into small hole in back of latch and pushing forward, twist latch and release. See linked article below.

HOPPE Screws for Installation:
8785695 - Screw 1-3/8" ( 35mm ) 8mm Head - Stainless Steel
8785687 - Screws, 3/4" (20mm ) 8mm Head - Stainless Steel
