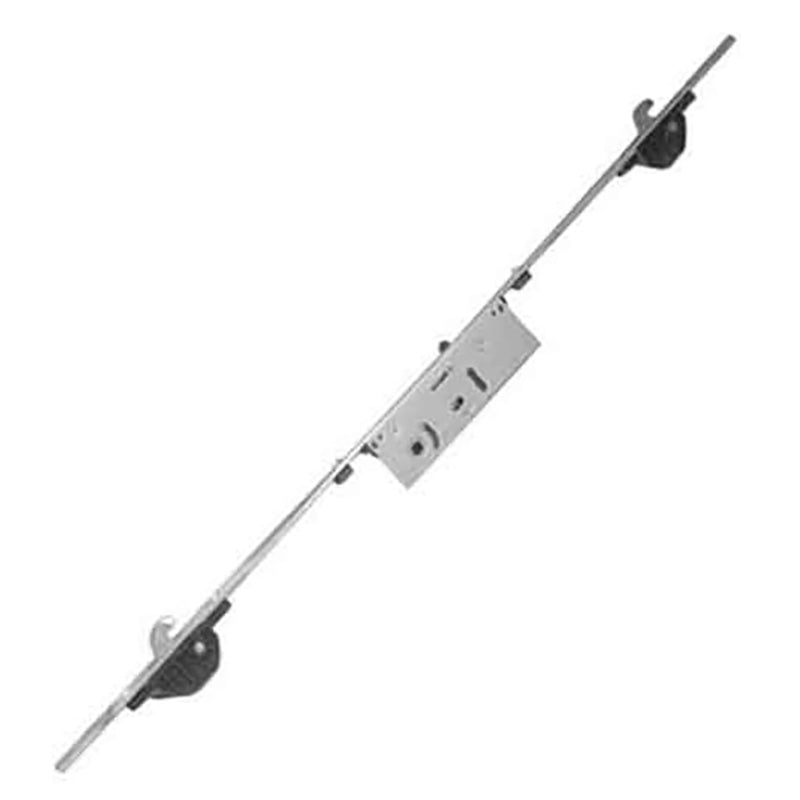

Hoppe Multipoint Lock - 2 Hooks, 35mm Sliding Door Lock, 20mm Face
Use the arrows or swipe left to view all images for this product

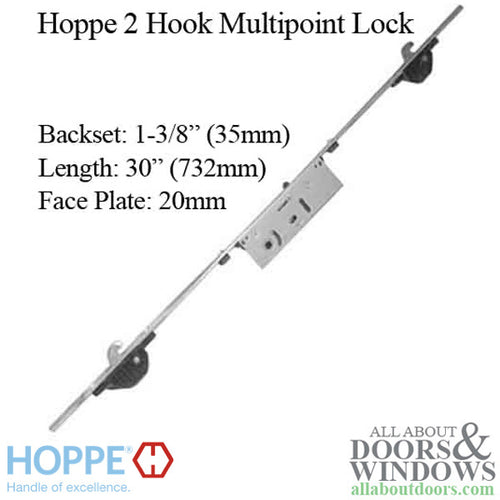

Hoppe Multipoint Lock - 2 Hooks, 35mm Sliding Door Lock, 20mm Face
Part Number: $211.54Secure Your Sliding Doors with Precision and Style
The Hoppe Multipoint Lock is engineered for modern sliding patio doors, offering robust security and effortless functionality. With a sleek design and versatile compatibility, this lock is a perfect choice for upgrading the safety of your home.
Key Features:
New Style 2-Point Lock: Designed specifically for sliding patio doors, ensuring enhanced security.
American Cylinder Above Handle: Adds an extra layer of security and convenient access.
Retrofit Friendly: Can be easily retrofitted to most wood doors, making it a versatile solution.

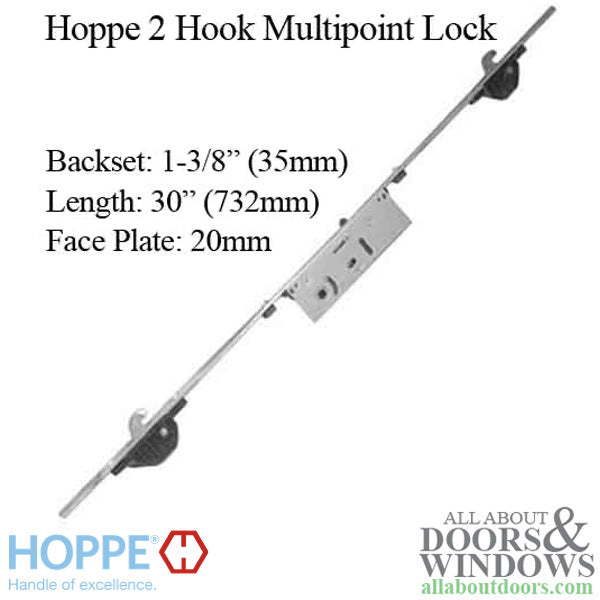

Dimensions:
Faceplate:
Width: 20mm (3/4")
Length: 30 inches
Locking Points:
Two hooks for secure locking
Placement: One hook below the handle, one above
Distance Between Hooks: 21-1/4 inches center-to-center
Spindle: 7mm, compatible with various handles
Backset:
35mm (1-3/8 inches), measured from the edge of the lock to the center of the handle
Lock Functionality:
Manual Locking Mechanism:
When the door is closed, a black tab on the face of the lock is depressed.
This allows the handle to be turned, extending the two hooks into the locked position.
Dual Securing Options:
From Outside: Lock with a key.
From Inside: Secure with a thumbturn.

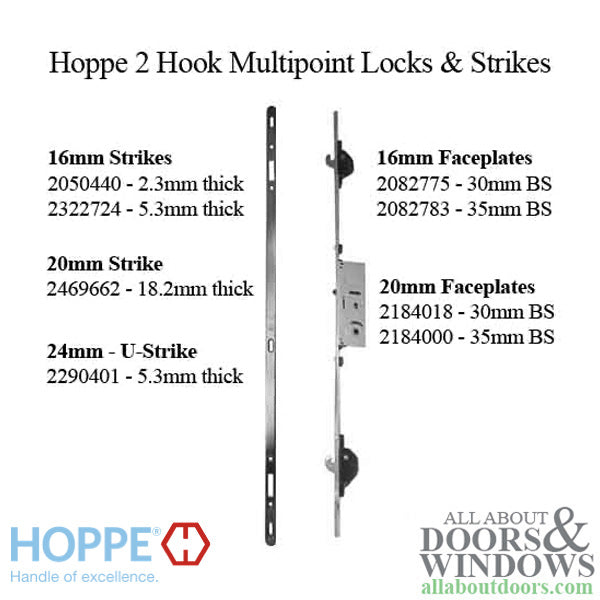

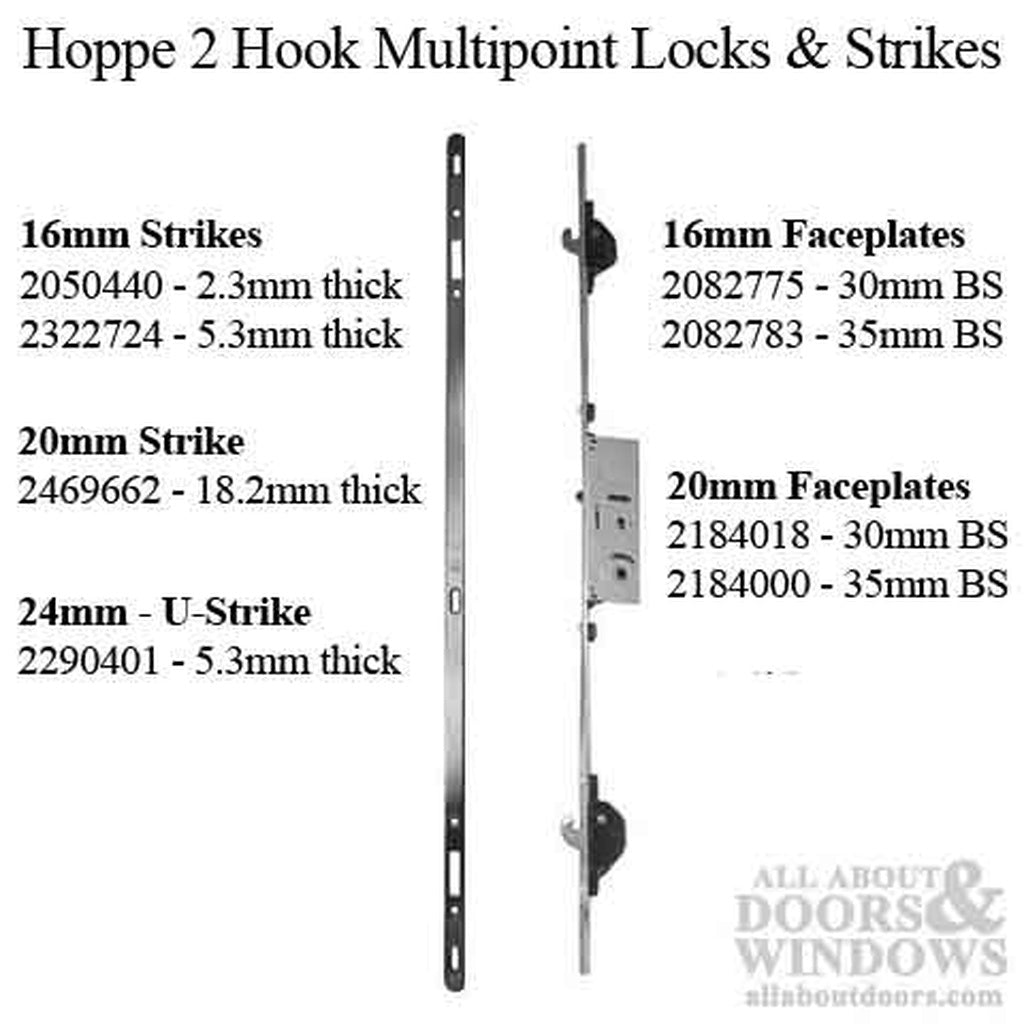

Related Hoppe Sliding Door Parts / Hardware:
5/8 inch (16mm) Faceplate:
2082775 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2082783- 2 point Sliding door Lock 1-3/8 inch (35mm) Backset
25/32 inch (20mm) Faceplate:
2184018 - 2 point Sliding door Lock 1-1/8 inch (30mm) Backset
2184000 - 2 point Sliding door Lock 1-3/8 inch (35mm) Backset

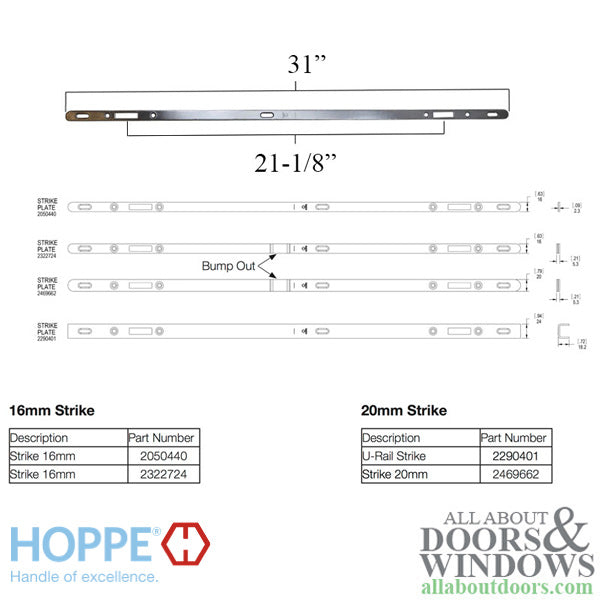

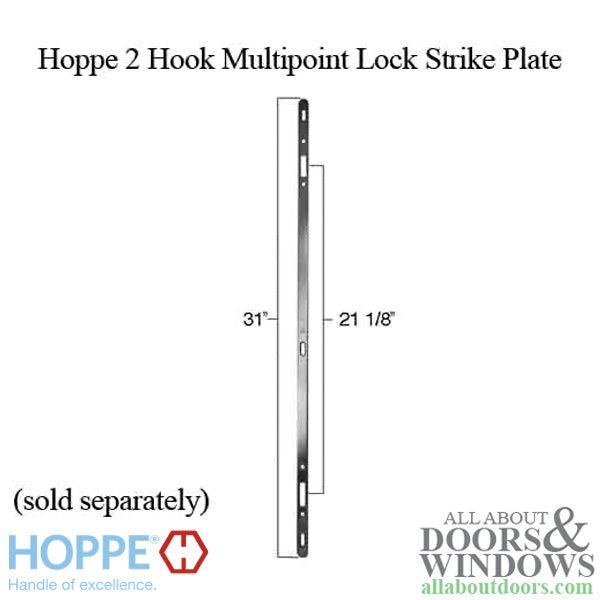

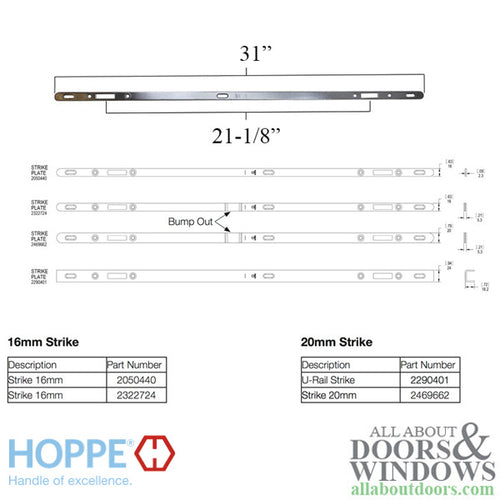

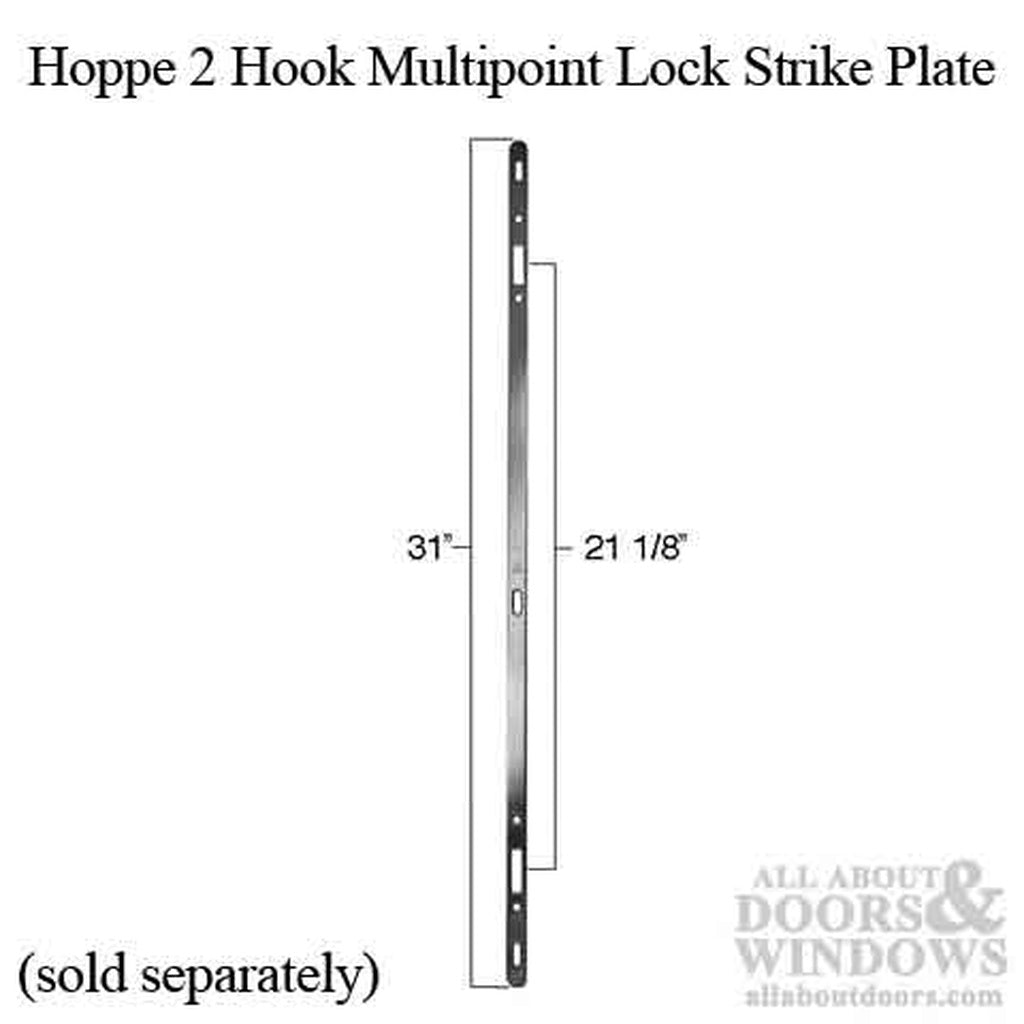

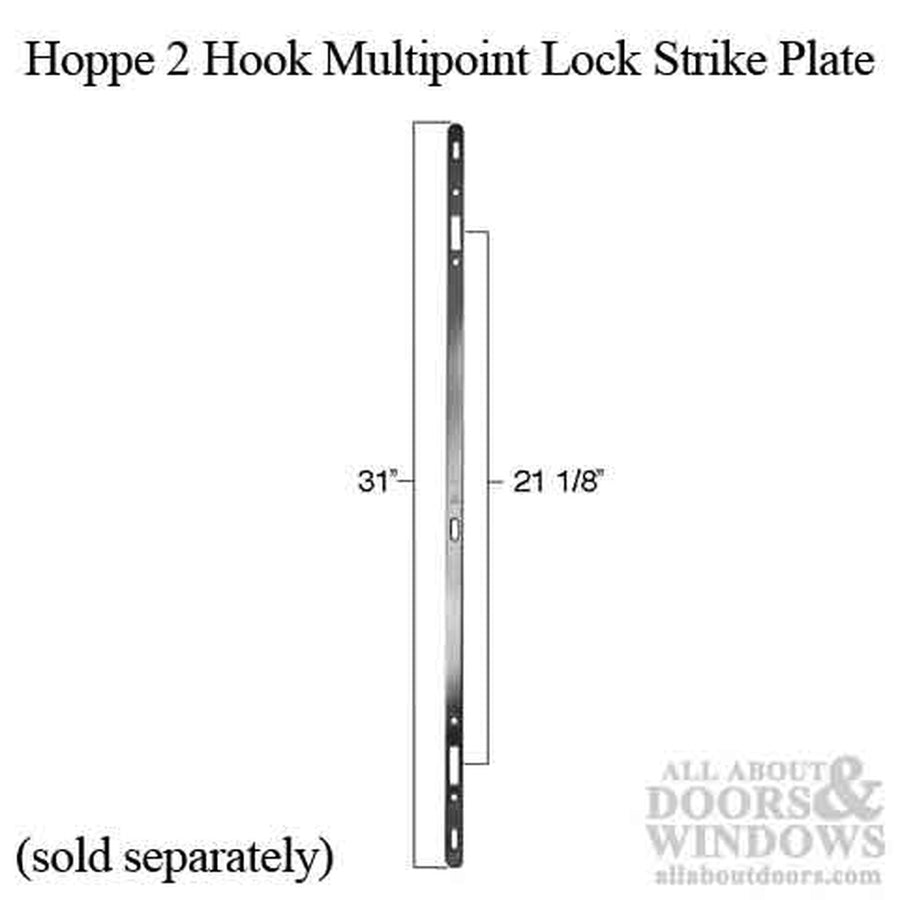

Strike Plates:
2050440 - Flat Strike, 16mm wide, 2.3 thick
2322724 - Flat Strike, 16mm wide, 5.3 thick
2469662 - Flat Strike, 20mm wide, 18.2 thick
2290401 - U-Strike, 24mm wide, 5.3 thick
8785699 - 45mm Wood Chipboard Screw ( #8 x1-3/4" Screw is Recommended)
Handleset Trim Slding Door Hardware:
2081959 - Resista Polished Brass
8763267 - Antique Brass
2082011 - Satin Nickel
2081991 - White
2082003 - Matte Black
2081993 - Polished Chrome
2081975 - Brushed Chrome
2082038 - Oil Rubbed Brass
2082020 - Antique Nickel
2083743 - Rustic Umber (ORB)
