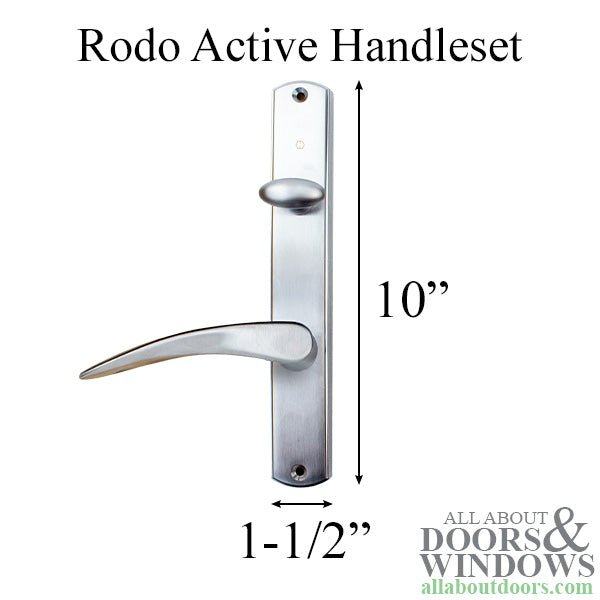

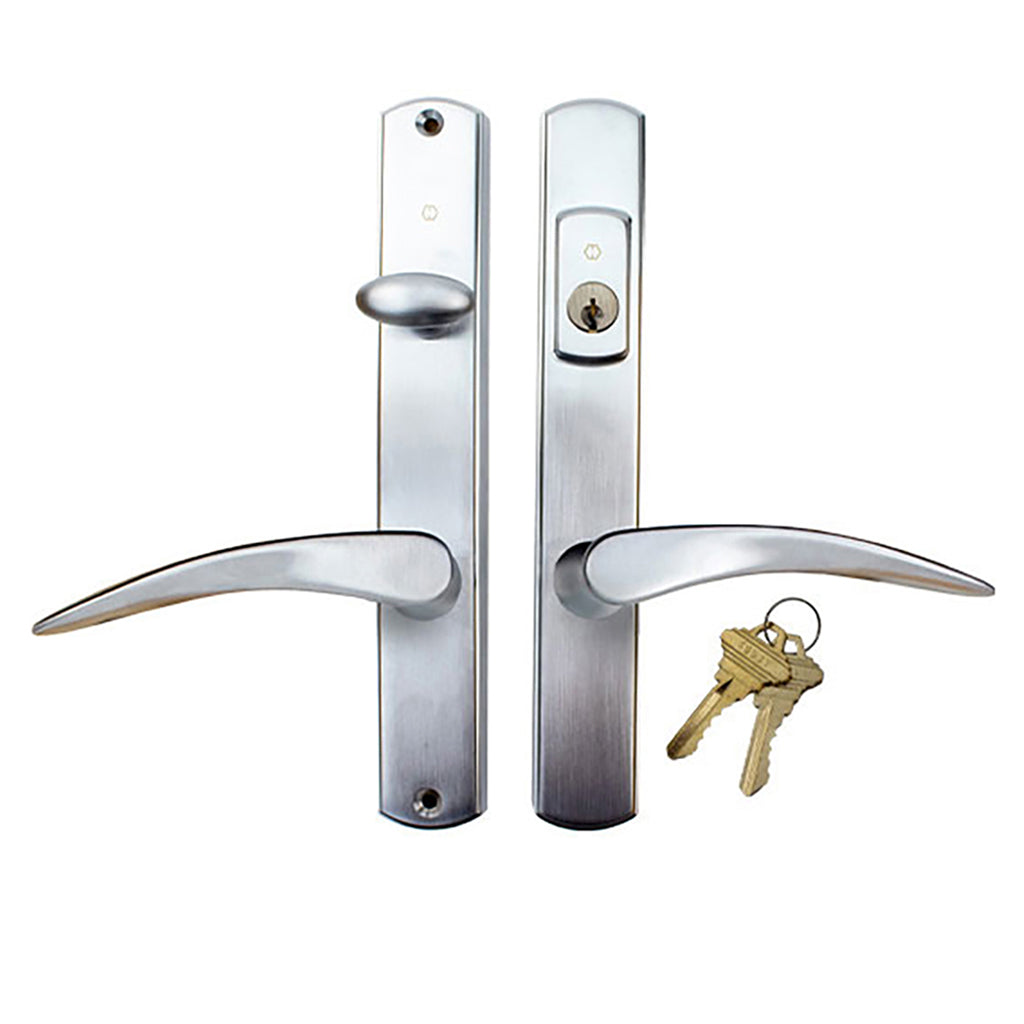

Hoppe Rodo Active Handle Set 2-1/4 Inch Door Offset Lock Brushed Chrome

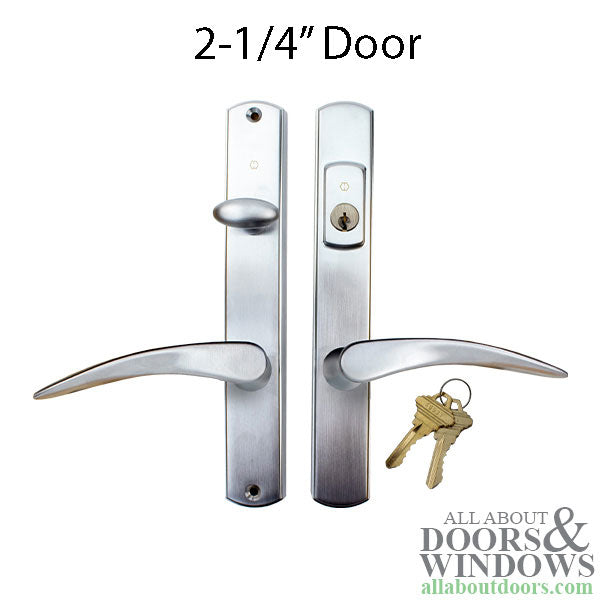

Hoppe Rodo HLS7 complete active handle set for 2 ¼ inch thick door with offset multipoint lock
This HLS7 handle set is used by Kawneer 2.25” offset door.

Uses a standard American cylinder with 46.5mm tailpiece.

The shafts are offset 1 @ 8x62.5mm, 1 @ 8x76.25mm

Door Thickness: 2-1/4 inch
Tail Piece: 1-13/16 inch (46.5mm)
Tail Piece: 3 inch (76.5mm)
Spindle Diameter: 5/16 inch (8mm)
Short Spindle: 2-1/2 inch (62.5mm)
Long Spindle: 3 inch (76.25mm)
Key Cylinder: Schlage 5 pin SC1
Cylinder Height: 1-1/16 inch (27mm)
Cylinder Retainer Pin: 7:00
Screw Length: 2-3/4 inch (70mm)
Color / Finish: Brushed Chrome F41-R

See additional information tab for notes regarding the handle set.
