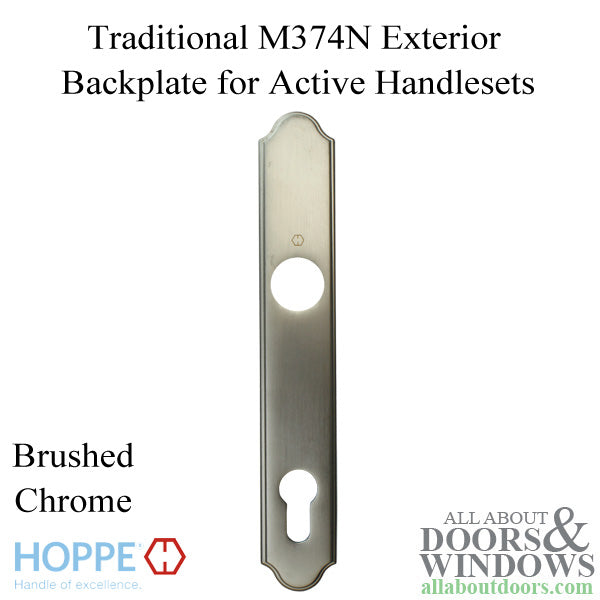

HOPPE Traditional Exterior Backplate M374N for Active Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

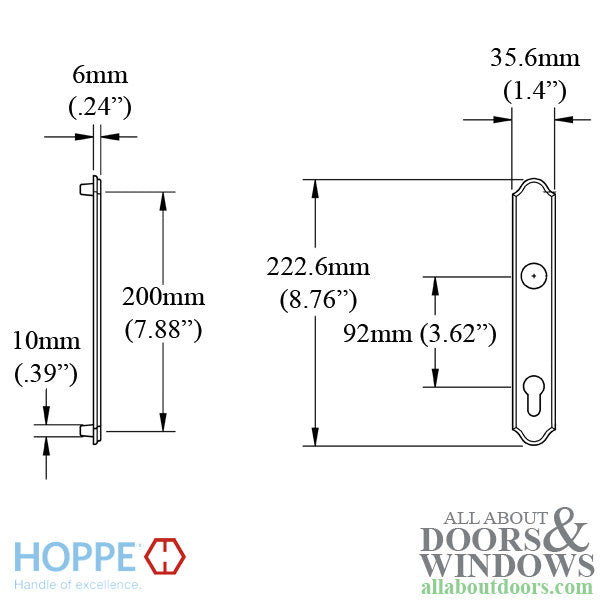

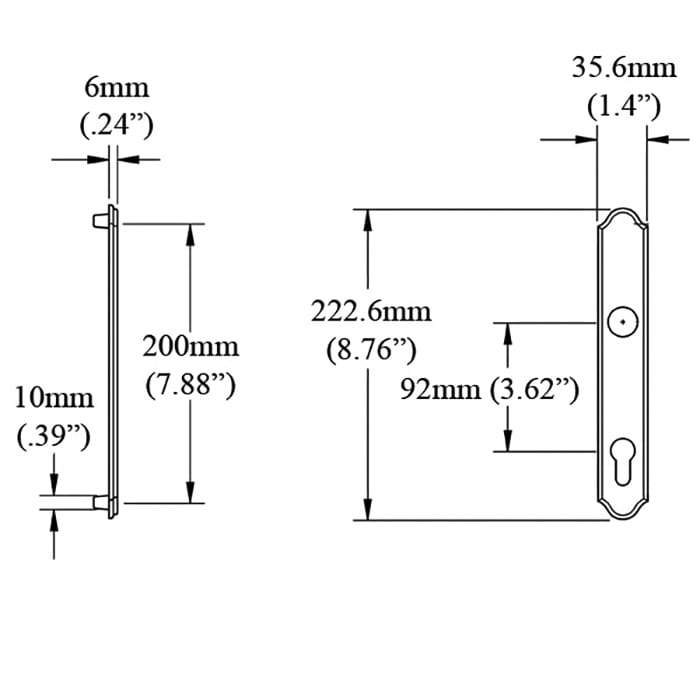

Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
PZ (Center of Handle to Center of Cylinder): 92mm (3-5/8 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Brushed Chrome (F41-R)
Related Parts:

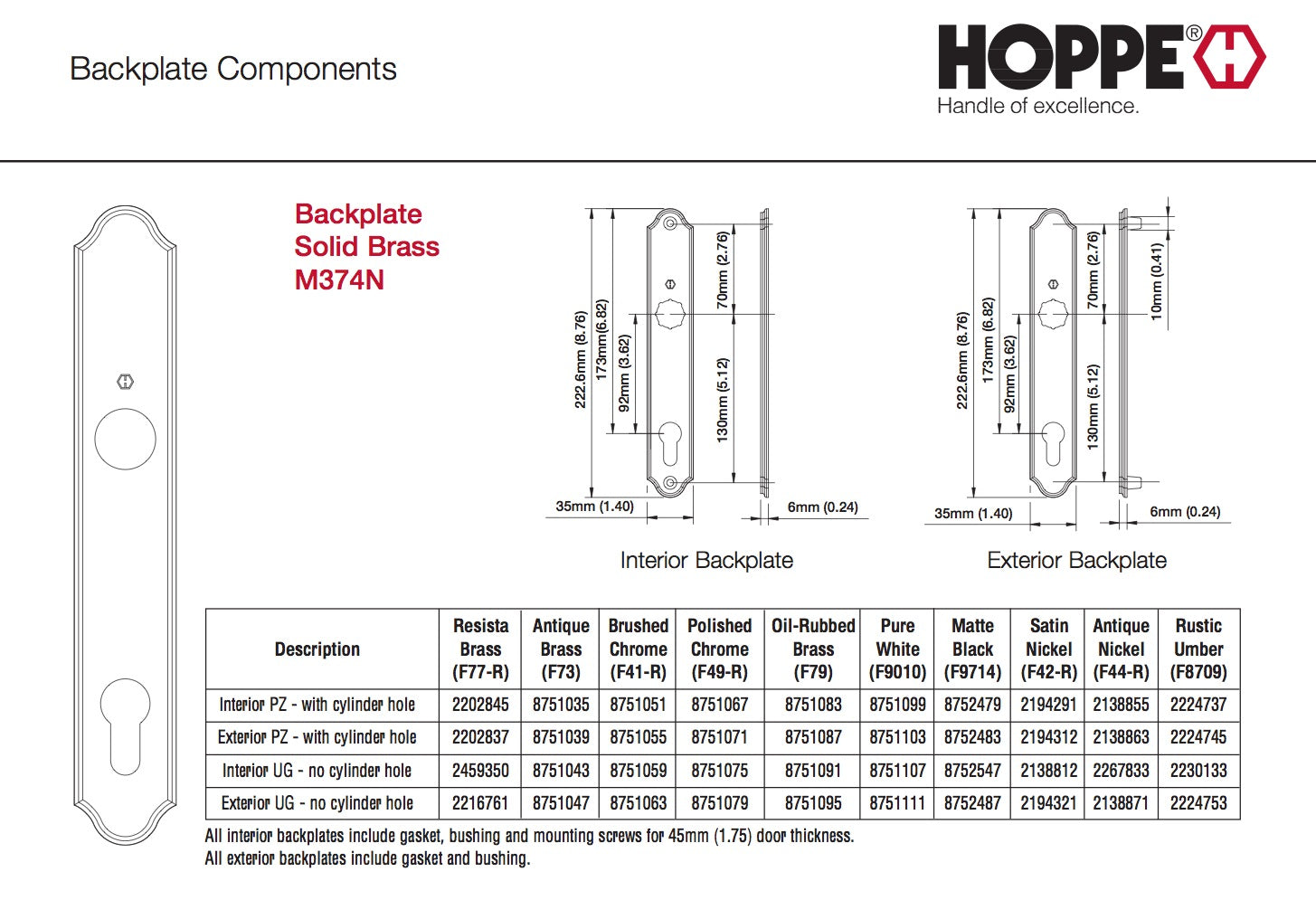

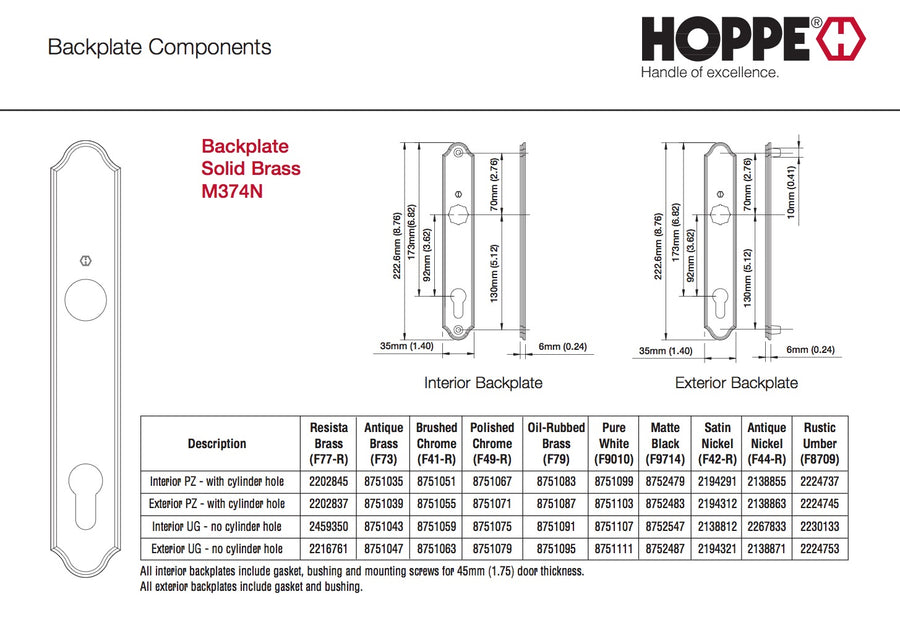

Traditional Interior Backplate for Active and Inactive Handlesets in Brushed Chrome: 8751051
Traditional Exterior Backplate for Inactive Handlesets in Brushed Chrome: 8751063
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
PZ (Center of Handle to Center of Cylinder): 92mm (3-5/8 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Brushed Chrome (F41-R)
Related Parts:
Traditional Interior Backplate for Active and Inactive Handlesets in Brushed Chrome: 8751051
Traditional Exterior Backplate for Inactive Handlesets in Brushed Chrome: 8751063
