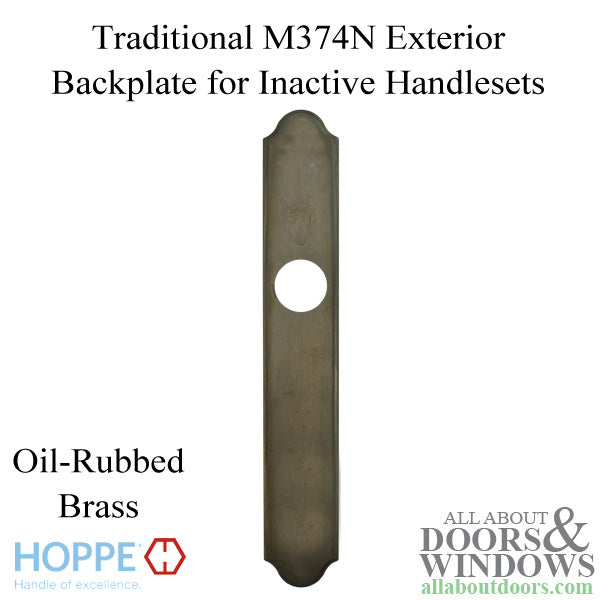

HOPPE Traditional Exterior Backplate M374N for Inactive Handlesets - Oil-Rubbed Brass
Use the arrows or swipe left to view all images for this product
HOPPE Traditional Exterior Backplate M374N for Inactive Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

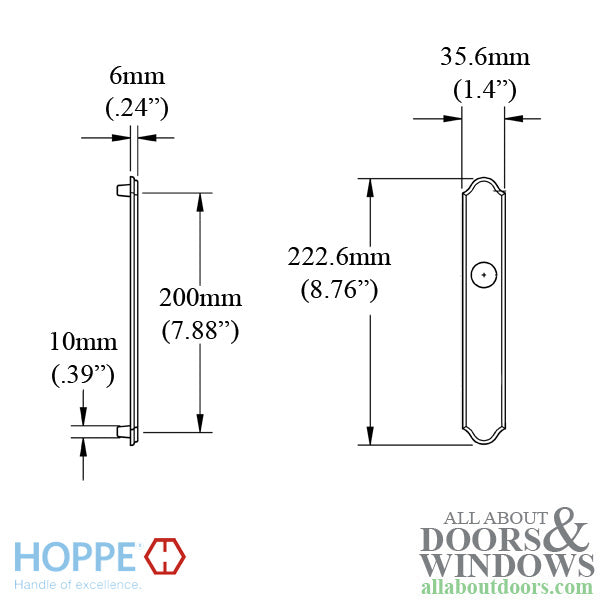

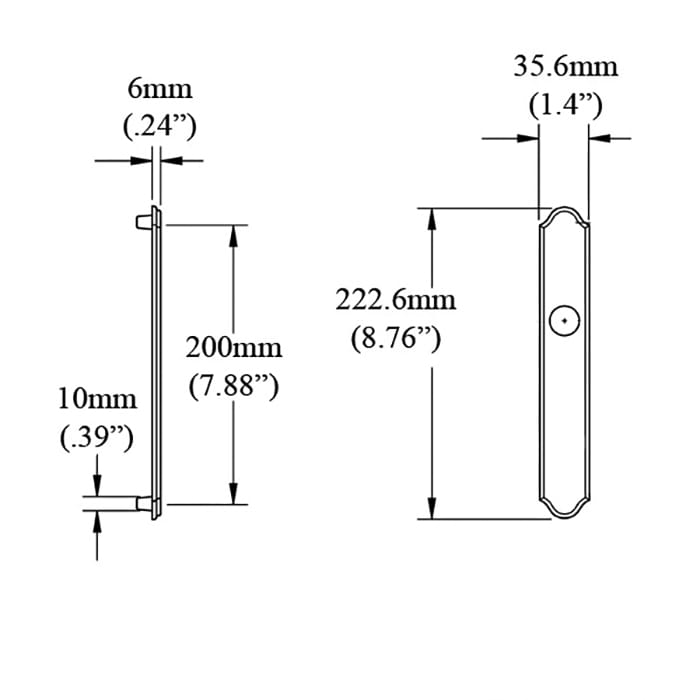

Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Oil-Rubbed Brass (F79)
Related Parts:
Traditional Interior Backplate for Active and Inactive Handlesets in Oil-Rubbed Brass: 8751083
Traditional Exterior Backplate for Active Handlesets in Oil-Rubbed Brass: 8751087
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Oil-Rubbed Brass (F79)
Related Parts:
Traditional Interior Backplate for Active and Inactive Handlesets in Oil-Rubbed Brass: 8751083
Traditional Exterior Backplate for Active Handlesets in Oil-Rubbed Brass: 8751087
