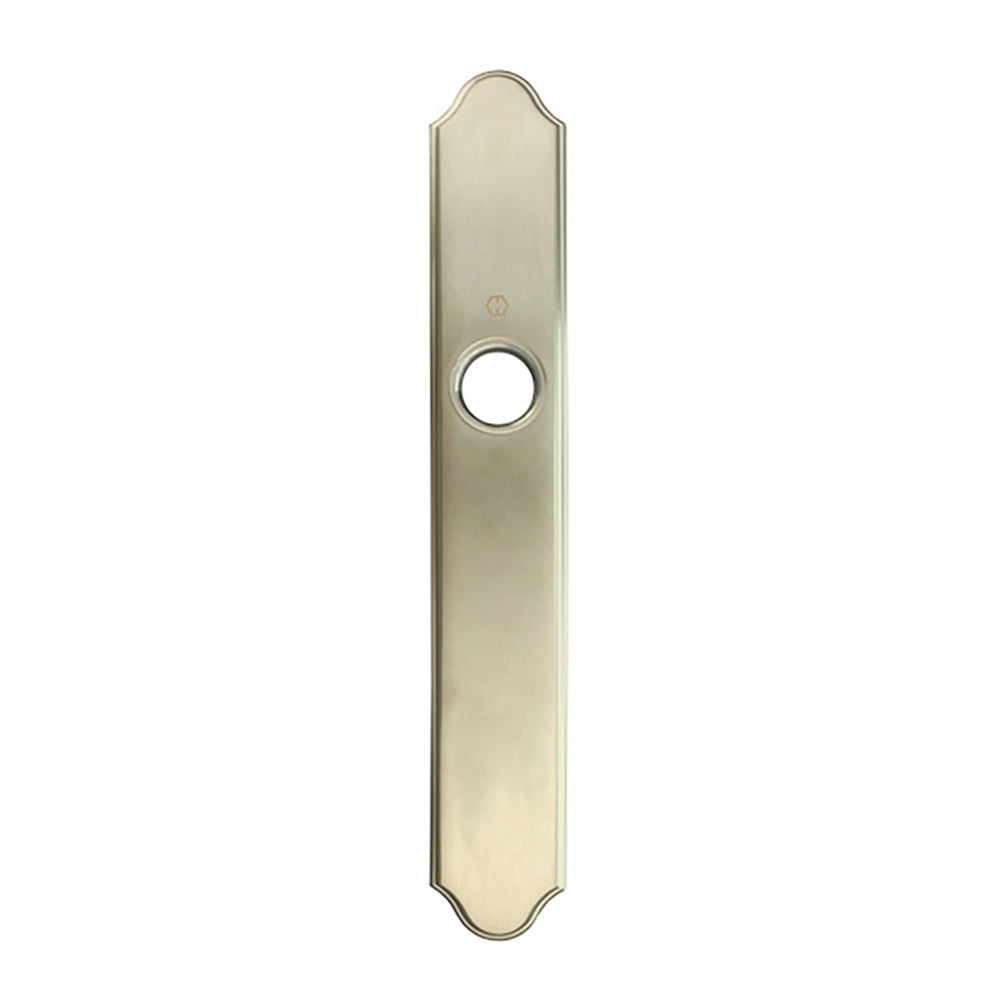

HOPPE Traditional Exterior Backplate M374N for Inactive Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

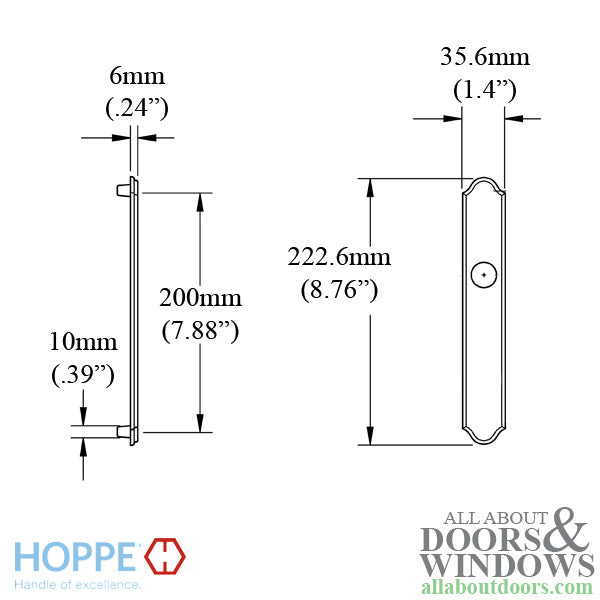

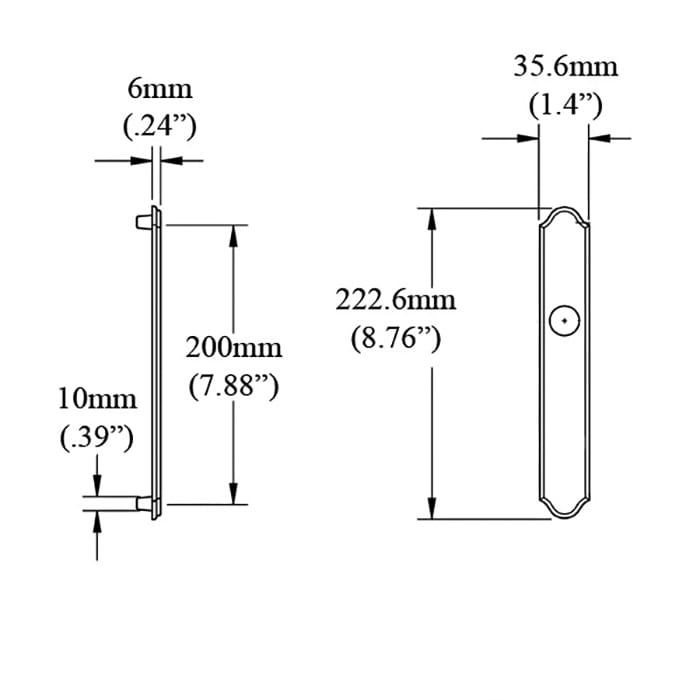

Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Satin Nickel (F42-R)
Related Parts:
Traditional Interior Backplate for Active and Inactive Handlesets in Satin Nickel: 2194291
Traditional Exterior Backplate for Active Handlesets in Satin Nickel: 2194312
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 222.6mm (8.76 in.)
Width: 35mm (1.4 in.)
Thickness: 6mm (.24 in.)
Center of Top Screw Hole to Center of Handle: 70mm (2.76 in.)
Center of Top Screw Hole to Center of Handle: 130m (5.12 in.)
Screw Hole Spacing: 200mm (7.88")
Material: Solid Brass
Color: Satin Nickel (F42-R)
Related Parts:
Traditional Interior Backplate for Active and Inactive Handlesets in Satin Nickel: 2194291
Traditional Exterior Backplate for Active Handlesets in Satin Nickel: 2194312
