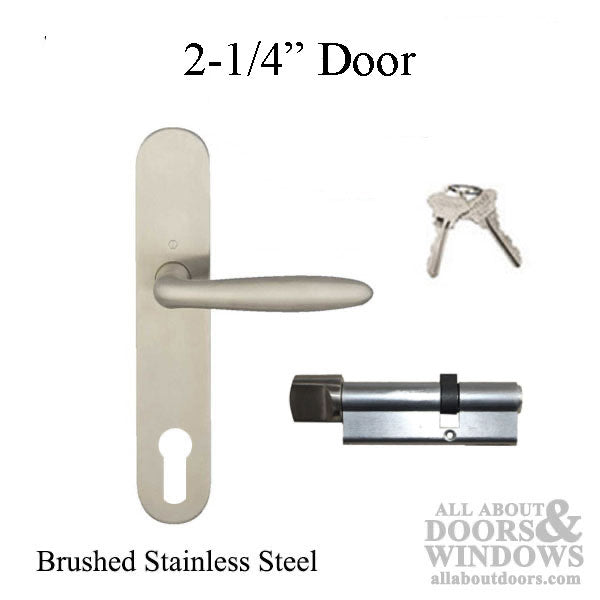

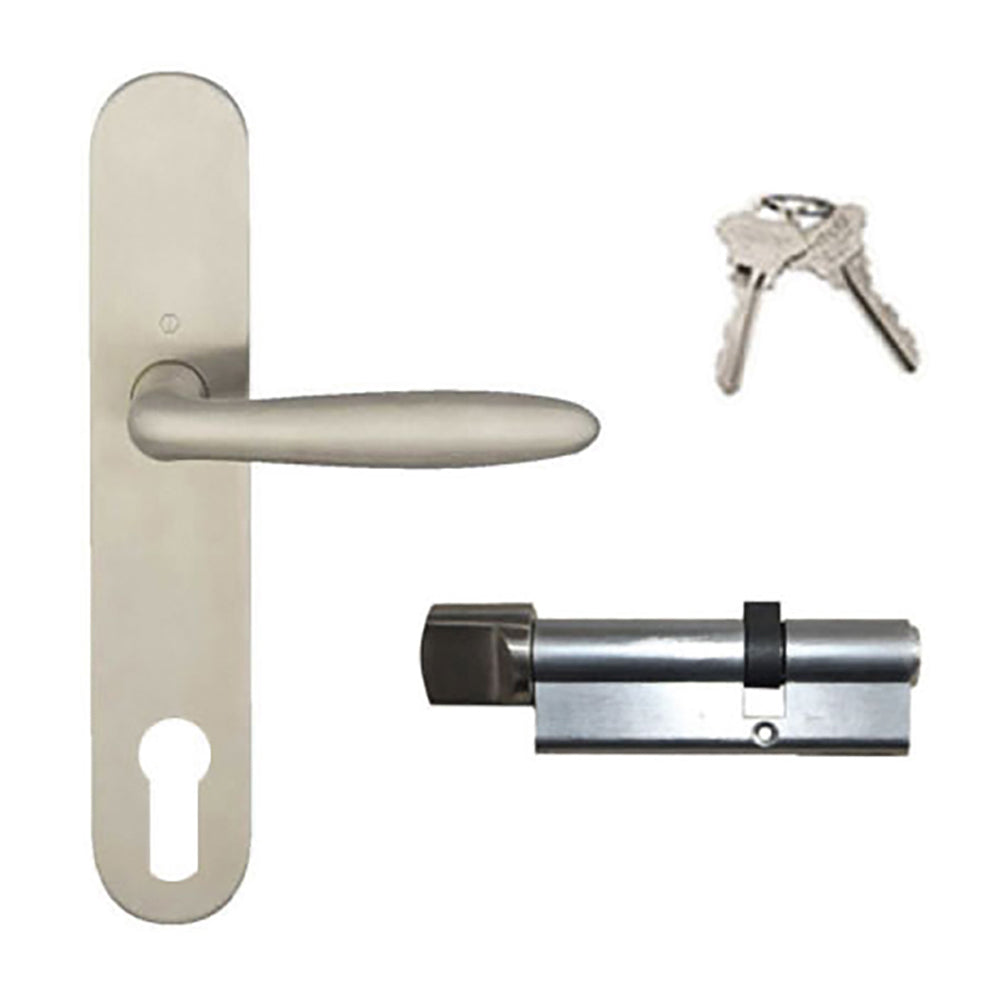

Hoppe Verona active E1800F/353/KE SPECIAL Handle set trim for 2-1/4 inch door with offset Multipoint Lock - Brushed Stainless Steel

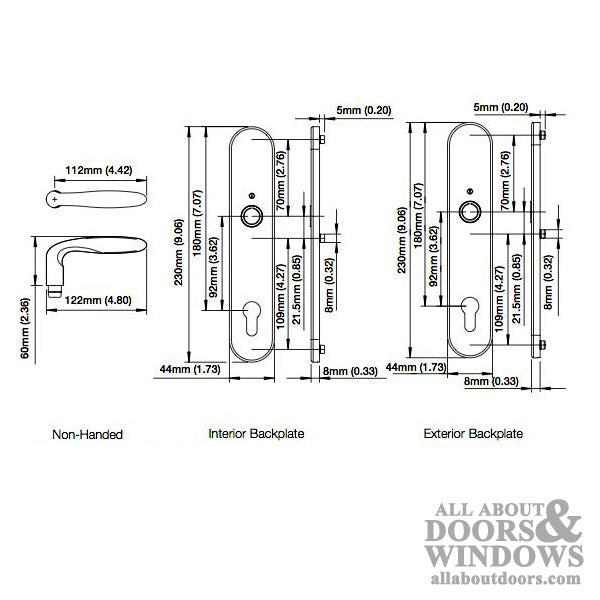

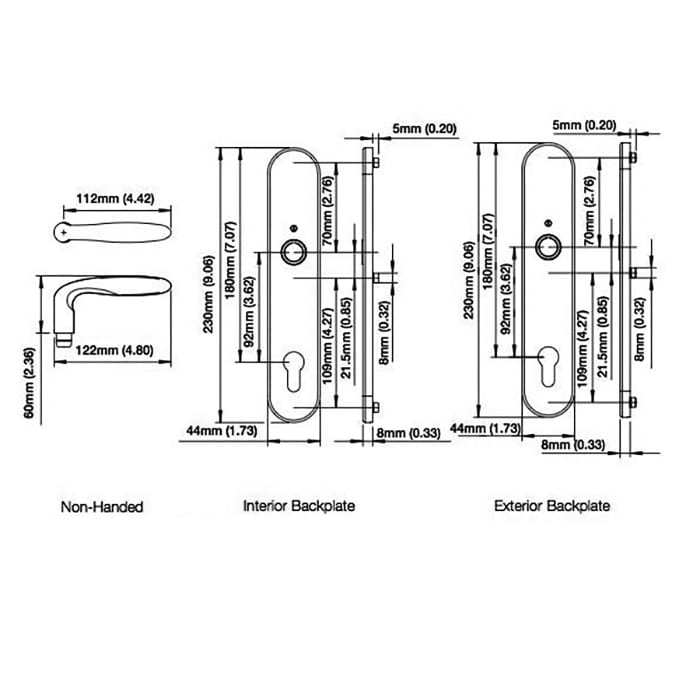

Measurements:
Door Thickness: 2-1/4 inch (57mm) 2.24
Escutcheon Plates - Radius Top
Escutcheon Plate Length - 9 inch ( 230mm) 9.06
Escutcheon Plate Width - 1-3/4 inch (44mm) 1.73
Plate Thickness: 5/16 inch (8mm) 0.33
Lever Projection: 2-3/8 inches (60mm) 2.36 - See additional images
Top screw to handle: - 2-3/4 (70mm) 2.76
Bottom screw hole to center screw 4-1/4 inch (109mm) 4.27
Top Screw to bottom screw: 7-7/8 inches (200mm) 7.87
CTC - 3-5/8 inch (92mm) 3.62 center of handle to center of thumb turn
Euro profile cylinder: Yes, Special Size
Key Cylinder Length: 3-1/2 inches (90mm) 3.54
*Thumb Side: 2-3/16 inch (55mm) 2.16
*Key Side: 1-5/16 inch (35mm) 1.37
Note: Mortise lock in door is offset to outside, not centered
Installation Screws: 3 - 4M5 x 65mm
Material: Stainless Steel
Finish: Brushed Stainless Steel

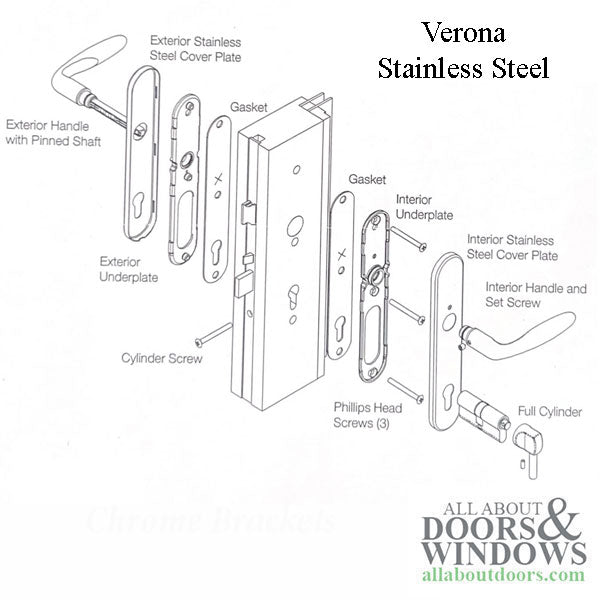

Related Parts:
3122337 - Cover plate with Cylinder Hole - SS
3280941 - Verona Levers, Brushed Stainless Steel, passivated
Note: Passivated is to make inactive or less reactive. passivate the surface by chemical treatment.
