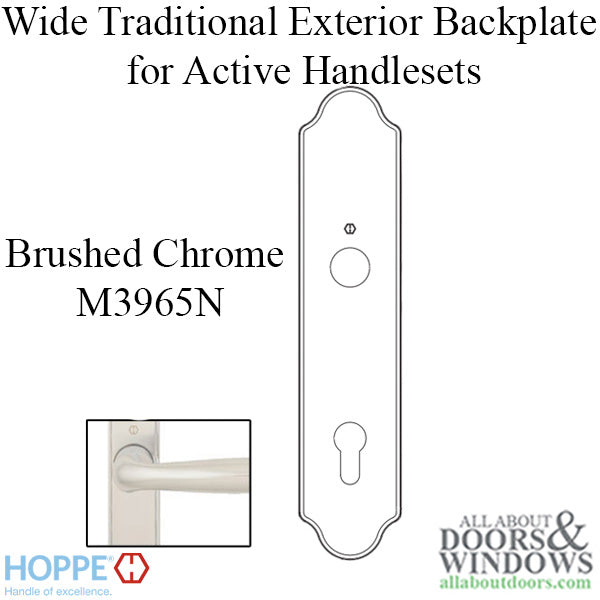

HOPPE Wide Traditional Exterior Backplate M3965N for Active Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

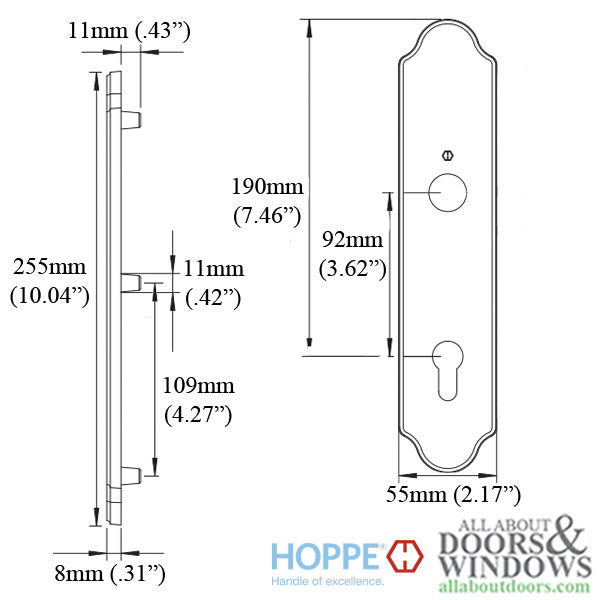

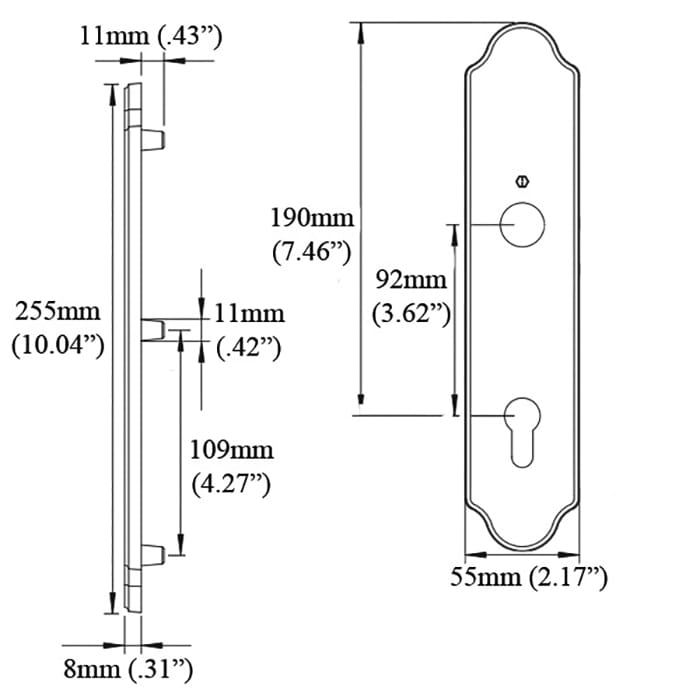

Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Brushed Chrome (F41-R)
