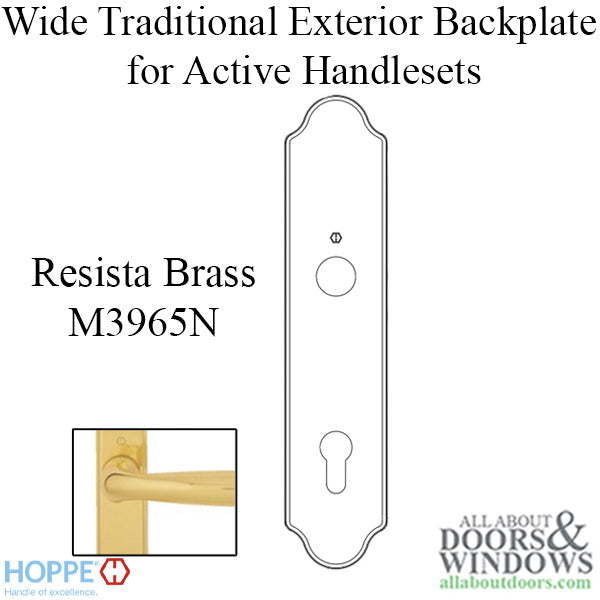

HOPPE Wide Traditional Exterior Backplate M3965N for Active Handlesets - Resista Brass
Use the arrows or swipe left to view all images for this product
HOPPE Wide Traditional Exterior Backplate M3965N for Active Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

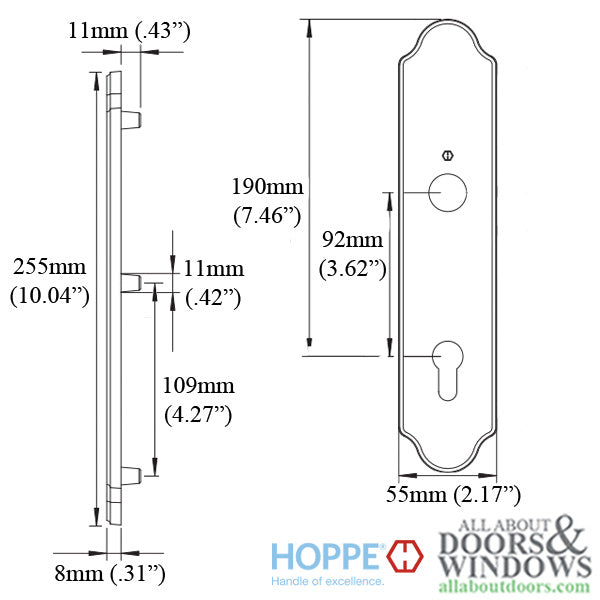

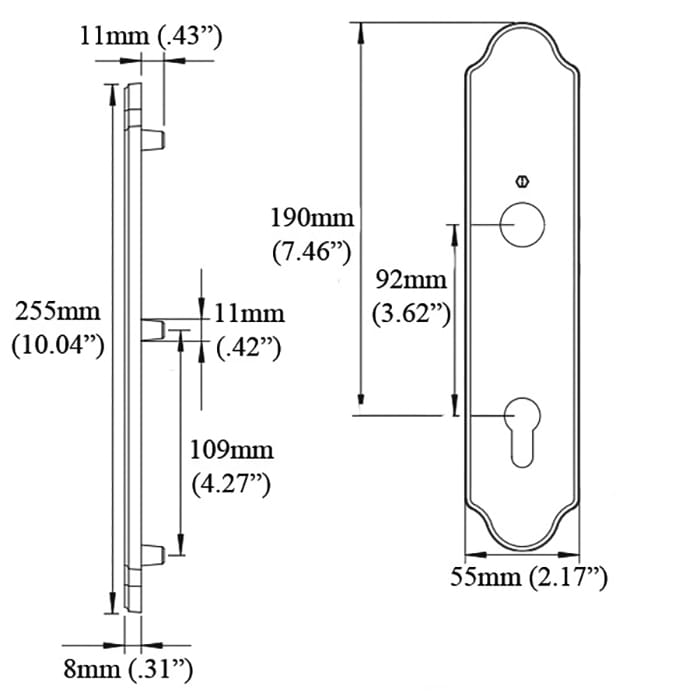

Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Resista Brass (F77-R)
Related Parts:
Wide Traditional Interior Backplate for Active and Inactive Handlesets in Resista Brass: 2411348
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Resista Brass (F77-R)
Related Parts:
Wide Traditional Interior Backplate for Active and Inactive Handlesets in Resista Brass: 2411348
