HOPPE Wide Traditional Exterior Backplate M3965N for Active Handlesets - Satin Nickel
Use the arrows or swipe left to view all images for this product

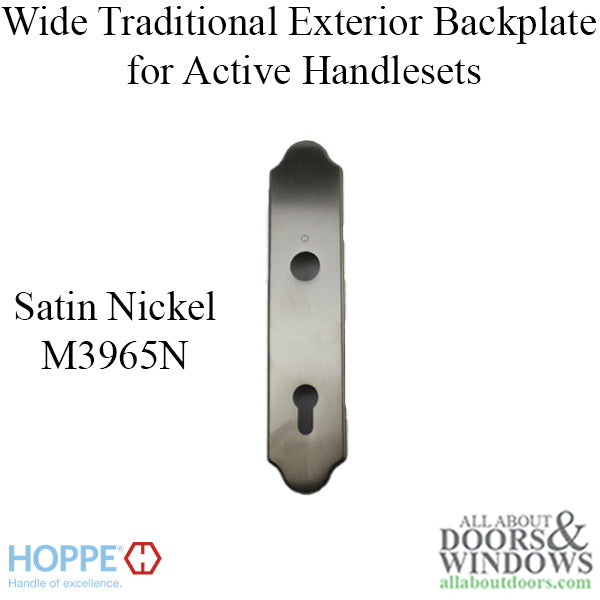

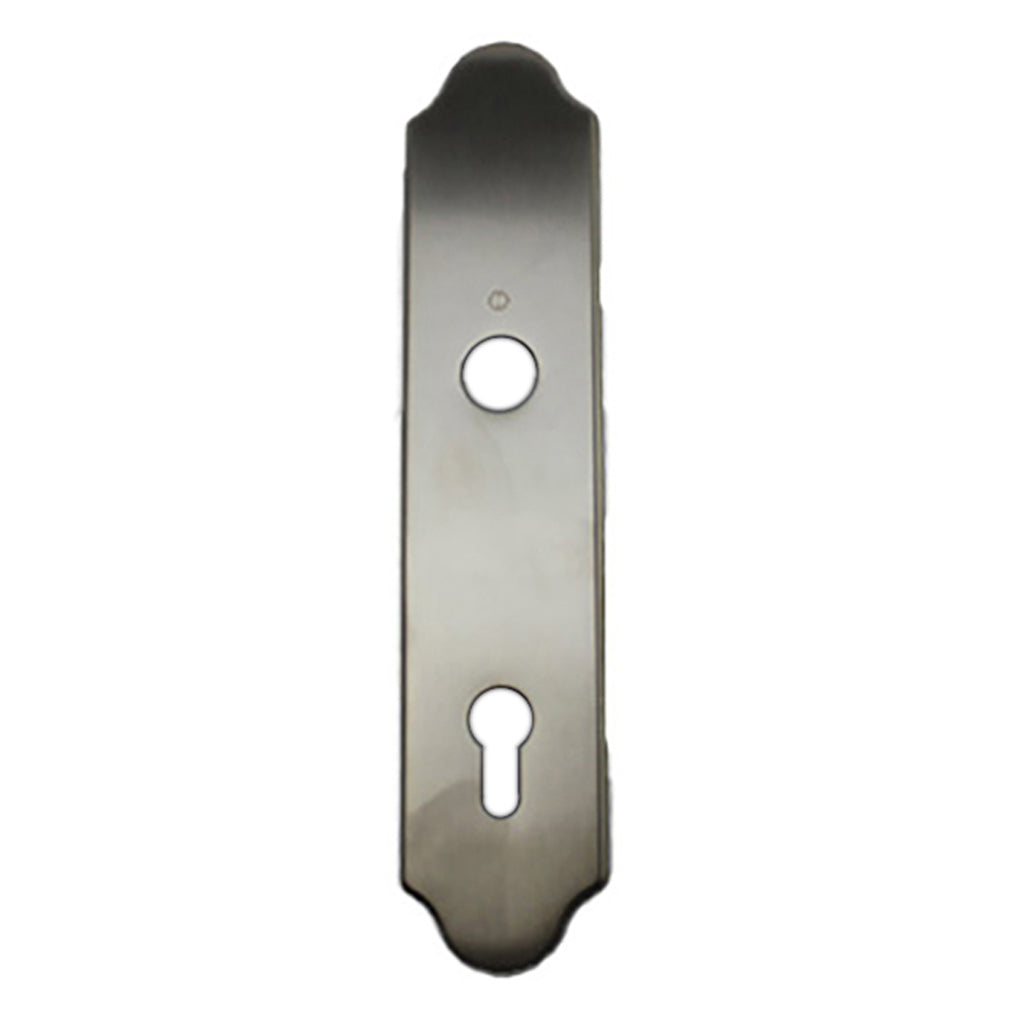

HOPPE Wide Traditional Exterior Backplate M3965N for Active Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

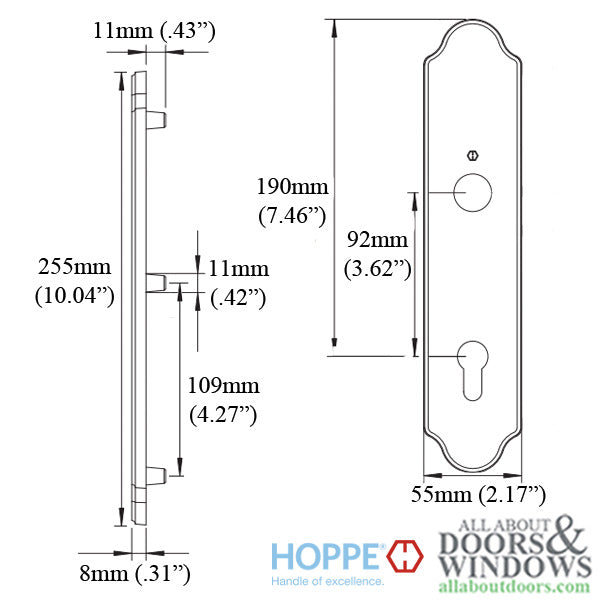

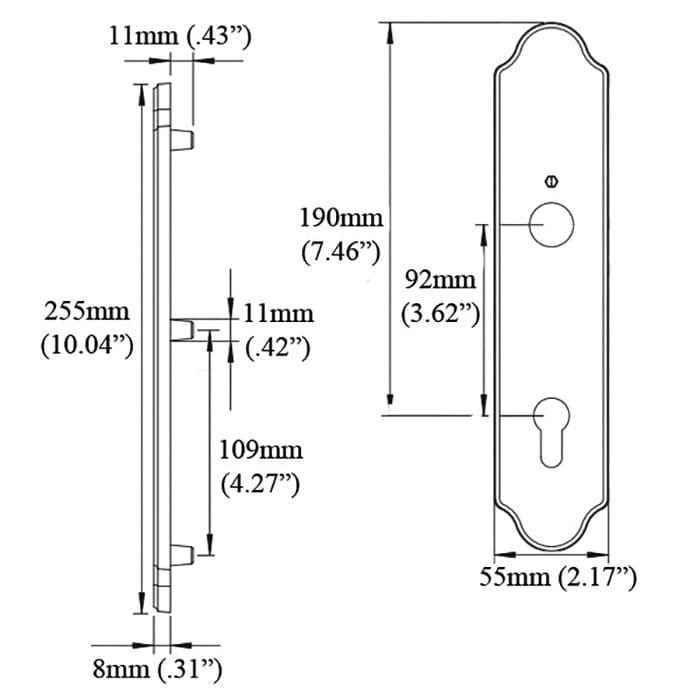

Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Satin Nickel (F42-R)
Related Parts:
Wide Traditional Interior Backplate for Active/Inactive Handlesets in Satin Nickel: 2411321
Wide Traditional Exterior Backplate for Inactive Handlesets in Satin Nickel: 2412172
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)
Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Satin Nickel (F42-R)
Related Parts:
Wide Traditional Interior Backplate for Active/Inactive Handlesets in Satin Nickel: 2411321
Wide Traditional Exterior Backplate for Inactive Handlesets in Satin Nickel: 2412172
