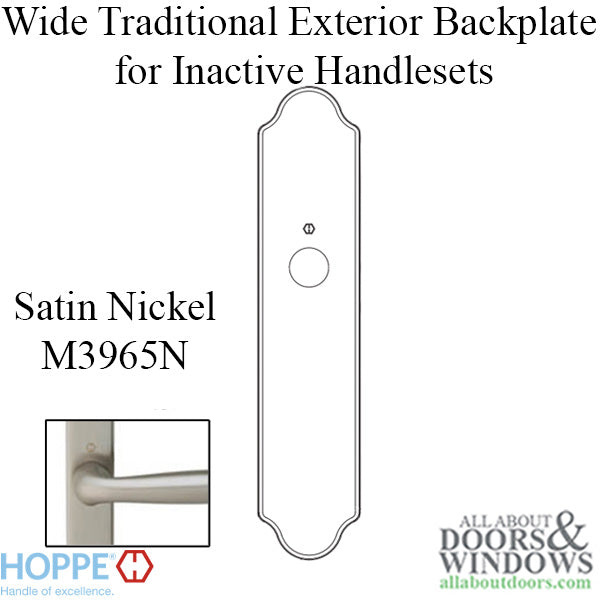

HOPPE Wide Traditional Exterior Backplate M3965N for Inactive Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

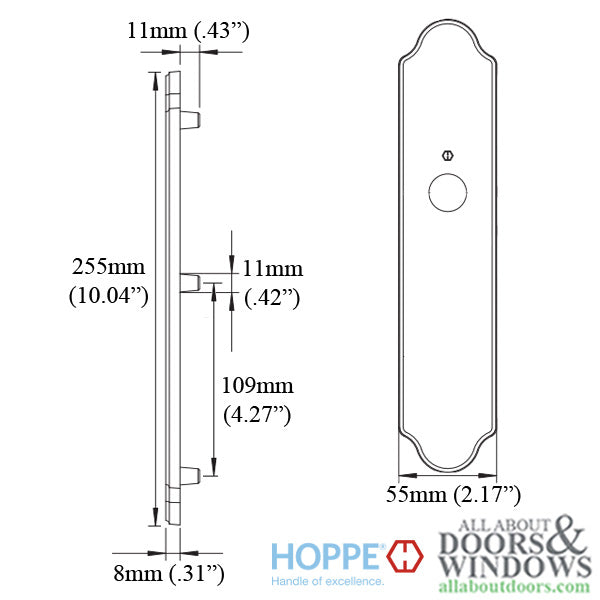

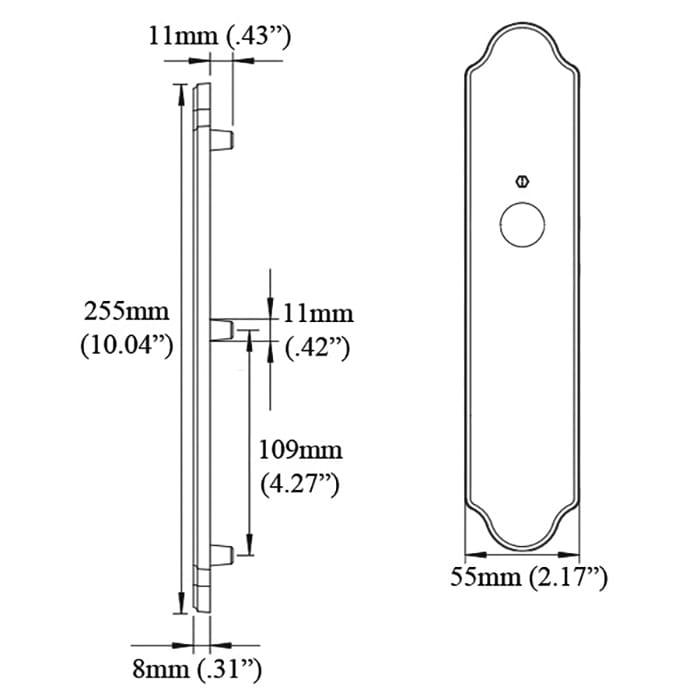

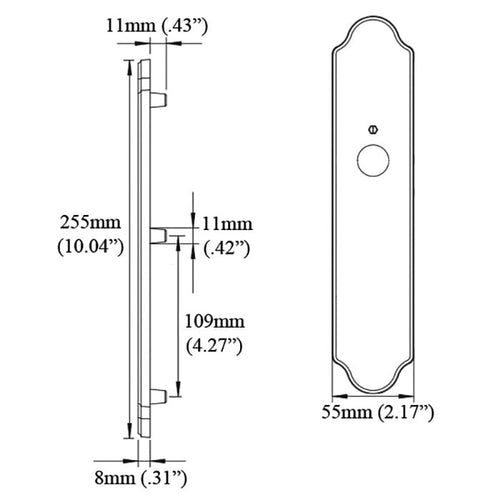

Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Satin Nickel (F42-R)
Related Parts:
Wide Traditional Interior Backplate for Active/Inactive Handlesets in Satin Nickel: 2411321
Wide Traditional Exterior Backplate for Active Handlesets in Satin Nickel: 2412076
