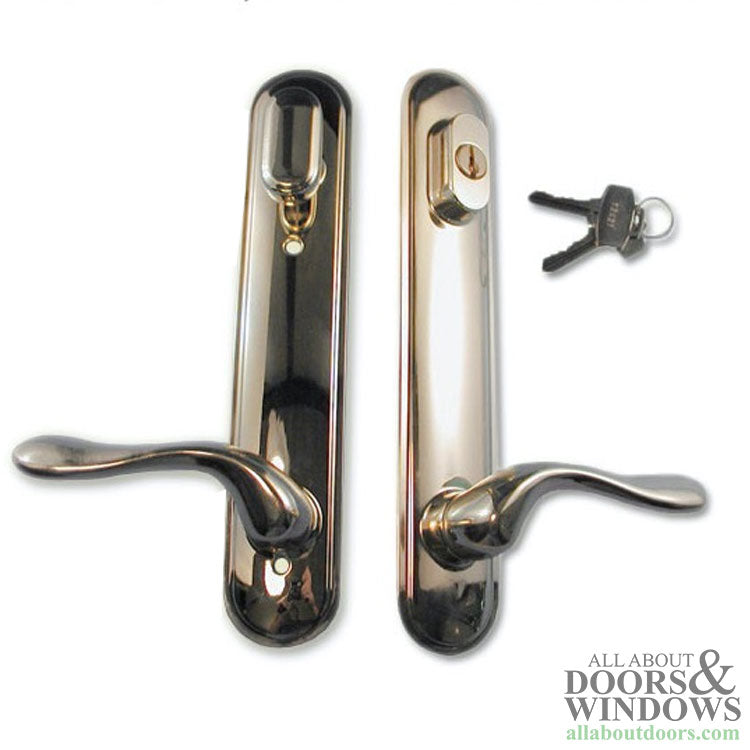

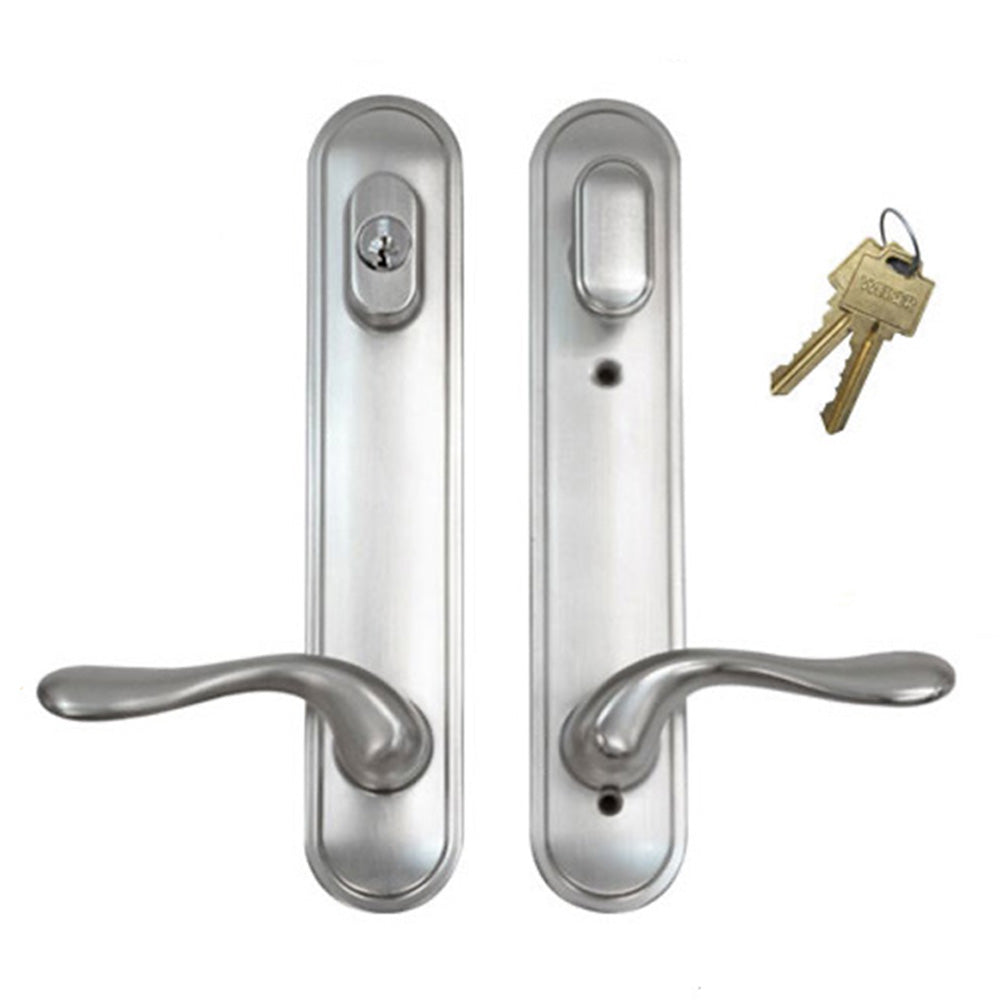

Trilennium Peachtree IPD Active Keyed Handle Set 1-3/4 Door
Part Number: 40064-BB-SC1 Price: $193.22
Trilennium Active Keyed Lock, 3000 Series 1-3/4 door
This handleset trim is used on the Peachtree Citadel IPD doors, Pella Entry doors with Triple Latch Locks, W&F and Trilennium multipoint locks
Application: Active Door with IPD Multipoint Lock (If your door does not have a bolt at both the bottom and the top as well as the standard middle location, this handleset will not work)
Style: Traditional

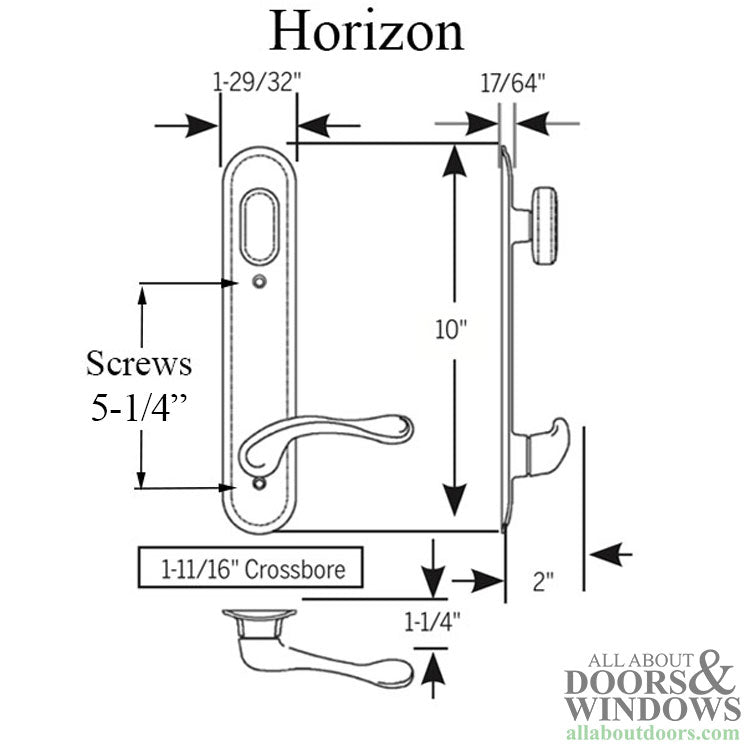

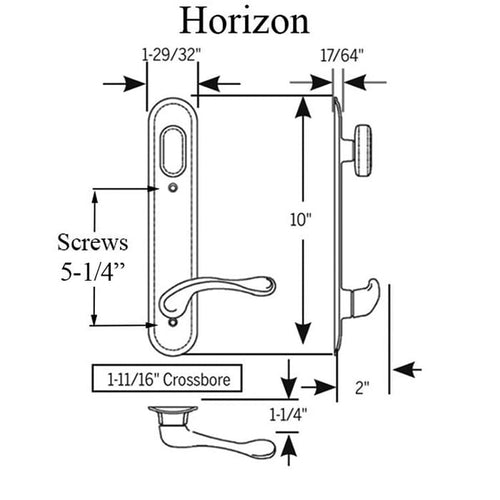

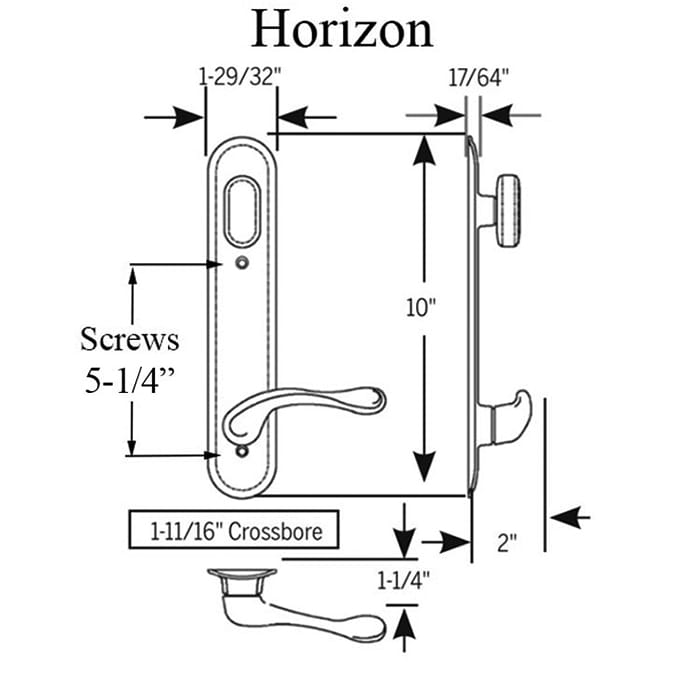

Handle to Cylinder PZ Distance: 6 inch
Escutcheon Plate Width: 1-7/8 inches
Escutcheon Plate Height: 10 inches
Handle Projection: 2 inch
Lock Cross bore: Fits 1-11/16 inches ( some doors had 2-1/8" bore, this is not wide enough)
NOTE: the 40067, 40070 and 40073 all have wider plates for the larger 2-1/8 bore.
For Door Thickness: 1-3/4 inch (45mm)
Note: To use with 2-1/4 inch (57mm) thick doors, order conversion kit 40039-WR (40039-SC1 if wanting a Schlage keyway)
Keyway Options:
Schlage C
Weiser

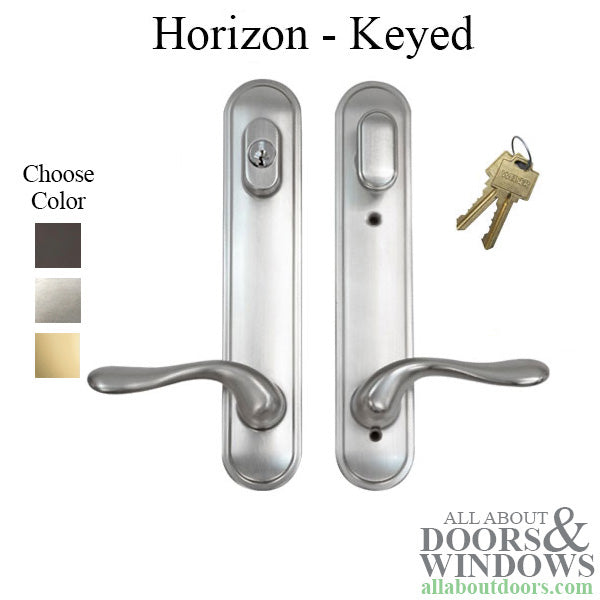

Available Colors:
Bright Brass
Victorian Bronze

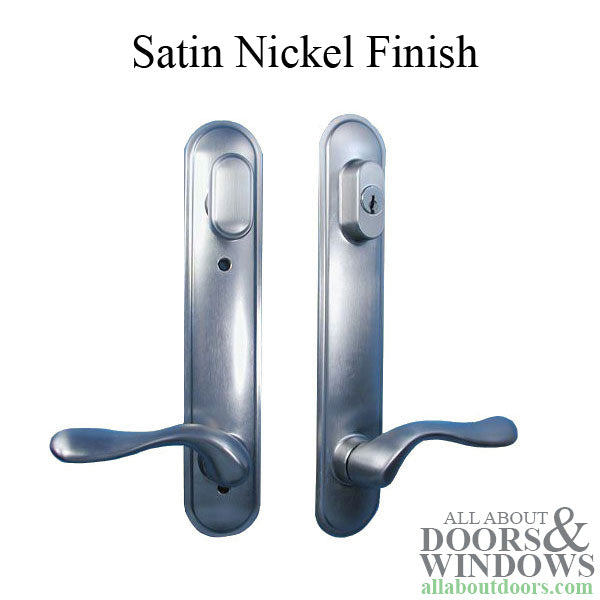

Satin Nickel
This includes the keyed trim only. No mortise lock or strike plates are included.
Strikes sold here: 37400109 - Set of 3 Strike Plates - Choose Color
Please note: These handlesets are designed to work best with the newer-style multipoint locks. For older-style IPD multipoint locks made from the 1980's - 2002, this handleset may not work due to a change in the design of the bushing. The bushing 'stops' are at different locations on the new style bushing on the handleset than they were on the old-style. If you're looking to replace a handleset in use with an older IPD lock, we recommend replacing the lock and handles both.
