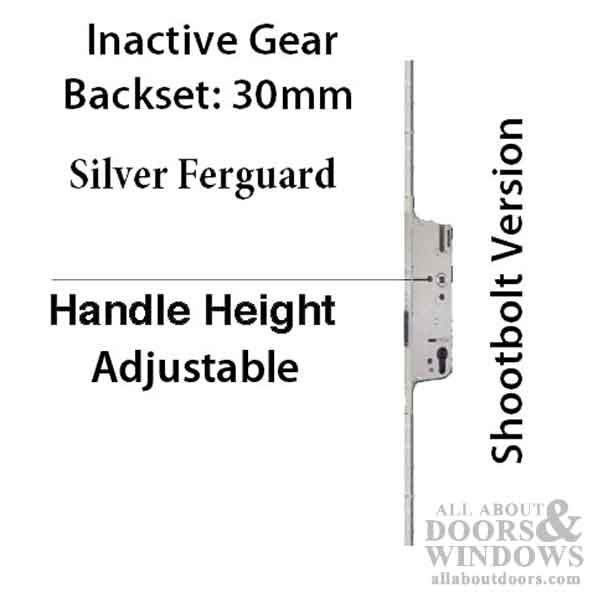

Inactive 30/92 Europa Multipoint Lock for Passive Doors - Silver Ferguard
Part Number: Price: $224.90G-U Bottom Gear for Inactive Door ( does not include top or bottom Shootbolt )
This lock has a hole for the deadbolt, but no hole for the spring latch
Series: Europa, 3-5/8 inch (92mm) Handle to Cylinder Spacing
Cylinder: American w/ Flat Tailpiece
Handle Position: Key below Handle
Function: Shootbolt
Backset: 1-3/16" or 1.181 inch (30mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Stainless Steel
Handle Height: Adjustable - 40 Inch max., Croppable to 35 Inches (889mm)
Spindle Size: 8mm Square
Related GU Parts:
G-16790-05-0-1: Extension, 500mm length - Silver
G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver
G-20415-00-01: Bottom Shootbolt - Silver
9-34442-00-0-0: Brass Sleeve / Socket Strike - Brass
Note: The Europa R2 and the Europa Inactive are the only locks in the GU offering that can achieve the 39" handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1014mm (40") by adding a shoot at the bottom.
The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.
This lock has a hole for the deadbolt, but no hole for the spring latch
Series: Europa, 3-5/8 inch (92mm) Handle to Cylinder Spacing
Cylinder: American w/ Flat Tailpiece
Handle Position: Key below Handle
Function: Shootbolt
Backset: 1-3/16" or 1.181 inch (30mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Stainless Steel
Handle Height: Adjustable - 40 Inch max., Croppable to 35 Inches (889mm)
Spindle Size: 8mm Square
Related GU Parts:
G-16790-05-0-1: Extension, 500mm length - Silver
G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver
G-20415-00-01: Bottom Shootbolt - Silver
9-34442-00-0-0: Brass Sleeve / Socket Strike - Brass
Note: The Europa R2 and the Europa Inactive are the only locks in the GU offering that can achieve the 39" handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1014mm (40") by adding a shoot at the bottom.
The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.
