G-U Inactive Multipoint Lock Assembly, Adjustable Handle Height for passive door.
(Main Assembly only, does not include top or bottom Shootbolt )

Series: Europa, Key below Handle

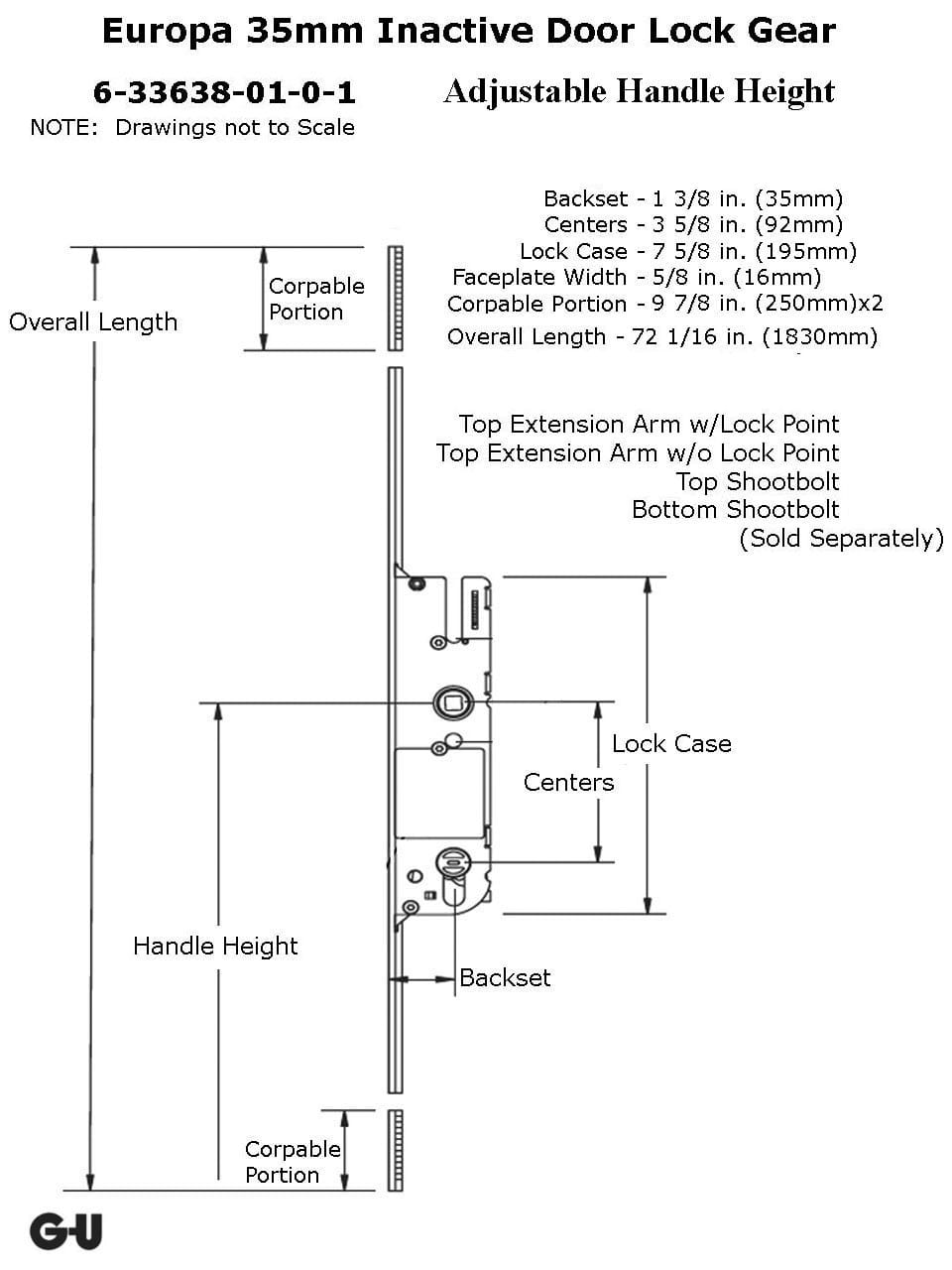

Backset: 1 3/8 inch (35mm) 1.3779
Faceplate Width: 5/8 inch (16mm) 0.6299

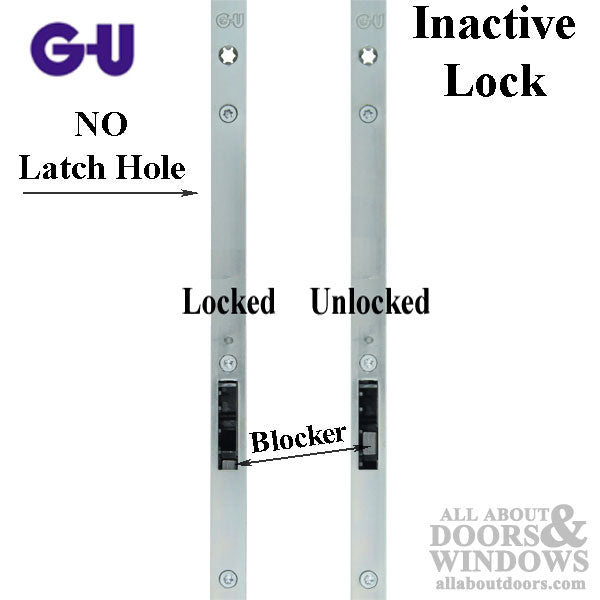

Function: Shootbolt for inactive Door, 2 point Lock

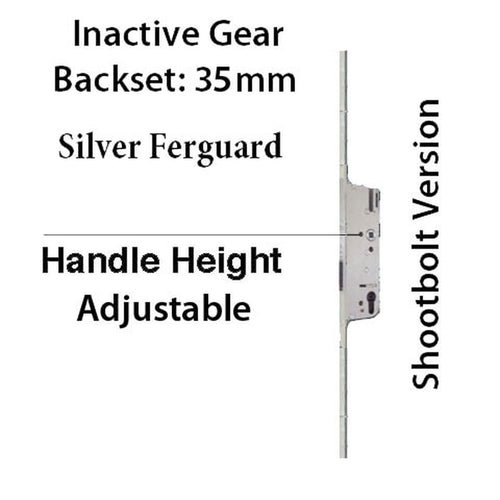

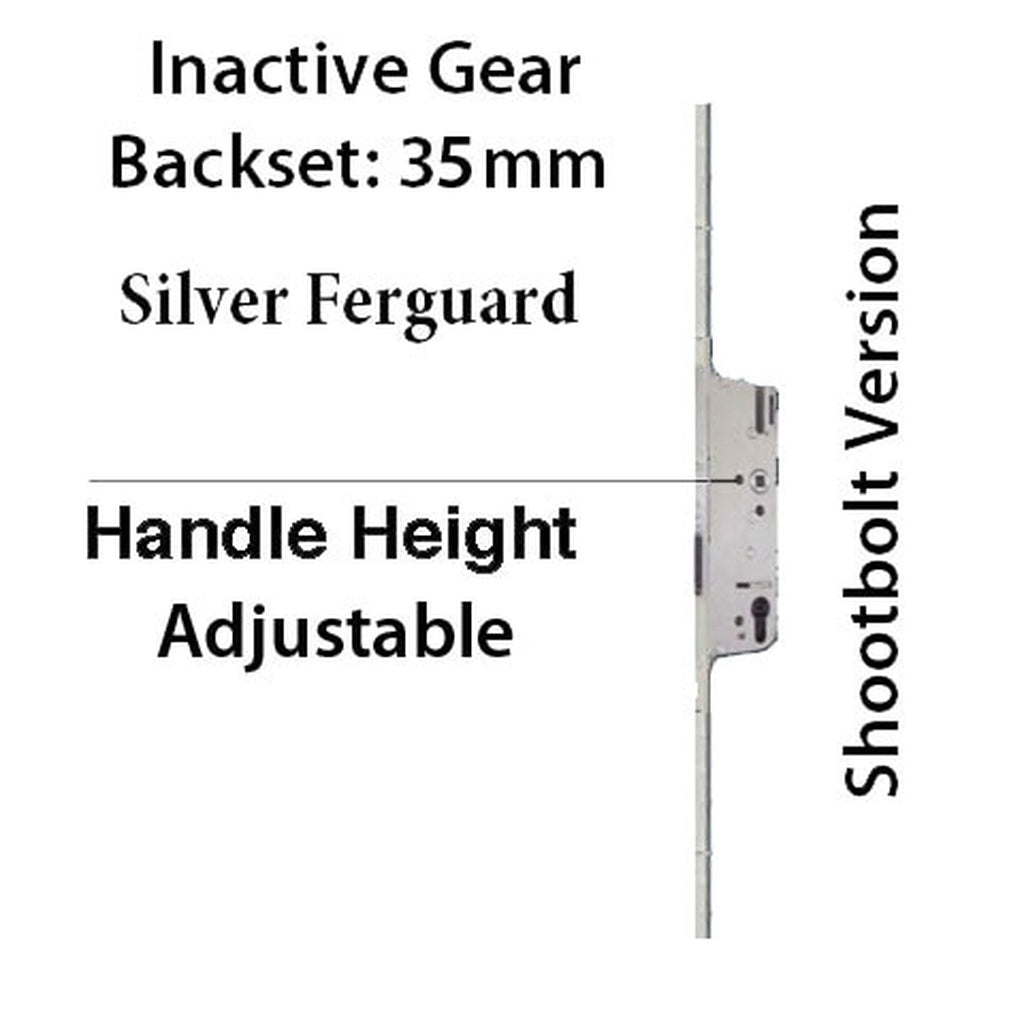

Handle Height: Adjustable 35 Inches (889mm) to 41.33 inches (1050mm)
Cylinder Type: American w/ Flat Tailpiece

Faceplate Finish: Silver Ferguard
Handle to Cylinder Spacing: 3-5/8 inch (92mm) 3.622
Spindle Size: 5/16 inch (8mm) 0.3149

Related GU Multipoint Lock Parts:
G-20416-00-0-1: Top Shootbolt, Reversing Gear - Silver
G-20415-00-0-1: Bottom Shootbolt - Silver
G-16790-05-0-1: Extension length, 19.685 inches (500mm) - Silver
9-34442-00-0-0: Brass Sleeve / Socket Strike - Brass

The Europa Inactive 2-point locking system features shoot bolts, top and bottom for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Weiser, Kwikset and Schlage key way systems.

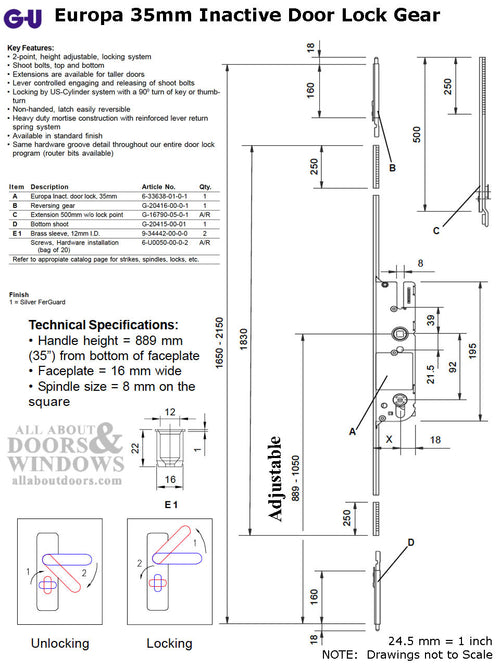

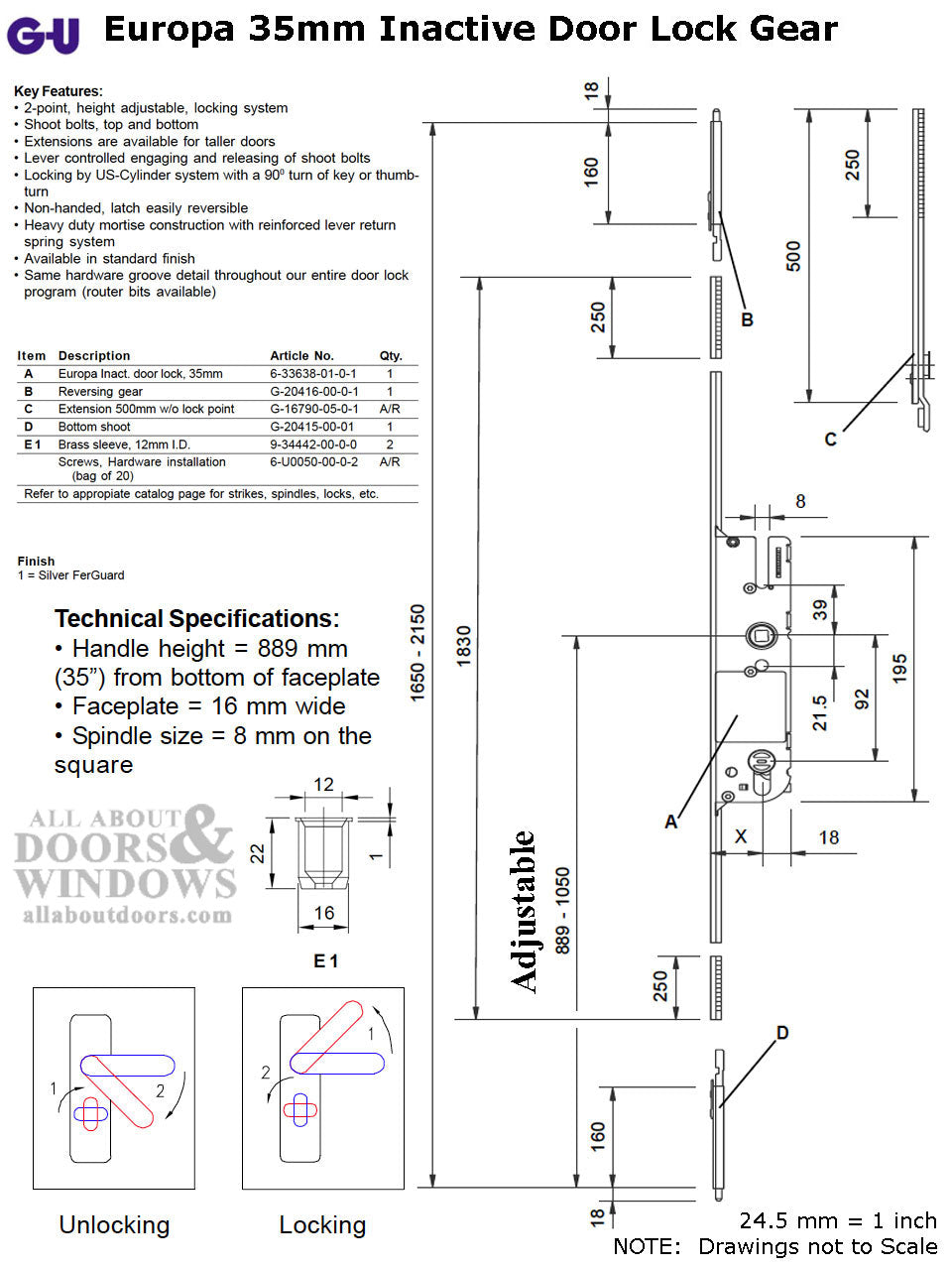

Key Features:
* 2-point, height adjustable, locking system
* Shoot bolts, top and bottom
* Extensions are available for taller doors
* Lever controlled engaging and releasing of shoot bolts
* Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
* Non-handed, latch easily reversible
* Heavy duty mortise construction with reinforced lever return spring system
* Available in standard finish
* Same hardware groove detail throughout our entire door lock program (router bits available)


Note: The Europa R2 and the Europa Inactive are the only locks in the GU offering that can achieve the 39" handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1014mm (40") by adding a shoot at the bottom.
The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.

To Identify a Multipoint Door Lock
1. Check for manufactures stamp on the lock strip
2. Measure the width of the lock strip
3. Measure the Backset
4. Measure the Center points
5. What locking types are on the strip? (Mushroom, Deadbolt, Hook, ect.)
6. How many of those locking types are on the strip?
7. What color is the lock? (Silver, Stainless Steel, ect.)
8. Is the door UPVC, Aluminium, Fiberglass, Composite or Wood?
