Inactive 45/92 Europa Multipoint Lock for Passive Doors - Silver Ferguard
Part Number: Price: $277.91Europa Inactive Multipoint lock for passive doors
To be used with shootbolt extensions (not-included)

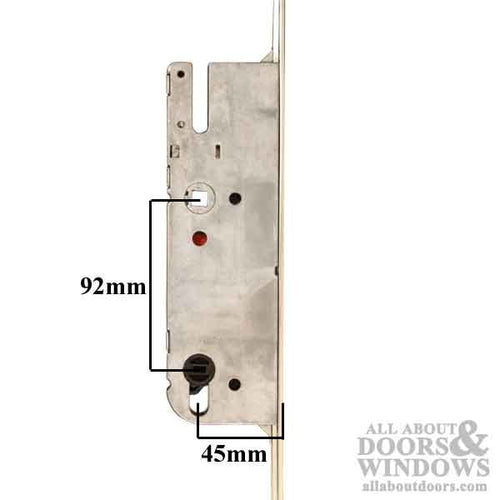

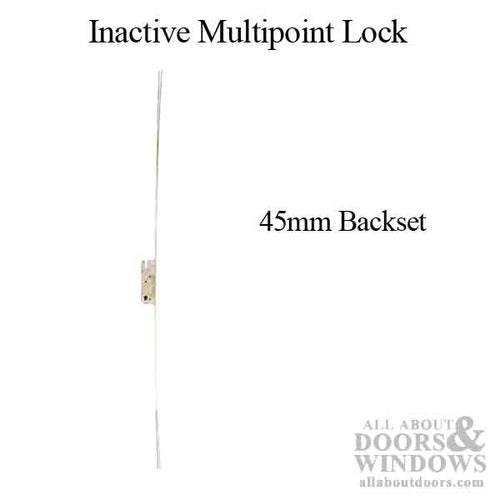

Backset: 45mm
PZ: 92mm
Overall Length: about 6 ft
HAS TO HAVE AN ASTRAGAL.
Active door deadbolt enters receiving hole in face of inactive lock but only when inactive handles have been lifted and shootbolts engaged. When handles of inactive lock are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up allowing the deadbolt to fit inside. SO BASICALLY: unless passive door is shut and shootbolts engaged, active door cannot be locked.
To be used with shootbolt extensions (not-included)
Backset: 45mm
PZ: 92mm
Overall Length: about 6 ft
HAS TO HAVE AN ASTRAGAL.
Active door deadbolt enters receiving hole in face of inactive lock but only when inactive handles have been lifted and shootbolts engaged. When handles of inactive lock are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up allowing the deadbolt to fit inside. SO BASICALLY: unless passive door is shut and shootbolts engaged, active door cannot be locked.
