IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.

Call the office for availability prior to placing your order.

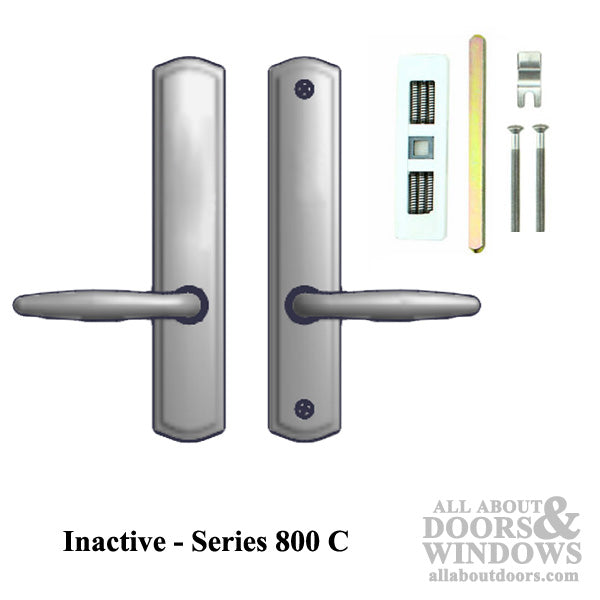

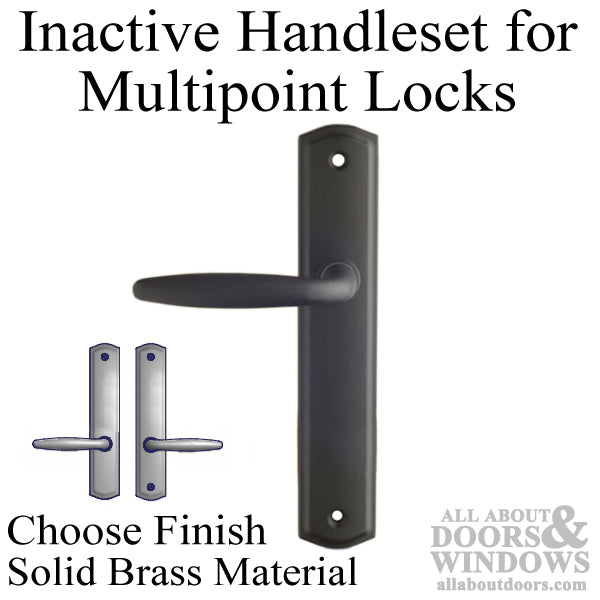

Amesbury non-keyed hardware for inactive door in double door set with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks

Amesbury 800 C Regency series with straight lever and slight arched top escutcheon plate.


Application: Inactive/Passive Handleset with No Key or Thumbturn; Handles Move

Handed: No (Doesn't matter what side of the door the handle is on)
Handle set uses a spring loaded cassette for added lever action.

Base Material: Solid brass with PVD finish for coastal areas
Door Thickness: 1-3/4 Inch

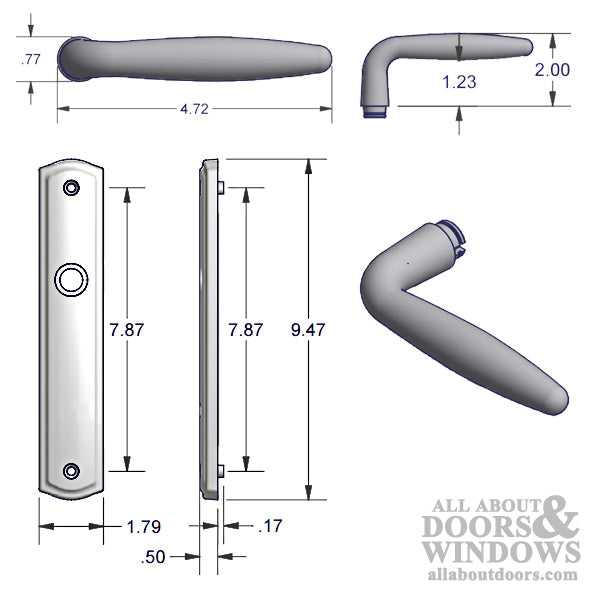

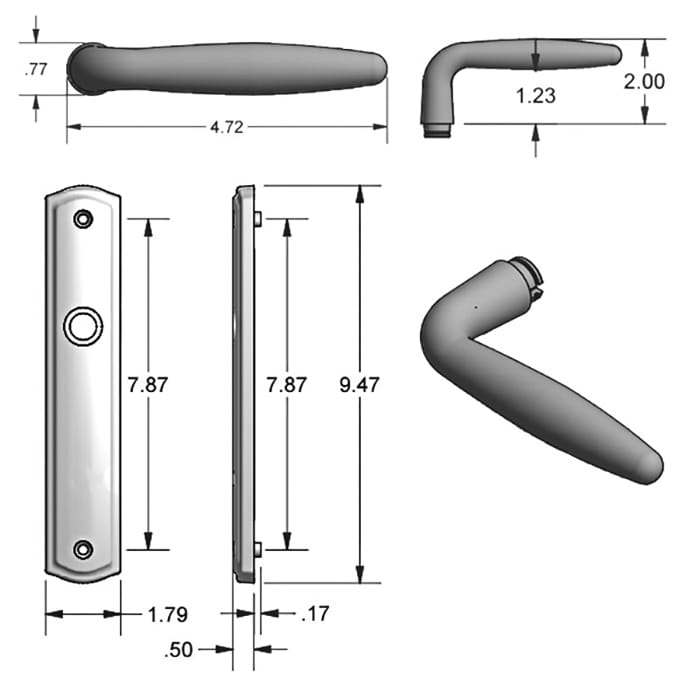

Escutcheon Plate: C Style - Slight Arch Top
Actual Plate Width: 1.79 Inch
Actual Overall Plate Height: 9.47 Inch
Escutcheon Plate Screw Hole Spacing: 7.87 Inch or 7-7/8 Inch (199.9 mm)
Handle to Cylinder: 3.62 Inch or 3-5/8 Inch (92 mm)
Handle Projection: 1.23 Inch
Handle Clearance: 2.00 Inch
Handle Length: 4.72 Inch

Colors / Finishes: Satin Nickel PVD
*PVD is a high performance finish that resists tarnishing and discoloration; recommended for coastal areas

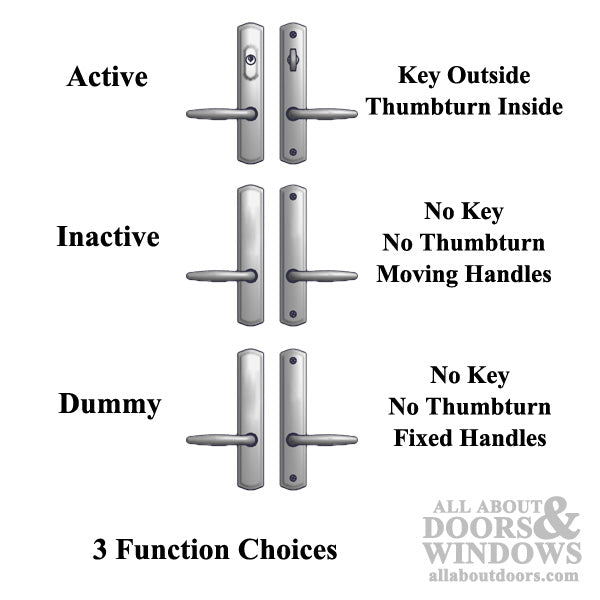

Function: Inactive / Passive - No Key, No Thumbturn, Moving Handles (Can be used for key above handle or key below handle applications)

Other Available Functions (Can be used for key above handle or key below handle applications):
Active - Keyed Outside, Thumbturn Inside
Dummy - No Key, No Thumbturn, Fixed Handles

How to Order:
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy

Same Handleset, Different Materials/Functions:
Inactive Handleset in Zinc: 395221Z
Active Handleset in Zinc: 395220Z
Active Handleset in Solid Brass: 395220B
Dummy Handleset in Zinc: 395222Z
Dummy Handleset in Solid Brass: 395222B
