Amesbury 800C Inactive Handle Set Multipoint Lock Trim Zinc Choose Finish
Use the arrows or swipe left to view all images for this product
Amesbury 800C Inactive Handle Set Multipoint Lock Trim Zinc Choose Finish
Part Number: $116.40 to $168.64Amesbury 800C Inactive Handle Set Multipoint Lock Trim Zinc Choose Finish
IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order

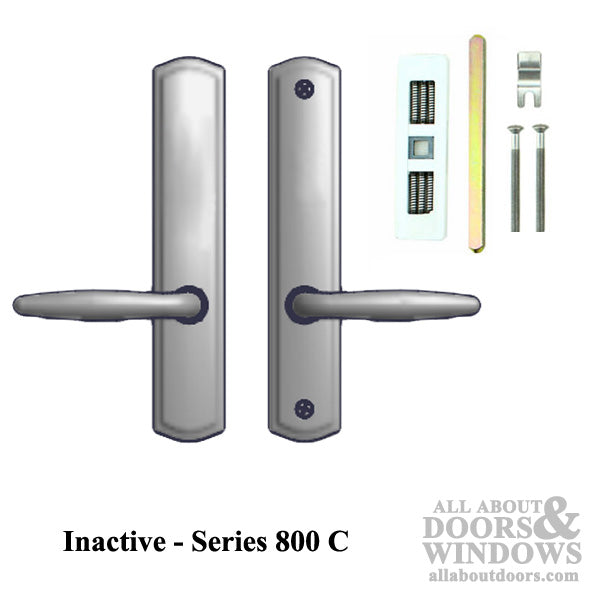

Amesbury non-keyed hardware for inactive door in double door set with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks
Amesbury 800 C Regency series with straight lever and slight arched top escutcheon plate.
Function: Inactive / Passive - No Key, No Thumb-turn, Moving Handles (Can be used for key above handle or key below handle applications)
Handed: No (Doesn't matter what side of the door the handle is on)
Handle set uses a spring loaded cassette for added lever action.
Base Material: Zinc
Door Thickness: 1-3/4 Inch
Escutcheon Plate: C Style - Slight Arch Top

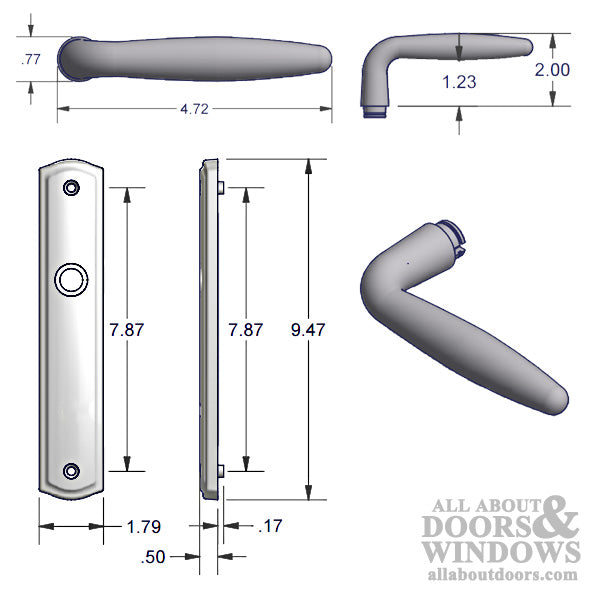

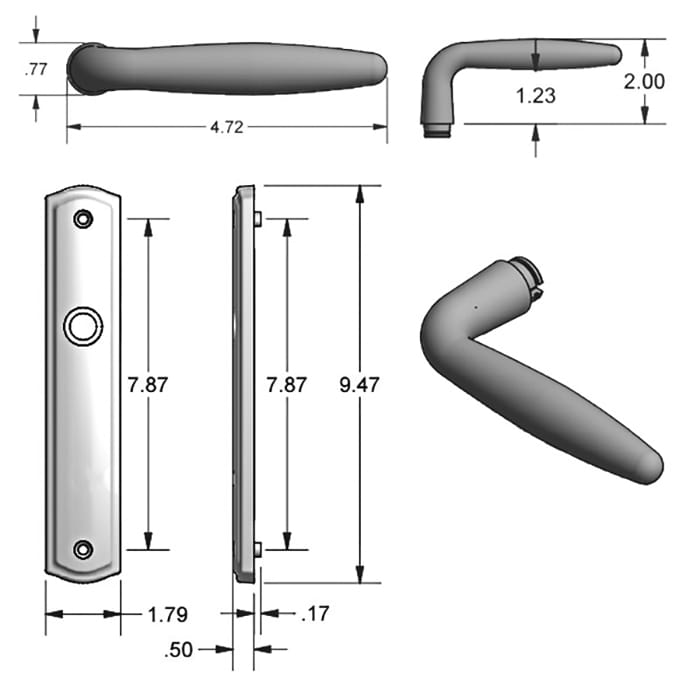

Actual Plate Width: 1.79 Inch
Actual Overall Plate Height: 9.47 Inch
Escutcheon Plate Screw Hole Spacing: 7.87 Inch or 7-7/8 Inch (199.9 mm)
Handle to Cylinder: 3.62 Inch or 3-5/8 Inch (92 mm)
Handle Projection: 1.23 Inch
Handle Clearance: 2.00 Inch
Handle Length: 4.72 Inch

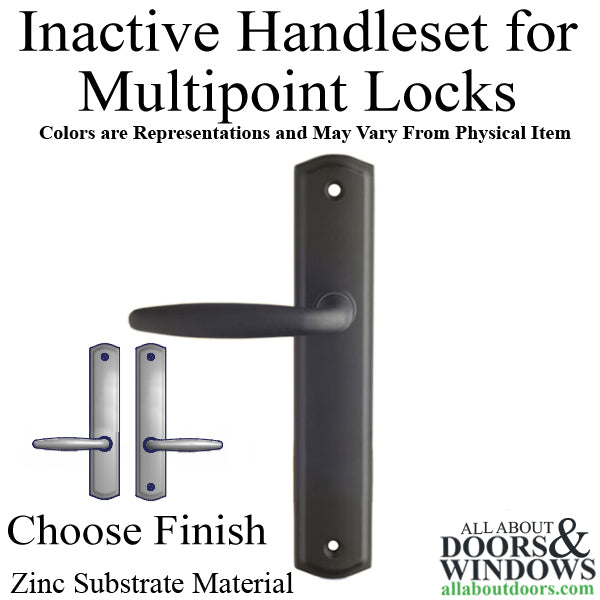

Colors / Finishes: Wet White, Black, Satin Nickel PVD, Dark Oil Rubbed Bronze
*PVD is a high performance finish that resists tarnishing and discoloration; recommended for coastal areas
See additional information tab for notes and other functions of the handle set.

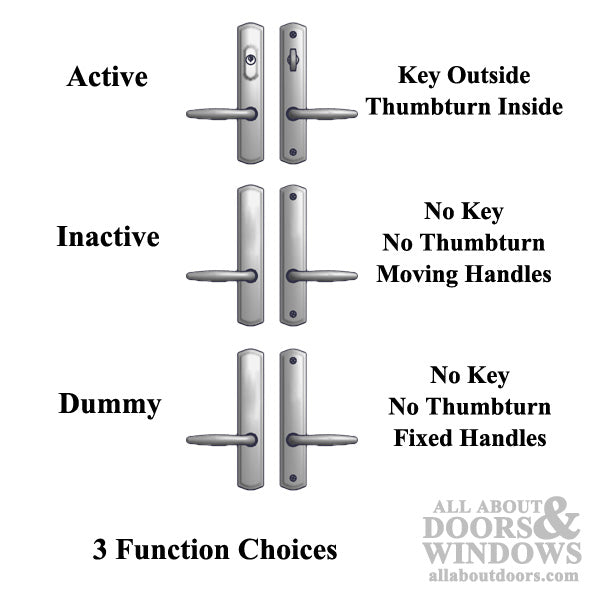

Other Available Functions (Can be used for key above handle or key below handle applications):
Active - Keyed Outside, Thumbturn Inside
Dummy - No Key, No Thumbturn, Fixed Handles
How to Order:
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy
Same Handleset, Different Materials/Functions:
Inactive Handleset in Solid Brass: 395221B
Active Handleset in Zinc: 395220Z
Active Handleset in Solid Brass: 395220B
Dummy Handleset in Zinc: 395222Z
Dummy Handleset in Solid Brass: 395222B
