IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order.

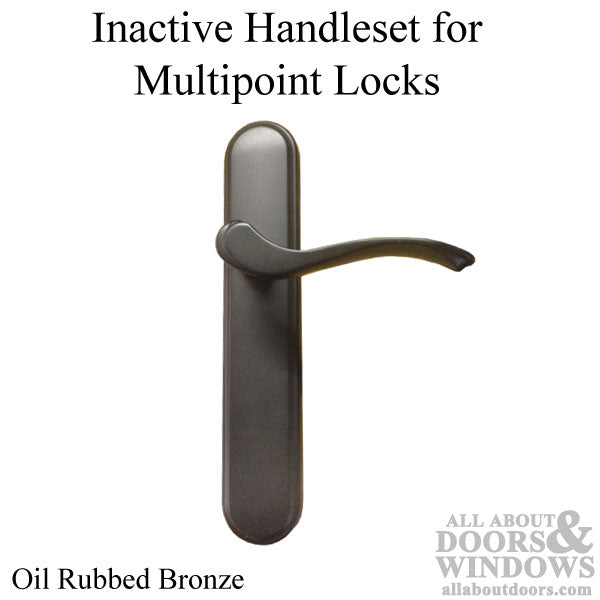

Amesbury Inactive hardware for secondary passive door with multipoint lock
This Lock trim replaces Integrity by Marvin Cambridge series, Milgard, and other American version multi-point locks that do not need an inside thumbturn.
Application: Passage type lever to lock shootbolts on Inactive door, no key or thumb turn.
Amesbury 400 Series curved lever with rounded radius top escutcheon plate
Color / Finish: Oil Rubbed Bronze
Base Material: Zinc
Door thickness: 1-3/4 inch

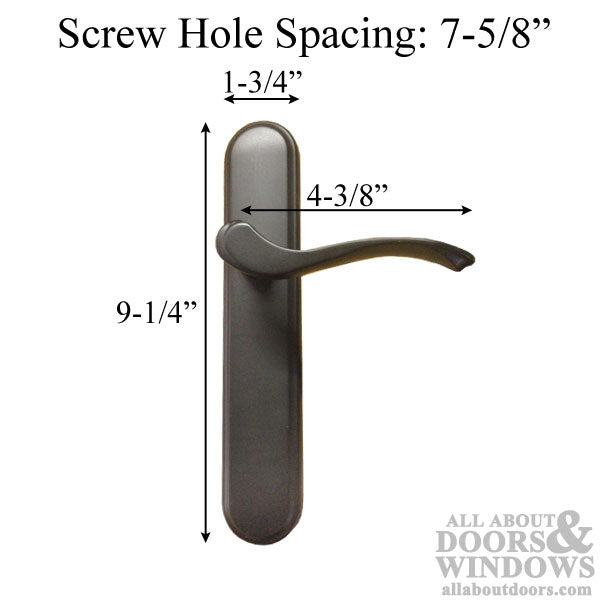

Escutcheon Plate: "B" 1.80" x 9.52"
Escutcheon Plate Screw hole spacing: 7.87 inches
Installation screws: M5 x 58mm
Spindle Diameter: 5/16 inch (8mm) Square
Cylinder to Handle spacing: 3-5/8 inches ( 92mm)
Keyed Cylinder: None
Thumb Turn: None
Handed: Yes, But handles can be removed and reattached.
Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
This handle set offers a spring loaded cassette for added lever action.
Typically Available in 3 Functions:
Active: Key cylinder and inside thumb turn
Inactive / Passive: levers move, no key, no inside thumb turn
Dummy: Fixed / rigid levers, no key, no thumb turns
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy
