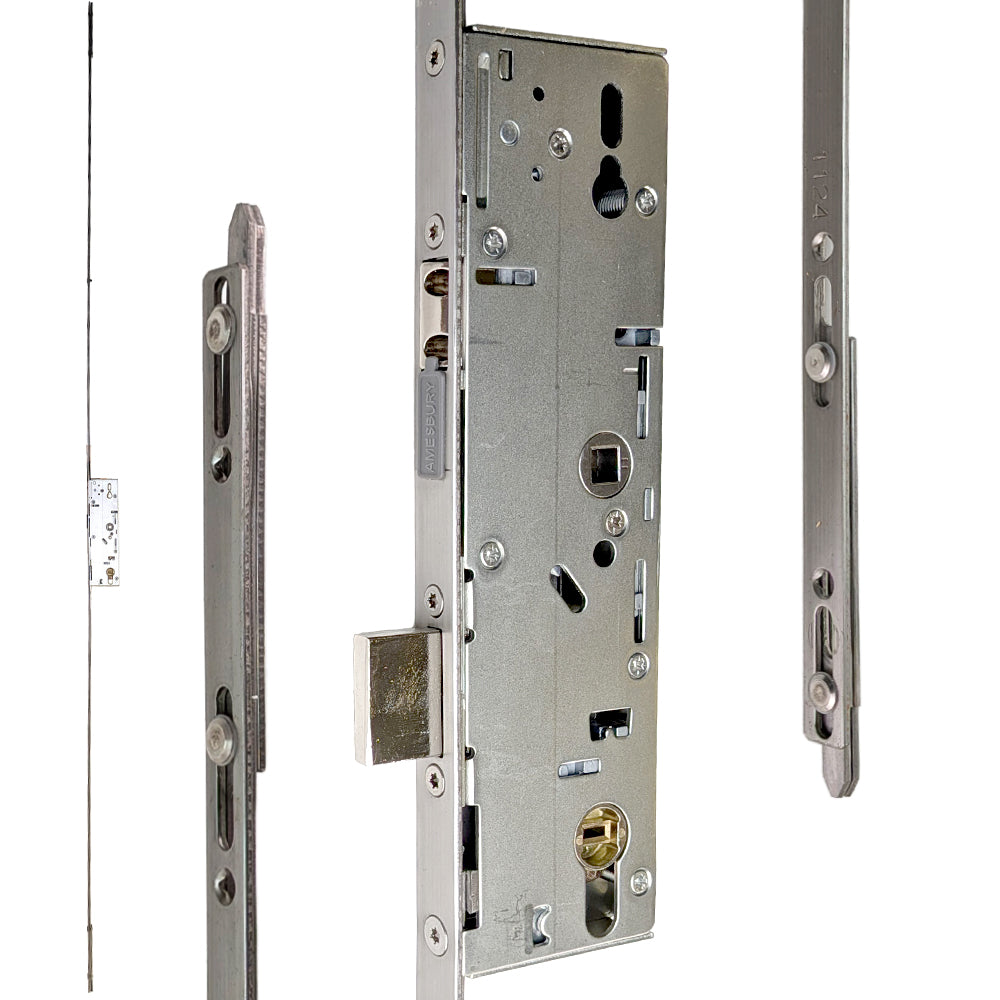

Integrity by Marvin Multipoint lock for Active Inswing (IIFD) and Outswing (IOFD) hinged doors
This lock is not intended to replace the old style 2004-2007 G-U
Service Years: 2007-Present

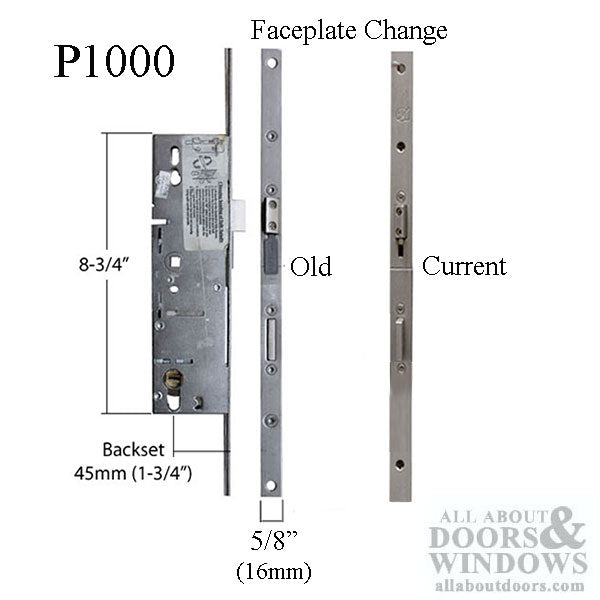

Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/4 inch (45mm)
Handle Height: Special Size 34-15/16 inches
Door Panel Size: CN 6-8, 79-7/32 inches (2012mm)
Priced and sold as each, Multipoint lock only, does not include trim.

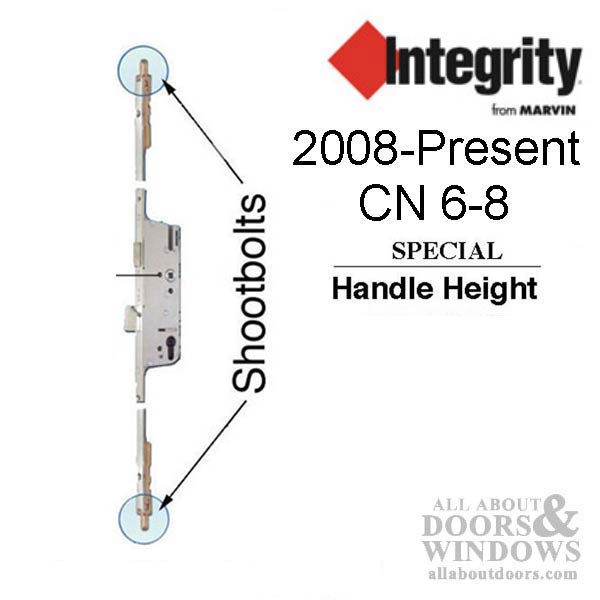

Available Door Heights: Active Doors, Shootbolt Version
11896701 CN 6-5, 76-23/32 (1949mm)
11896702 CN 6-8, 79-7/32 (2012mm)
11895700 CN 7-0, 83-7/32 (2114mm)
11896703 CN 8-0, 92-23/32 (2355mm)
Available Door Heights: Inactive / Passive Doors
11896704 CN 6-5
11896705 CN 6-8
11894700 CN 7-0
11896706 CN 8-0
Related Integrity Hardware:

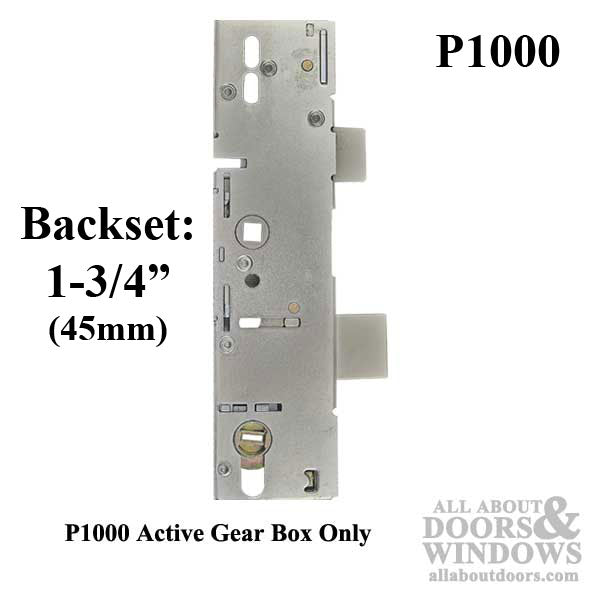

* P1000-45 - Active Gearbox, Replacement lock case only. (Reuse the upper and lower assembly.)
* 4990632-KIT - 16mm P1000 Active 45/92 Shootbolt Assembly, Adjustable Handle Height (HH) - Special Sizes

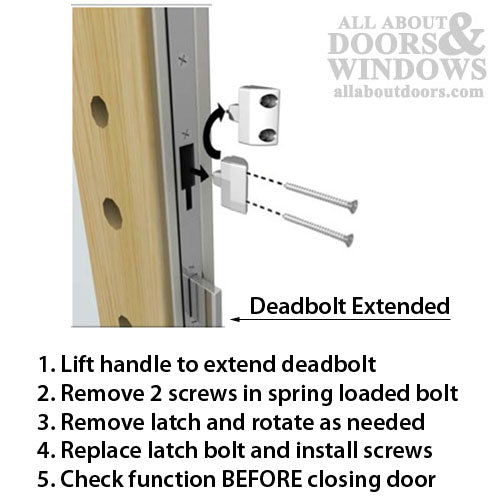

Rehanding a Marvin Integrity Multipoint Lock
