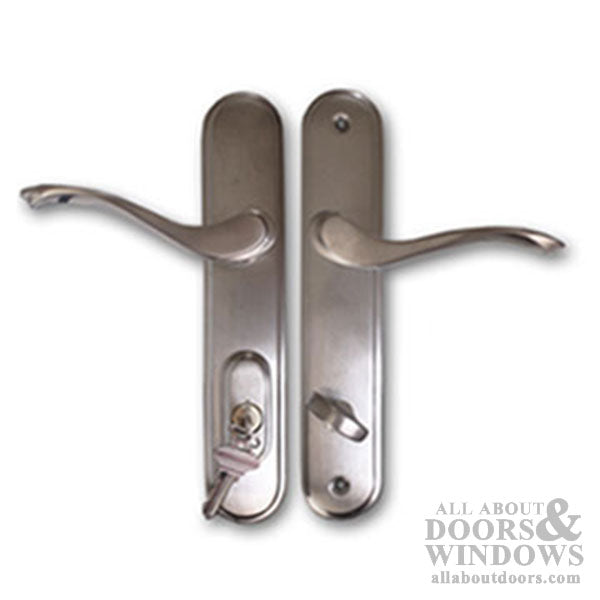

Integrity Cambrige Secondary, Passive Swinging Door Handles, Left Hand
Part Number: Price: $143.41 to $596.61Integrity Handle sets are sold as interior and Exterior Components.
We have created a number that combines inside and outside to make a complete handleset.
If you want to split the finish and have a different color inside than outside, contact office.
Secondary Handles are the Passive Trim
Handed: Yes. Handing is viewed from OUTSIDE hinge location. If you are standing outside and the door swings into the room and hinges are on the left, this would be a Left Hand Inswing (LHIS). Handing can be changed, levers are held on with removable clip.
Function: Passive Secondary Door
Keyway: None
Screw Hole Spacing: 7-5/8 inches
Escutcheon Plate Width: 1.35 inches
Escutcheon Plate Length: 9.25 inches
Left Hand Inswing (LHIS) 9340003 Passive | |
|---|---|
Old Part Number |
New Part Numbers |
| 11869242 BS (PVD) | 11868043 Ext + 11869123 Int PVD Brass |
| 11869244 WH | 11868042 Ext + 11869122 Int White |
| 11869246 AF | 11868041 Ext + 11869121 Int Almond Frost |
| 11869248 SN (PVD) | 11868044 Ext + 11869124 Int PVD Satin Nickel |
| 11869253 ORBZ (PVD) | 11868045 Ext + 11869125 Int PVD Oil Rub Bronze |
