Interconnected Lock - 4 inch Centers ( C-C ) 380002 PHG IL-CT

This type of lock is normally required in commercial applications when the Fire Marshall wants an emergency exit

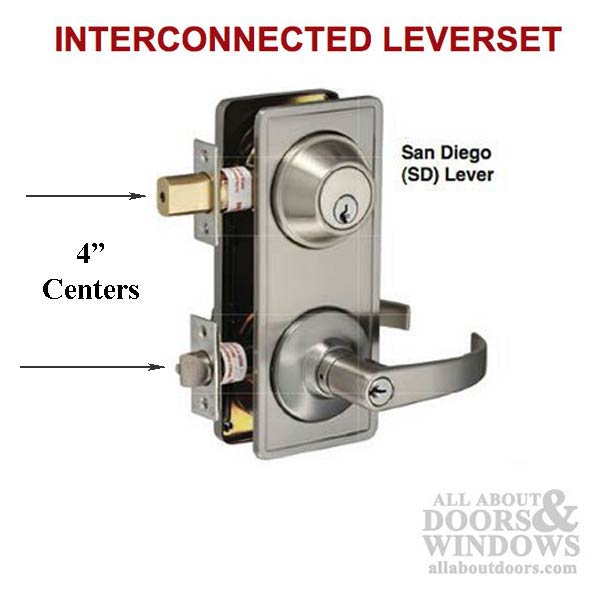

Bolt Centers: 4 Inch from center of Deadbolt to Center of Lever

Lock Type: Interconnected; Lever retracts deadbolt from inside for emergency exit
Keyway: Schlage 6-pin, SC4 Standard
Backset: 2-3/8"
Panic Proof Lock, inside always unlocked, for easy exit

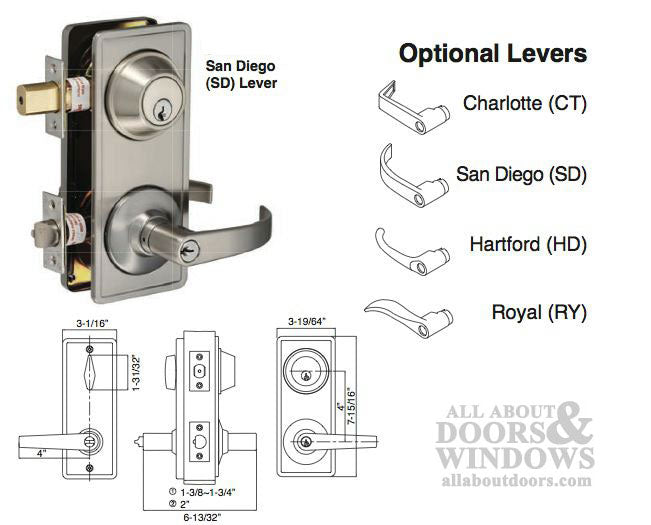

Lever Style: Charlotte (ADA Approved) ( 4 Styles Available )
Fast and Easy Install, can be used on most Steel Security Doors
Removable Exterior Escutcheon Plate

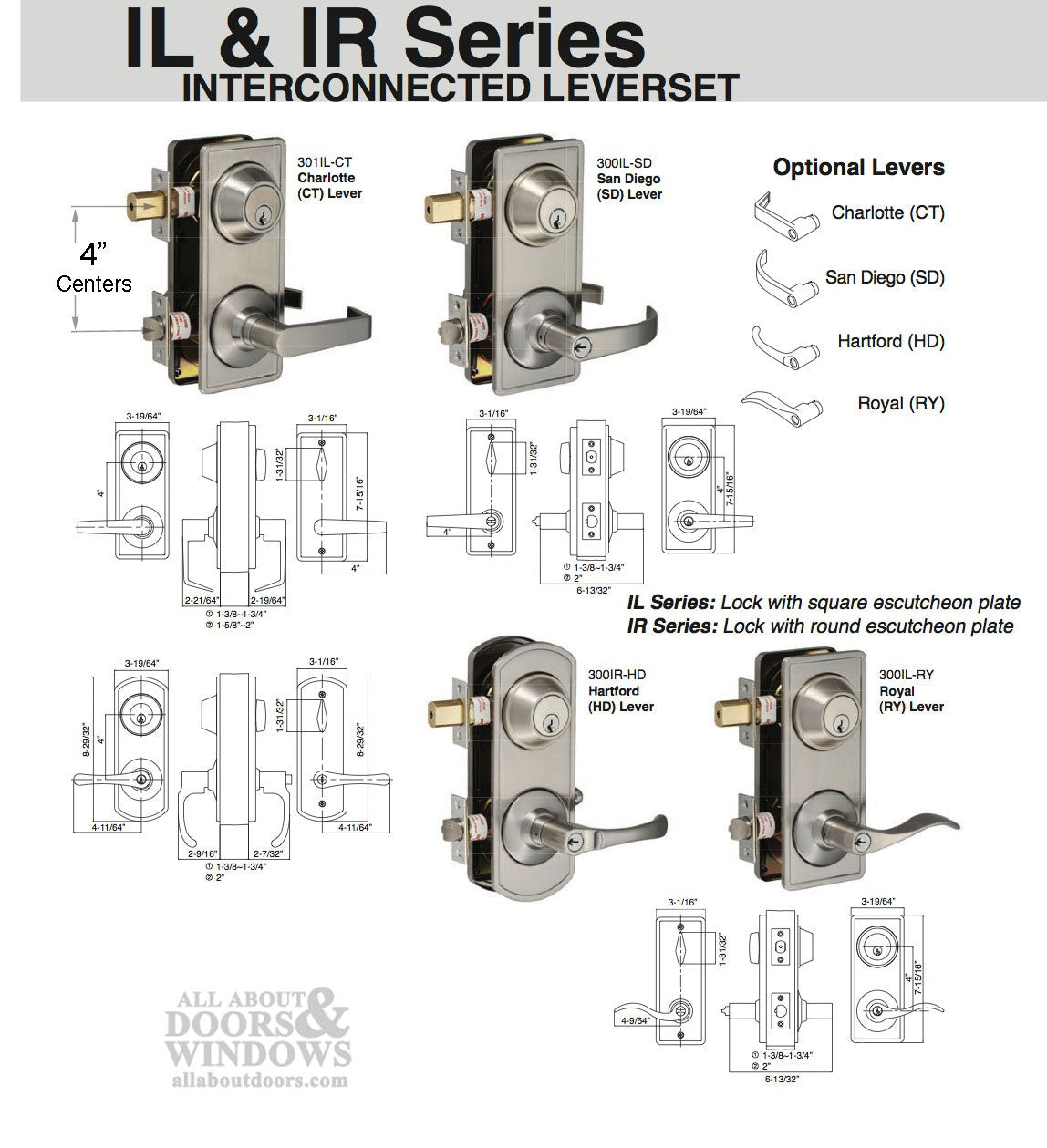

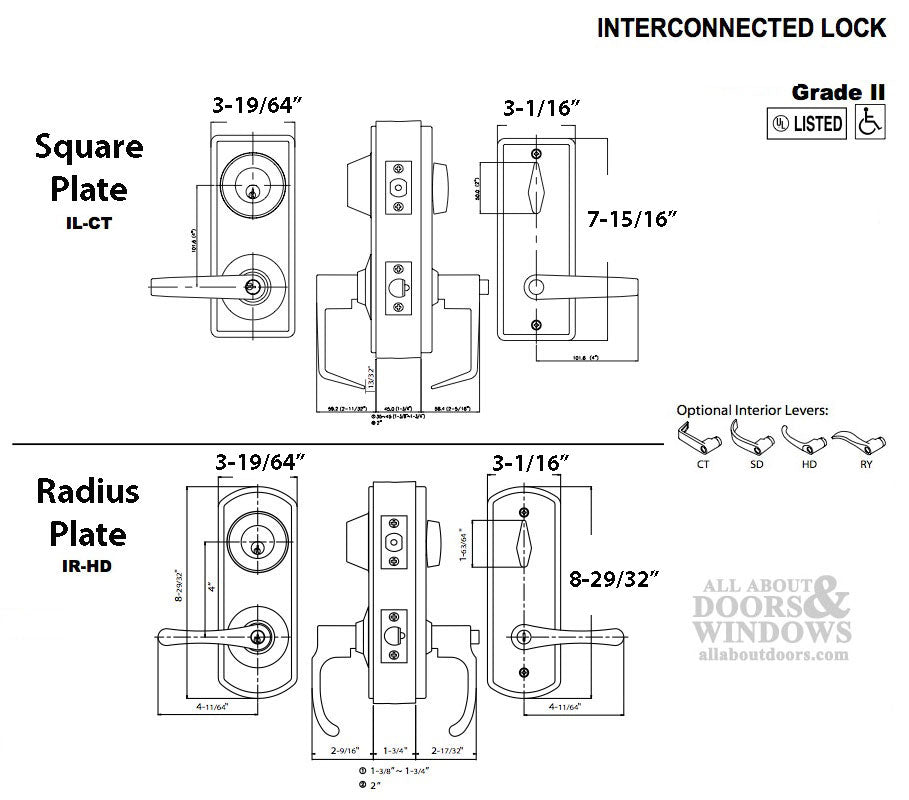

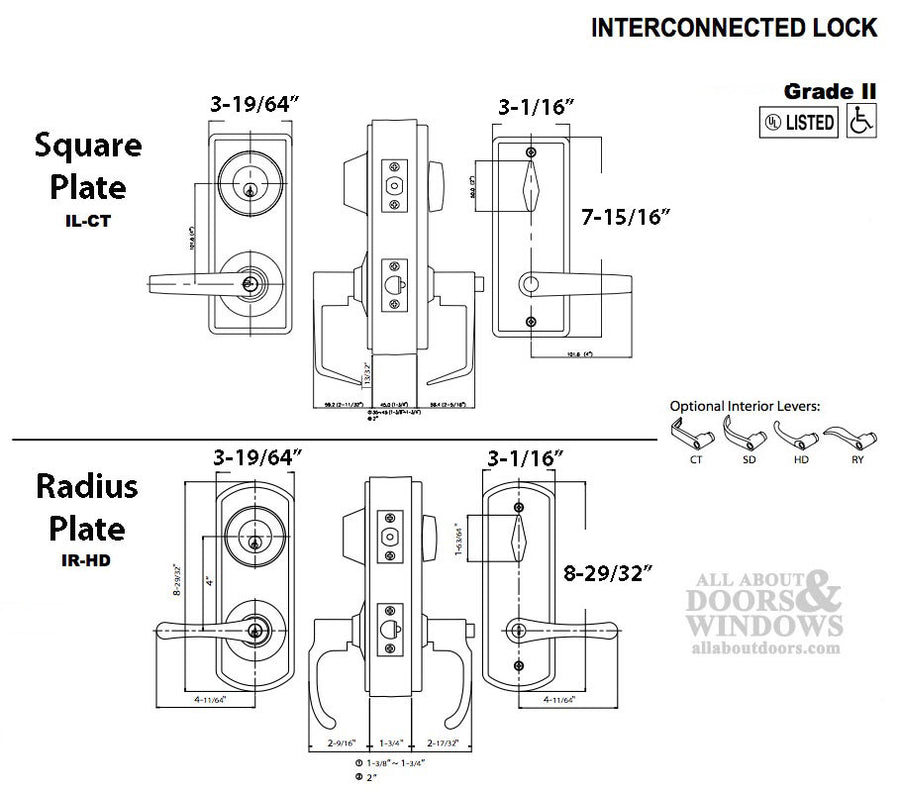

IL series: Square corner escutcheon plate
IR series: Round corner escutcheon plate
Color / Finish: Satin Nickel US15
