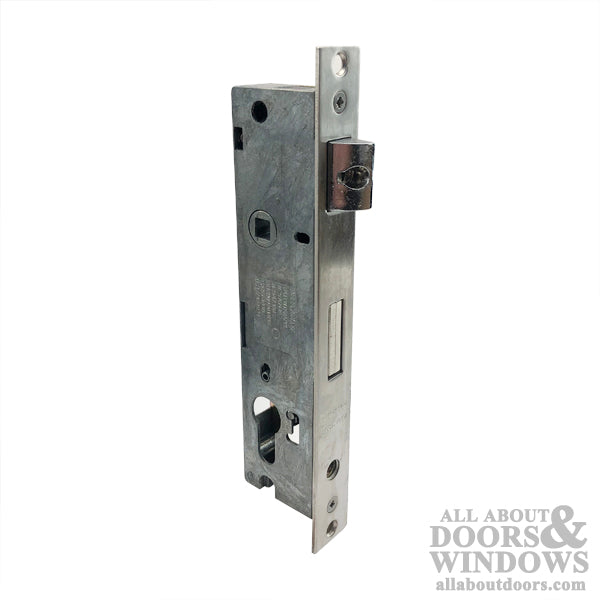

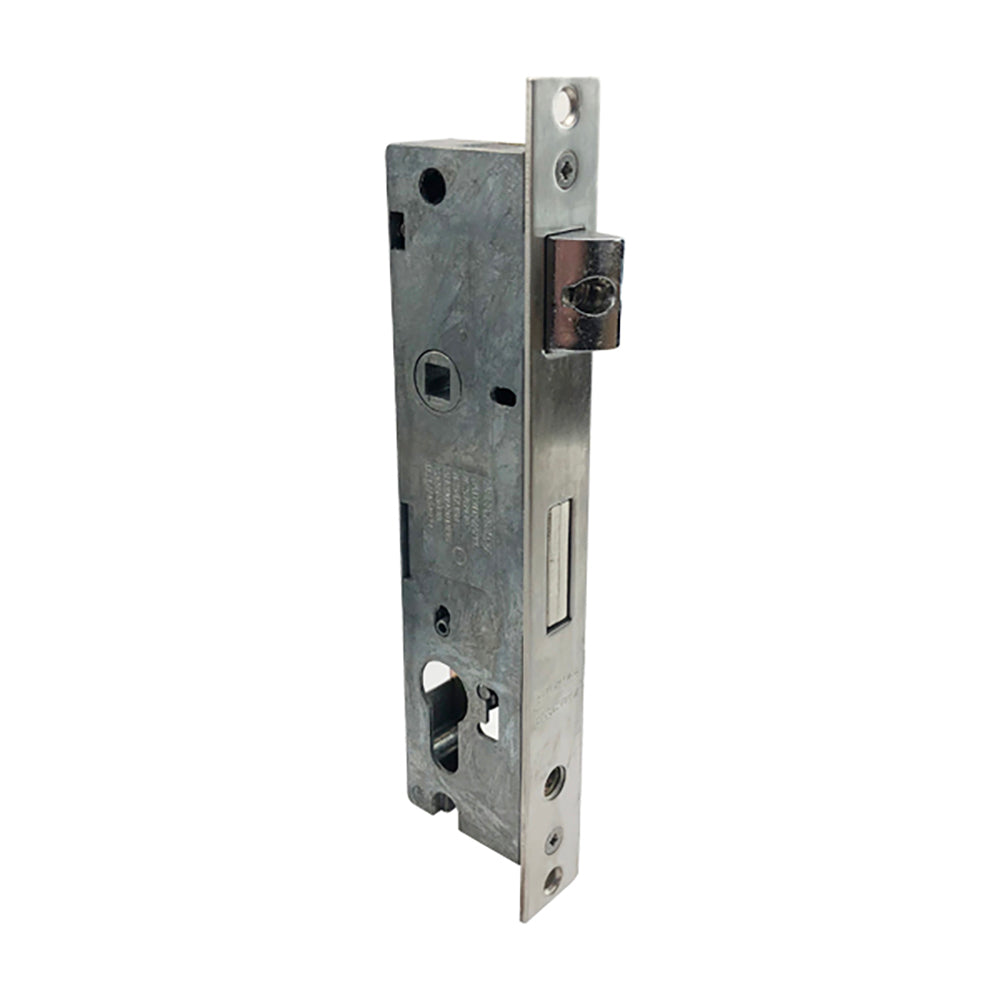

Interlock Optimum hinged door 2-point mortise lock 1-3/16 inch backset
Used by many aluminum door manufacturers, and to replace damaged or missing mortise lock in hinged doors. .
When deadbolt is extended the spring latch becomes rigid and creates another locking point.

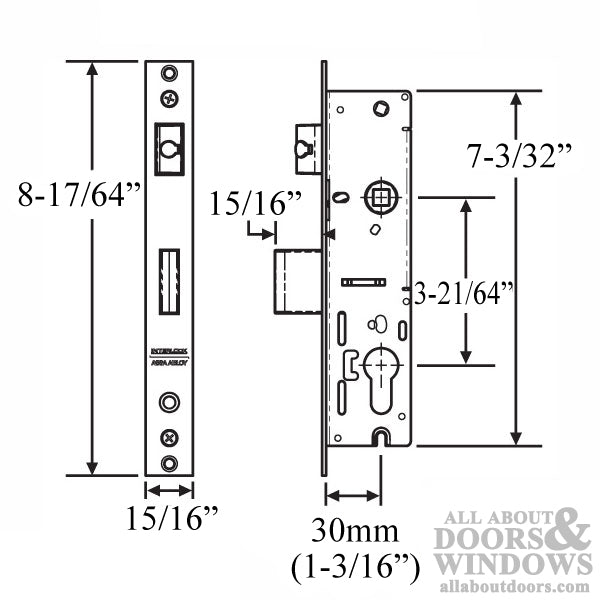

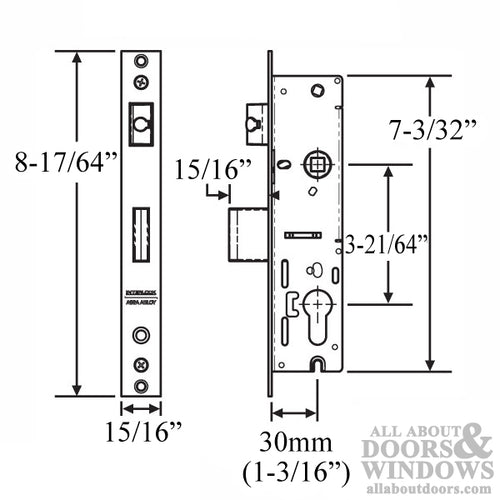

Model: Interlock Optimum
Backset: 1-3/16” (30mm)
Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346
Deadbolt Throw: 15/16” (24mm) .0945
Faceplate Width: 15/16 inch (24mm) 0.945
Faceplate Length: 8-1/4 inch (210mm) 8.268
Spindle Hub: 5/16 inch (8mm) 0.315
Markings: Interlock Assa Abloy
Material: Zinc, Steel, Stainless Steel

NOTE: CP12347 Latch Packer is included to allow latch length adjustments, when needed. Remove latch, install latch packer and reinstall latch

Operation:
push handle down to retract latch. Throw deadbolt with key or thumbturn and the spring latch also becomes a locking point.

To Change Handing: Remove screw in latch, rotate latch, reinstall screw

The Optimum Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 2-Point provides increased security with up to two points of locking.

Features
Features two (2) points of locking including the latch and dead bolt
The handing of the lock set is adjusted by reversing the orientation of the latch bolt

Options
Interlock Optimum available with 30 mm, 40 mm or 50 mm backset
Standard 2 point lock

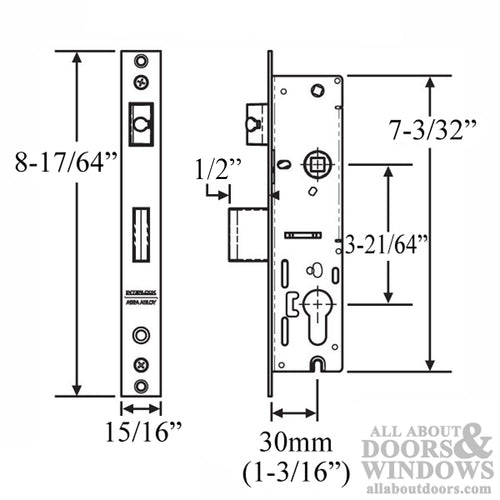

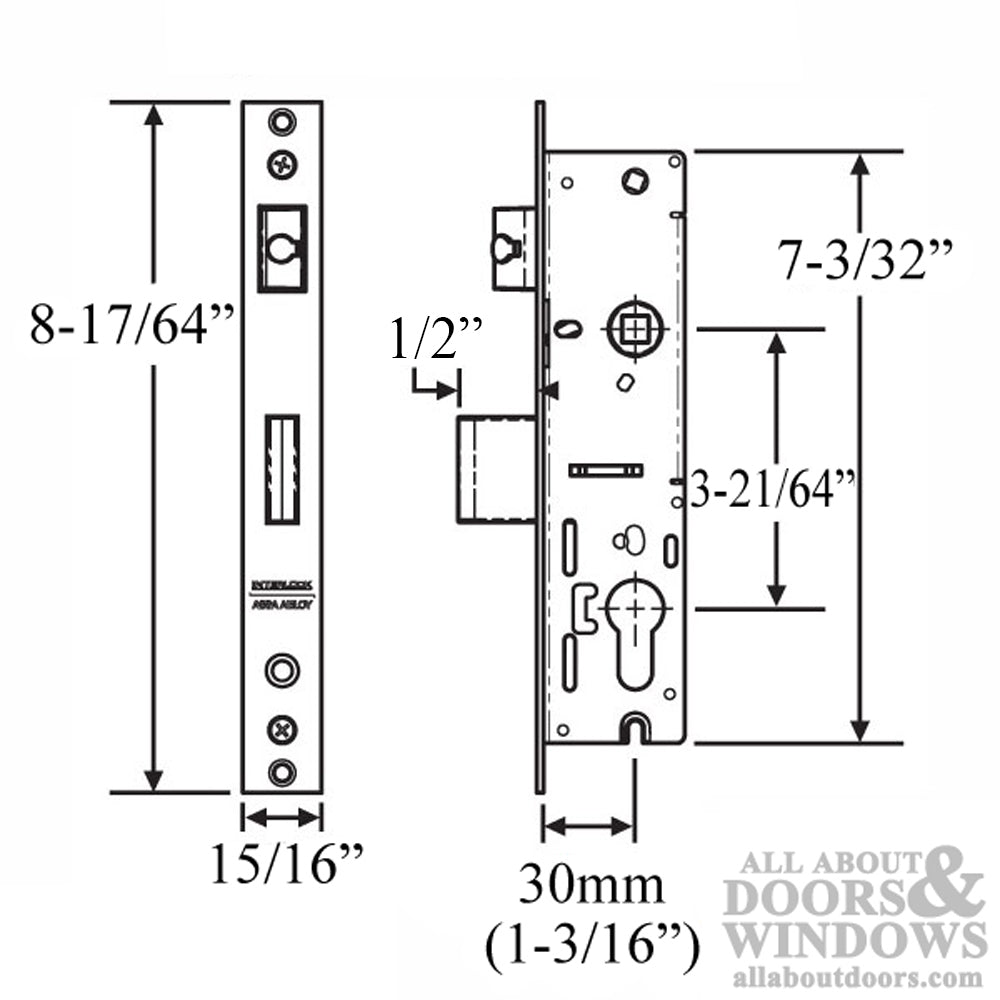

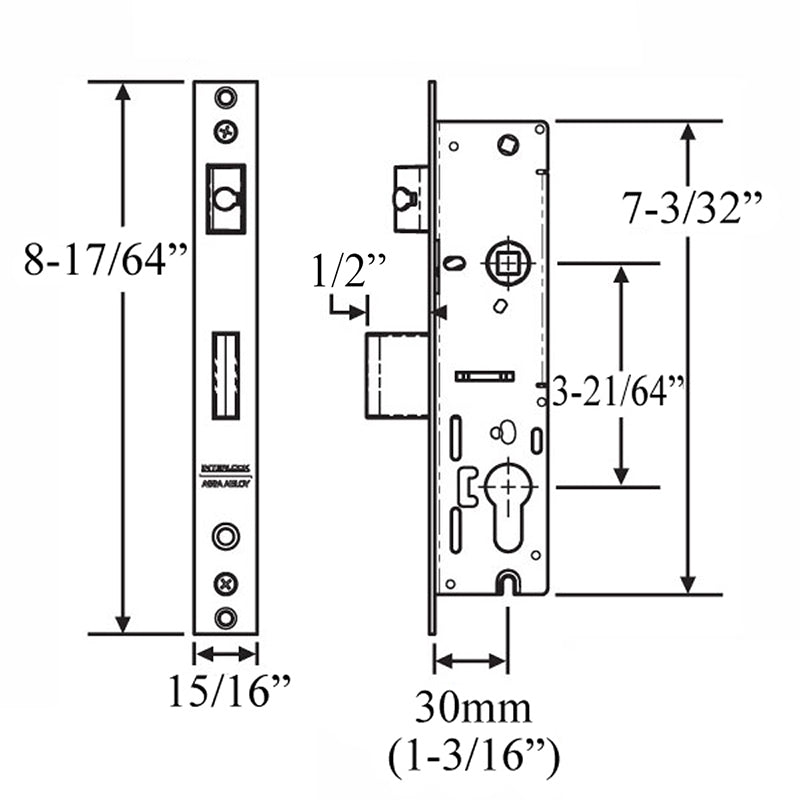

Short 1/2 inch Throw 4-Point Lock
Long 1 inch Throw 4-Point Lock
