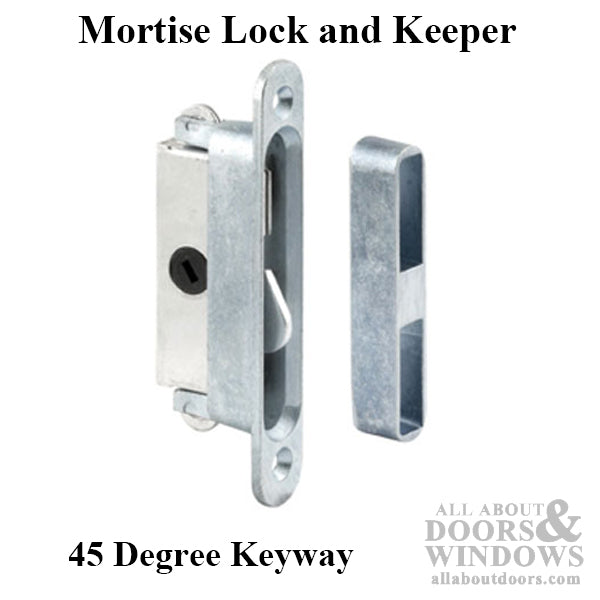

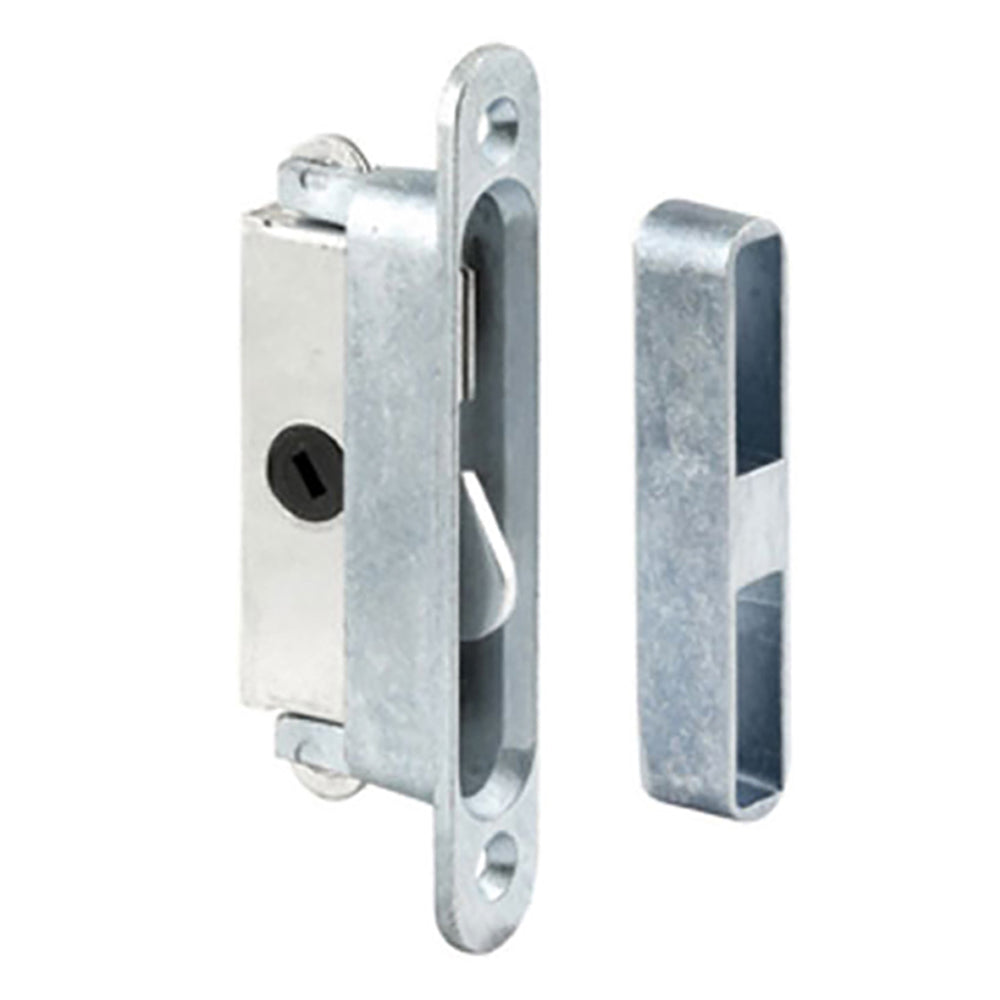

Mortise lock and keeper for sliding patio door.
This lock requires a mortise installation.
The lock housing is constructed out of aluminum.
Includes anti-lift protection.
The hook is steel plated and mounted in an anti-friction pivot.
This design is used by several door manufacturers including Pennco.
Markings: 1973 Patent No. 3.596.95

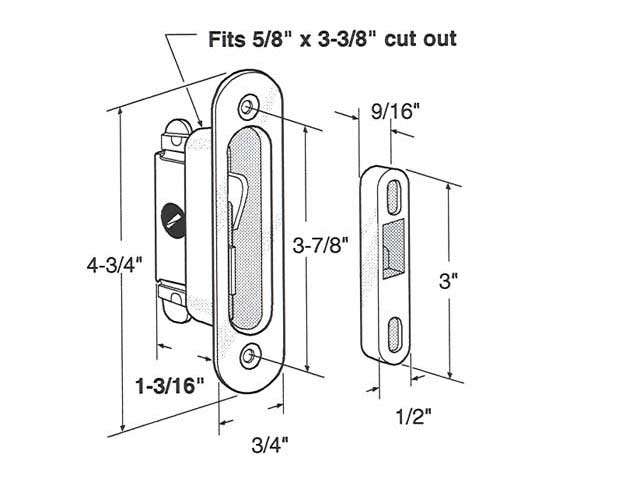

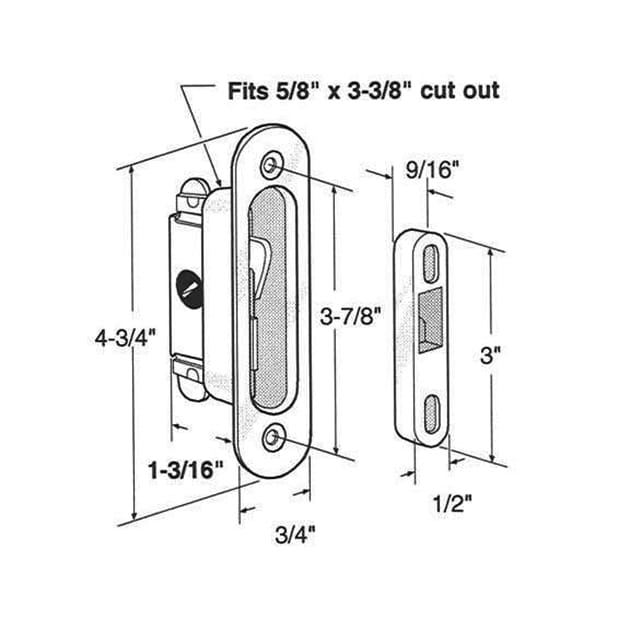

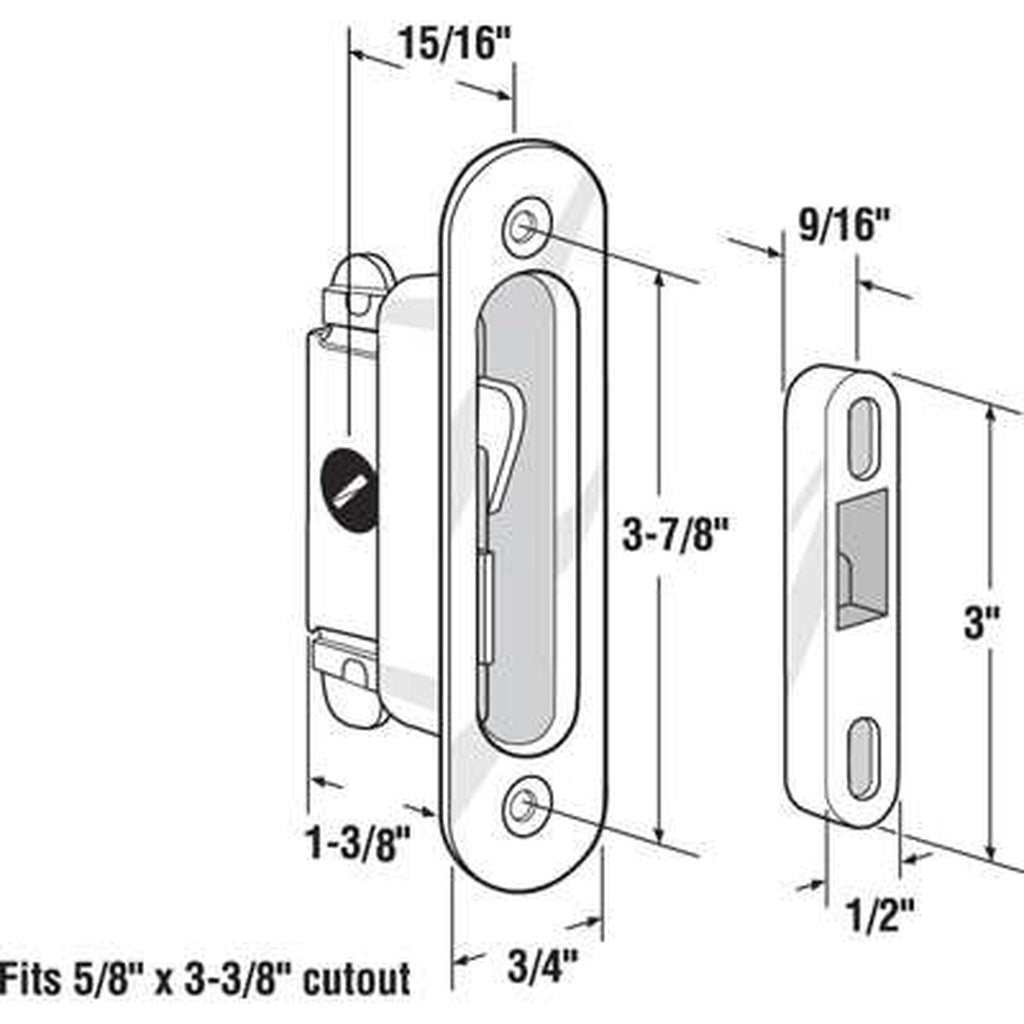

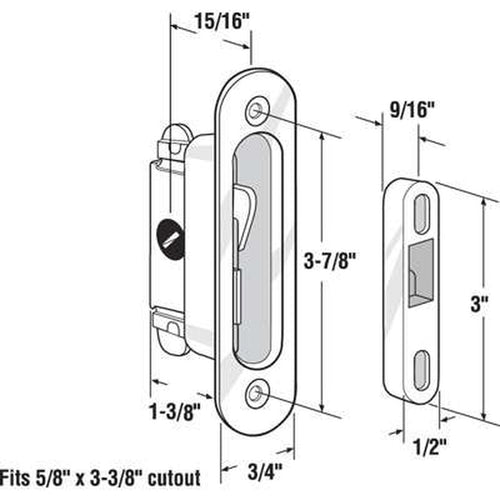

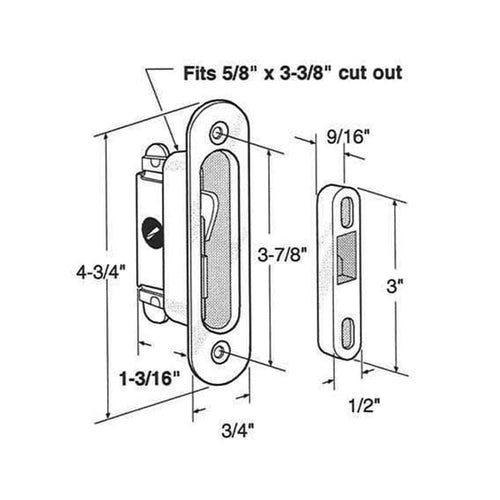

Hole Center: 3-7/8-inch
Keyway: 45 Deg.
Overall Depth: 1-3/16
Contents
1 lock and keeper assembly
1 complete set of fasteners

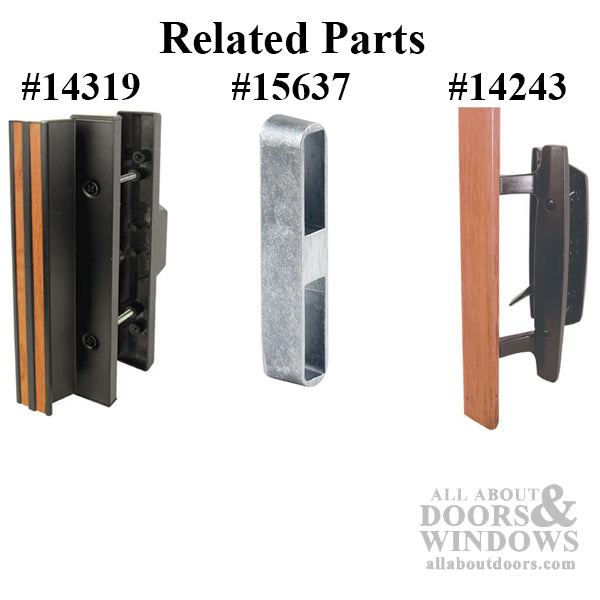

Related items:
15069 - 1-9/16 Large Housing
15062 - 1-3/16 Small Housing
14032 - Handle Set
15637 - Keeper
This lock requires a mortise installation.
The lock housing is constructed out of aluminum.
Includes anti-lift protection.
The hook is steel plated and mounted in an anti-friction pivot.
This design is used by several door manufacturers including Pennco.
Markings: 1973 Patent No. 3.596.95
Hole Center: 3-7/8-inch
Keyway: 45 Deg.
Overall Depth: 1-3/16
Contents
1 lock and keeper assembly
1 complete set of fasteners
Related items:
15069 - 1-9/16 Large Housing
15062 - 1-3/16 Small Housing
14032 - Handle Set
15637 - Keeper
