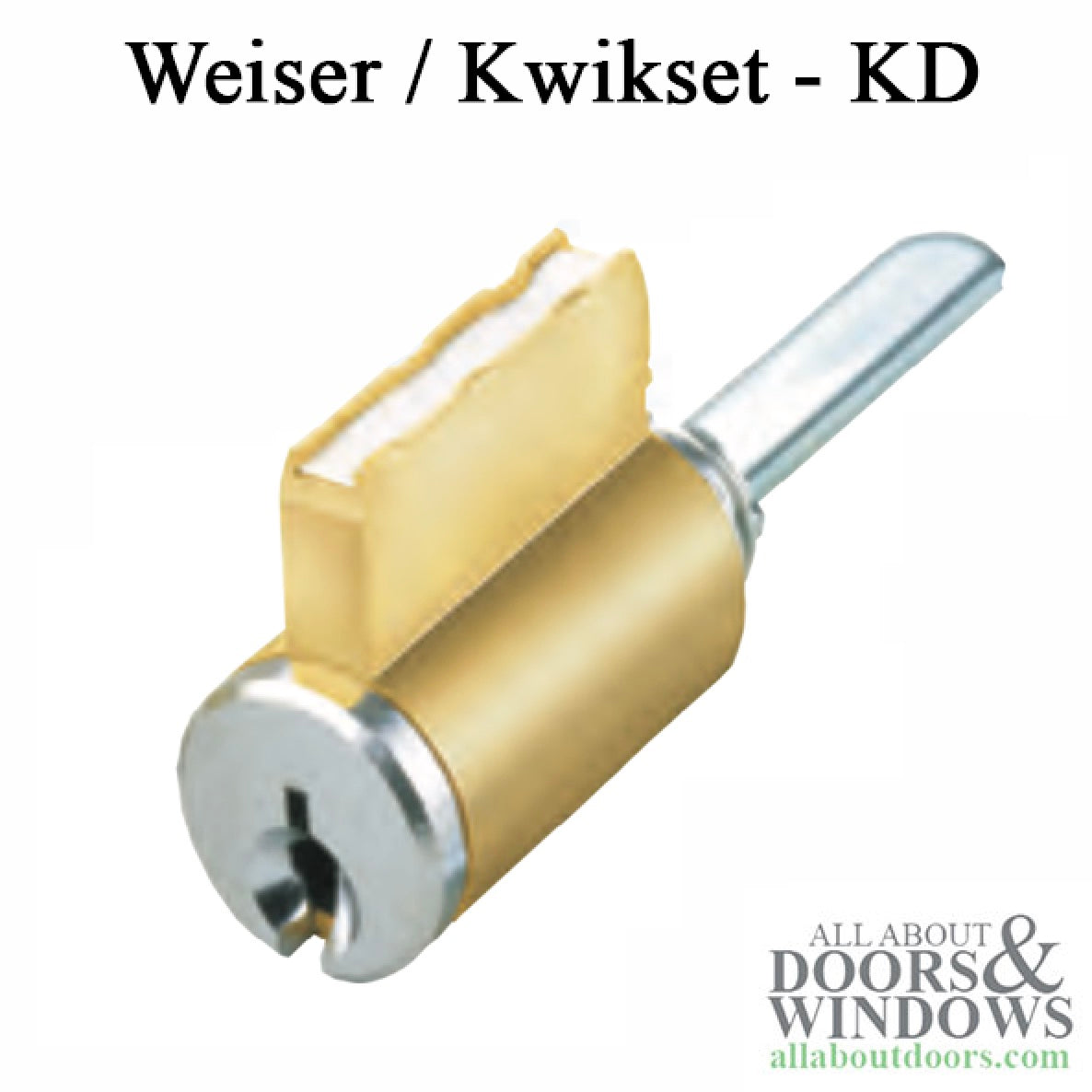

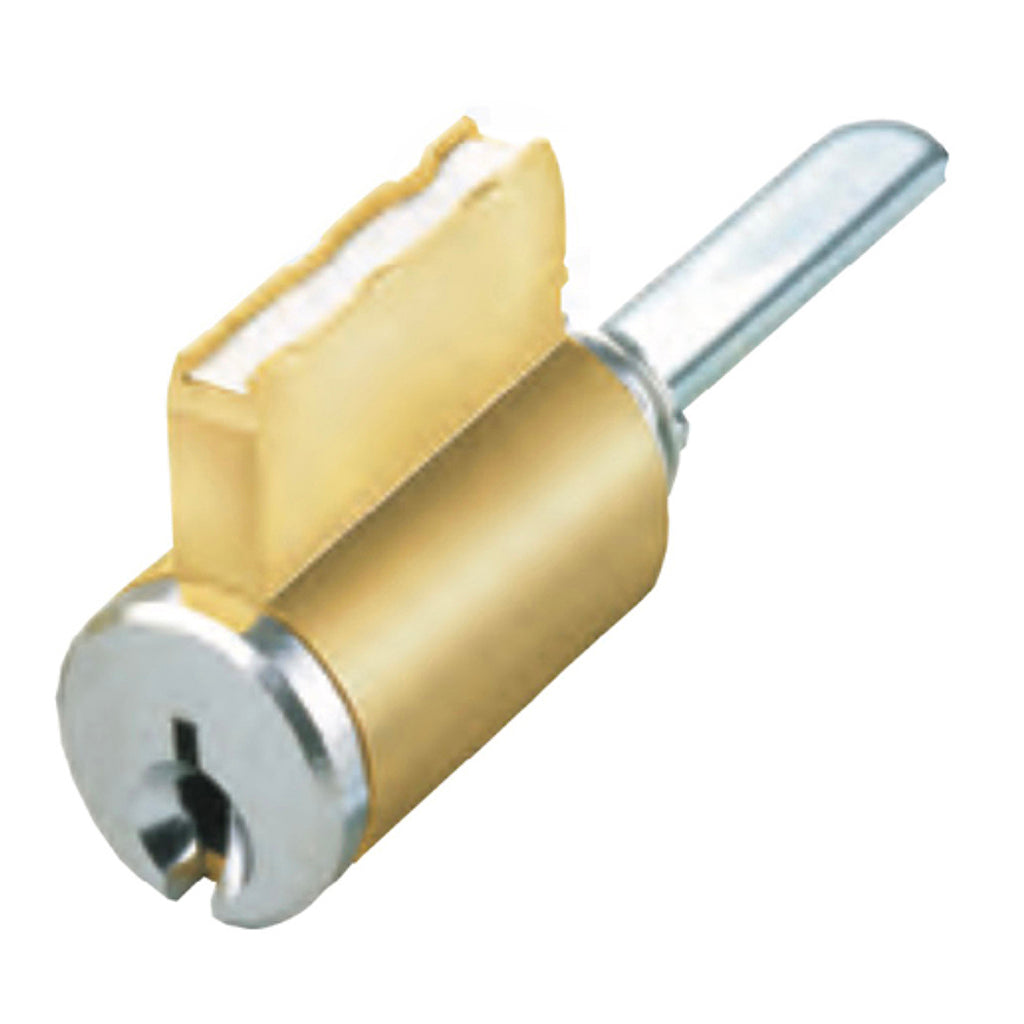

Kaba ilco universal rekeyable 5/ 6 pin cylinder lock for Key in the Knob or Lever entry handle.
This commercial cylinder type will work on key in the Knob locks, by Schalge, Sargent and others typically found on Commercial doors.
Composite Keyway will work with Kwikset, Weiser, Weslock and Old Dexter / Master locks and Deadbolts and can be used with some several brands of entry knobs and levers.
Keyway: Composite, WR5,KW1,WK2, DE6
Keying: Keyed Different to 5 pin, drilled for 6
Cylinder Height: 1 inch
Cylinder Housing Length: 1 inch
Overall length: 1-3/8 inch, no Tail Piece

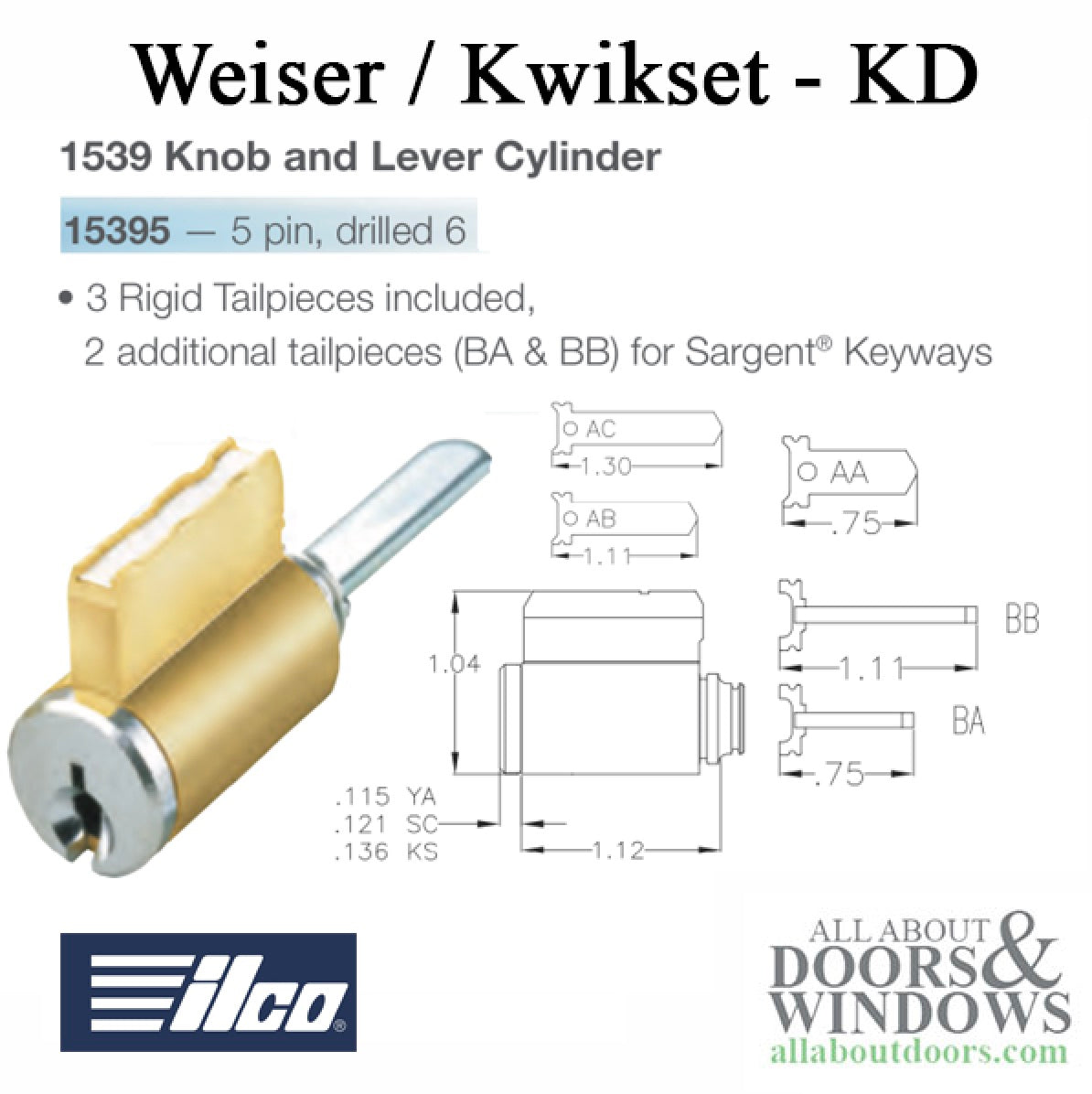

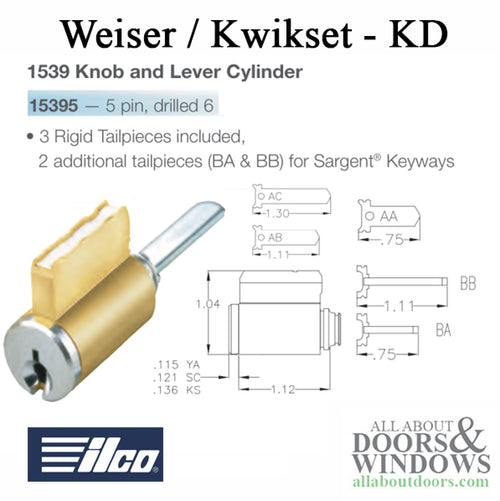

Tail Piece Length: Varies, includes 3, see additional images
Faceplate Color/Finish: Brushed Chrome US26D
Contents: 1 Key cylinder, 2 Keys, 3 tail pieces
Made in the USA
Material: Brass
priced and sold each.
Related Cylinders
151001 - Keyed Different
151002 - Keyed the same, Pairs
This commercial cylinder type will work on key in the Knob locks, by Schalge, Sargent and others typically found on Commercial doors.
Composite Keyway will work with Kwikset, Weiser, Weslock and Old Dexter / Master locks and Deadbolts and can be used with some several brands of entry knobs and levers.
Keyway: Composite, WR5,KW1,WK2, DE6
Keying: Keyed Different to 5 pin, drilled for 6
Cylinder Height: 1 inch
Cylinder Housing Length: 1 inch
Overall length: 1-3/8 inch, no Tail Piece
Tail Piece Length: Varies, includes 3, see additional images
Faceplate Color/Finish: Brushed Chrome US26D
Contents: 1 Key cylinder, 2 Keys, 3 tail pieces
Made in the USA
Material: Brass
priced and sold each.
Related Cylinders
151001 - Keyed Different
151002 - Keyed the same, Pairs
