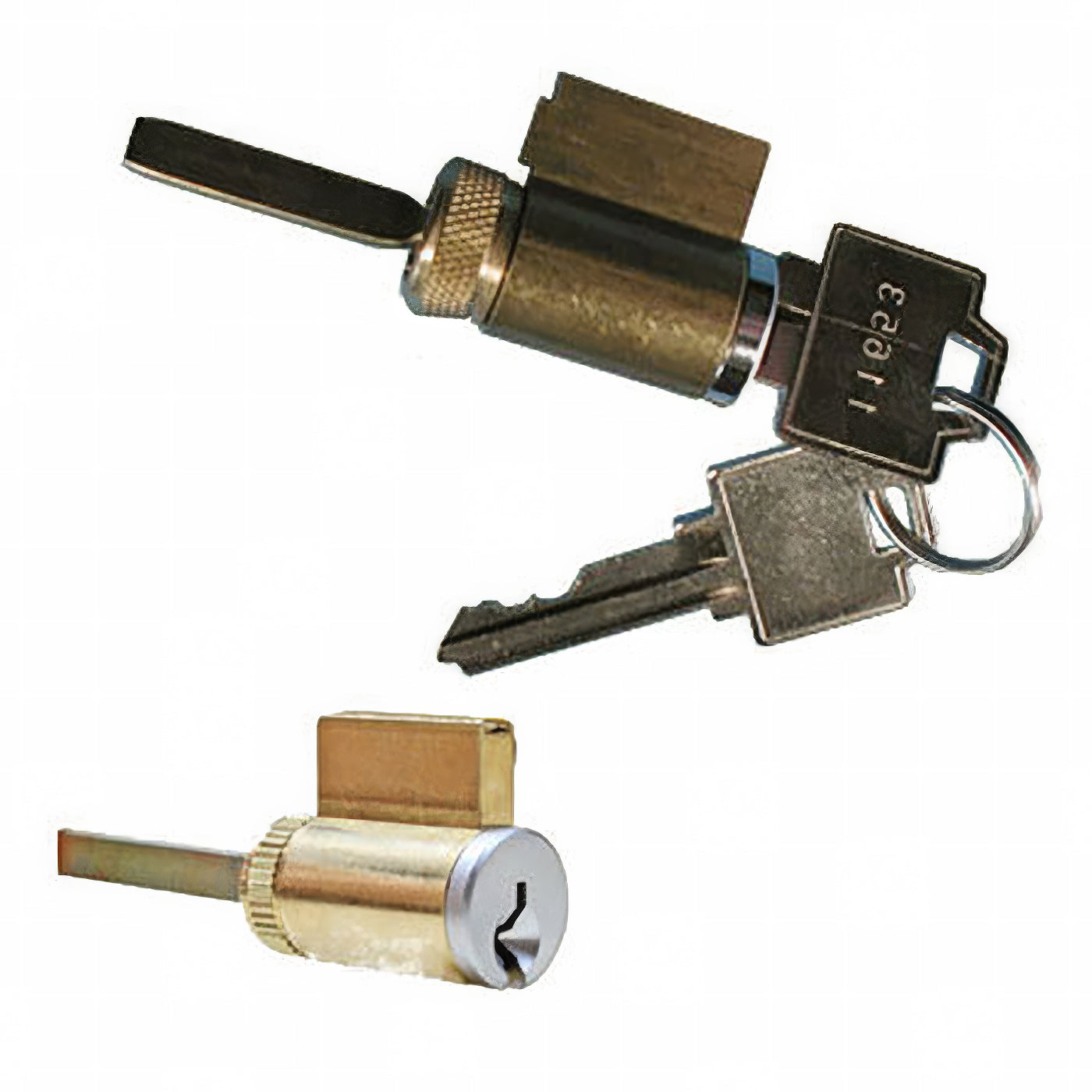

Kwikset 1"x1-1/8" Tailpiece Keyed Cylinder

Part Number:14429 Price: $14.95

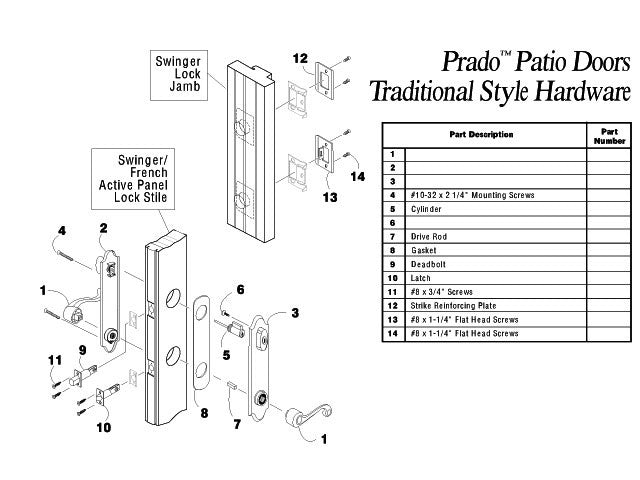

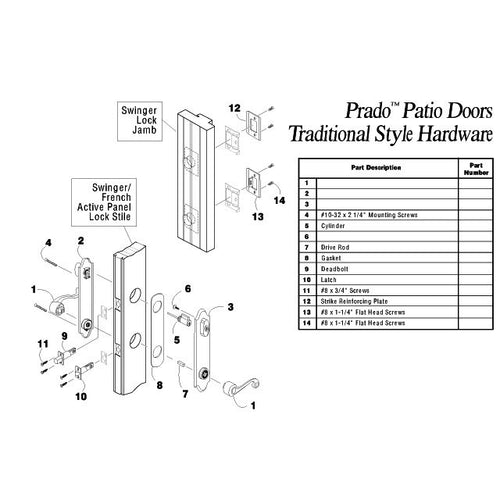

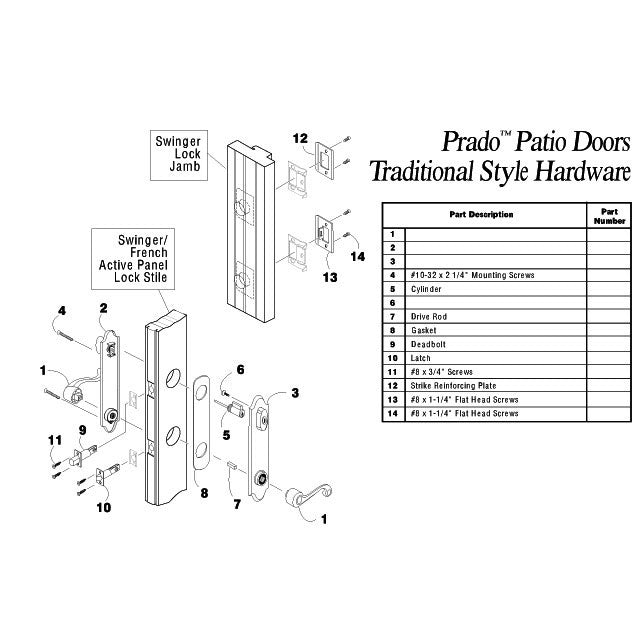

Replacement cylinder for 14421 Hinged Door Peachtree Prado Handleset. and other applications

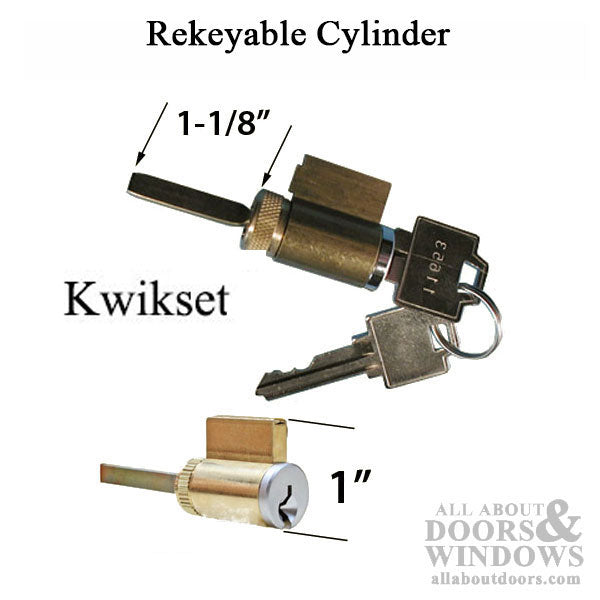

Cylinder Type: American, Rekeyable 5 pin

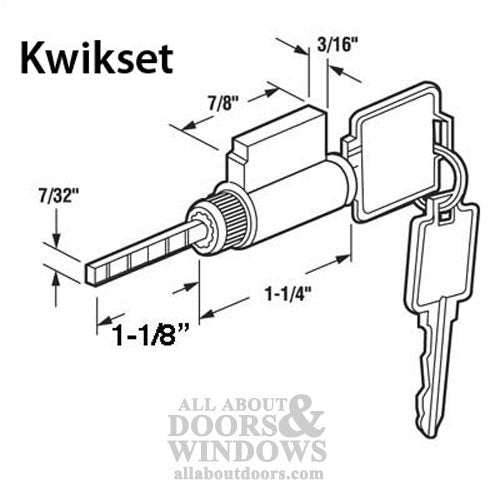

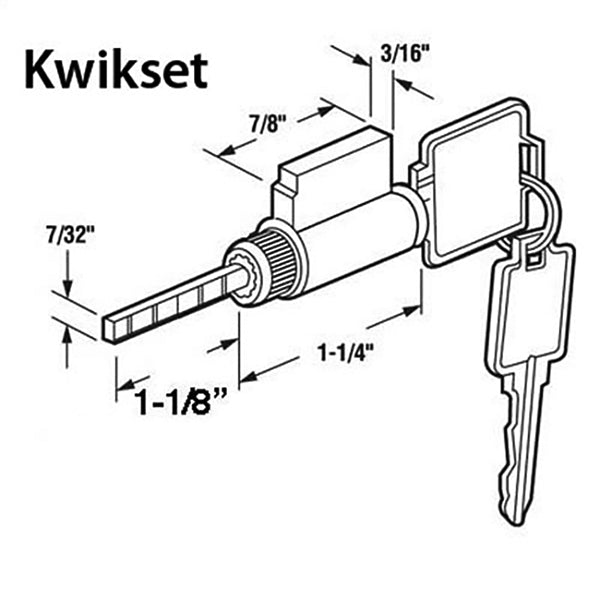

Cylinder Height: 1 inch
Tail Piece Length: 1-1/8 inches ( longer tail piece available)
Keyway: Composite - Kwikset KW1,  Old Dexter DE6, - The keyway is NOT compatible with old Weiser WR3 or WR5
Rekeyable: Yes,  5 Pin

Key: Keyed Different, 2 keys
Face Plate: Polished Chrome
Sold Each, Priced Each

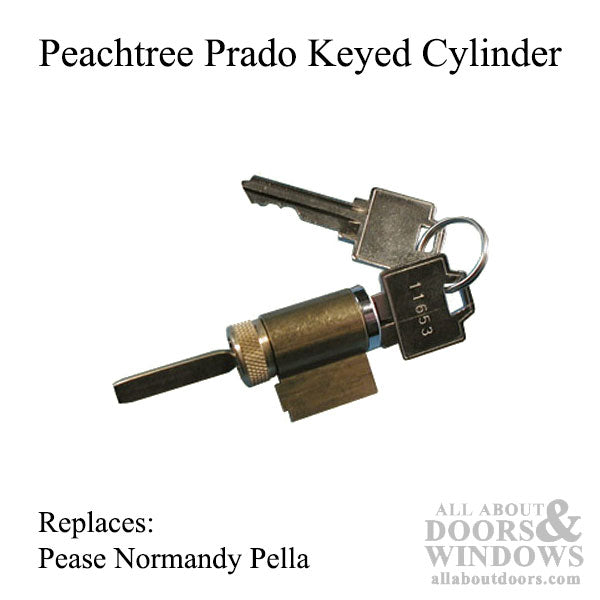

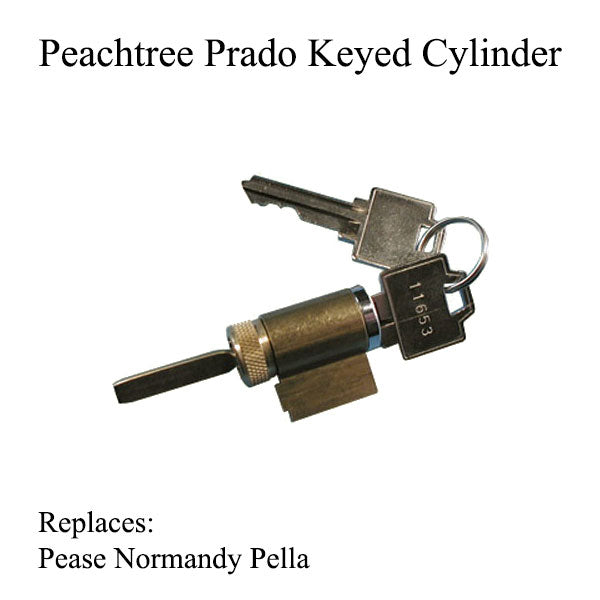

Note1: This will work as a replacement for Pella on their Multipoint Lock hardware, Pease Normandy, W&F locks and other brands.
Note2: If the tail piece is to short in can be changed with part number 14287

Related Parts: Keyed Alike cylinders - See
15032 - Schlage with Breakaway tail piece.
