Larson Mortise Lock Body, 7/8 Backset

Part Number: 305009-PB Price: $40.00
COLOR: - Polished Brass
Larson Storm Door Hardware - Mortise lock body Only

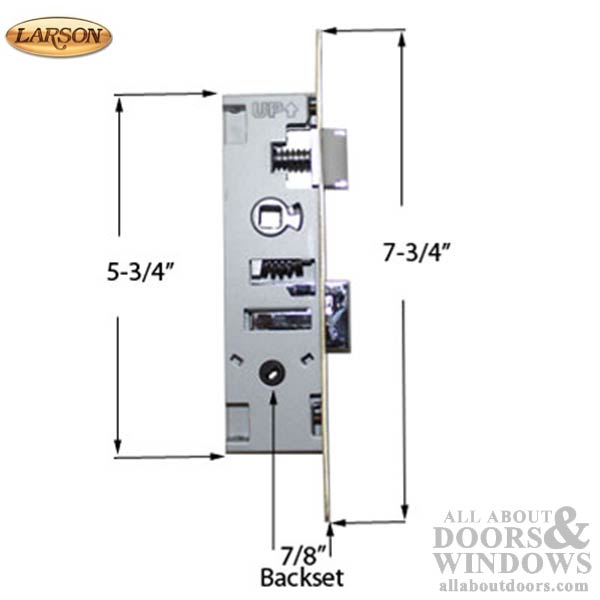

Faceplate: 13/16 wide x 7-3/4 Length

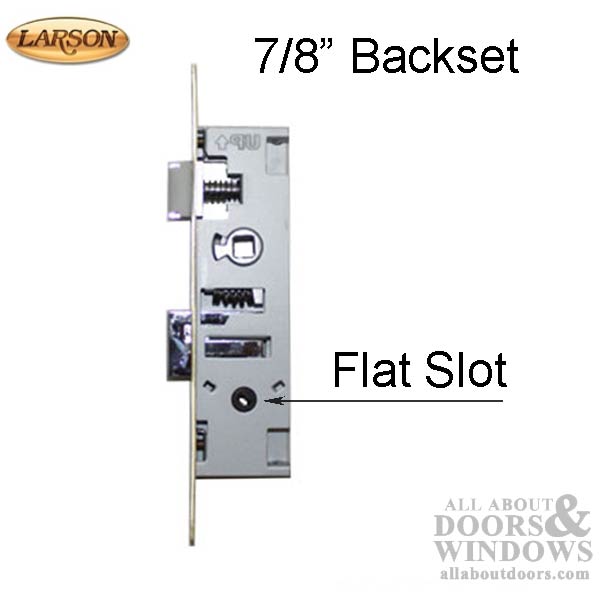

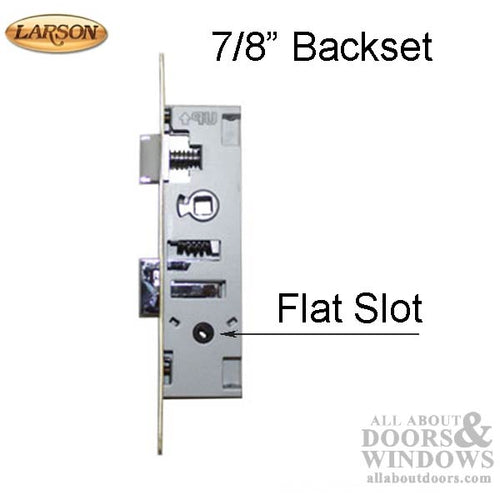

Backset: 7/8 inch - See additional Pictures
Cylinder: American type with Flat tail piece.
Note: Larson has another Door with same type of lock body, with 1-5/16 Backset
Please Review additional images and compare measurements.

Larson Related Storm Door Hardware-
305009 - 7/8 inch Backset
305010 - 1-5/16 inch backset

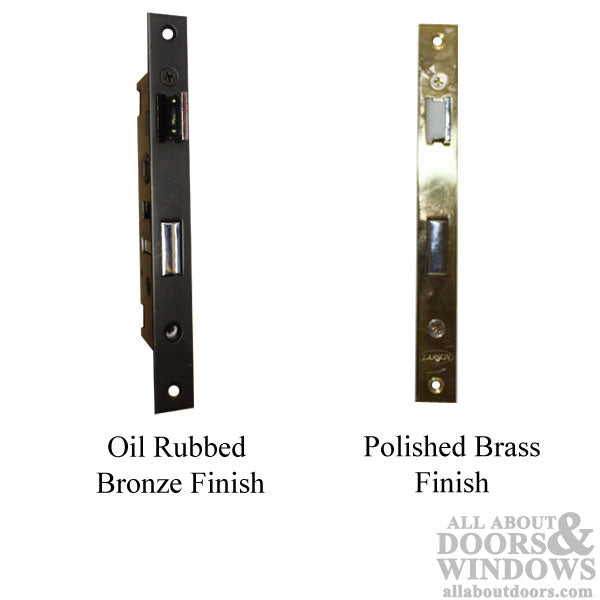

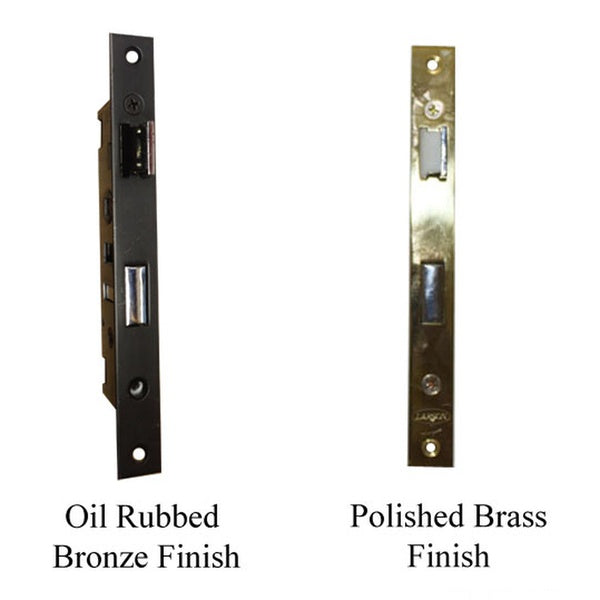

Oil Rubbed Bronze finish is discontinued and no longer available.
