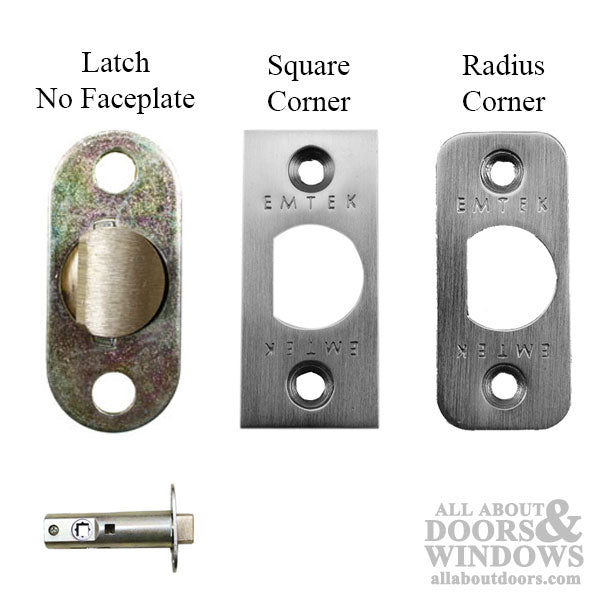

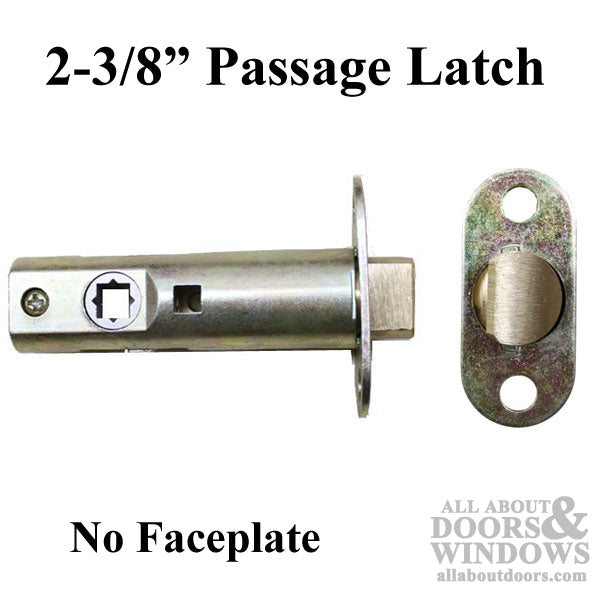

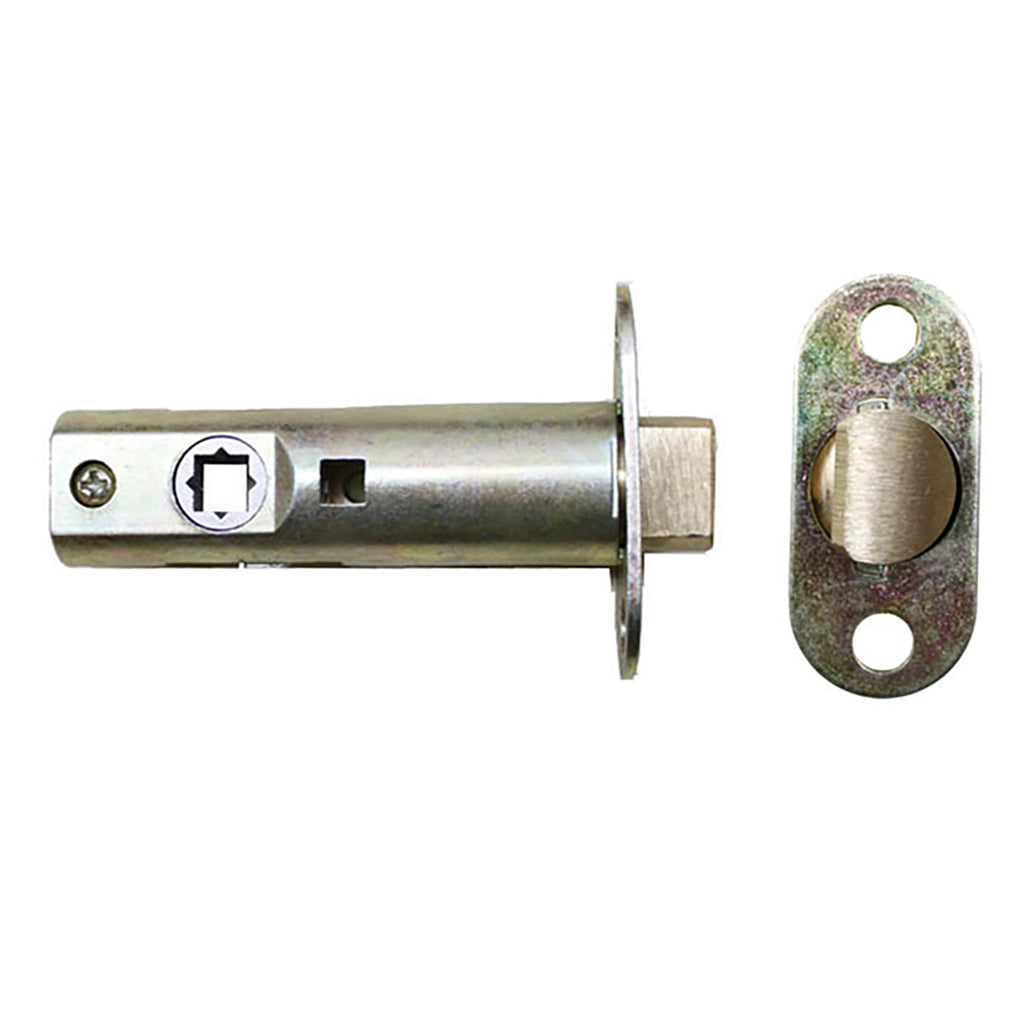

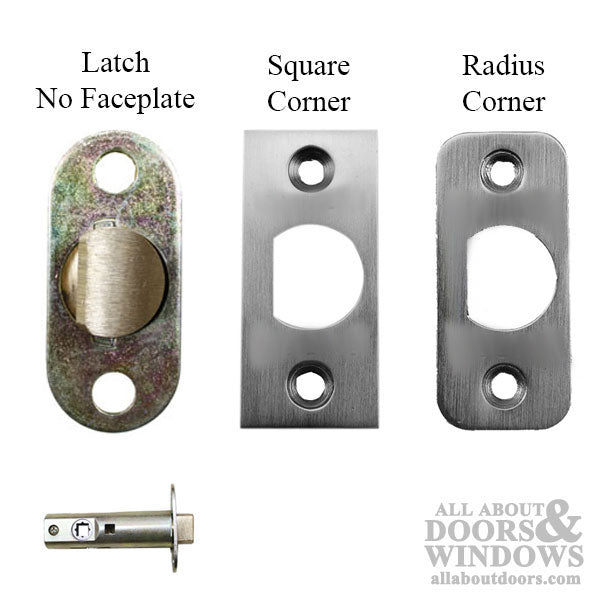

Latch Passage 2-3/8 Spring latch - No Faceplate

Part Number:4806530-NFP Price: $16.88
Replacement spring latch, non-handed for closet/ hall passage door, no faceplate.
No holes in latch for screws. Installation screw holes from lock are vertical (up and down).
Replaces: Old Style Dexter, Emtek, Cifial, Gainsborough and others with same measurements

CAN BE USED WITH A KNOB or HOLLOW LEVER ( on hollow levers, not solid ) NOTE: Heavy levers by Cifial and others use part # 48145332

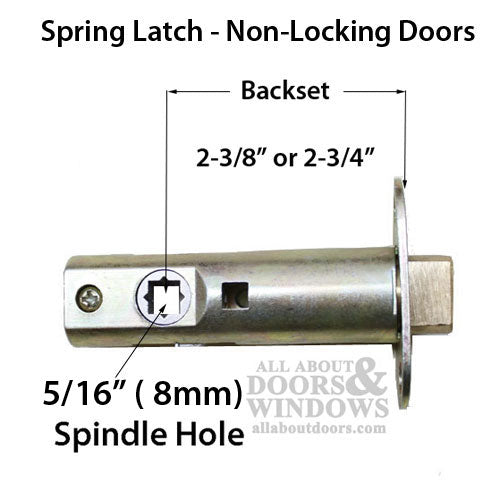

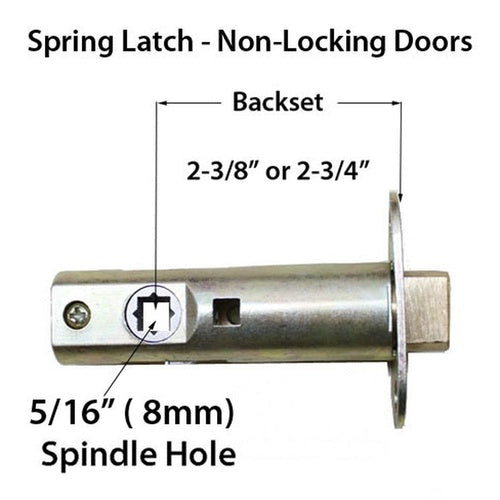

Backset: 2-3/8 inch (60 mm)
Spindle Diameter: 5/16 inch (8 mm) square spindle
No faceplate included.
Available Color/ Finish: Polished Brass, Oil Rubbed Bronze, Nickel

Priced and sold each.

Note: If your lock has a pushbutton on the rosette, this latch will not have a place for the button.
The button works for privacy locks like a bathroom or bath.
