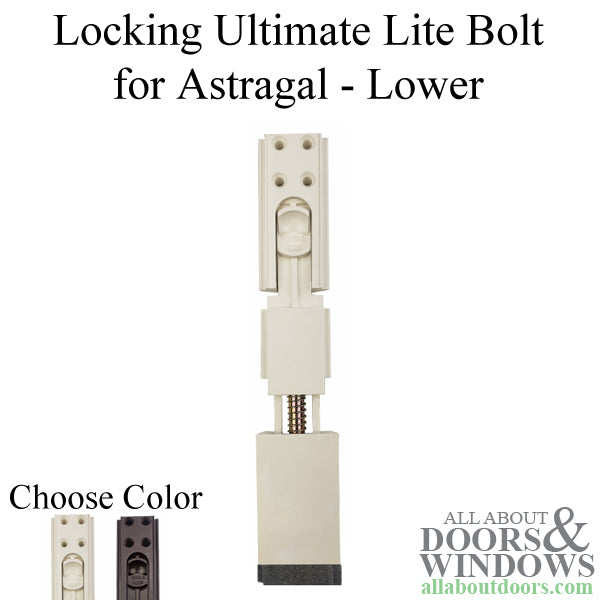

Locking Ultimate Lite Bolt for Astragal, Lower - Choose Color
Use the arrows or swipe left to view all images for this product
Locking Ultimate Lite Bolt for Astragal, Lower - Choose Color
Part Number: $24.38 to $24.57This attaches to the bottom of your astragal (affixed trim piece or post that blocks the gap in a set of double doors) and goes down into the floor to fix the passive door in place.
Used by Jeld-Wen, Masonite, Plastpro, Therma-Tru and others

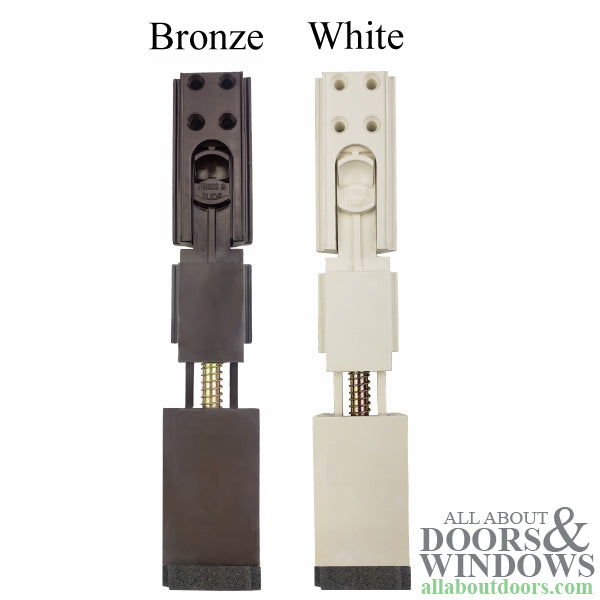

Body Color Options: Bronze or White

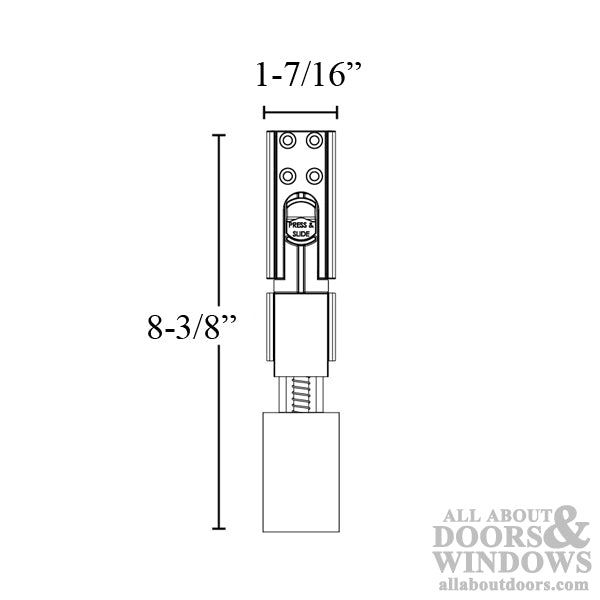

Length: 8-3/8"
Width: 1-7/16"
This is the lower bolt. Upper bolt is 362046
- For inswing astragals, one upper and one lower bolt are required.
- For outswing astragals used with outswing bumper sills, two upper bolts are required and no lower bolts are used.
- For outswing astragals used with outswing sills that are not bumper style, one upper and one lower bolt are required.
Endura double-door ultimate lite locking astragal upper bolt
This attaches to the bottom of your astragal (affixed trim piece or post that blocks the gap in a set of double doors) and goes down into the floor to fix the passive door in place.
Used by Jeld-Wen, Masonite, Plastpro, Therma-Tru and others
Body Color Options: Bronze or WhiteLength: 8-3/8"Width: 1-7/16"
This is the lower bolt. Upper bolt is 362046
- For inswing astragals, one upper and one lower bolt are required.
- For outswing astragals used with outswing bumper sills, two upper bolts are required and no lower bolts are used.
- For outswing astragals used with outswing sills that are not bumper style, one upper and one lower bolt are required.
