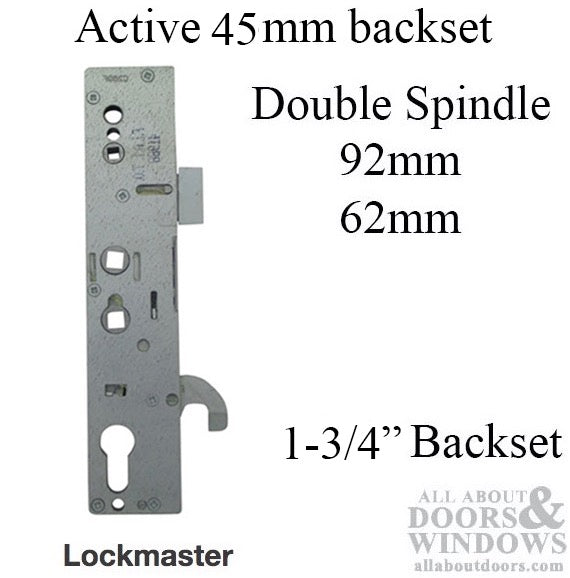

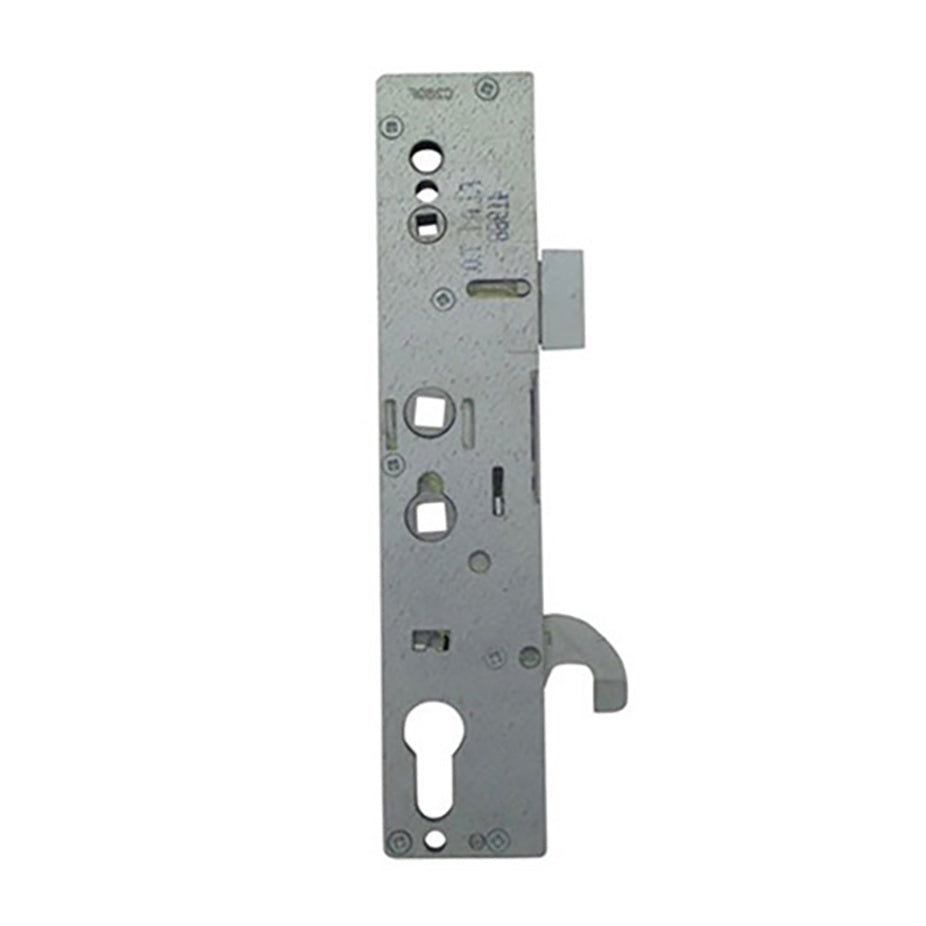

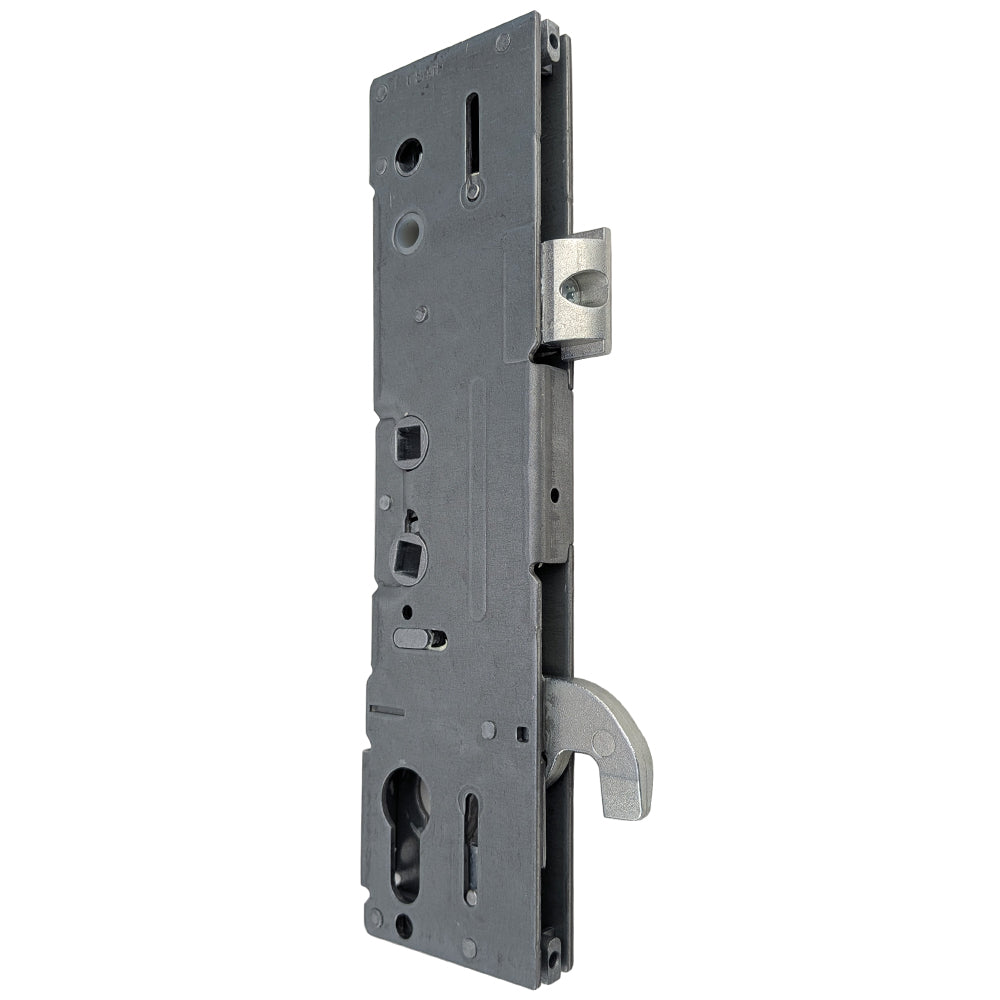

Lockmaster 304 (Lock Body Only)

16mm Lock Case for Active Multipoint Lock

This Lockmaster genuine gearbox features an 8mm double spindle with 62/92mm centres and a 45mm backset.

Double spindle gearboxes are unsprung and therefore not suitable for use with unsprung handles. Your handleset must have a spring cassette, otherwise the handles will droop.

Specifications:

• Application:  Replaces lock case only
• Faceplate Width:  Faceplate not included; lock case only
• Lock Backset:  45 mm (1-3/4 inch)
• PZ (Distance from center-of-cylinder to center-of-spindle:

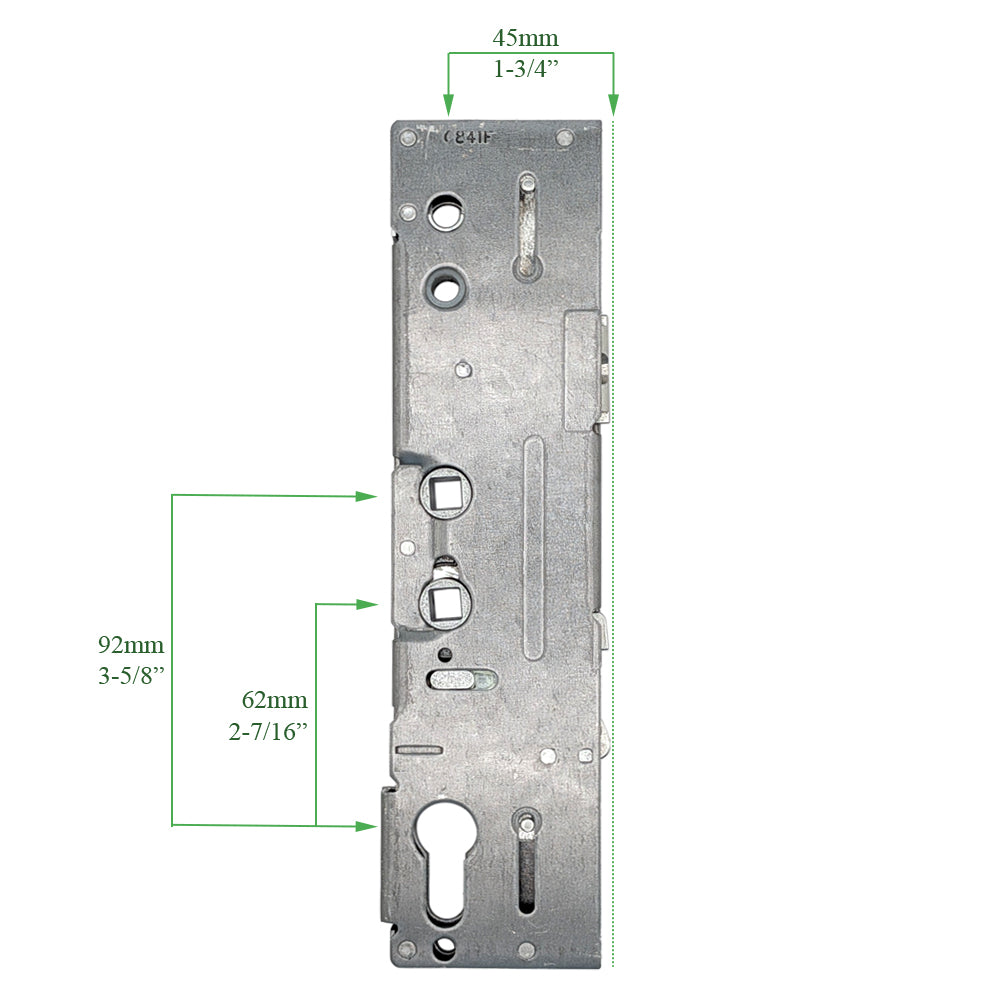

  • Top Spindle:  92 mm (3-5/8 inches)
  • Bottom Spindle:  62 mm (2-7/16 inches)
• Spindle Diameter:  8 mm (5/16 inch)
• Locking Function:  Spring Latch and Deadbolt Hook
• Handed:  Reversible, left or right handed
  • Latch reversal:
    1. Undo the screw in the latch to remove
    2. Reverse
    3. Reinsert
    4. Replace screw
• Cylinder Type:  Euro / Profile

Operation:

• To lock:
  1. Lift handle to engage lock.
  2. Turn key or cylinder thumb turn to secure.
• To unlock:
  1. Turn key or cylinder thumb turn.
  2. Depress handle to retract latch and deadbolt/hook.
