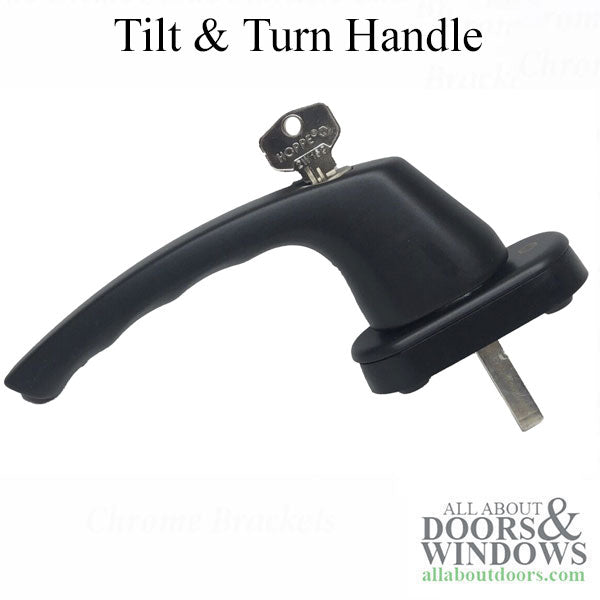

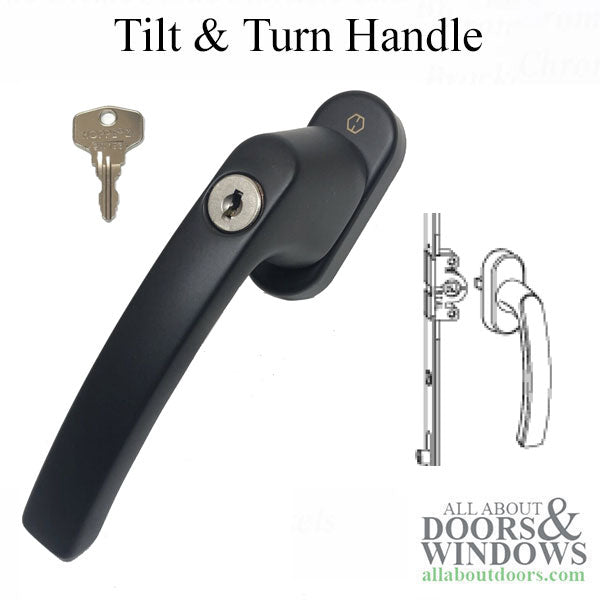

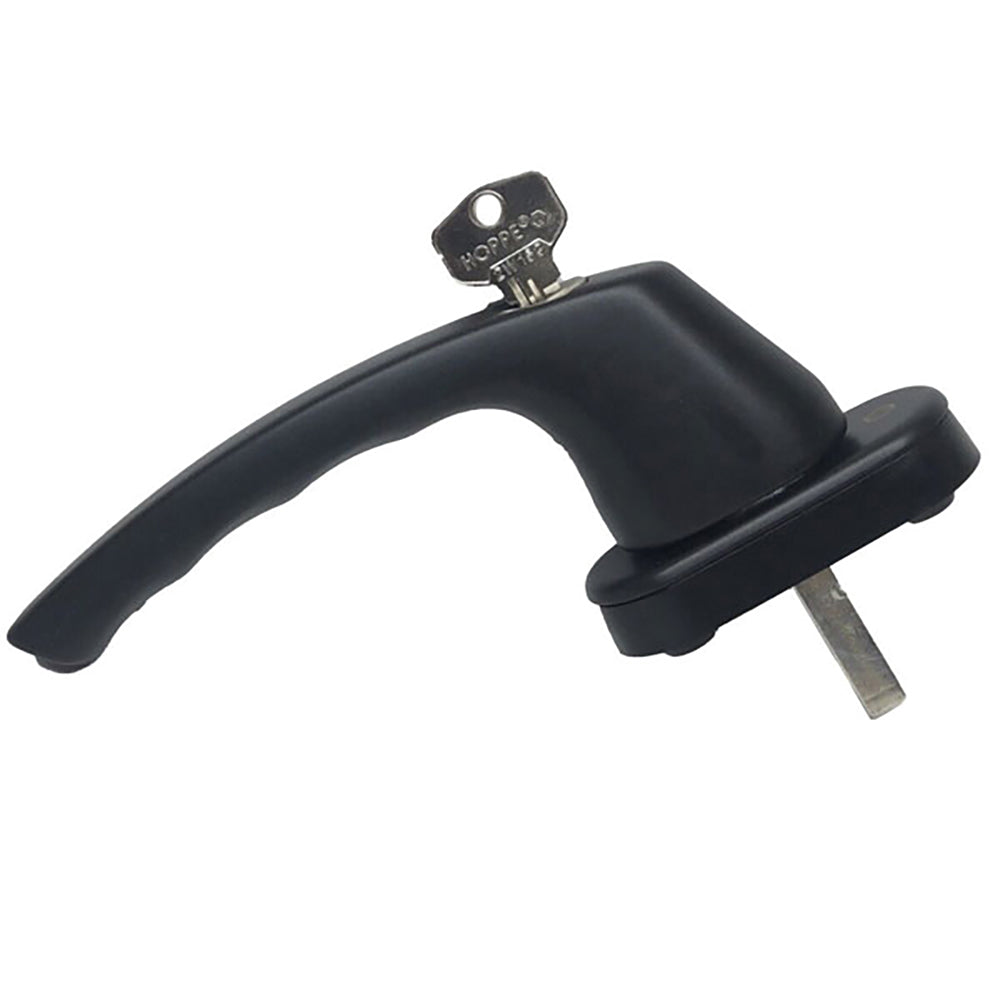

HOPPE 099S/U26 Lockable Luxembourg Keyed Handle for Tilt & Turn Windows

Manufacturer: Hoppe
Application: Tilt Turn Window
Model: 099S/U26
Handle Design: Luxembourg
Product Line: DuraPlus®
Material: Cast Aluminum
Finish: Matte Black (F9714M)

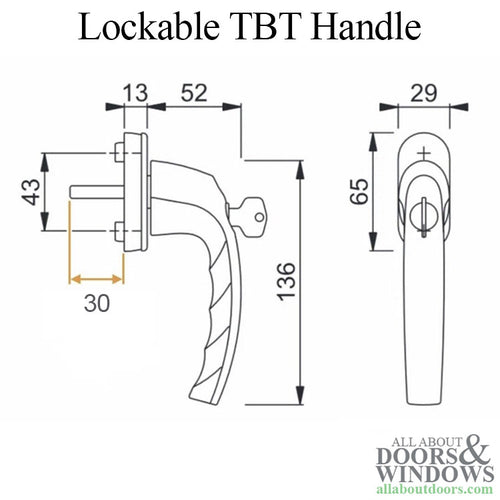

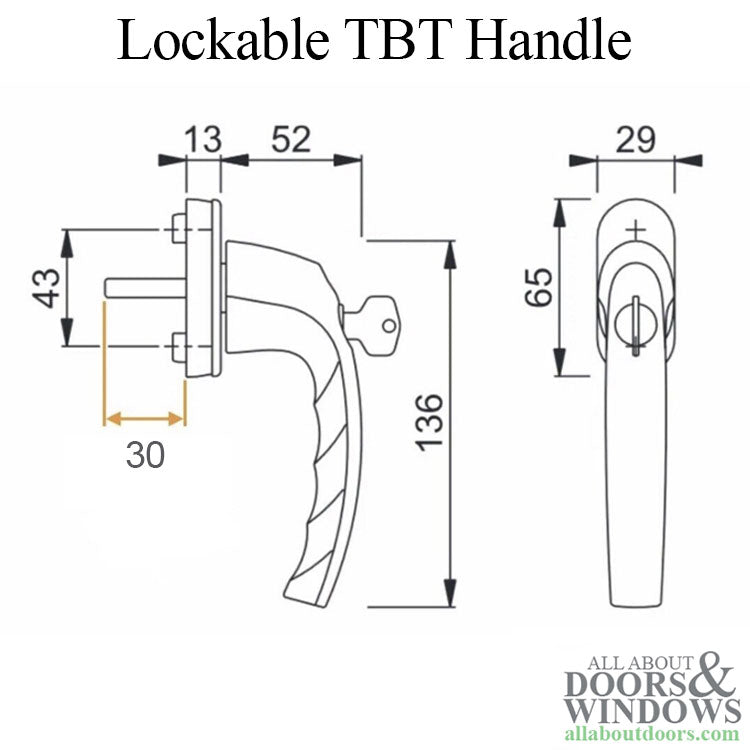

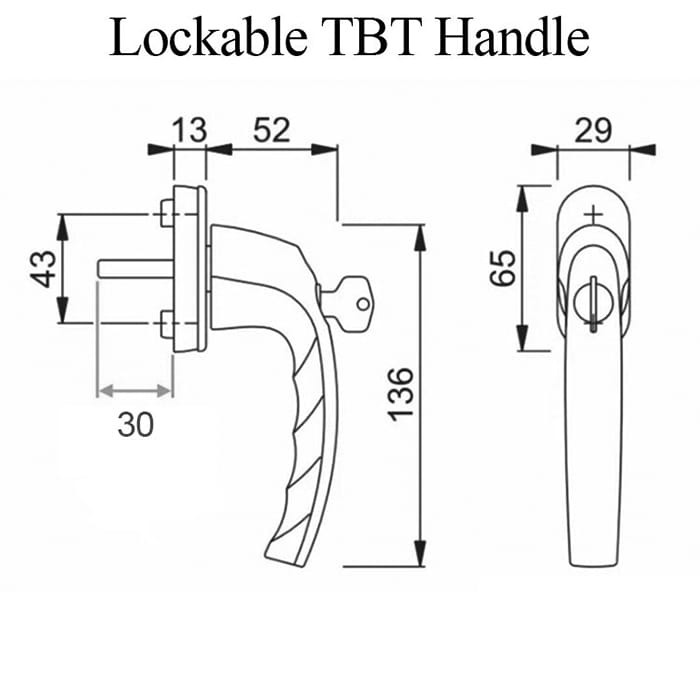

Shaft (Spindle) Length:  1-3/16 (30mm)
Spindle Width: 9/32 inch (7mm)
Spacing Between Centers of Screw Holes: 43mm
Handle Length: 136mm

Function: Lockable TBT (Tilt Before Turn); Handle functions between the closed and tilted positions freely, meaning that, although unlocking of the cylinder is not necessary, ventilation can occur. In the 90 degree tilted position, a blocking mechanism comes into operation so that turning the handle further to the 180 degree open position is only possible once the cylinder is unlocked by the key

Contents:
Handle with attached spindle
M5X40mm Screws
Key

Spindle is not removable

This is a special order item that may take up to 10 weeks to process
