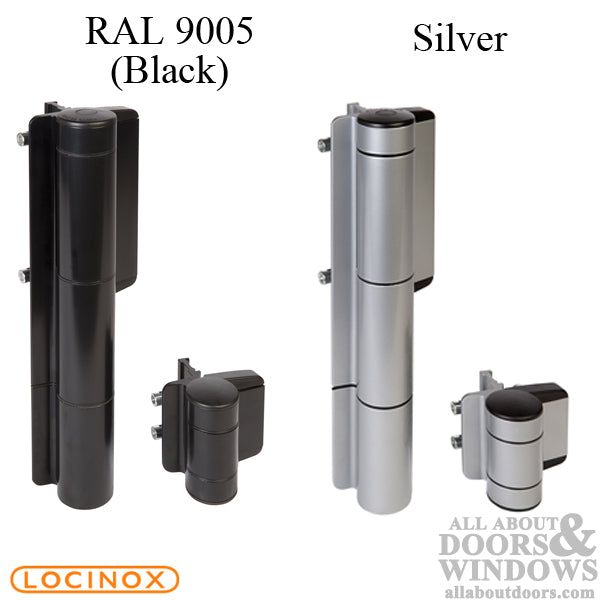

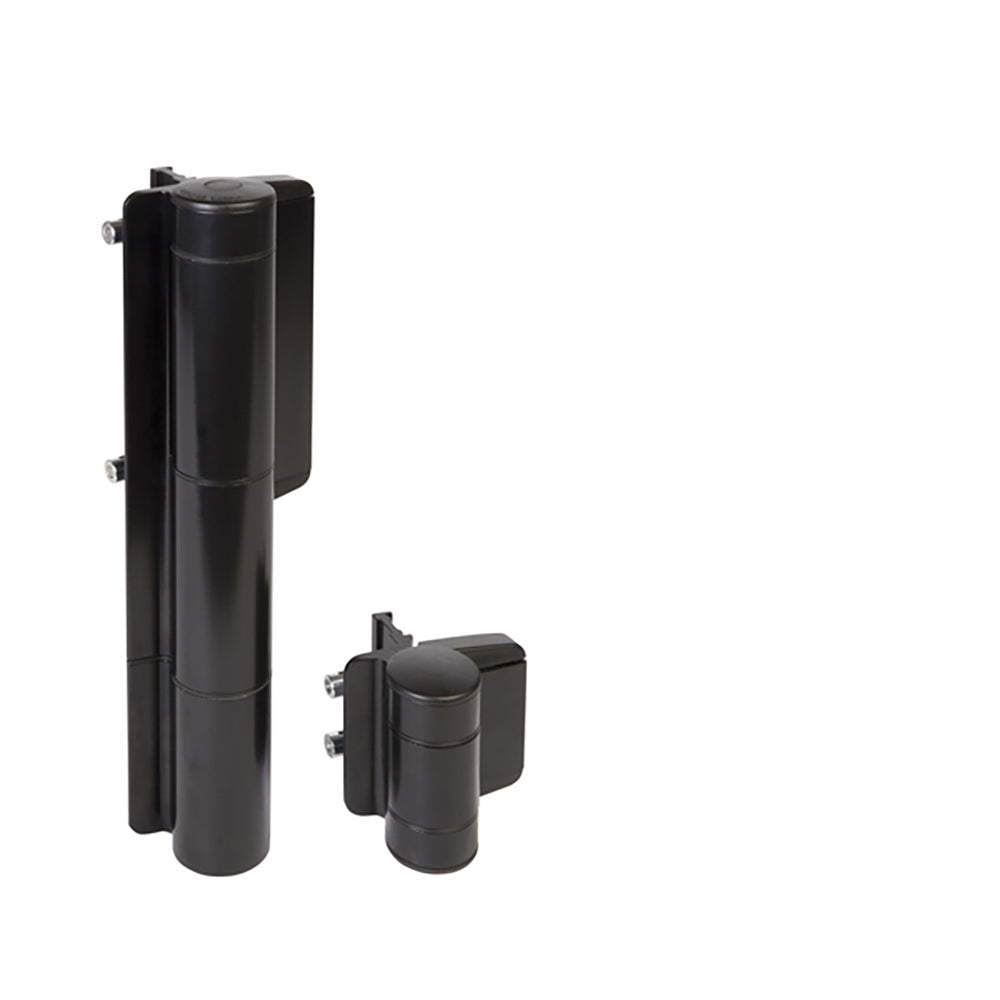

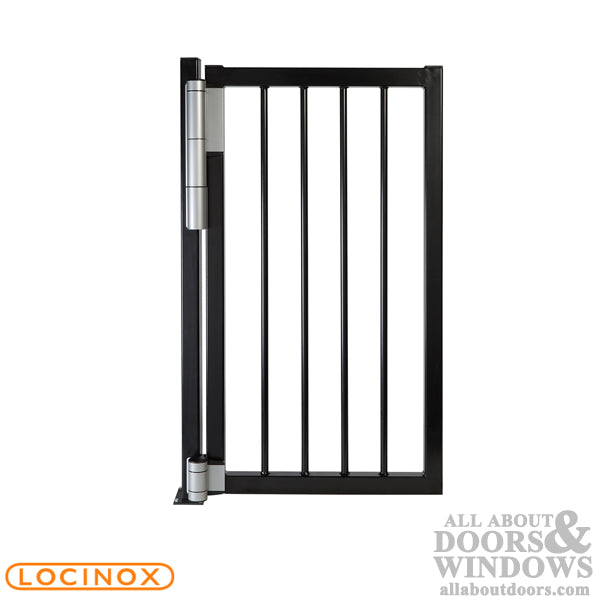

180° Self-Closing Mammoth Gate Hinge for Gates up to 330 lbs

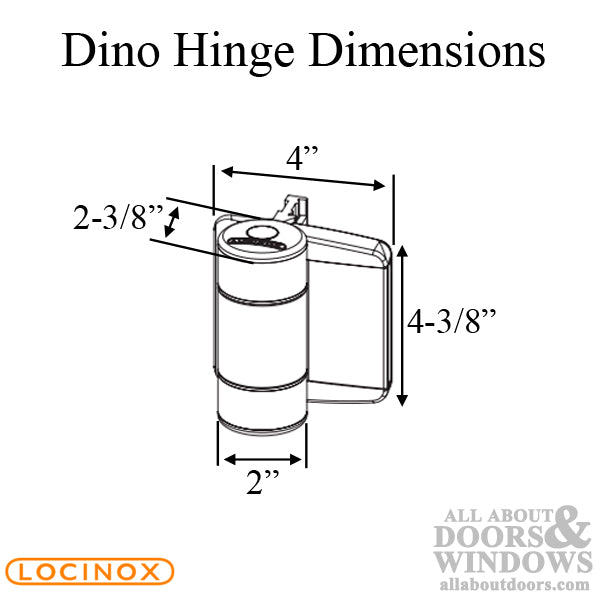

Includes double-bearing Dino hinge

Manufactured by Locinox

Specifications:
180° range of closure
Max 11.80 lb-ft
For gates up to 330 lbs and 5 feet wide
Adjustable 2 ways: gap and height, by 3/4”

Features:

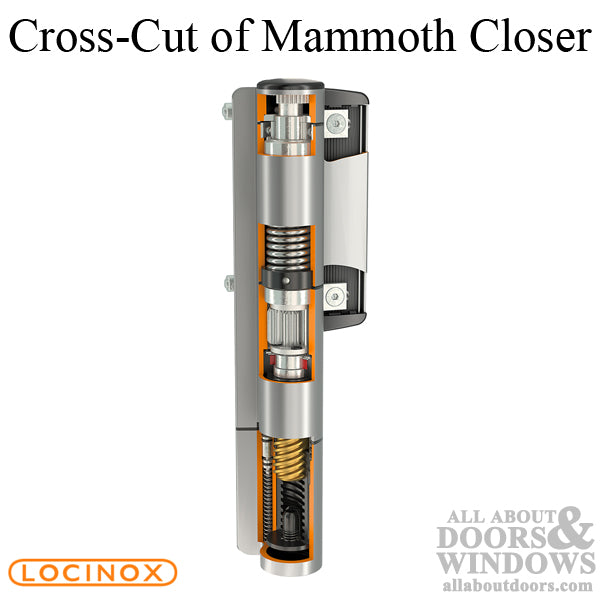

Patented hydraulic damping
Weatherproof: active thermal system guarantees a constant closing speed in any conditions, including temperatures ranging from -22° F to 158° F
Reversible: can be used on right- or left-handed gates
3-Year warranty provided by Locinox
Tamper-proof mounting hardware

To install on a chain link fence, use Mammoth Bracket

Resources:

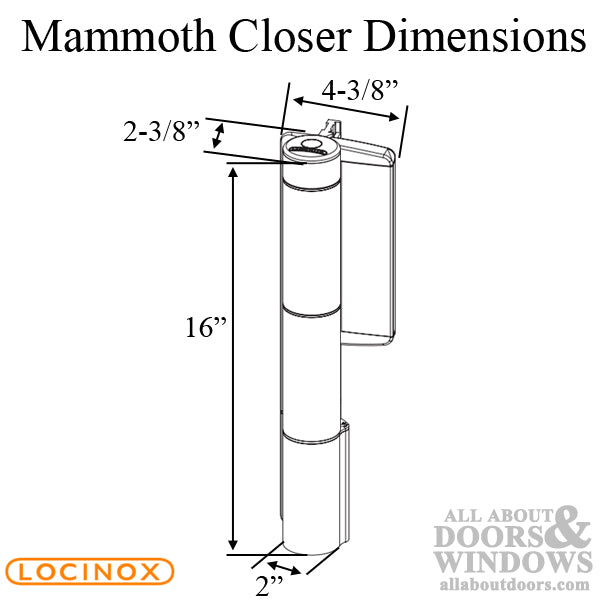

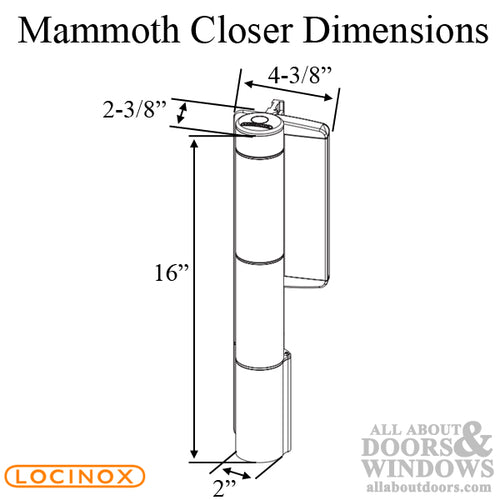

PDF: Installation Instructions (includes technical drawing)
Video: Installation Instructions
Video: Installing a Mammoth Closer on a chain link fence
