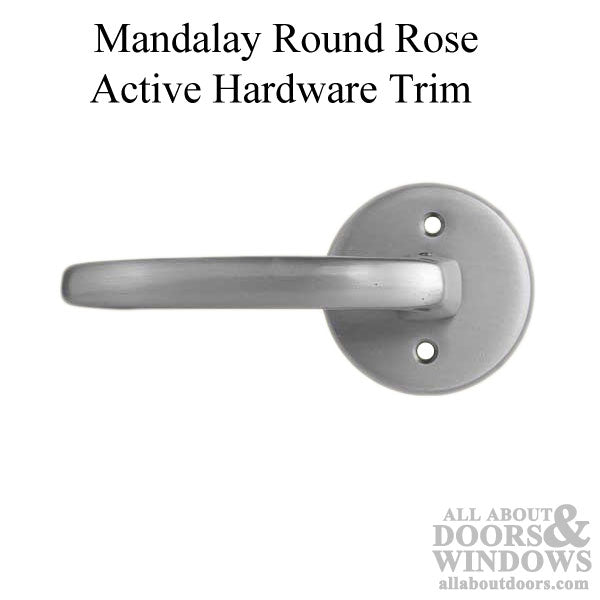

Mandalay Active Mortise Lock Trim Only - US15 - Satin Nickel
Part Number: Price: $360.00Mandalay Active Trim Only for Mortise lock, Round Rose with Curved Lever
This does NOT have screws going all the way thru door
The Escutcheon plate mounts to door and the handle goes thru trim
( binder post with screws available for some applications)

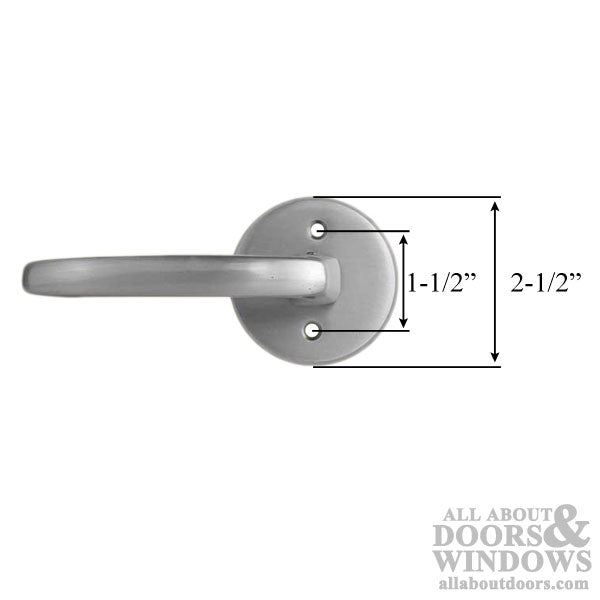

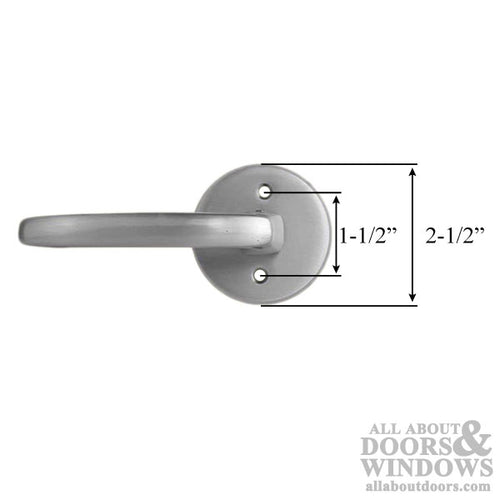

Escutcheon Plate Diameter: 2-1/2 inch Round Rose
Fits: Doors 1-3/4 - 2 Inch Thick, will fit thicker door with longer spindle
Color / Finish: Satin Nickel US15

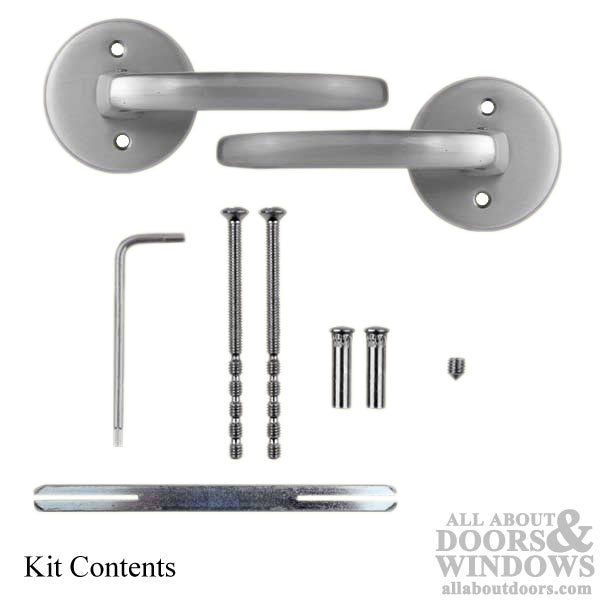

Active Trim Only - No Mortise Lock, includes handles and round escutcheon plate.
Spindle Diameter: 5/16 inch (8mm) Square
When used with independent Rosette and Euro Cylinder will work with any handle / cylinder spacing.
This does NOT have screws going all the way thru door
The Escutcheon plate mounts to door and the handle goes thru trim
( binder post with screws available for some applications)
Escutcheon Plate Diameter: 2-1/2 inch Round Rose
Fits: Doors 1-3/4 - 2 Inch Thick, will fit thicker door with longer spindle
Color / Finish: Satin Nickel US15
Active Trim Only - No Mortise Lock, includes handles and round escutcheon plate.
Spindle Diameter: 5/16 inch (8mm) Square
When used with independent Rosette and Euro Cylinder will work with any handle / cylinder spacing.
