Marks Maximum security LA118 Custom Mortise lockset with "American" style levers.
Keyed single cylinder (Does not include the keyed lock cylinder).
Handing: Right Hand Reverse
Function: Hotel

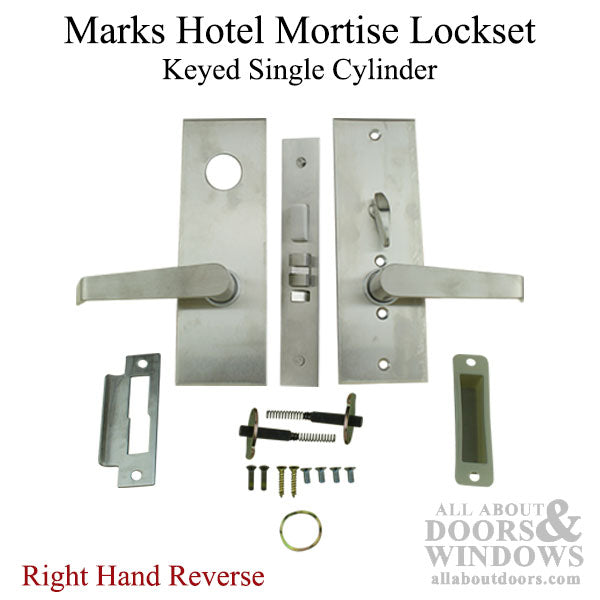

Contents:
Right Hand Reverse mortise lock
Exterior trim
Interior trim
Interior Lever Override Guard Integral cam spindle
Exterior Lever Override Guard Integral cam spindle

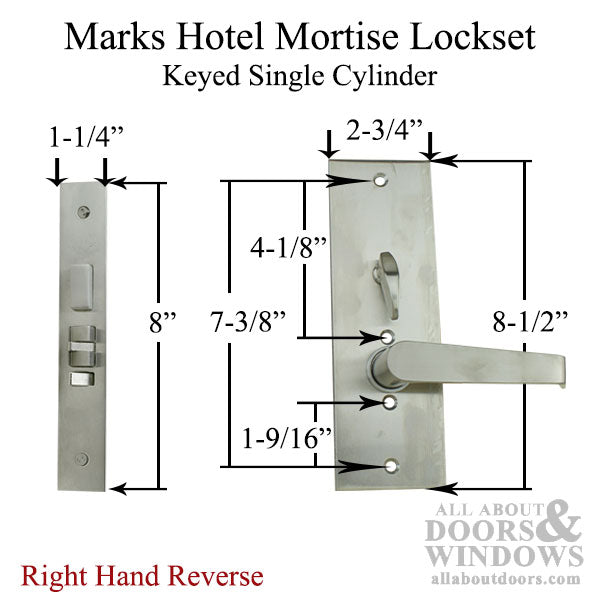

Plate Height: 8-1/2 Inch
Plate Width: 2-3/4 Inch
Plate Hole Center: 7-3/8 Inch

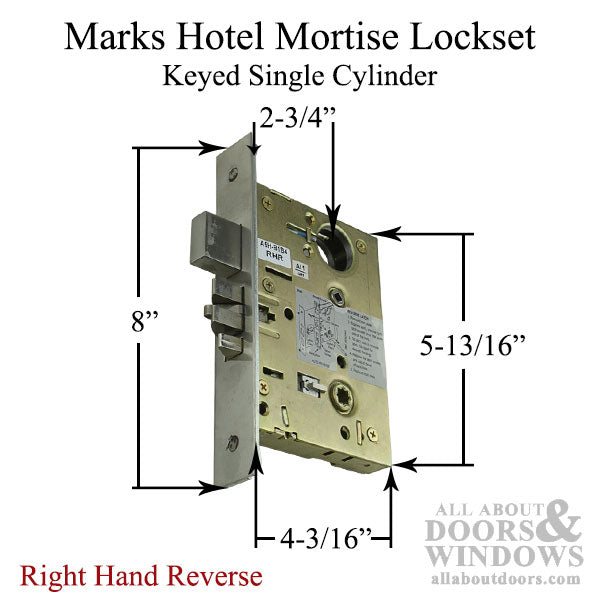

Mortise Plate Length: 8 Inch
Mortise Plate Width: 1-1/4 Inch
Mortise Length: 5-13/16 Inch
Mortise Width: 4-3/16 Inch
Mortise Backset: 2-3/4 Inch

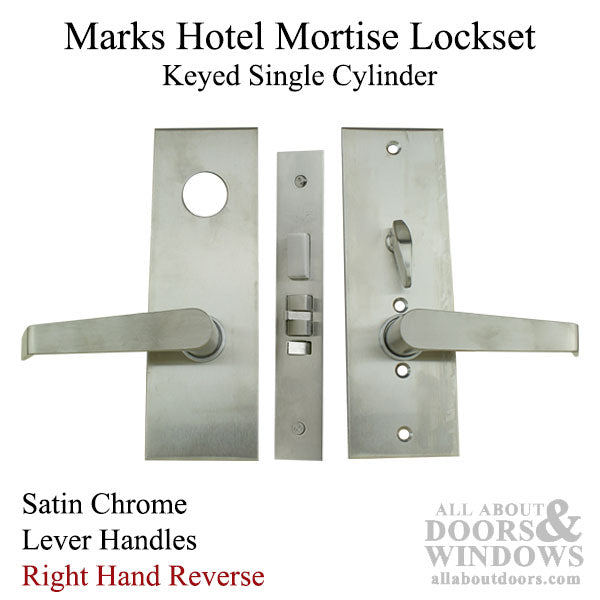

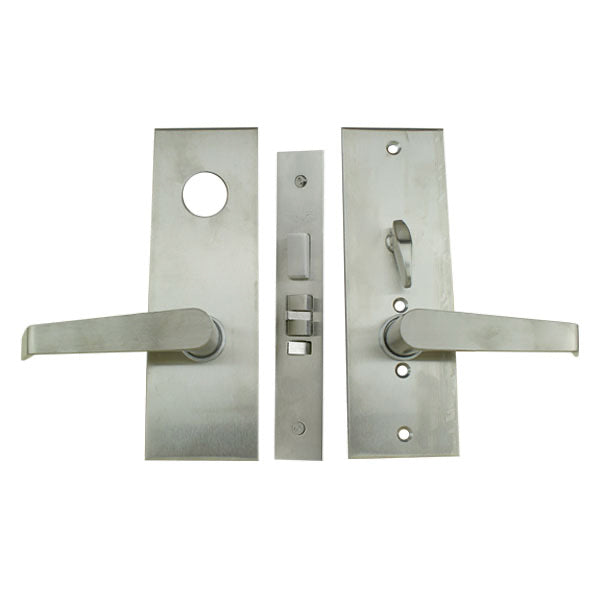

Brushed stainless steel plate assemblies with machined lever bearings. Screwless stainless steel levers assembled to plate with hardened snap rings. (Levers cannot be removed without disassembling trim plates from inside.)

Exterior: 4 welded thru-posts. Center posts pass through lock body, automatically aligning trim 8-1/2\" x 2-3/4\" x 1/8\" thick.
Interior: 4 stainless steel, tamper-proof mounting bolts connecting inside plate, 8-1/2" x 2-3/4" x 1/8" thick.
Cylinder: 1-1/8" long solid brass, 6 pin (not included).
Strike: 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip. Conforms to ANSI spec., A115.1.
Door Thickness: 1-3/4" standard.

Priced and sold as a package.

**Special Order, 4-6 Week Lead Time**
