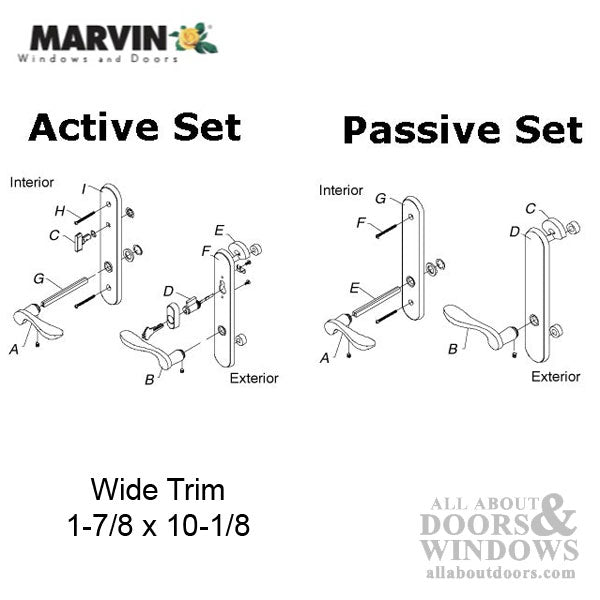

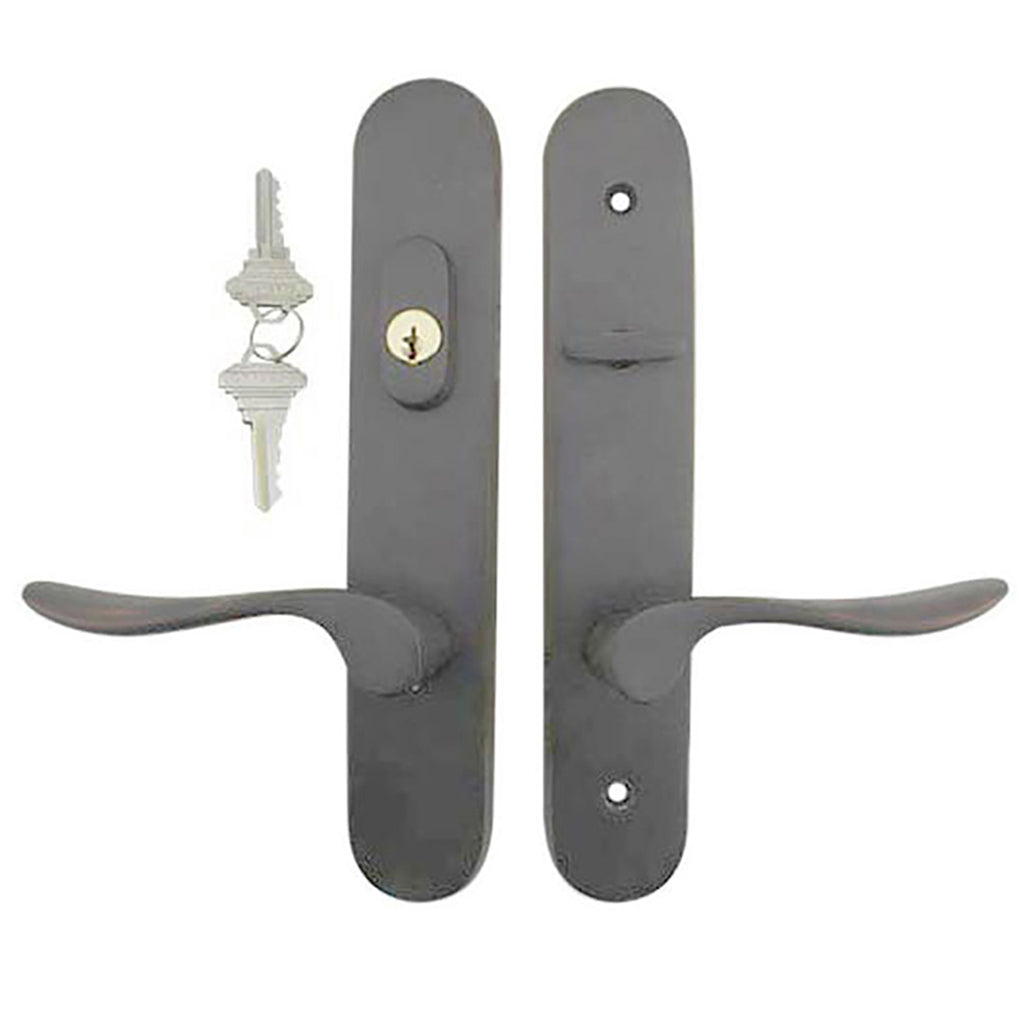

Marvin active trim for multi-point lock hardware on hinged patio doors.

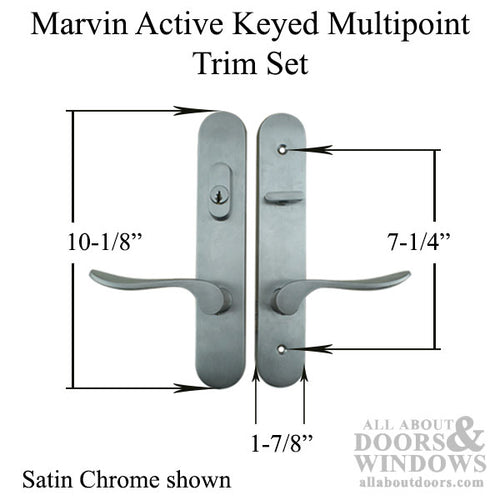

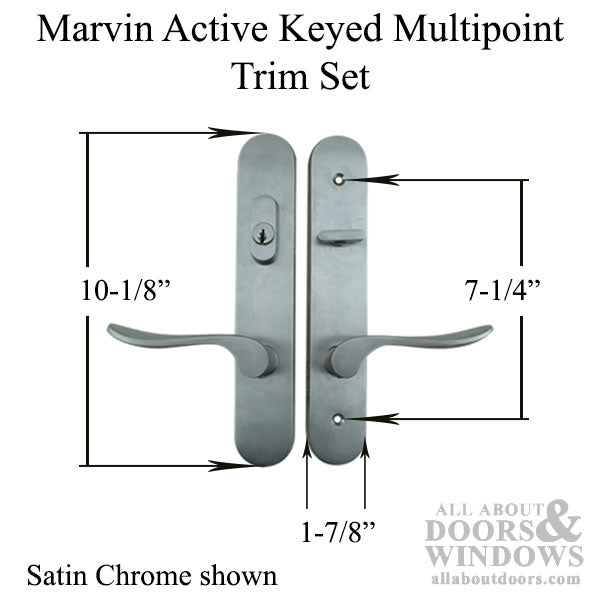

Back-plate Length: 10-1/8 inch
Back-plate Width: 1-7/8 inch
Screw Hole Spacing: 7-1/4 inch
Construction Material: Solid Brass
Square Spindle: 5/16 inch x 4-5/16 inch
Plate Design: Radius
Door Thickness: 1-3/4 inch

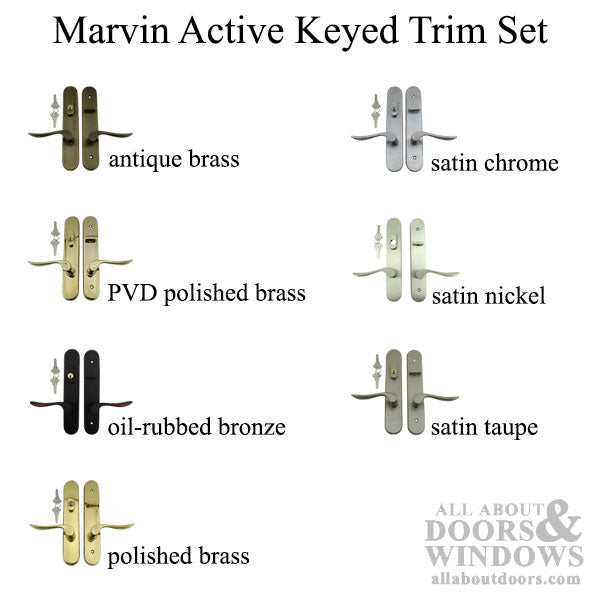

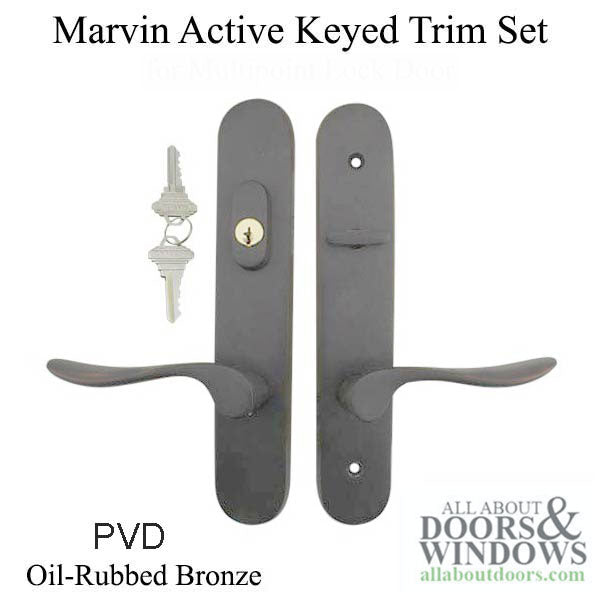

Color / Finish: Oil Rubbed Bronze, PVD (lighter bronze)

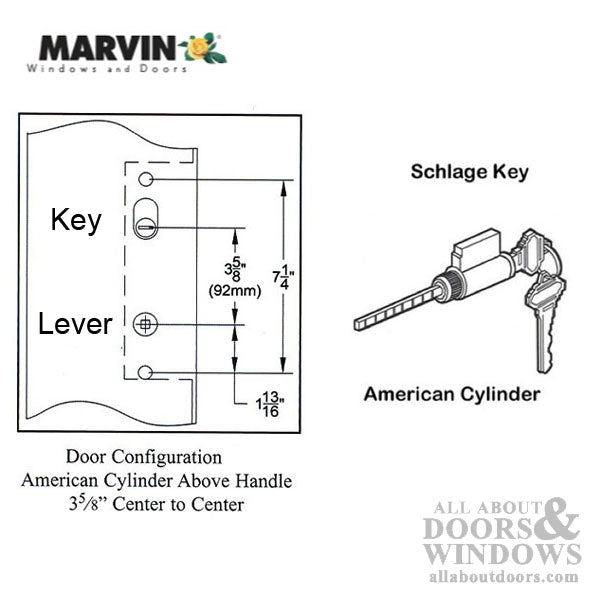

Marvin Active door trim, Keyed with Schlage SC-1, 5 pin keyway
Optional Kwikset / Weiser keyway available at an additional charge
NOTE:
Color / Finishes: High Performance (PVD) Oil Rubbed Bronze is a lighter color than the standard Oil Rubbed Finish. PVD finishes resist tarnish, corrosion and discoloration.
