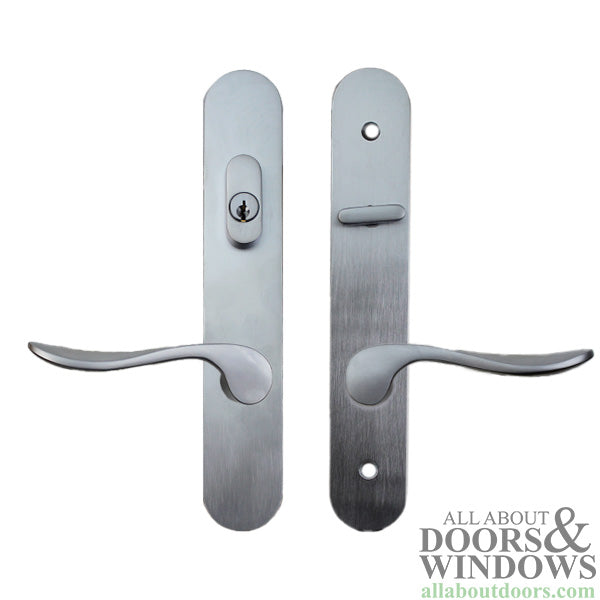

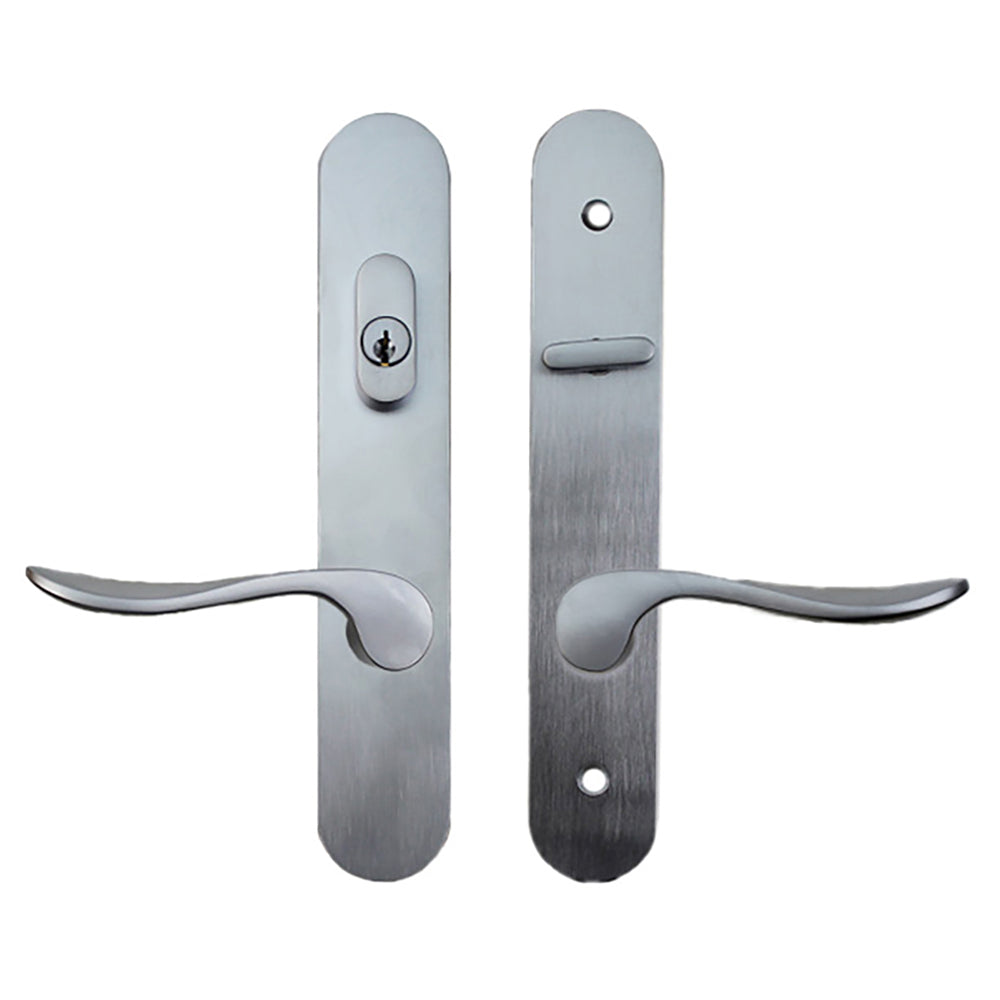

Marvin Active Keyed Multi-point Lock Trim for Hinged Door - Satin Chrome

Part Number: 10830302 Price: $457.36
Marvin Active door trim, Keyed with Schlage keyway

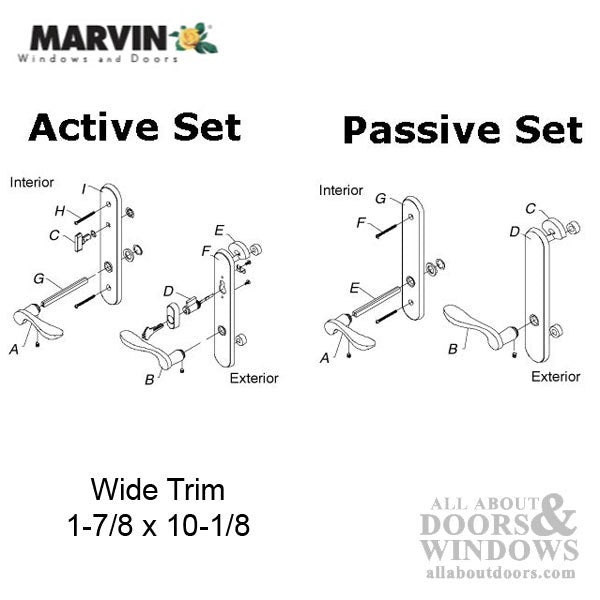

Marvin Active UIFD-UOFD-UAFD, HANDLE ASSEMBLY ACTIVE DOOR
Used by Marvin, but will fit other doors with the same configuration.

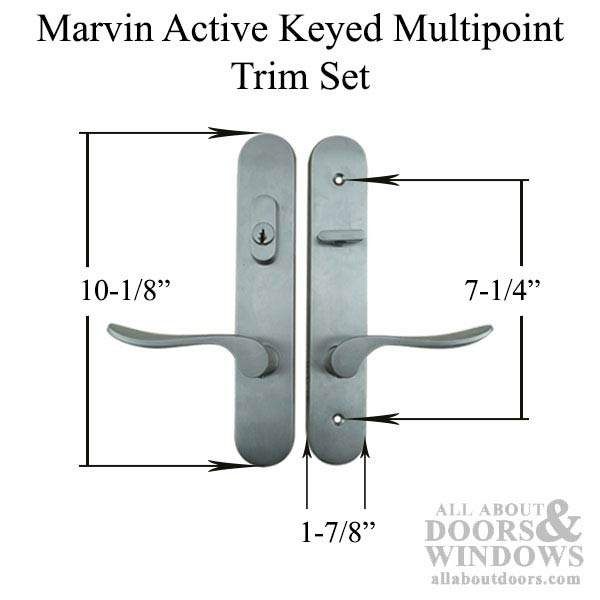

Back-plate Length: 10-1/8 inch
Back-plate Width: 1-7/8 inch
Screw Hole Spacing: 7-1/4 inch
Construction Material: Solid Brass
Square Spindle: 5/16 inch x 4-5/16 inch

Plate Design: Radius

Door Thickness: 1-3/4 inch

Color:  Satin Chrome
Priced and sold as a package.

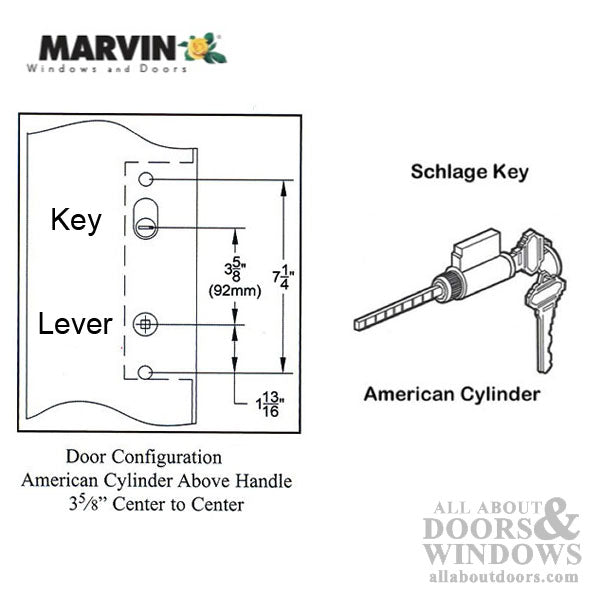

Marvin Active door trim, Keyed with Schlage SC-1, 5 pin keyway

Optional Kwikset / Weiser keyway available at an additional charge
