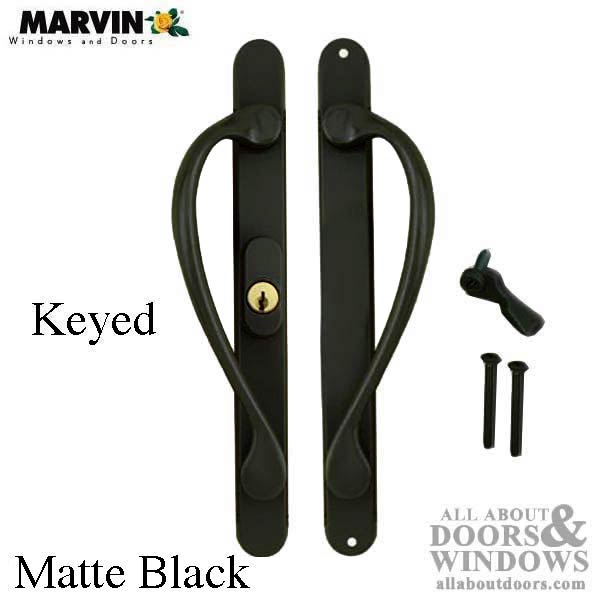

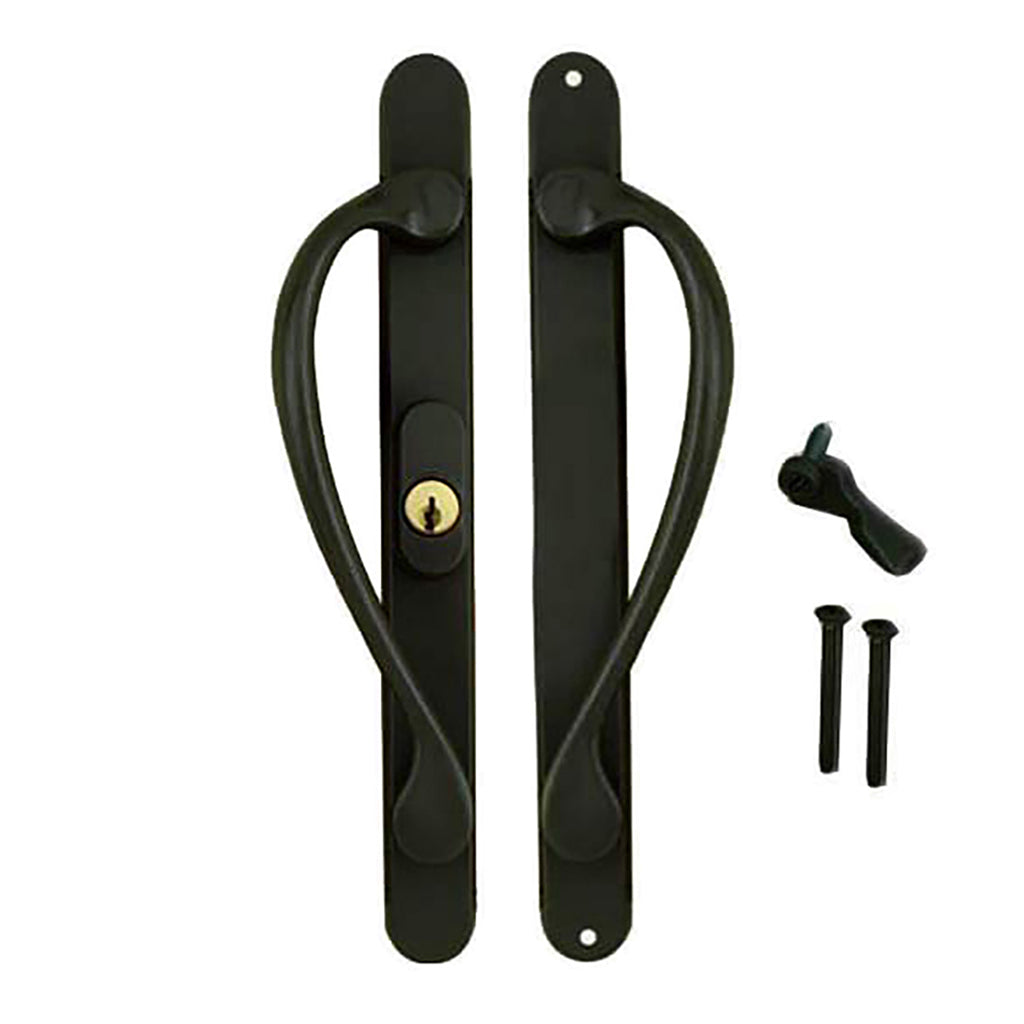

Marvin Active Keyed, Narrow Sliding Door Handle, Center Thumb - Matte Black

Part Number: 10830440 Price: $187.34
Marvin keyed sliding glass patio door trim, narrow plate and center thumb latch

Keyed: Yes, locking sliding door with inside thumb latch
Handed: NO, Handles are reversible
Thumb latch: Centered, Installed into lock, then handles fit over and bolts to door.
Escutcheon plate width: 1-1/8 inch
Escutcheon plate length: 10-7/8 inch
Installation screw holes: 9-7/8 inch top to bottom
Roll pin holes: 4 inch, roll pin is for hollow vinyl or fiberglass doors

Color: Matte Black
Base Material: Zinc
Type: Active Door, used on doors where keyed entry is required
Keyway: Schlage SC1, 5 pin
Key: Yes, 2 keys

NOTE: This does not replace the older or wider trim used by Marvin Ultimate door.
This Marvin sliding door trim only fits the newer style Marvin doors with centered thumb
Please check all measurements
Marvin keyed sliding glass patio door trim, narrow plate and center thumb latch<br>

<br>

Keyed: Yes, locking sliding door with inside thumb latch<br>

Handed: NO, Handles are reversible<br>

Thumb latch: Centered, Installed into lock, then handles fit over and bolts to door.<br>

Escutcheon plate width: 1-1/8 inch<br>

Escutcheon plate length: 10-7/8 inch<br>

Installation screw holes: 9-7/8 inch top to bottom <br>

Roll pin holes: 4 inch, roll pin is for hollow vinyl or fiberglass doors <br>

<br>

Color: Matte Black <br>

Base Material: Zinc<br>

Type: Active Door, used on doors where keyed entry is required<br>

Keyway: Schlage SC1, 5 pin <br>

Key: Yes, 2 keys<br>
<br>


NOTE: This does not replace the older or wider trim used by Marvin Ultimate door.<br>

This Marvin sliding door trim only fits the newer style Marvin doors with centered thumb<br>

Please check all measurements
