Marvin Active Keyed, Narrow Sliding Door Handle, Center Thumb - Satin Chrome

Part Number: 10830378 Price: $399.00

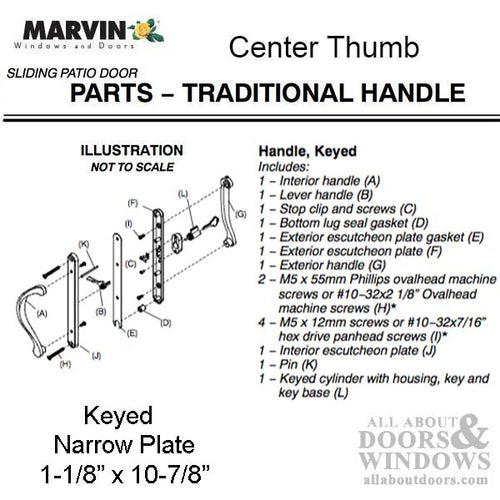

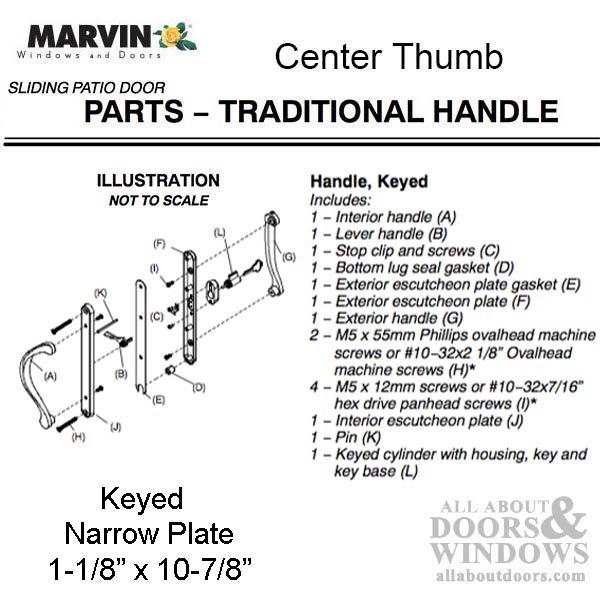

Marvin keyed sliding glass patio door trim, narrow plate and center thumb latch

Keyed: Yes, locking sliding door with inside thumb latch
Handed: NO, Handles are reversible

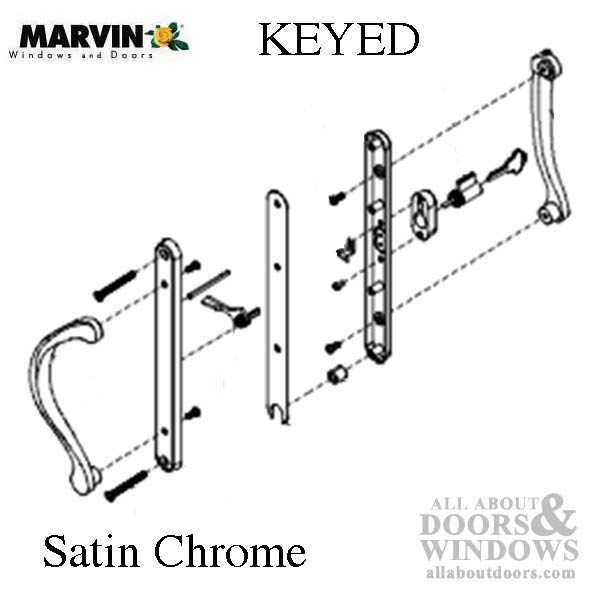

Thumb latch: Centered, installed into lock, then handles fit over and bolts to door.
Escutcheon plate width: 1-1/8 inch
Escutcheon plate length: 10-7/8 inch

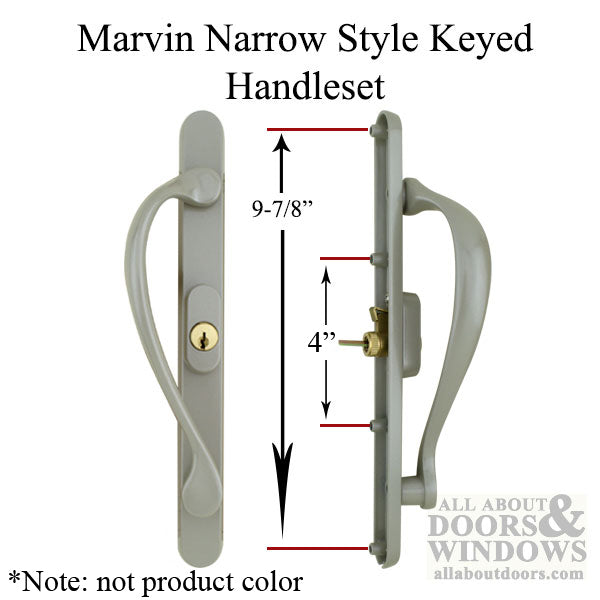

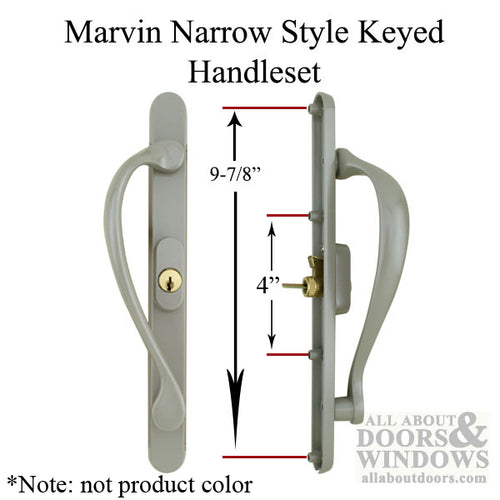

Installation screw holes: 9-7/8 inch top to bottom
Roll pin holes: 4 inch, roll pin is for hollow vinyl or fiberglass doors

Color: Satin Chrome
Base Material: Brass
Type: Active Door, used on doors where keyed entry is required
Keyway: Schlage SC1, 5 pin
Key: Yes, 2 keys

NOTE: This does not replace the older or wider trim used by Marvin Ultimate door.

This Marvin sliding door trim only fits the newer style Marvin doors with centered thumb

Please Check all measurements
