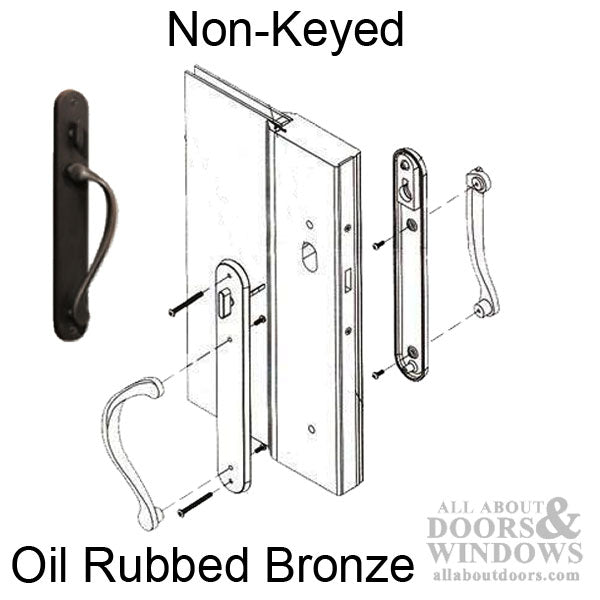

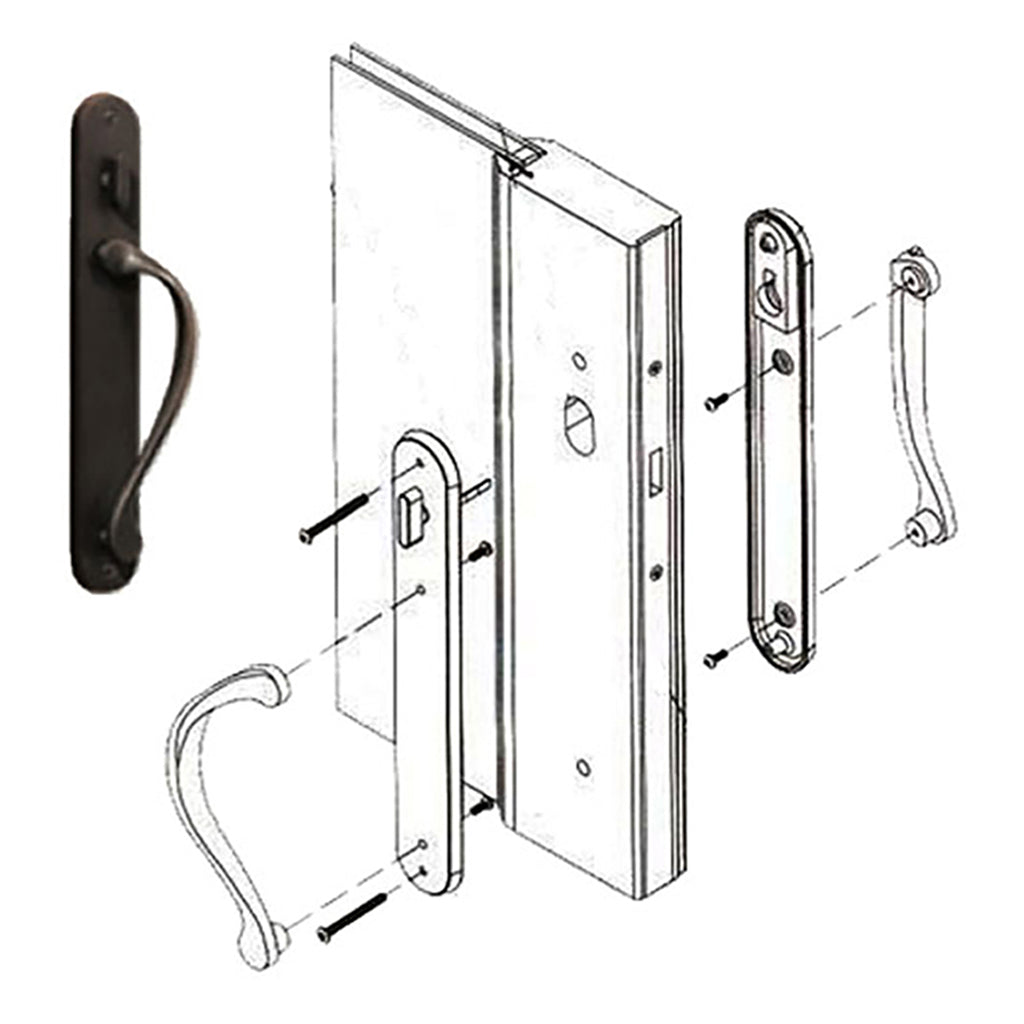

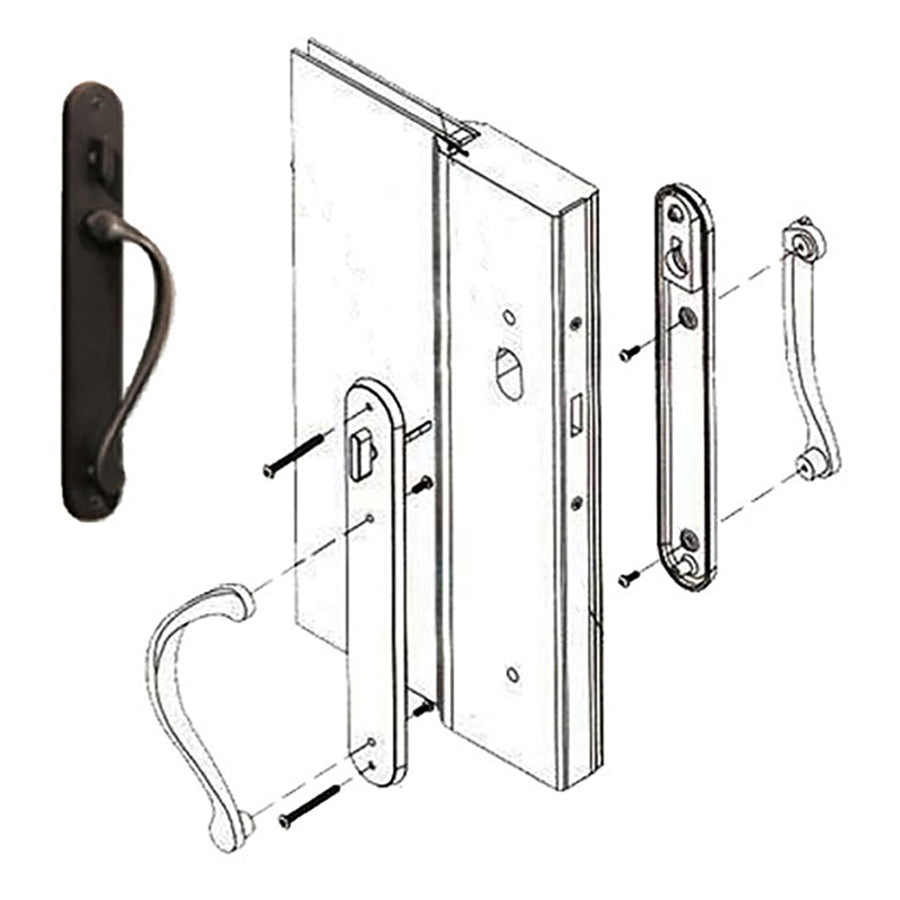

Marvin Traditional wide plate handle set trim for active door, non-keyed
Fits Current Style Marvin Sliding French Door & Ultimate Sliding French Doors
This is for the active door, without a key, thumb turn only on inside.

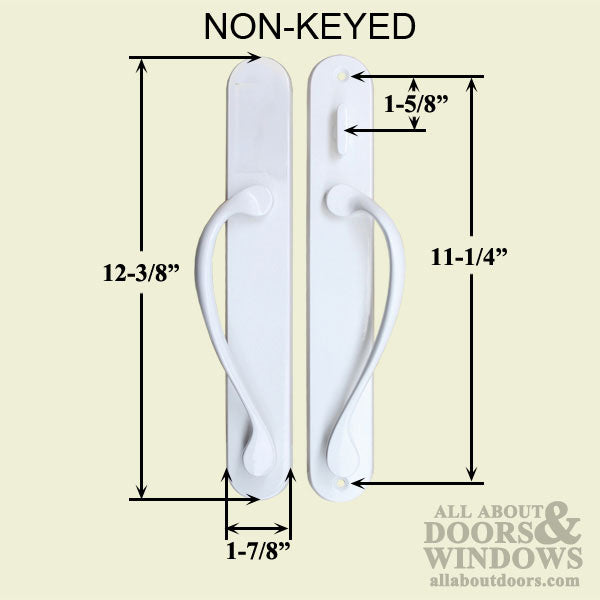

Marvin Handle Specifications:
Escutcheon Plate Width: 1-7/8 inch
Escutcheon Plate Length: 12-1/2 Inches

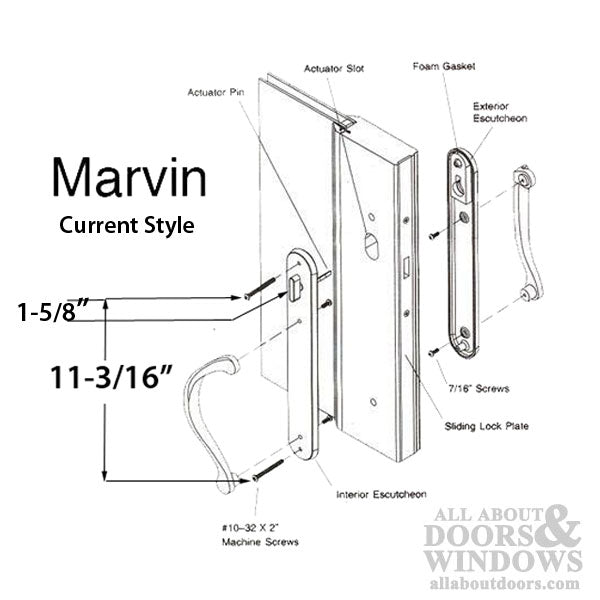

Screw Holes: 2 Top and bottom of plate, Spaced Vertically @ 11-3/16 inch
Top Screw hole to Center of thumb turn: 1-5/8 inch
Handed: No, handles can be switched for left or right hand doors

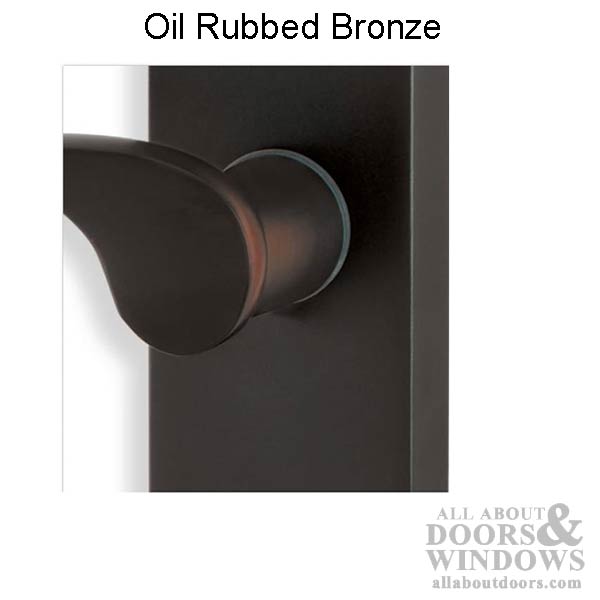

Color: Oil Rubbed Bronze with some Copper like Highlights
IMPORTANT NOTE:

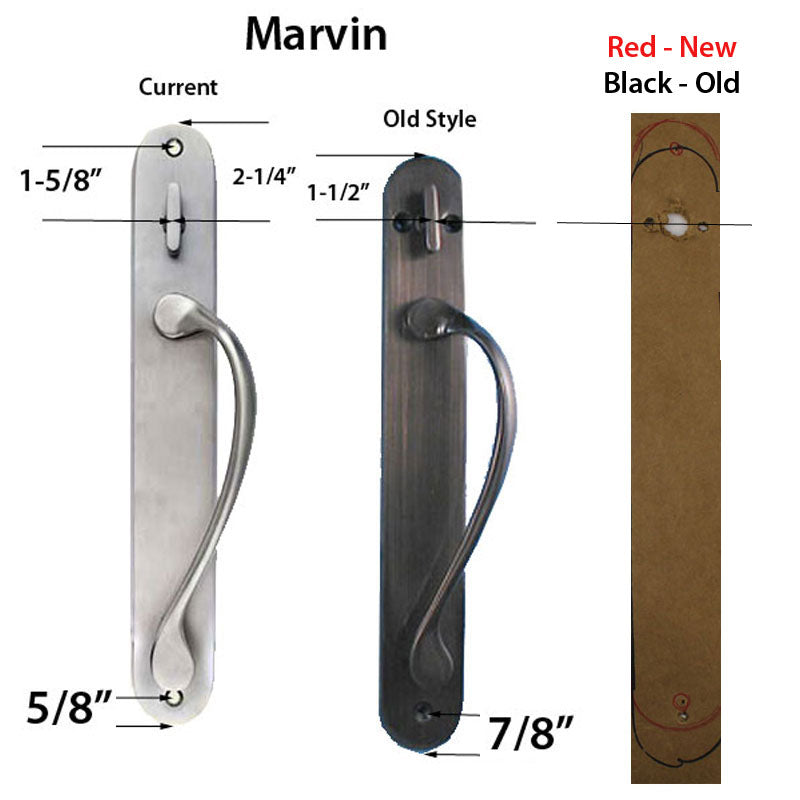

If you have the old style and are replacing with the new style, there will be marks from the old handle set that will NOT be covered by the new style.
New Style has 2 screws, vertical screw holes on the interior plate at top and bottom.
Old style has 3 screws, 2 horizontal screws at thumb turn and 1 bottom screw on the interior plate.
