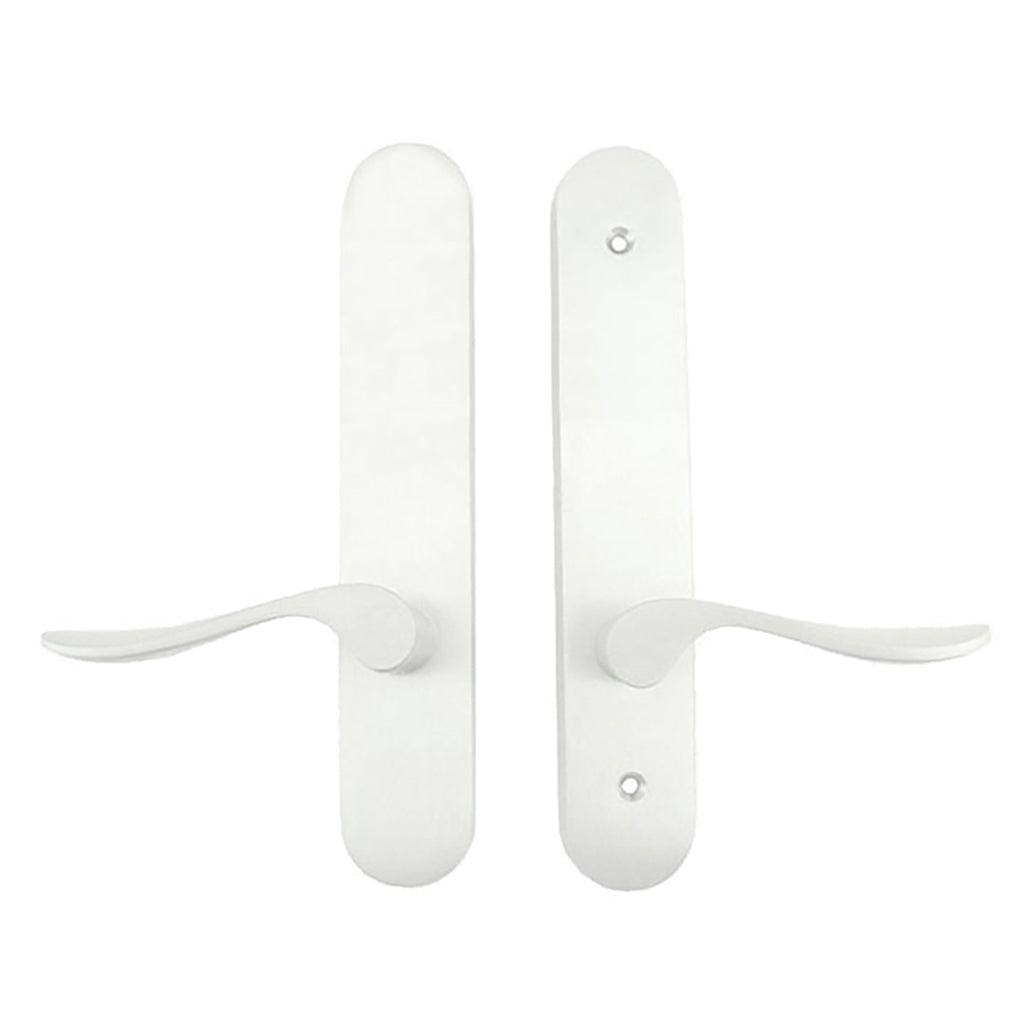

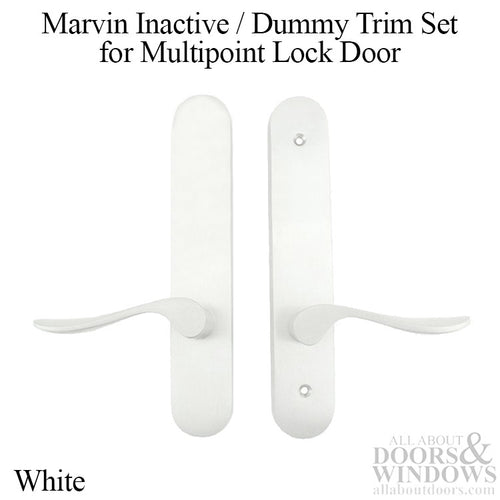

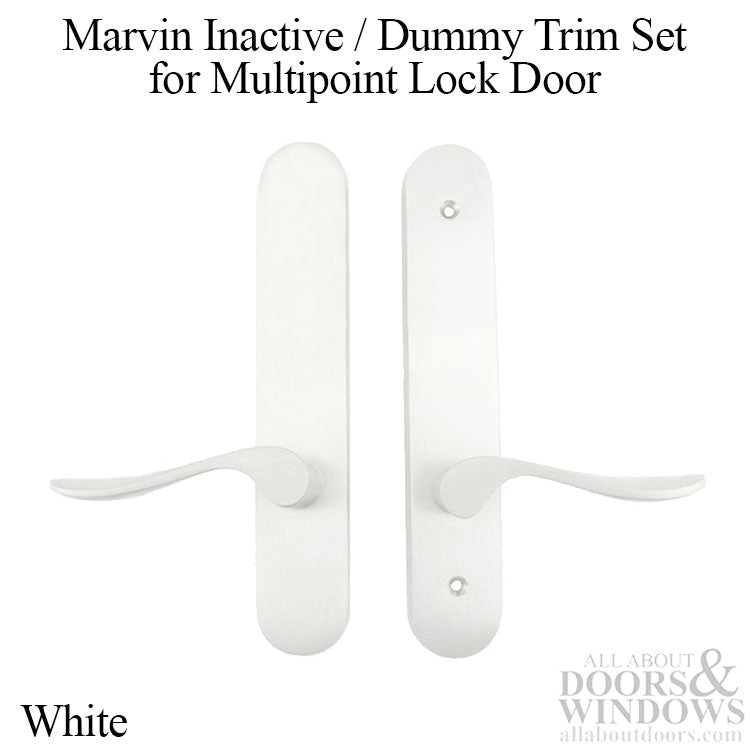

Marvin inactive or dummy trim for hinged passive patio door
Used by Marvin, but will fit other doors with the same configuration.
Back-plate Length: 10-1/8 inch
Back-plate Width: 1-7/8 inch

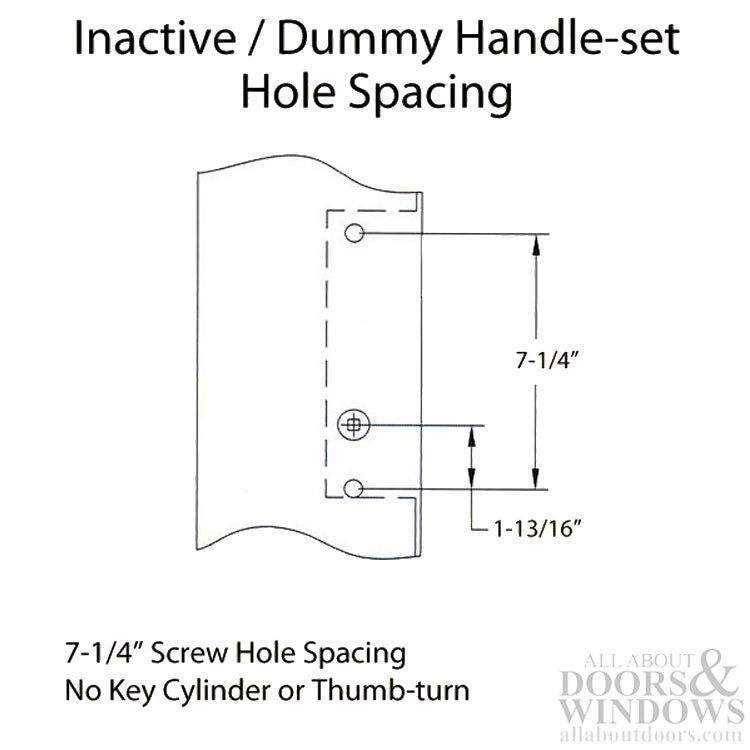

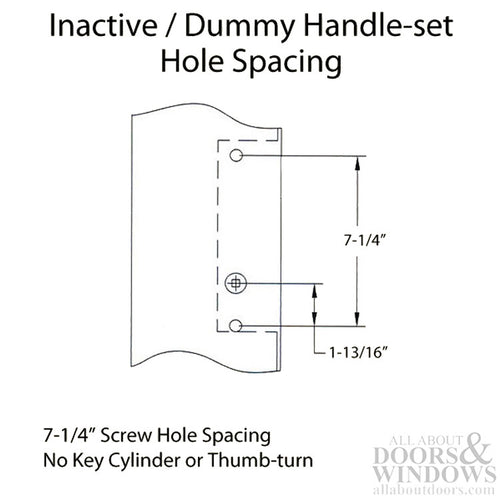

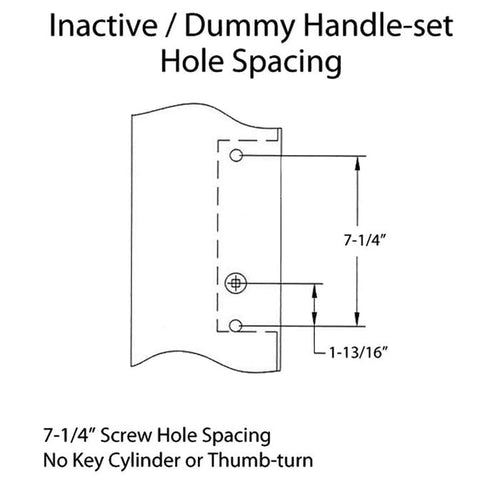

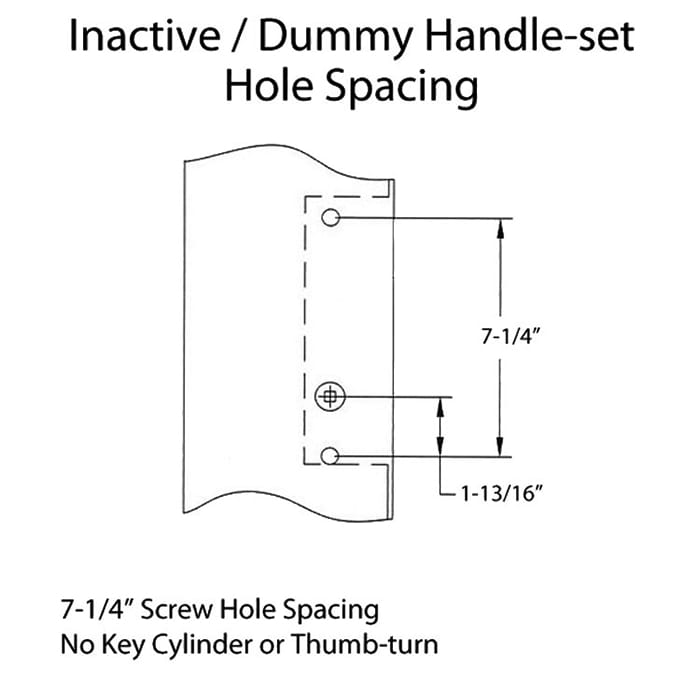

Screw Hole Spacing: 7-1/4 inch
Construction Material: Zinc
Spindle: 5/16 inch Square
Spindle Length: 4-5/16 inch
Color / Finishes: White

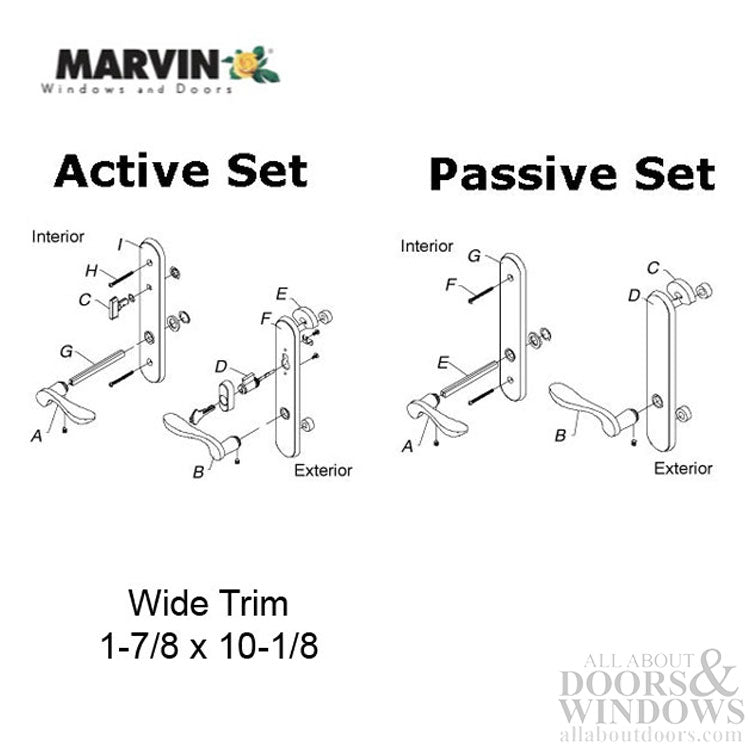

Available Functions:
Active: Keyed on exterior, Thumb turn on interior
Inactive: Levers move so they can operate an inactive lock, No Thumb Turn
Dummy: Levers do not move, they are fixed and can not operate lock.

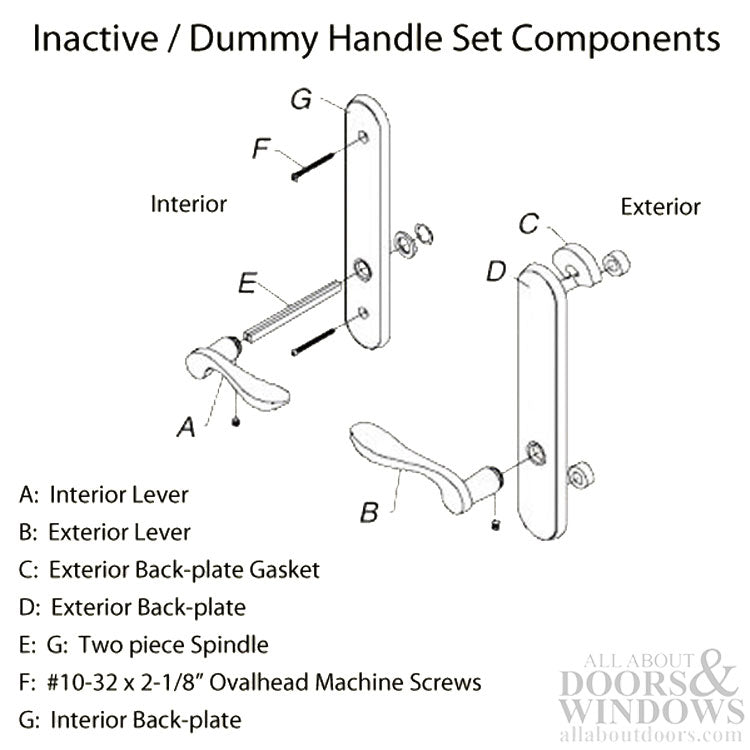

The inactive is converted to dummy when required, by adding a fixing plate to levers ( included with Package)
Priced and sold as a package.
